TFT Touch Screen 4.3 inch LCD Display 480(RGB) x272

Product Introduction

DESCRIPTION

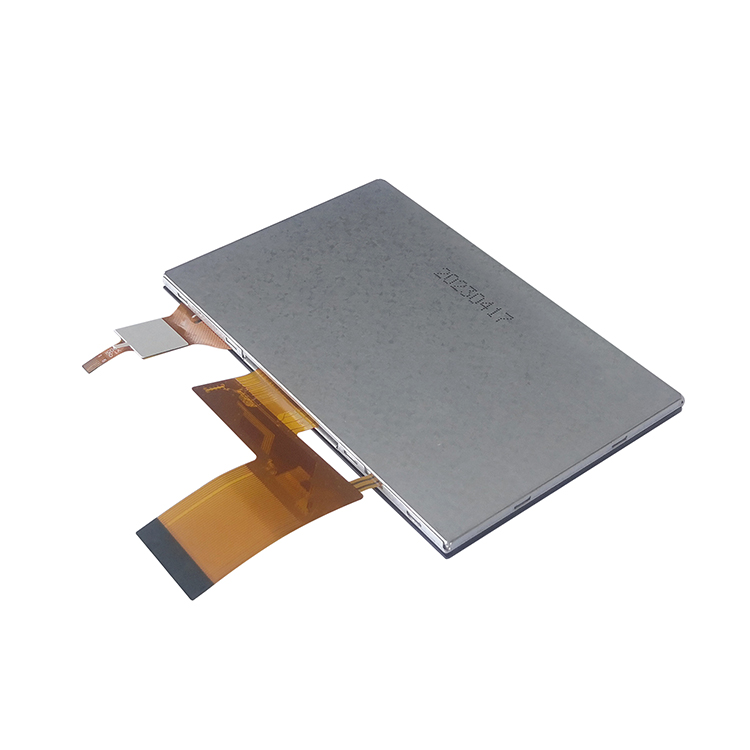

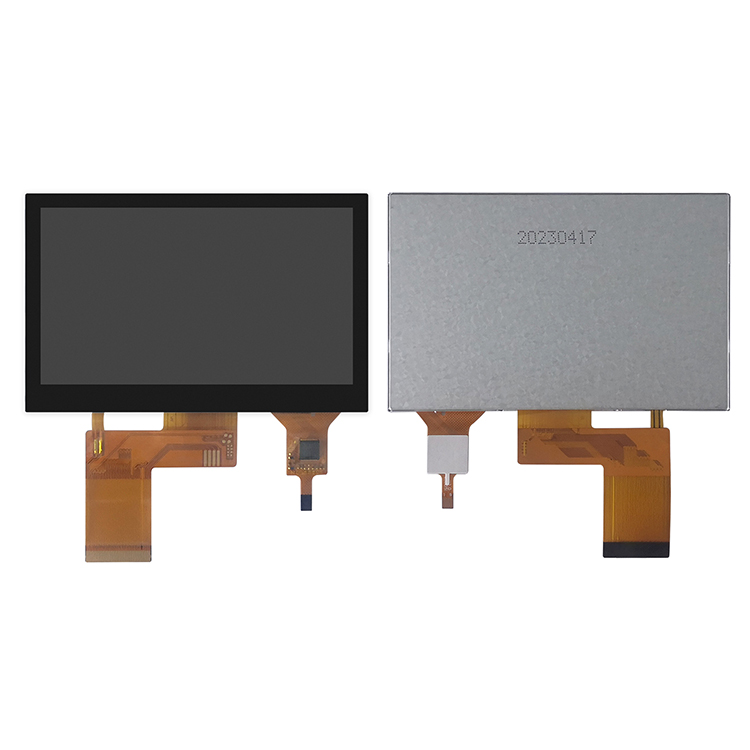

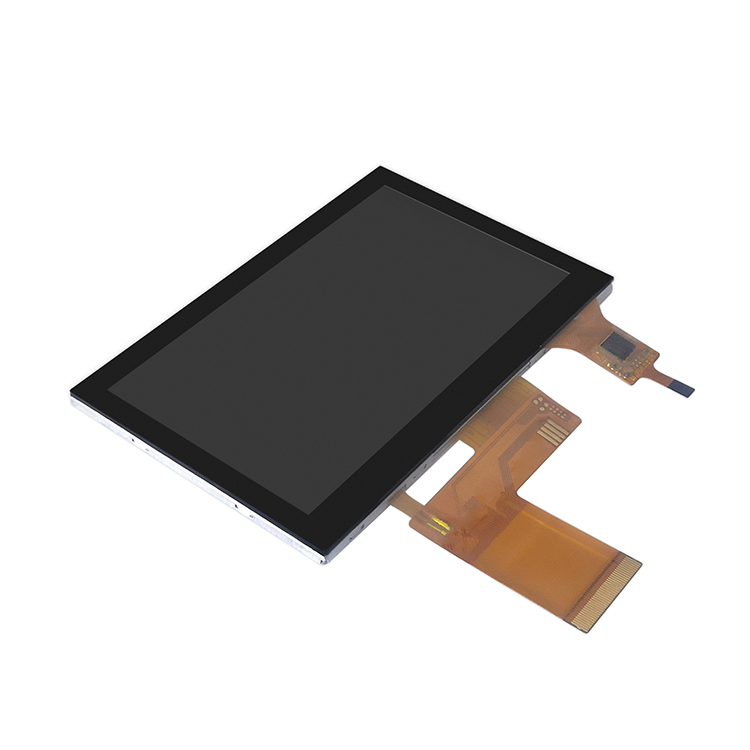

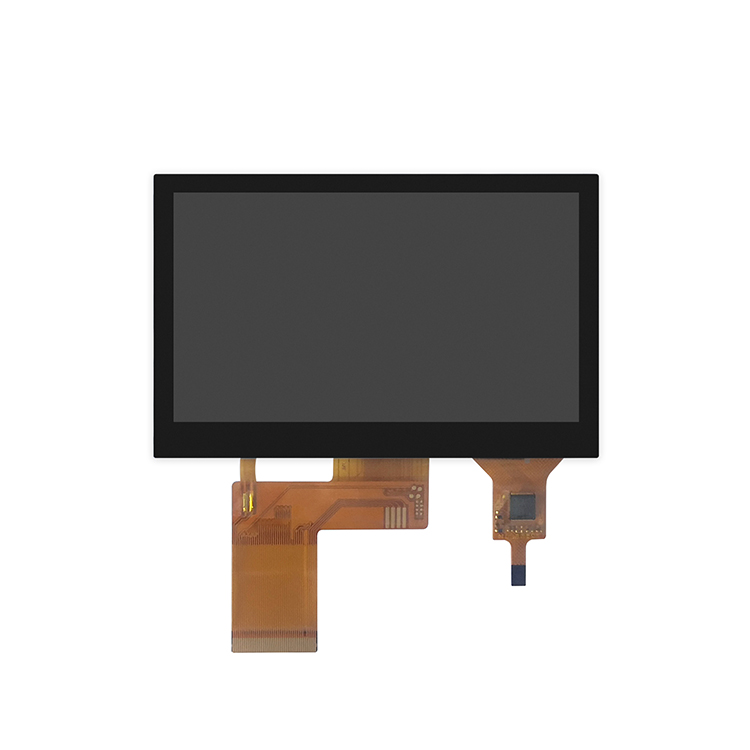

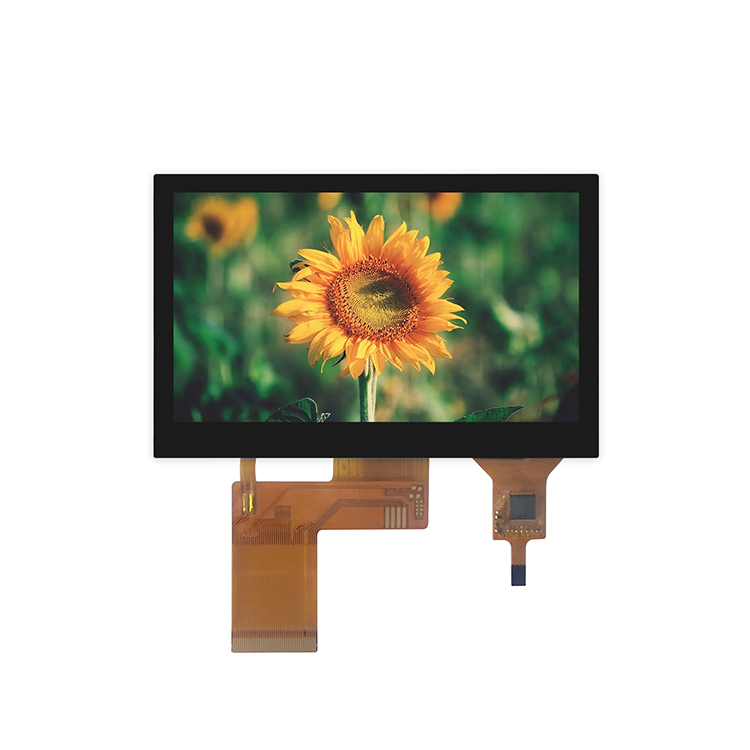

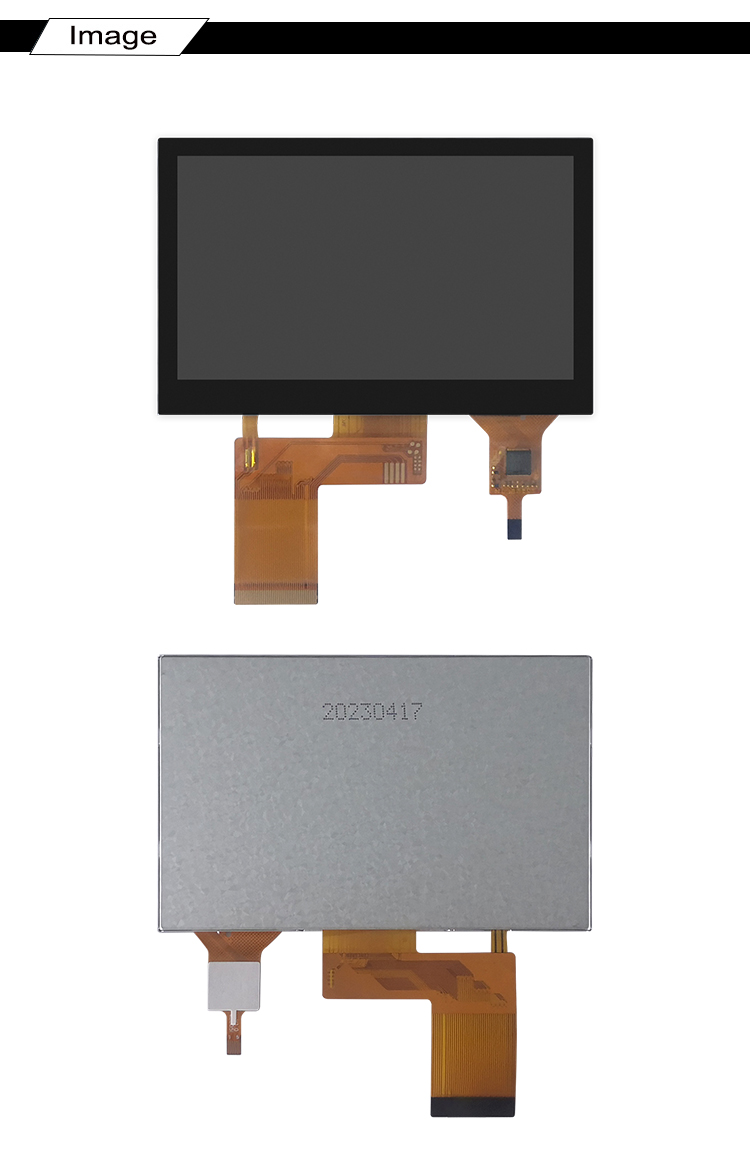

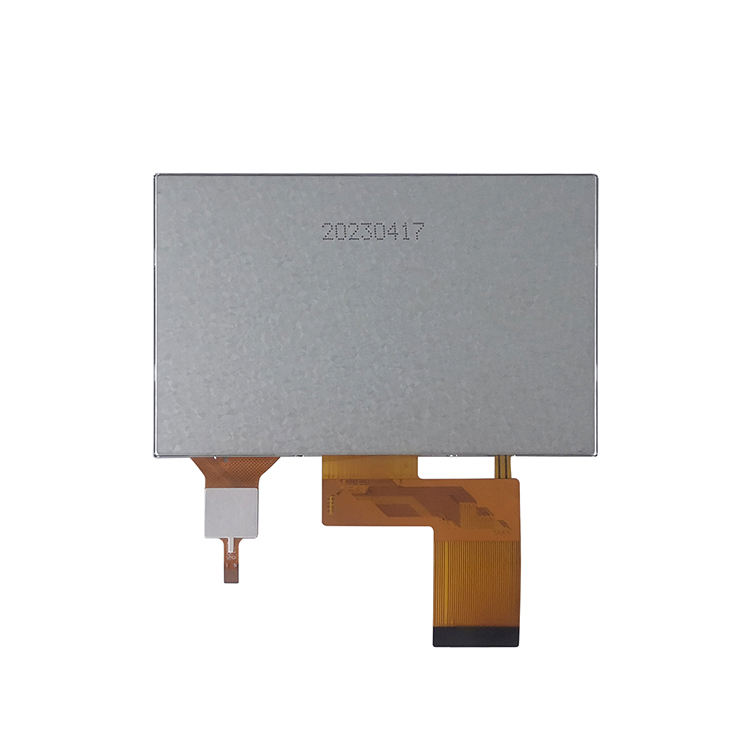

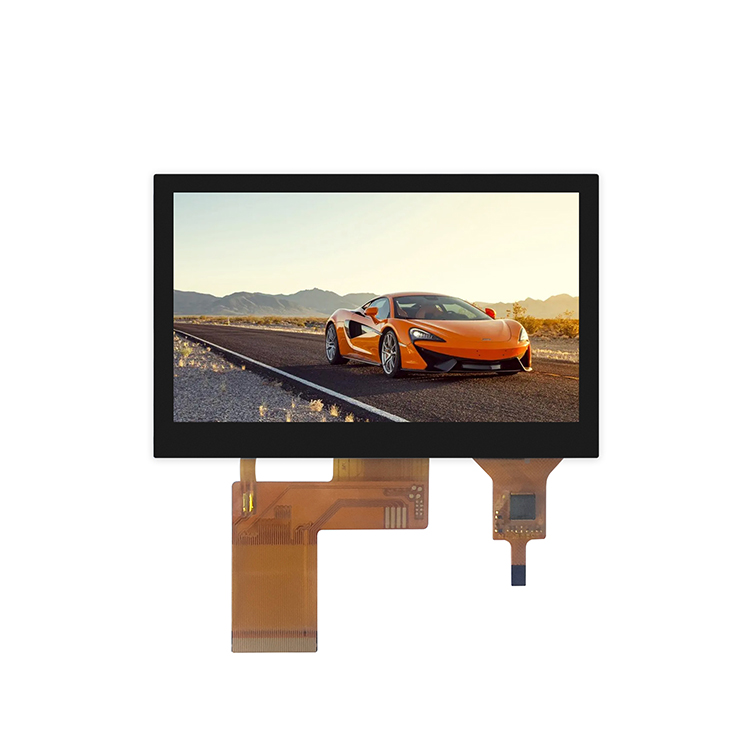

HICENDA HT43CRWi-V2 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It iscomposed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 480X272 pixels .This product accords with RoHS environmentalcriterion.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT43CRWi-V2
Diagonal Screen size:	4.3 inch

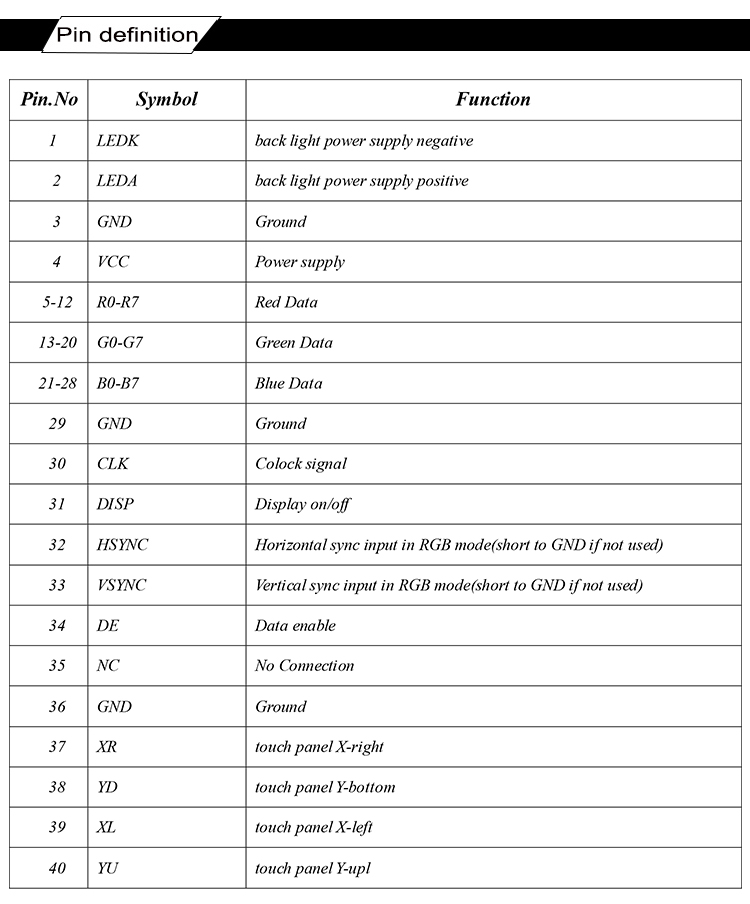

Interface:	Parallel RGB 24-Bit
Backlight::	7chips white LEDS, Serial
Number of Pixels:	480(RGB) x272

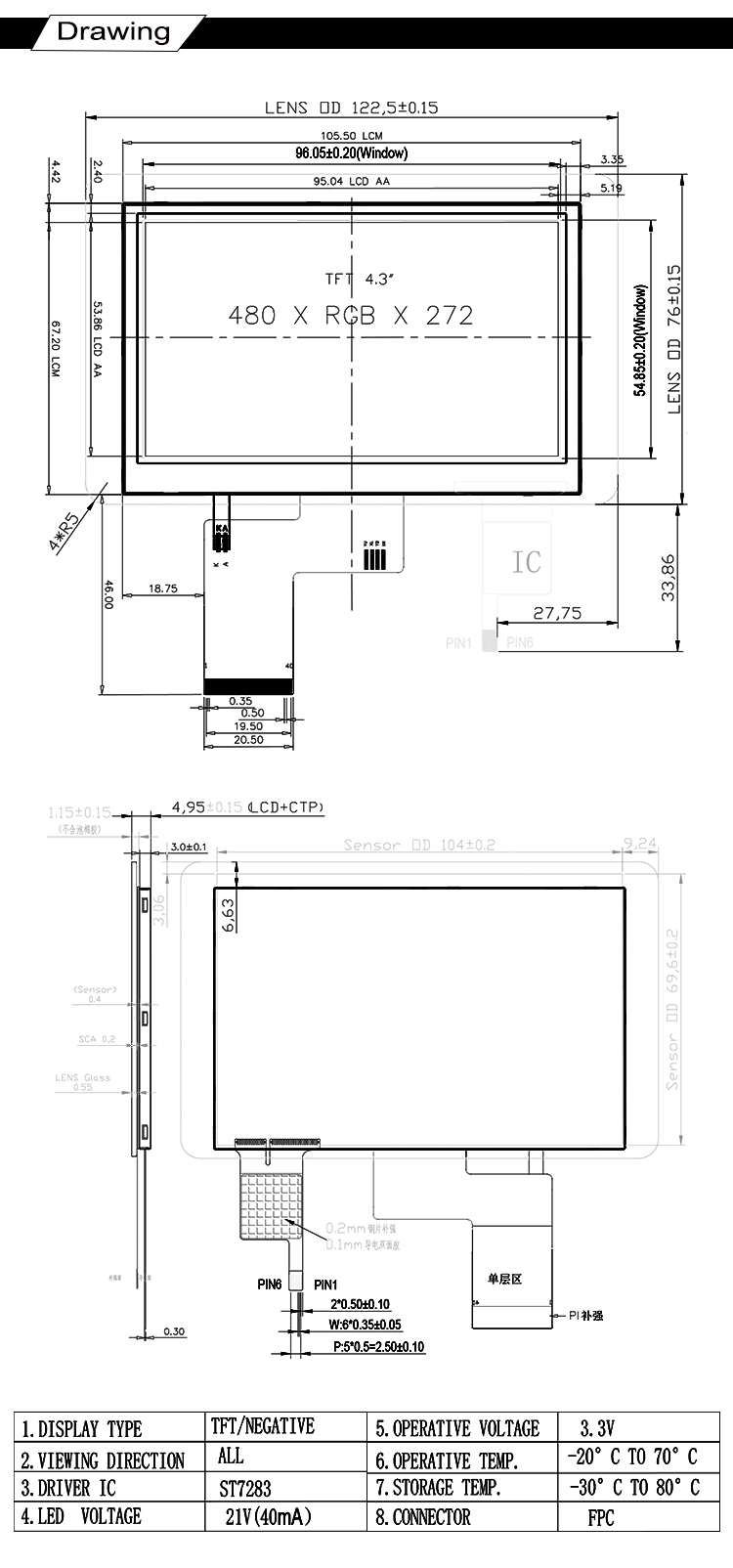

Panel Size:	105.40x67.10x2.9 (mm)
Driver IC:	ST7283
Active Area:	95.04x53.856(mm)
Display Mode::	Normally white/Transmissive
Operating Temperature:	-20~70°
Weight:	TBD
Storage temperature	-30~80°
