Product Introduction
Product Description
The 0.39-inch 1024x768 Micro OLED Display Module is an ultra-compact, high-resolution microdisplay designed for tactical thermal scopes, night vision optics, electronic viewfinders (EVF), and augmented reality (AR) systems. Weighing just 1g, this display delivers exceptional optical clarity while minimizing overall device payload.
Available in Full Color as well as high-luminance Monochrome White, Green, and Red versions, this display achieves impressive brightness levels up to 10,000 cd/m² in monochrome modes. With support for a high refresh rate up to 120Hz, built-in PWM dimming, I2C control, and H/V image mirroring, it ensures seamless adaptability in outdoor, industrial, and tactical applications.

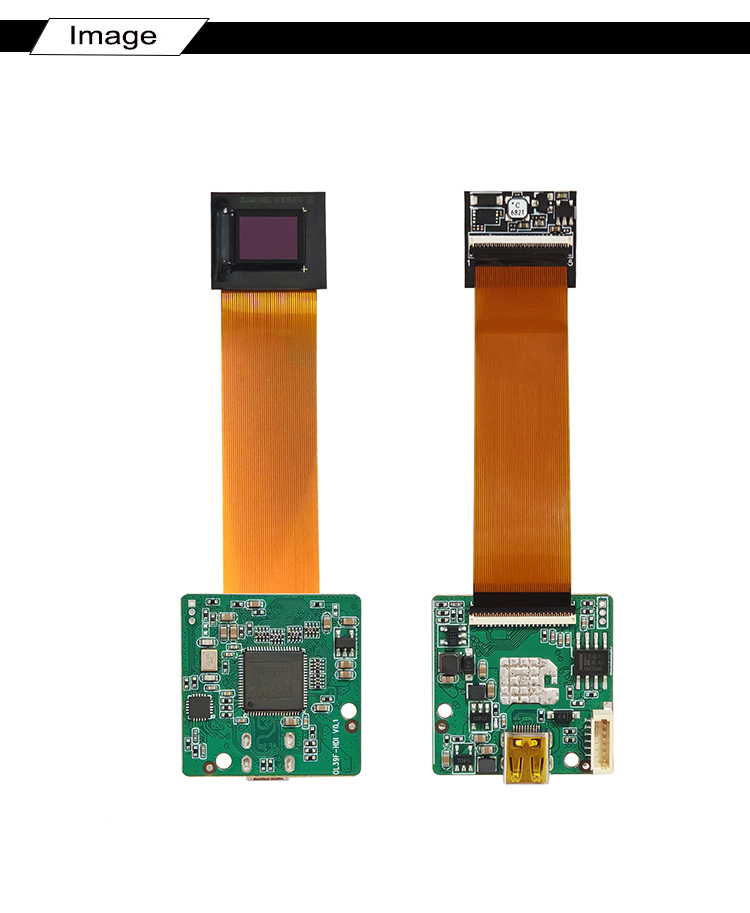

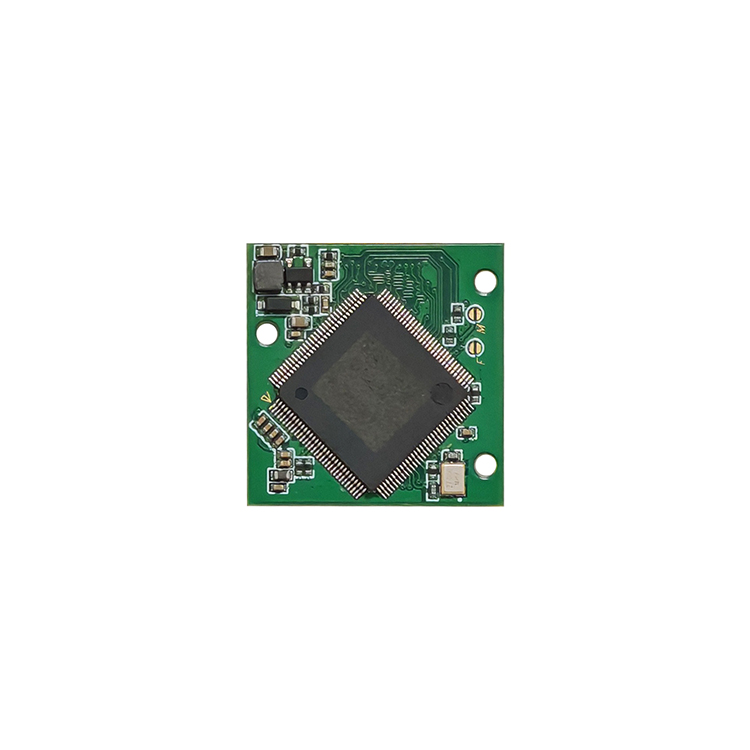

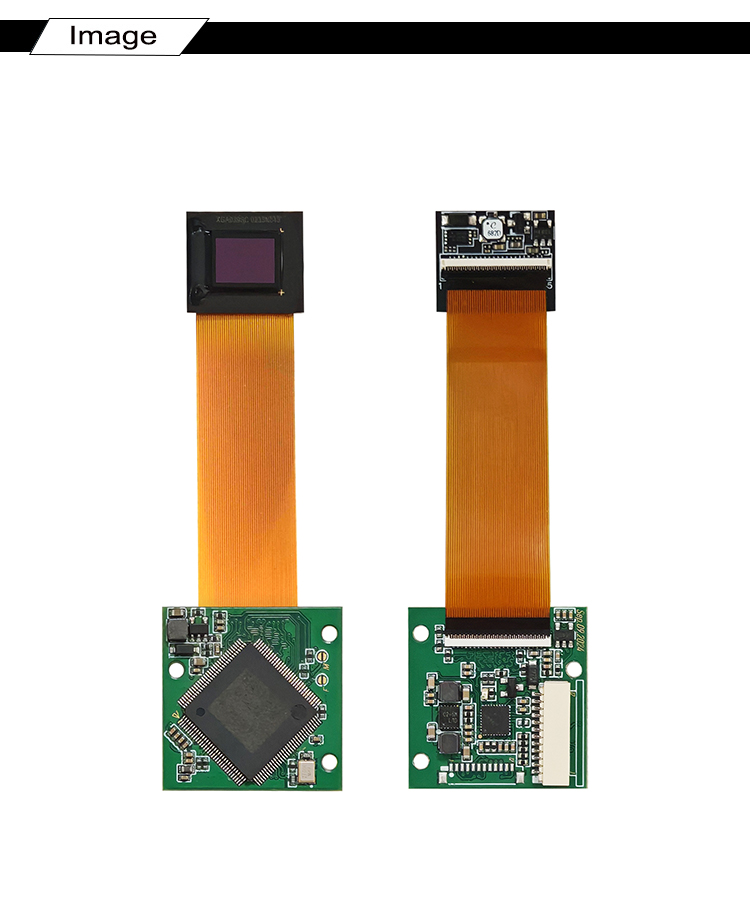

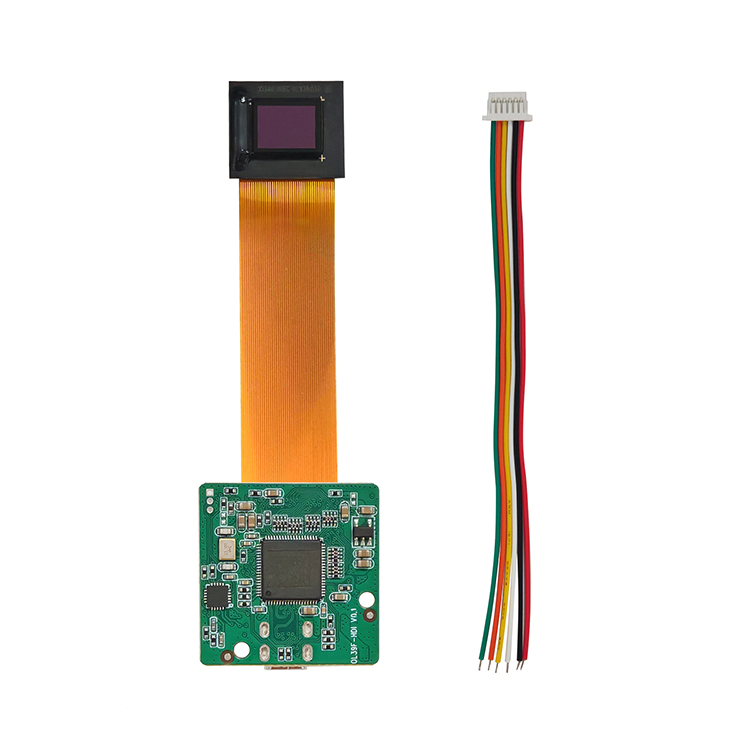

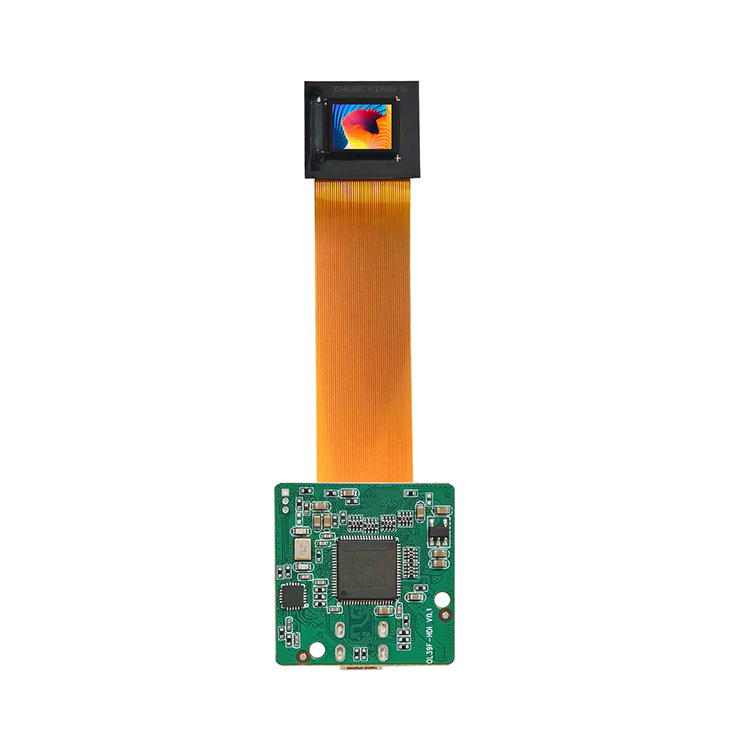

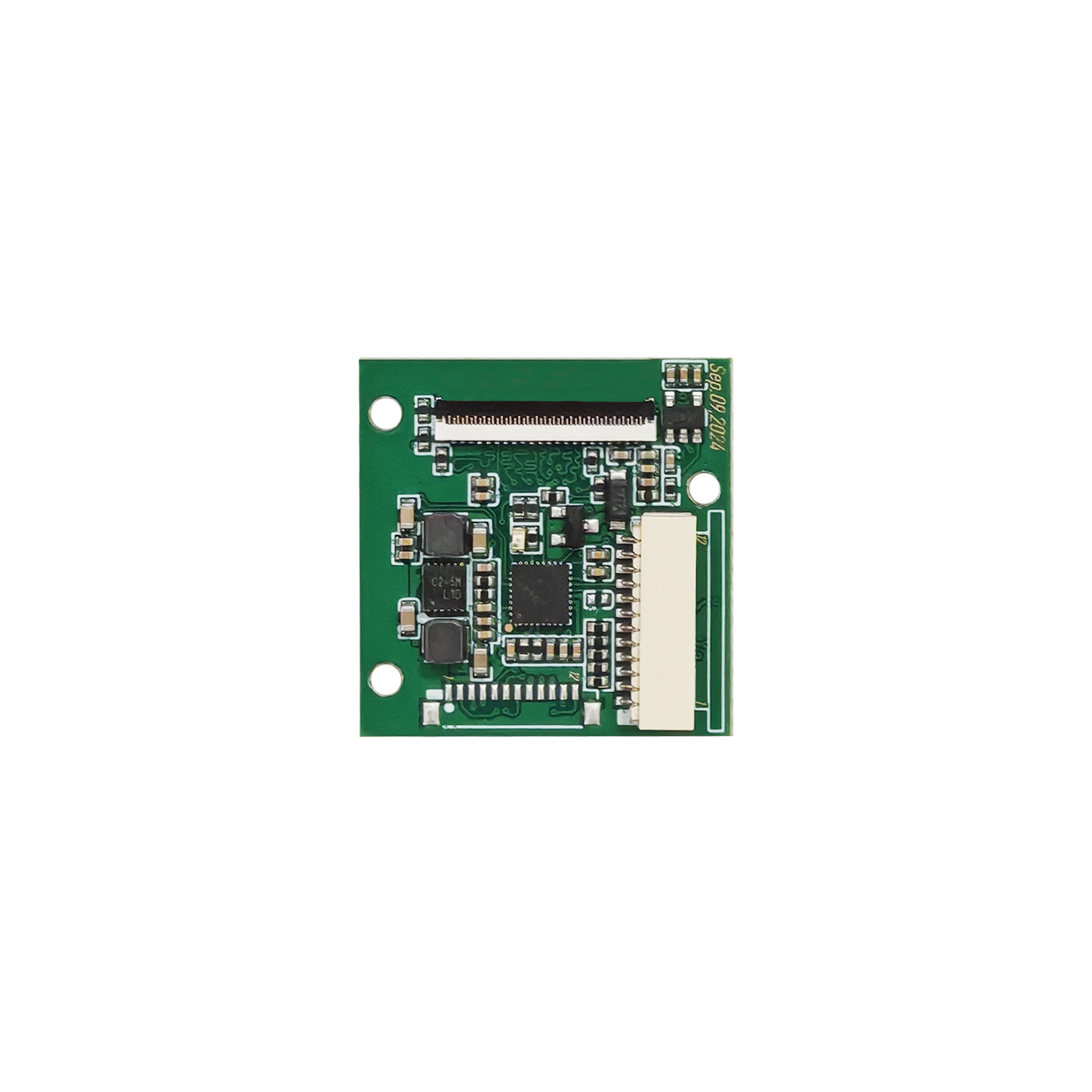

To streamline product prototyping, plug-and-play HDMI and CVBS driver board options are provided for quick system evaluation.
General Specification
Item
Parameter Details
Model No.
LXR039XGA
Display Type
Full Color / Monochrome White / Monochrome Green / Monochrome Red
Resolution
1024 × 768 (Active Pixels: 1040 × 784, XGA)
Pixel Size
7.8 μm × 7.8 μm
Pixel Array
RGB Vertical Stripe
Active / View Area
8.1325 mm × 6.1779 mm (0.393" Diagonal)
Module Outline Dimension
16.6 mm × 14.2 mm × 3.3 mm
Operating Voltage (Power Supply)
Digit Core: DC 1.8V @ Max 15mA / OLED Array: DC 5.0V @ Max 150mA
Gray Level
256 Levels (Lv.256)
Video Interface
24-bit RGB / 24-bit or 16-bit YCbCr / 8-bit Mono
Frame Refresh Rate
25 Hz ~ 120 Hz
Contrast Ratio
> 10,000 : 1
Luminance Uniformity
> 90%
Typical Luminance
Full Color: 500 cd/m² | Mono White: 500 cd/m² | Mono Green: 10,000 cd/m² | Mono Red: 10,000 cd/m²
Chromaticity Coordinate (CIE x, y)
Full Color / Mono White: CIE-x: 0.31±0.05, CIE-y: 0.33±0.05 | Mono Green: CIE-x: 0.21±0.05, CIE-y: 0.70±0.05 | Mono Red: CIE-x: 0.63±0.05, CIE-y: 0.33±0.05
Lifetime
20,000 Hours
Operating Temperature
-40°C to +65°C
Storage Temperature
-55°C to +90°C
Net Weight
1g
|
|
|
|---|
Key Features
- Multi-Color Options: Available in Full Color (RGB) and High-Luminance Monochrome variants (White, Green, and Red) to suit different optical environments.
- Extreme Luminance Performance: Offers up to 10,000 cd/m² high brightness (Green & Red monochrome) and 500 cd/m² (Color & White) with >90% uniformity and >10,000:1 contrast ratio.
- Ultra-Fast 120Hz Refresh Rate: Supports a wide dynamic refresh rate from 25Hz to 120Hz, delivering smooth video playback without motion blur.
- Ultra-Lightweight & Compact: Weighs only 1g with micro structure dimensions of 16.6mm × 14.2mm × 3.3mm, ideal for weight-sensitive head-mounted devices.
- Comprehensive Signal & Interface Support: Compatible with 24-bit RGB, 24/16-bit YCbCr, and 8-bit Mono inputs, featuring built-in I2C protocol, PWM dimming, adaptive brightness, and image mirroring.

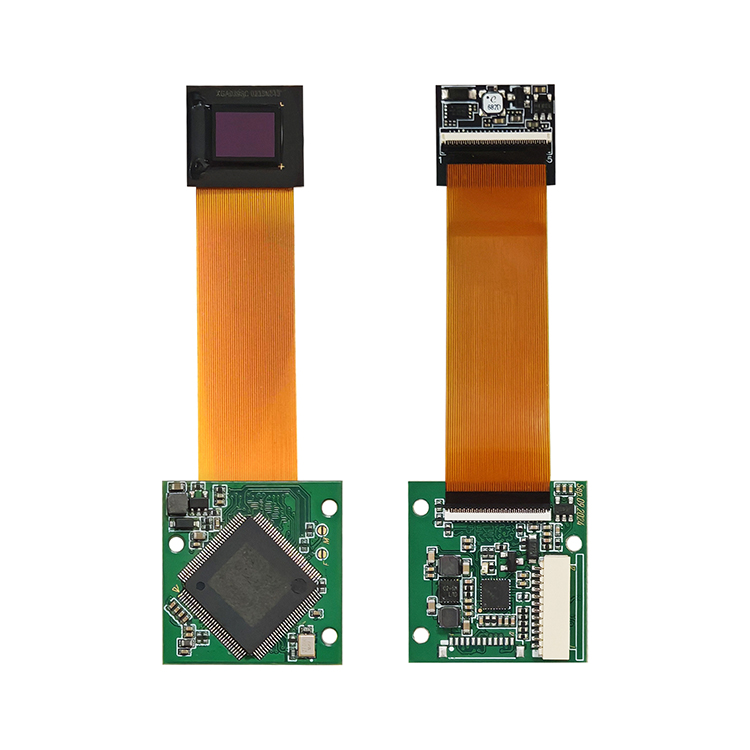

- Turnkey Driver Board Kits: Ready-to-use HDMI and CVBS driver boards for fast hardware integration and evaluation.

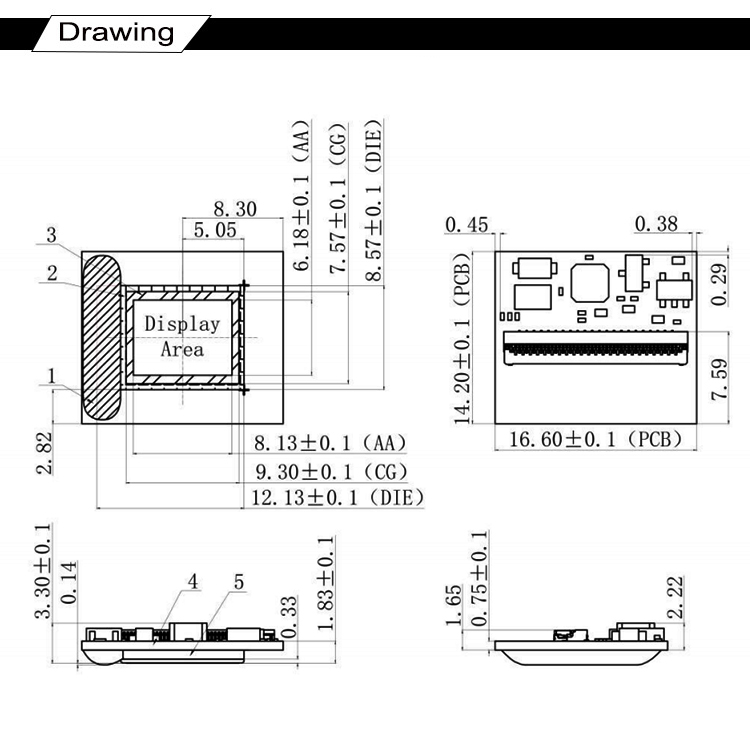

DRAWING

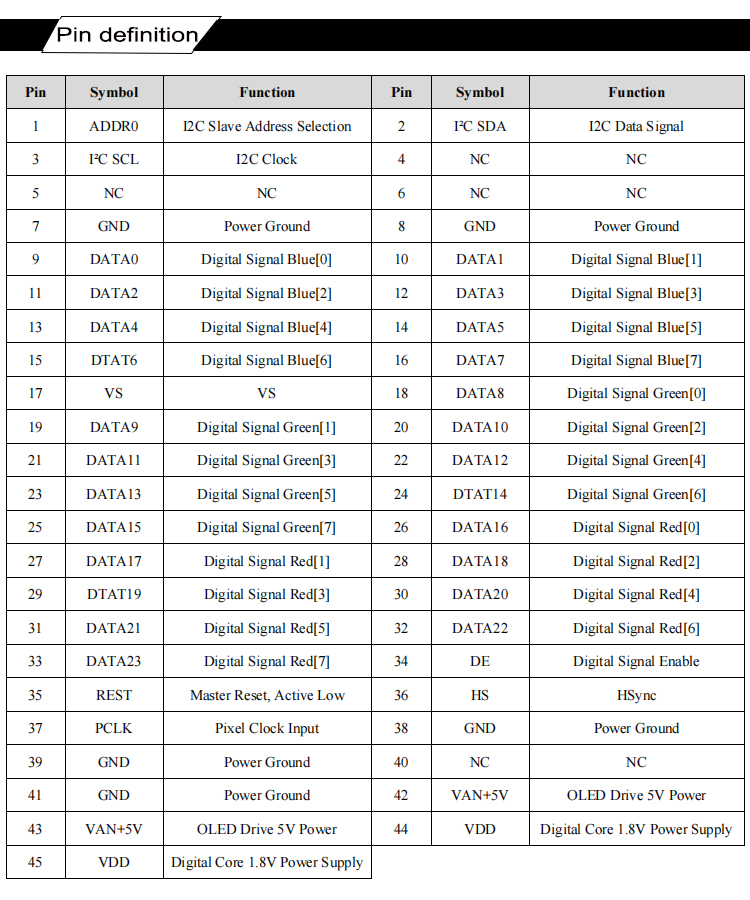

INTERFACE PIN FUNCTION
Main Applications
- Tactical Thermal Imaging Sights & Night Vision Optics (Green/Red High Brightness)
- Electronic Viewfinders (EVF) for Cameras & Industrial Inspection
- Head-Mounted Displays (HMD) & Lightweight AR Glasses
- Portable Endoscopic & Wearable Optical Instruments
Ashley Wu
