Product Name

2.81 inch 256*64 OLED Panel Module with SSD1322 Driver 116 pin long FPC oled module

Product Properties

Display Mode :Passive Matrix—OLED&Yellow/Blue Interface :8-Bit 68XX/80XX Parallel、 SPI Drive Duty :1/64 Driver IC:SSD1322
Email Us To Inquiry
FacebookTwitterLinkedInAddThis

Product Introduction

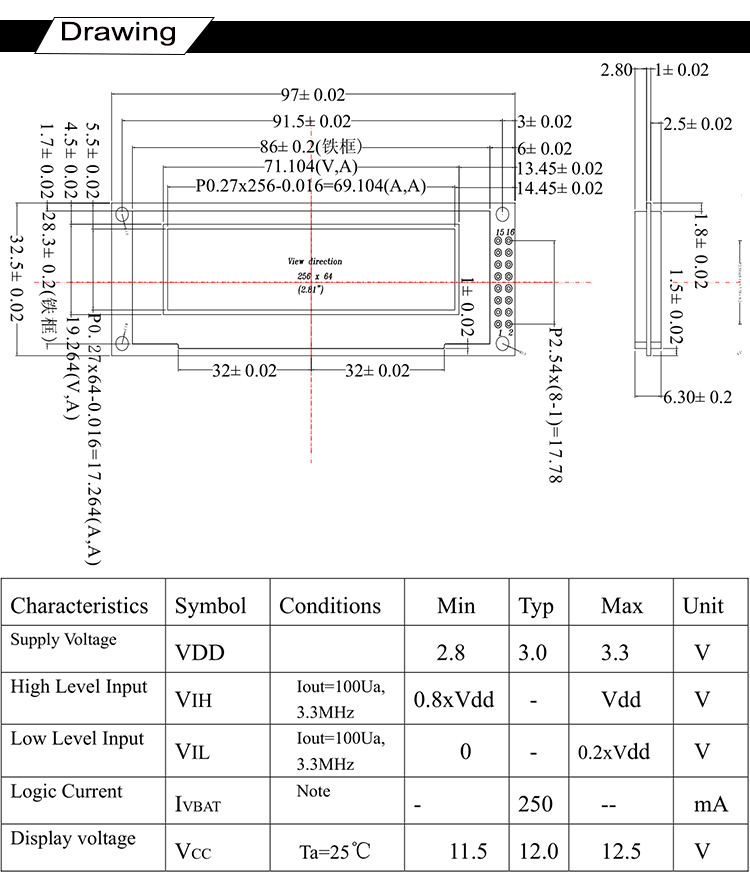

Mechanical Specifications

Diagonal Screen Size 0.81 inch
Color Monochrome
(white&yellow&blue)
Module Construction COG
Number of Pixels 256X64
Active Area 69.104X17.264mm

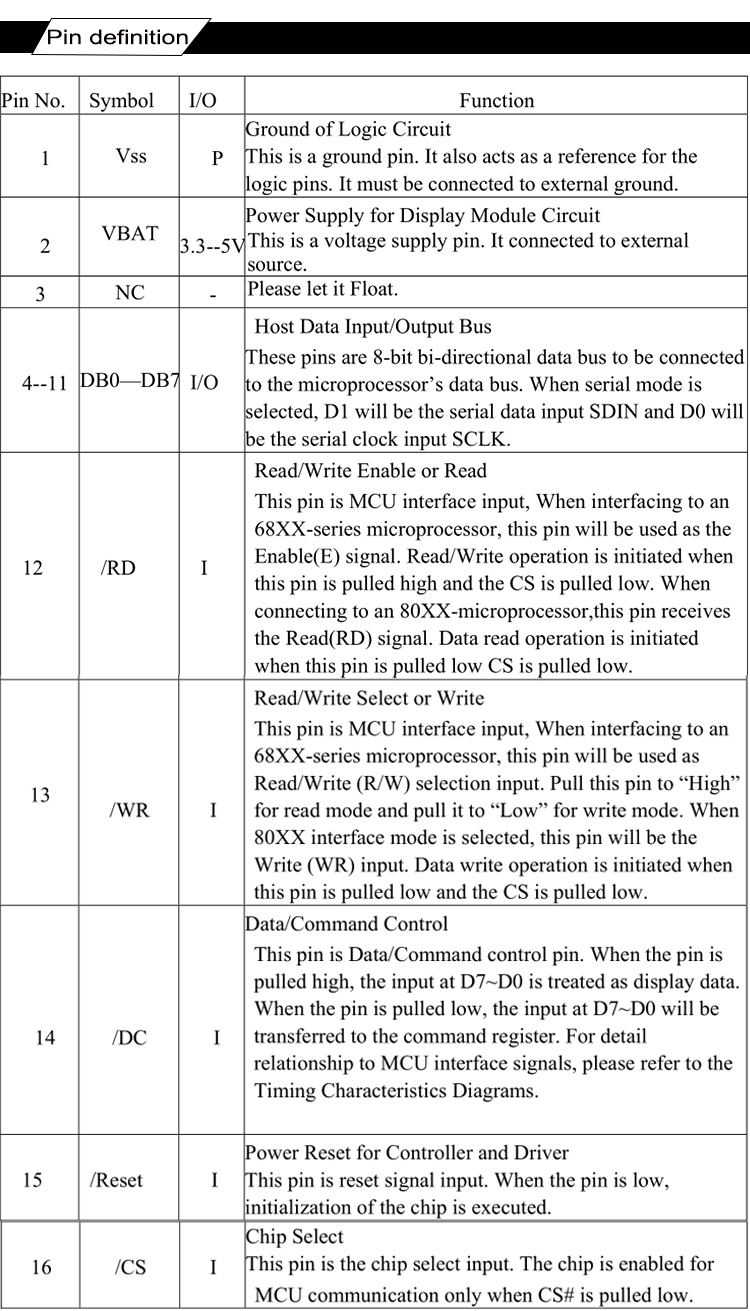

Pins 16
Drive IC SSD1322
Interface 8-Bit 68XX/80XX Parallel、 SPI
Pixel pitch 0.27X0.27mm
Assembly Soldering
