Product Name

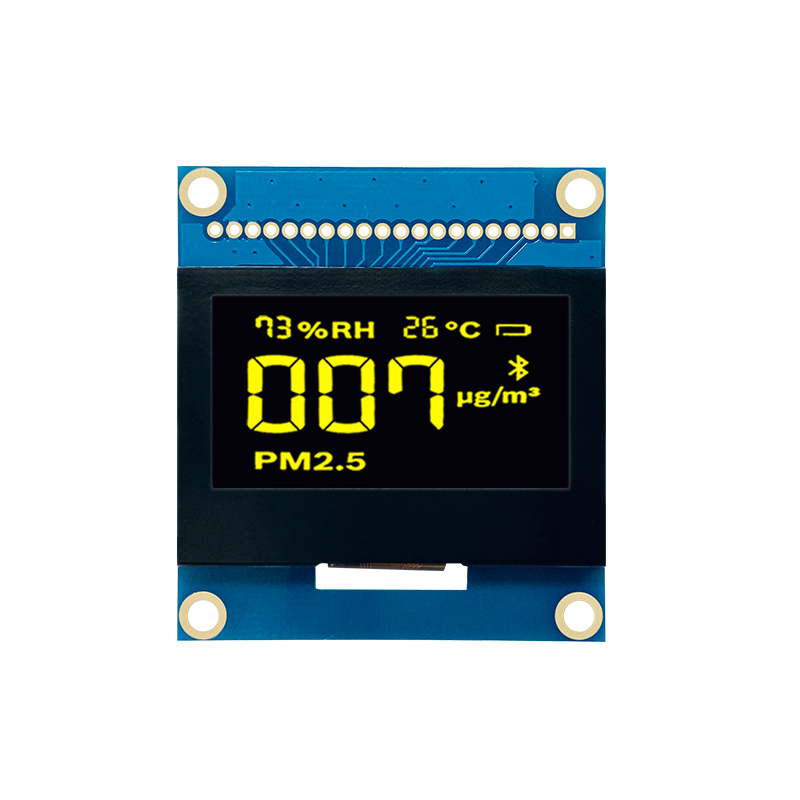

1.54 inch 20pin White OLED Screen Module SSD1305 Drive I2C Compatible with SPI OLED mintor

Product Properties

Size:1.54'' Resolution:128X64 dots Driver IC:SSD1305 - Font Color:YELLOW/WHITE/GREEN
Email Us To Inquiry
FacebookTwitterLinkedInAddThis

Product Introduction

Display Specifications

1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White/Yellow/Bule)
3) Drive Duty: 1/64 Duty

4) Wide viewing angel: >160 degree

5) Brightness: 150 cd/m2

6) Dark Room Contrast: >2000:1

7) Sleep Mode Current for VCC: 1uA
