Product Introduction

1. Display Specifications

1) Display Mode: Passive Matrix

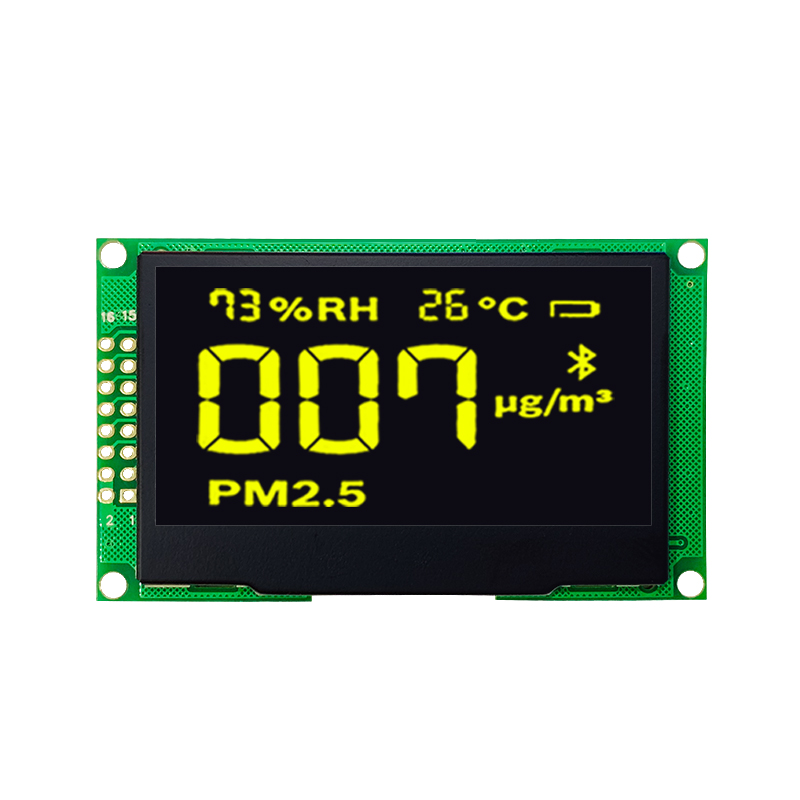

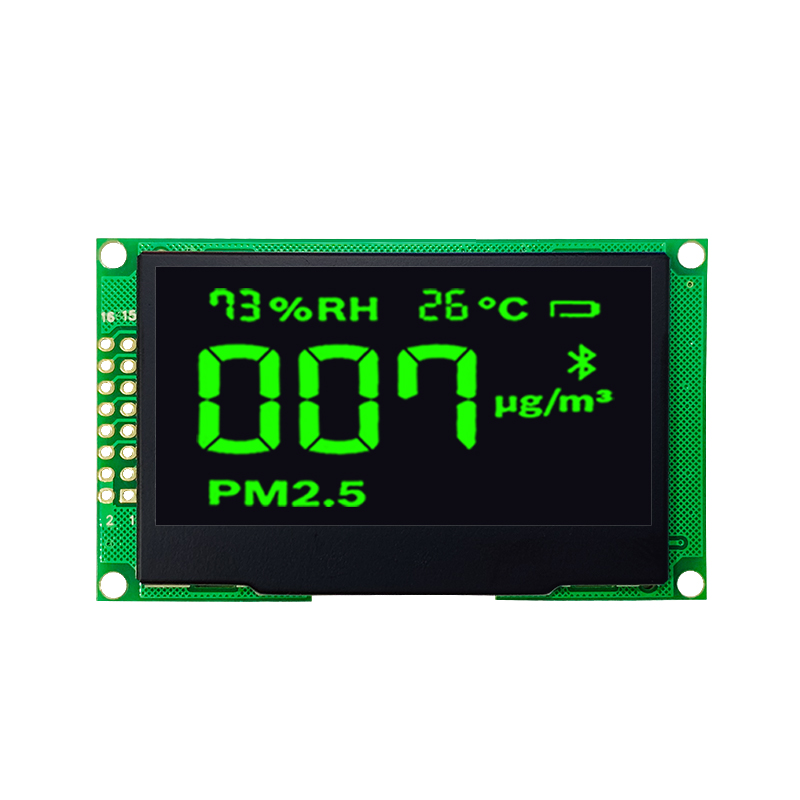

2) Display Color: Monochrome (YELLOW/WHITE/GREEN)
3) Drive Duty: 1/16 Duty

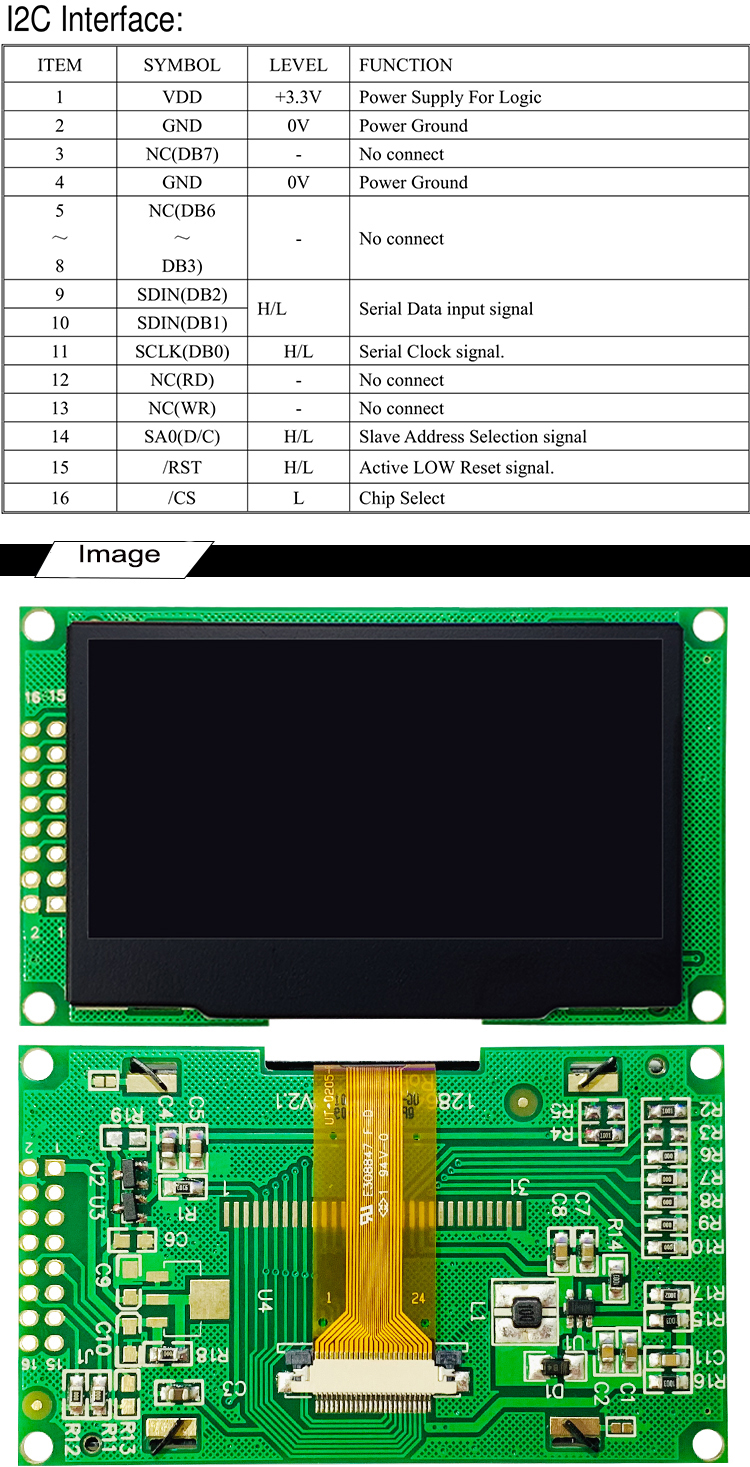

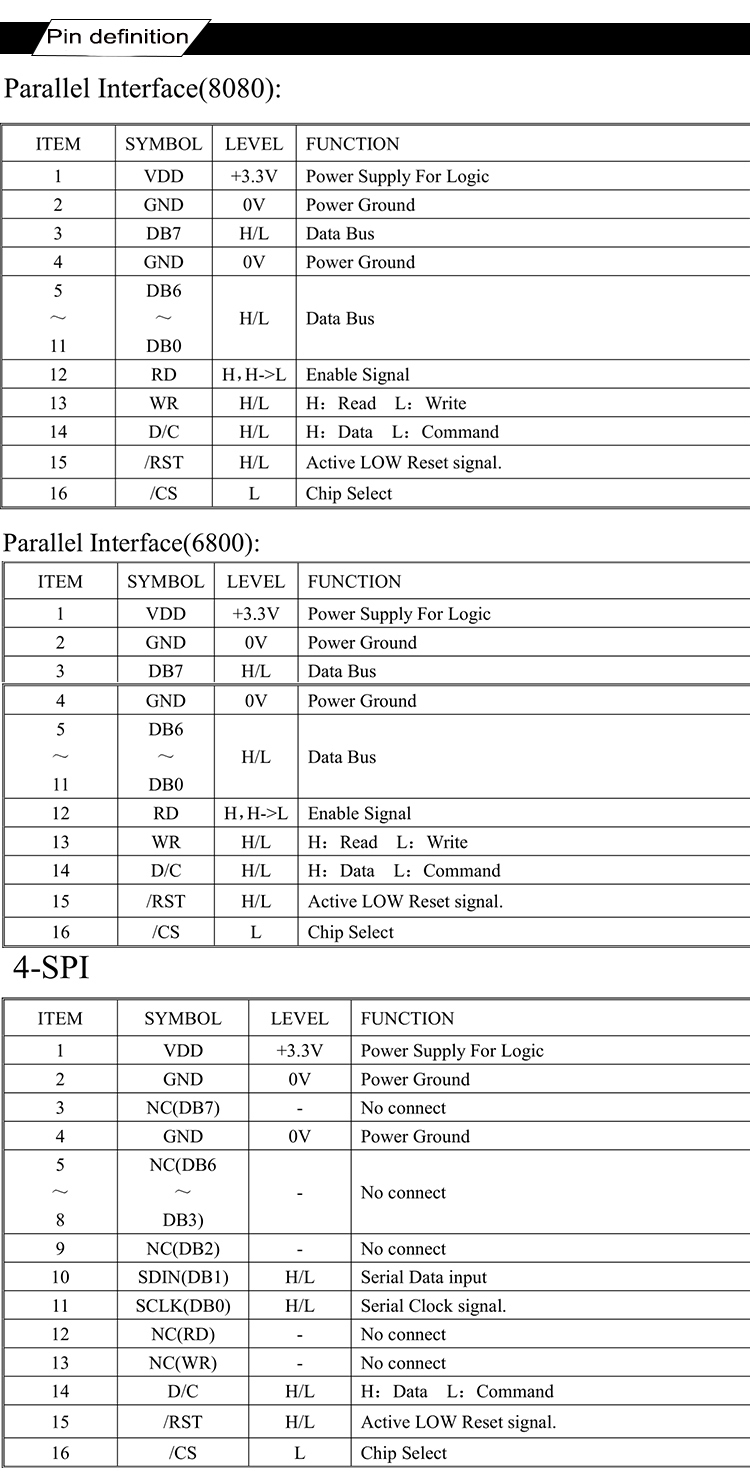

4）Interface:8-BIT 68XX/80XX Parallel,4-wire SPI,I2C

2. Mechanical Specifications
1) Number of Pixels: 128*64

2) Module Size:72.1(W) x 42.8(H) x 5.9(T)(mm)
3) Active Area: 57(W) × 29.5(H) (mm)
4) Pixel Pitch: 0.39 × 0.39 (mm)
5) Pixel Size: 0.43 × 0.43(mm)

6) Weight: 0.55(g)

7)Operatin Voltage:2.4V~3.6V

8)Storage Temperature:-40℃~+90℃
