Product Introduction

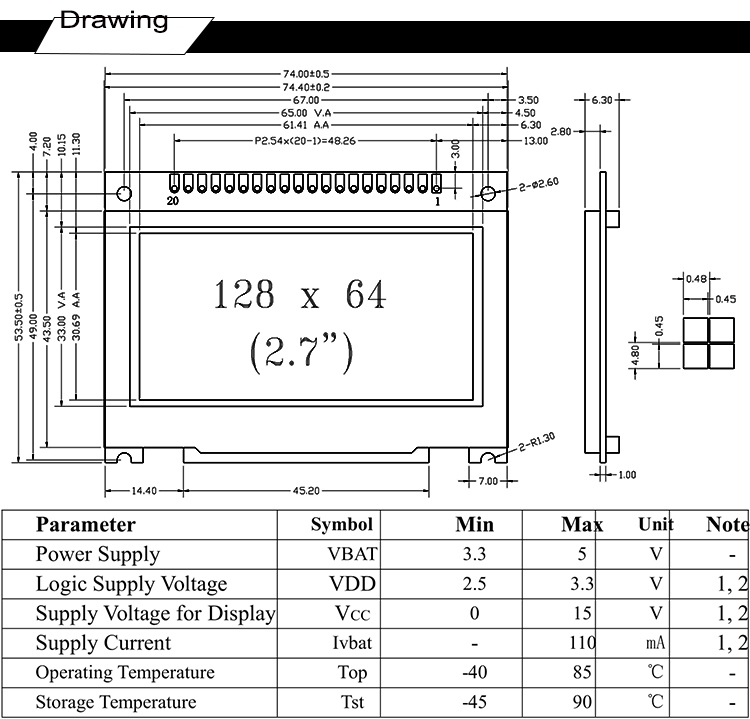

Mechanical Specifications

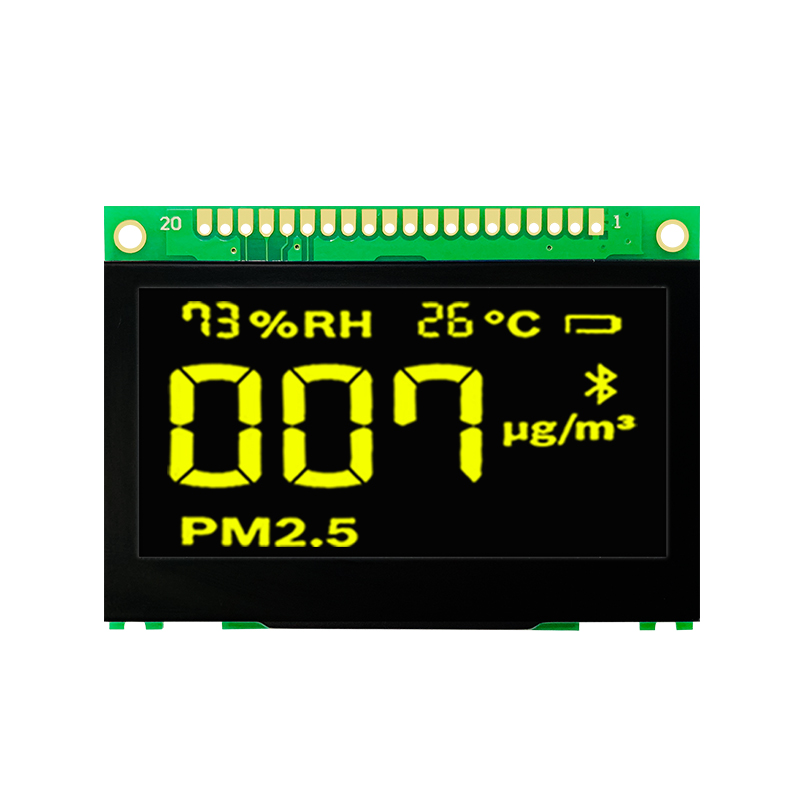

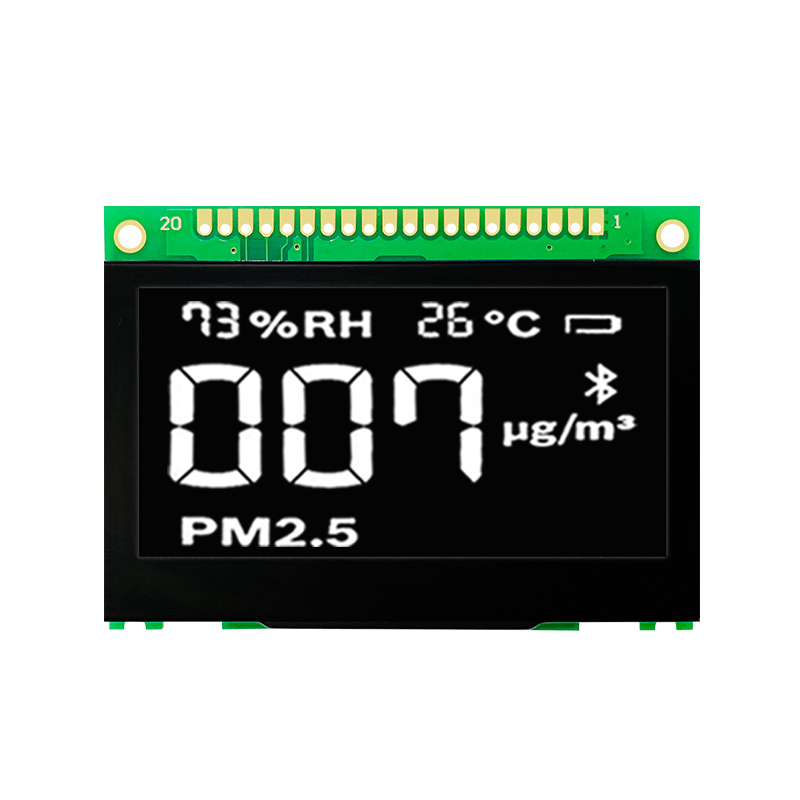

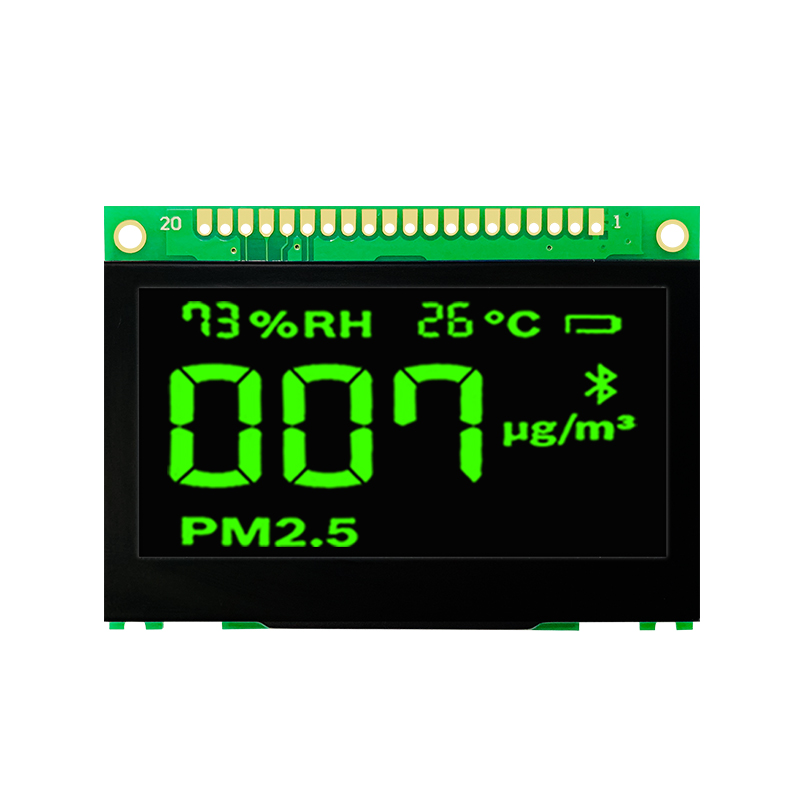

| Color | White&Yellow&Green |
| Panel matrix |
128X64 dots |
| Driver IC | SSD1325 |
| Extremely thin thickness for best mechanism design | 1.227mm |
| High contrast | 2000:1 |
| Wide viewing angle | 160° |

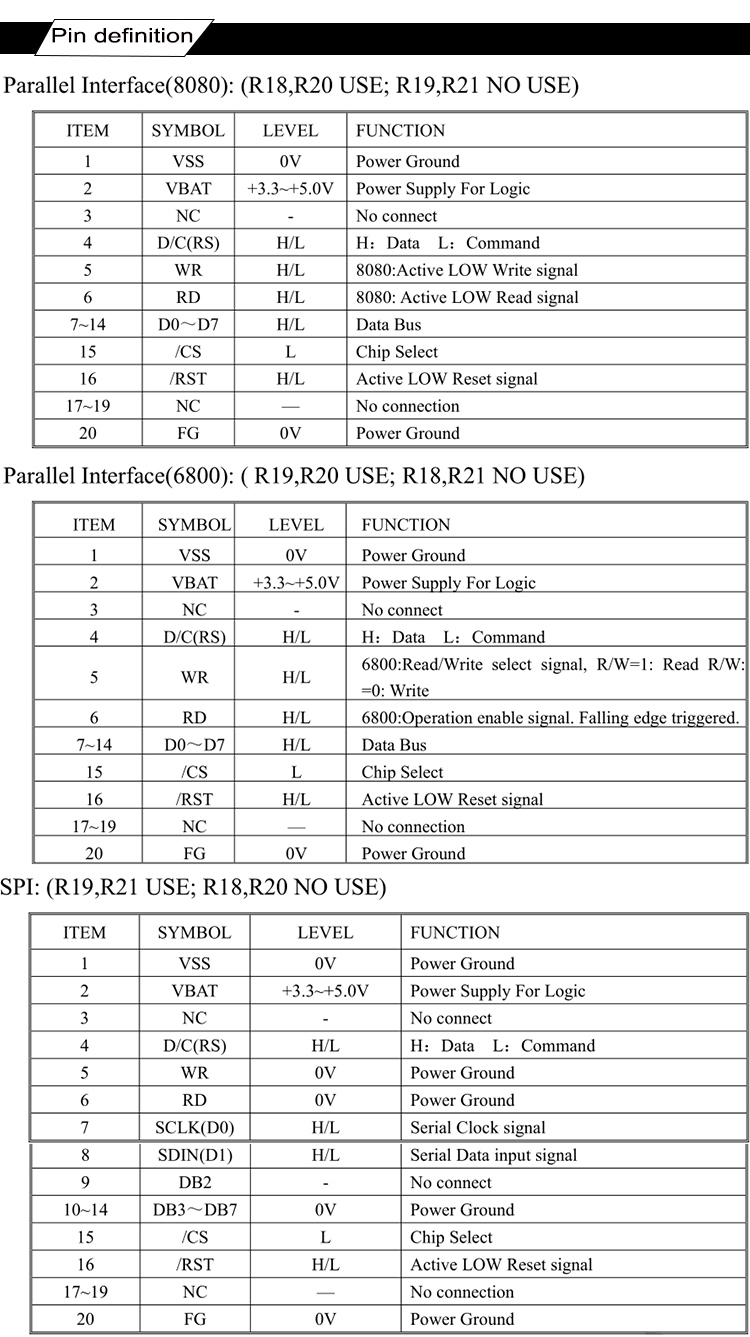

| Interface | 8-BIT 68XX/80XX Parallel, SPI |
| Wide range of operating temperature | -40 to +85 °C |
| Dot Size | 0.45 (W) x 0.45(H) |
| Dot Pitch | 0.48 (W) x 0.48 (H) |
| Aperture Rate | 80 |
| Active Area | 65(W) x 33(H) |
| Module Size: | 26.3 (W) x 8 (H) |
| Panel Thickness | 1.02 ± 0.1 |
| Module Size | 85.0L×58.0W×6.3H |
| Diagonal A/A size | 0.69 |
| Module Weight | 0.55 ± 10% |
