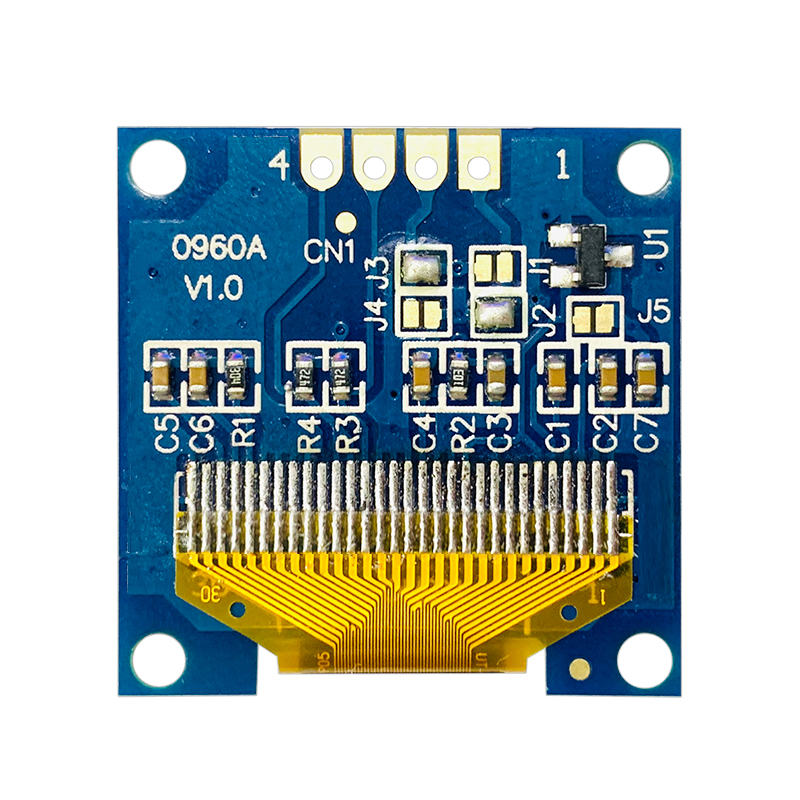

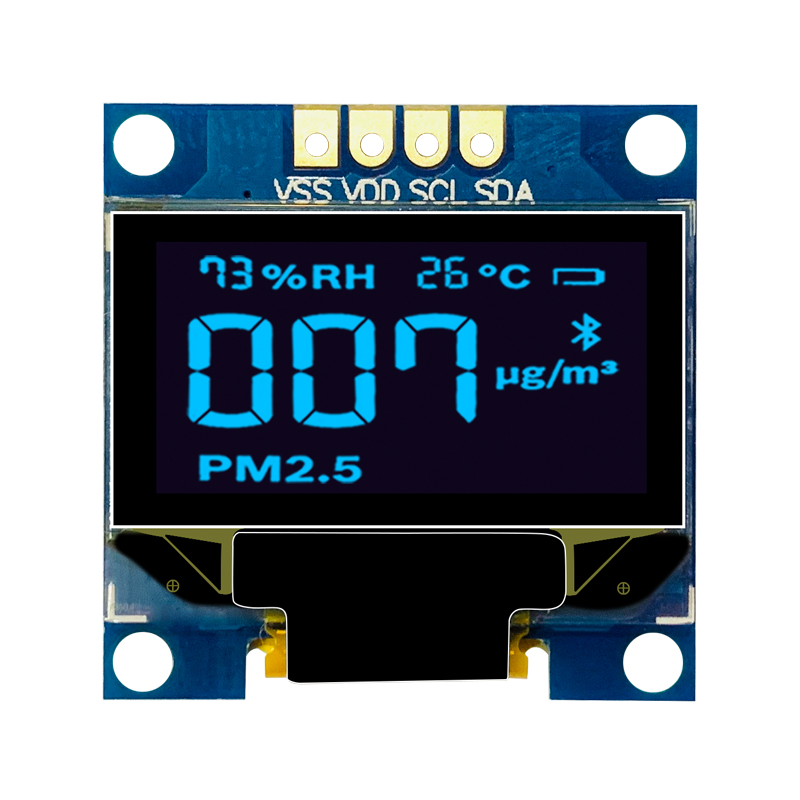

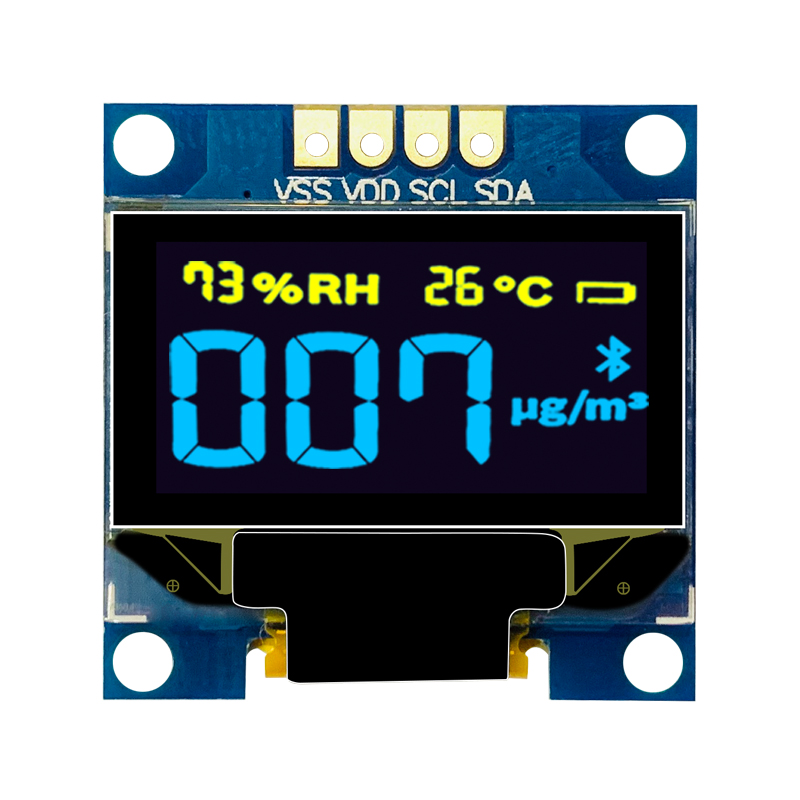

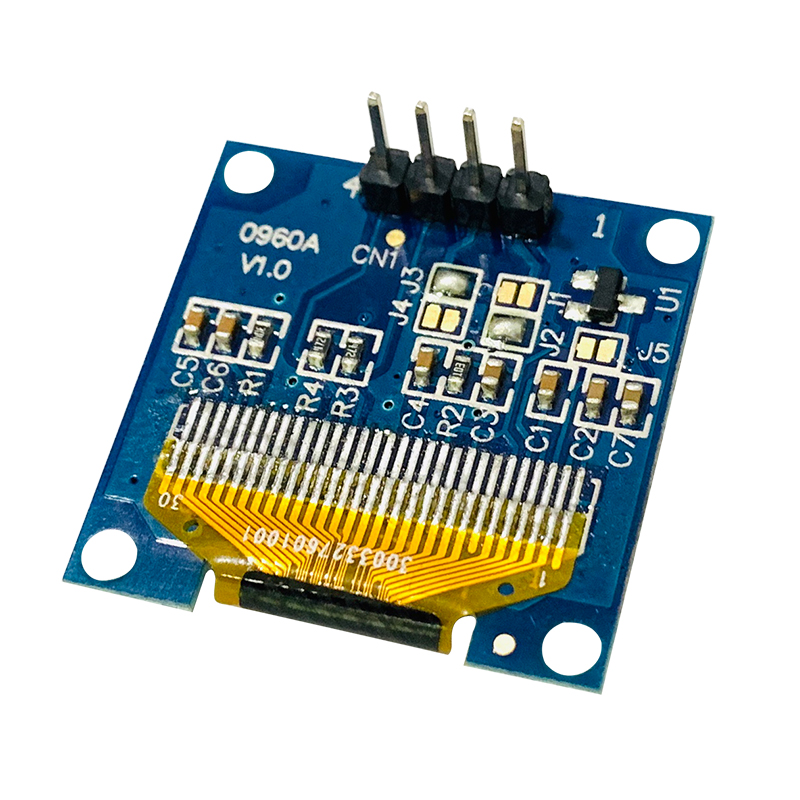

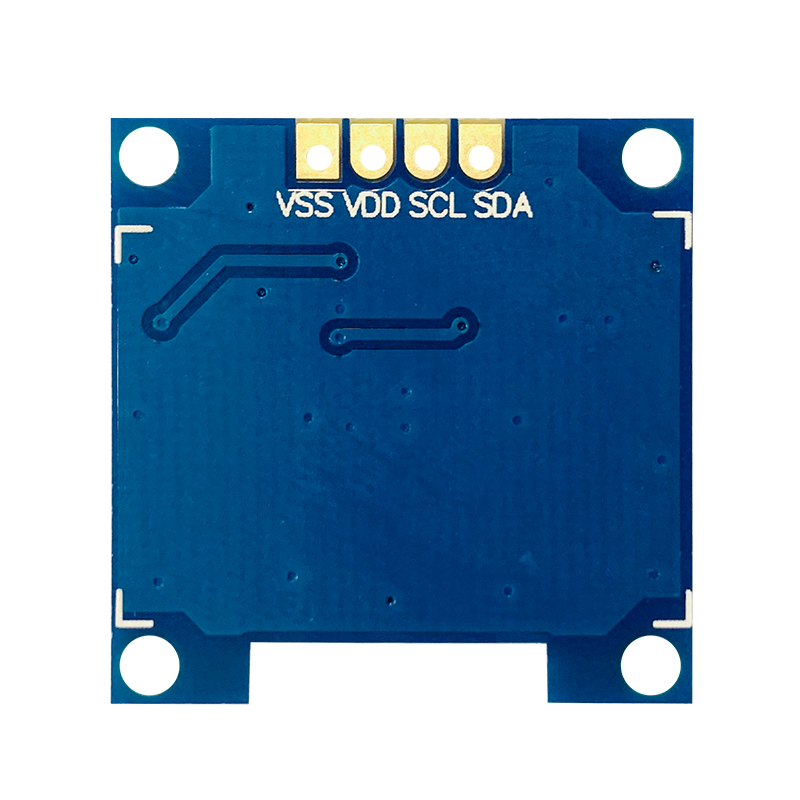

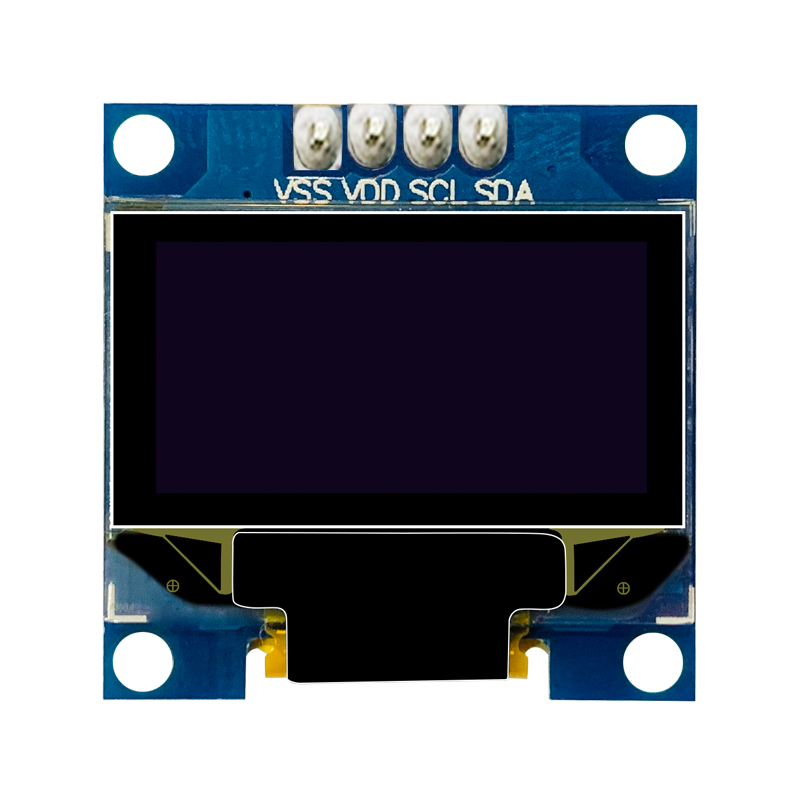

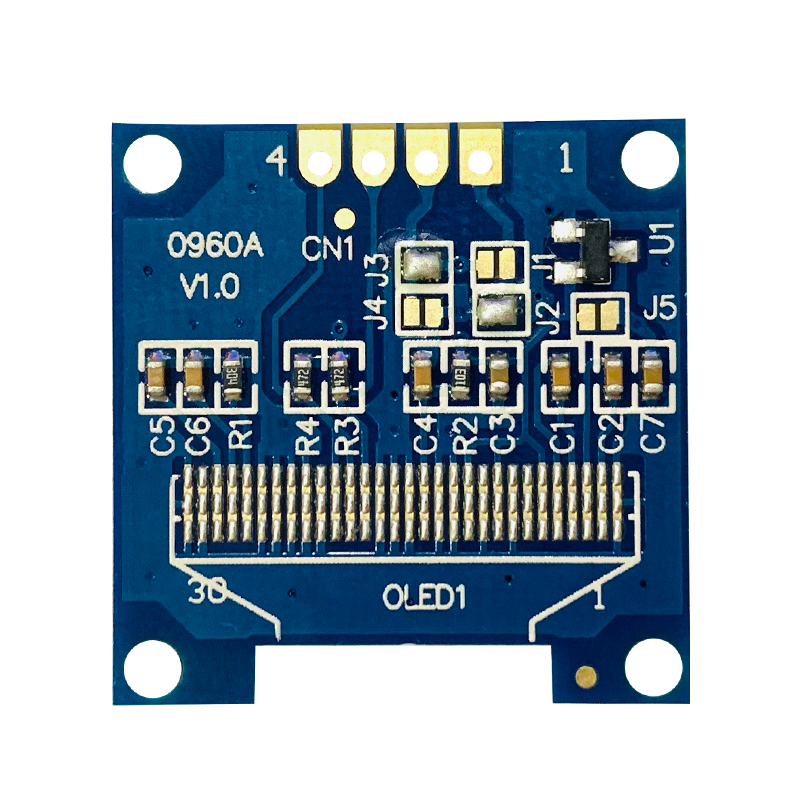

Product Introduction

 Specifications:

1) Display Mode: Passive Matrix
2) Display Color: Monochrome
3) Drive Duty: 1/64 Duty

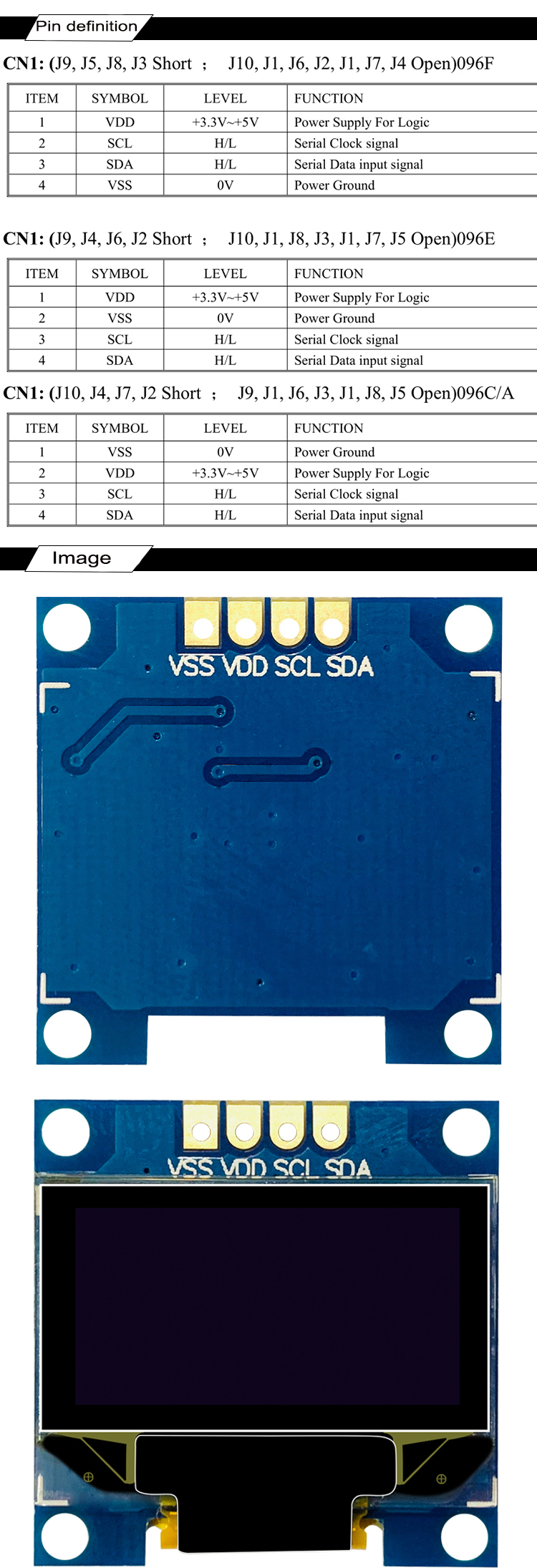

4) Interface:- IIC

5) Brightness: 150 cd/m2

6) Dark Room Contrast: >2000:1

7) Driver IC: SSD1306

8)Number of Pixels:128*64

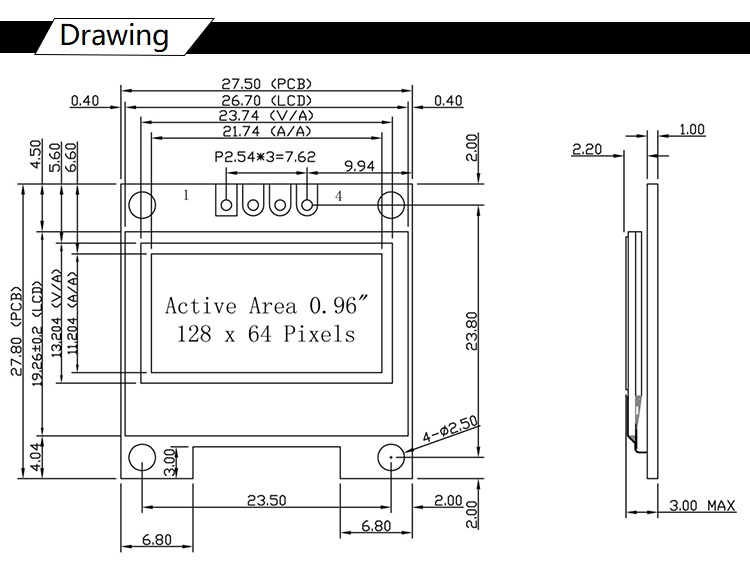

9)View Area:23.74×13.204

10)Module size:27.5L×27.8W×3.0(MAX)H
