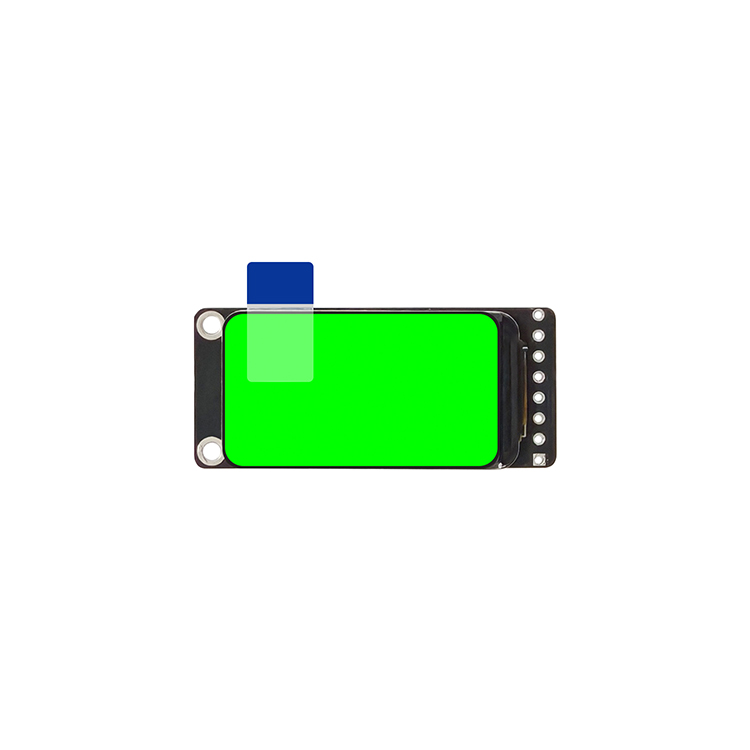

1.47 Inch TFT LCD Display Module 172x320 SPI ST7789V3

Product Introduction

DESCRIPTION

HICENDA high-performance 1.47 inch TFT LCD Display Module features a crisp 172(H)RGB x 320(V) resolution in a ultra-compact form factor. Integrated with the reliable ST7789V3 driver IC and a 4-Line SPI interface, this display delivers seamless data transmission, vivid color reproduction with 262K colors, and efficient power consumption.

Engineered with a Normally Black IPS mode, it offers an all-around full viewing angle to ensure superior visual quality from any direction. Equipped with a high-luminance backlight outputting 600 cd/m², this small-form-factor TFT screen maintains optimal legibility even under bright ambient light conditions. Designed for durability and industrial-grade stability, it supports wide operating temperatures from -20°C to +70°C, making it an ideal visual display solution for smart wearables, portable healthcare instruments, handheld terminals, and IoT smart home devices.

GENERAL SPECIFICATION

Property	Specification
LCD Size	1.47 inch
Display Mode	Normally Black (IPS)
Resolution	172(H)RGB x 320(V) pixels
Pixel Pitch	0.0337(H) x 0.1011(V) mm
Active Area	17.3892(H) x 32.352(V) mm
Module Size	19.39(H) x 36.28(V) x 1.46(D) mm
Pixel Arrangement	RGB Vertical Stripe
Interface	4-Line SPI
Display Colors	262K Colors
Driver IC	ST7789V3
Luminance	600 cd/m² (TYP)
Viewing Direction	All View
Backlight	3 White LEDs (Parallel)
Operating Temp.	-20°C ~ +70°C
Storage Temp.	-30°C ~ +80°C
Weight	2.7g

Features of 1.47 inch IPS TFT LCD module

Compact & High Resolution: 1.47-inch screen size with 172x320 RGB resolution in a slim profile.
All View IPS Technology: Ultra-wide viewing angle (Normally Black) ensures consistent color accuracy from any direction.
High Brightness Performance: 600 cd/m² typ. backlight brightness for vivid and clear visual performance.
Easy Integration: 4-Line SPI interface reduces MCU I/O requirements for flexible embedded system design.
Industrial Reliability: Operating temperature from -20°C to +70°C, suitable for diverse environmental conditions.
