Product Introduction
DESCRIPTION

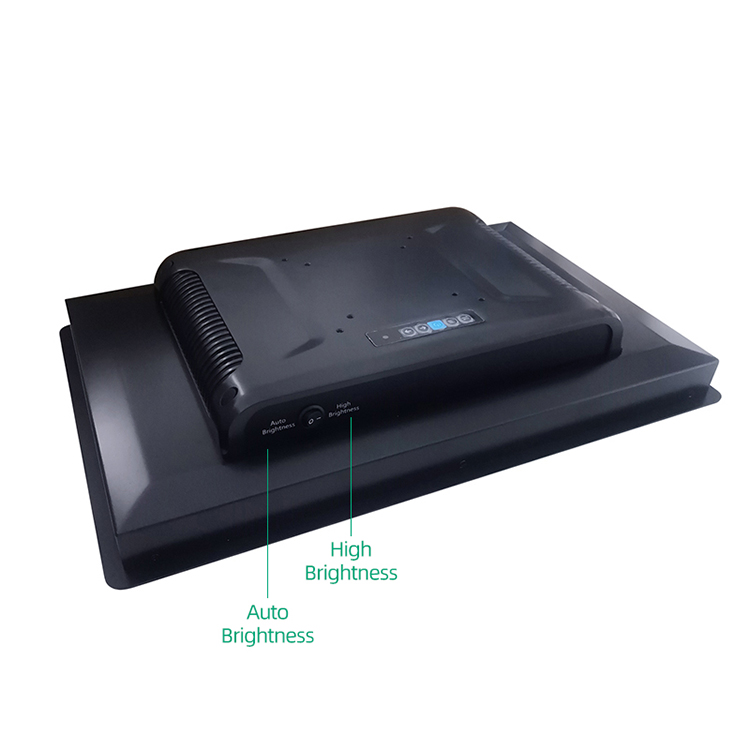

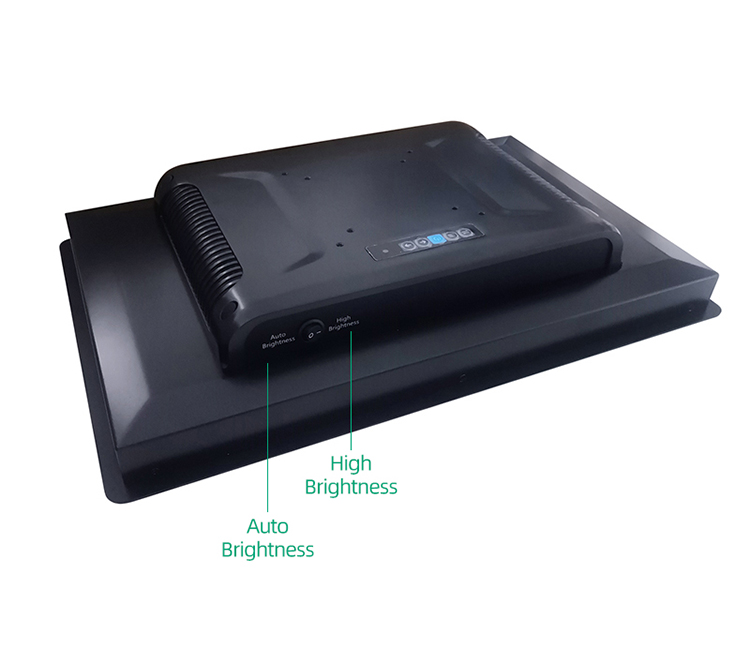

The high-brightness display adopts all-aluminum alloy structure, fanless and fully enclosed design, low powerconsumption of the whole machine, and compact appearance. It is an industrial product specially designed for various environments, and can ensure long-term stable work in harsh environments. The product With automatic photosensitive function (the photosensitive device is in the upper right corner of the front of the product) and one-button highlight function. When the highlight switch is turned off, the brightness of the backlight of the product can change with the ambient brightness. When the highlight switch is turned on,the brightness of the backlight of the product is always at the maximum brightness. In terms of the materials used for the whole machine, we pay more attention to its reliability, environmental adaptability, real-time performance, scalability, EMC compatibility and other performances.The configuration adopts RTD2513 chip and a variety of high-definition display interfaces to meet various applications on site. Interface, providing a variety of work efficiency, widely used in high-end automation fields such as industrial control, military industry, communication, electric power, network,etc.
GENERAL SPECIFICATION
DisplaySize:15.6”（wide temperature）
Resolution:1920×1080
angle of view:85/85/85/85 (L/R/U/D)
Color Chroma：16.7M
Brightness (barescreen）:Brightness：550cd/m²
contrast:800:1
Response time:6.5ms
display area:344.16 × 193.59mm
Pixel pitch(mm):0.17925(H) X 0.17925(V)
Touchscreen:touch screen type Projected capacitive touch
resolution:500DPI
Input:Stylus or capacitive pen
Surface hardness:7H
calibration:Support
Hardware Configuration：CPU:RTD2556
menu language:English,Chinese

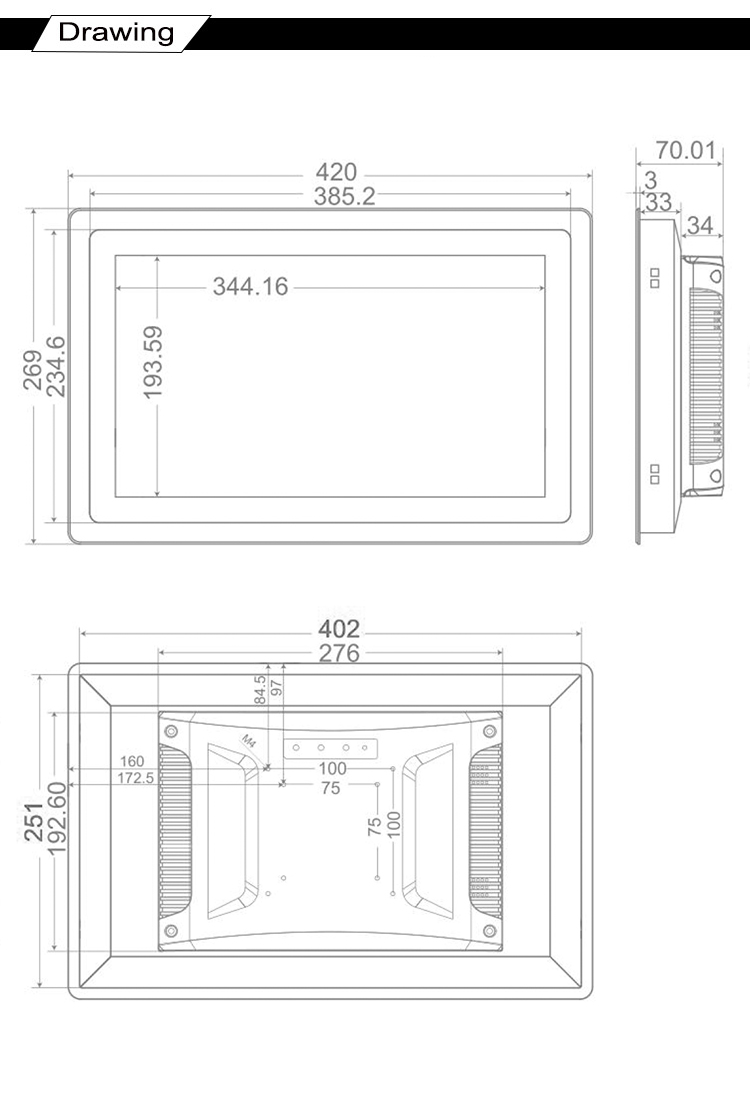

DRAWING
