COG 128x64 monochrome Blue Yellow dots graphic lcd module 12864 lcd display

Product Name

COG 128x64 monochrome Blue Yellow dots graphic lcd module 12864 lcd display

Product Properties

Outline dimension: 54X50X8 Resolution:128x64 Display mode: STN/FSTN Pins No: 20 pins
Email Us To Inquiry
FacebookTwitterLinkedInAddThis

Product Introduction

COG lcd 12864 3.3V 128x64 dot matrix graphic lcd display







Product Description

Product Name

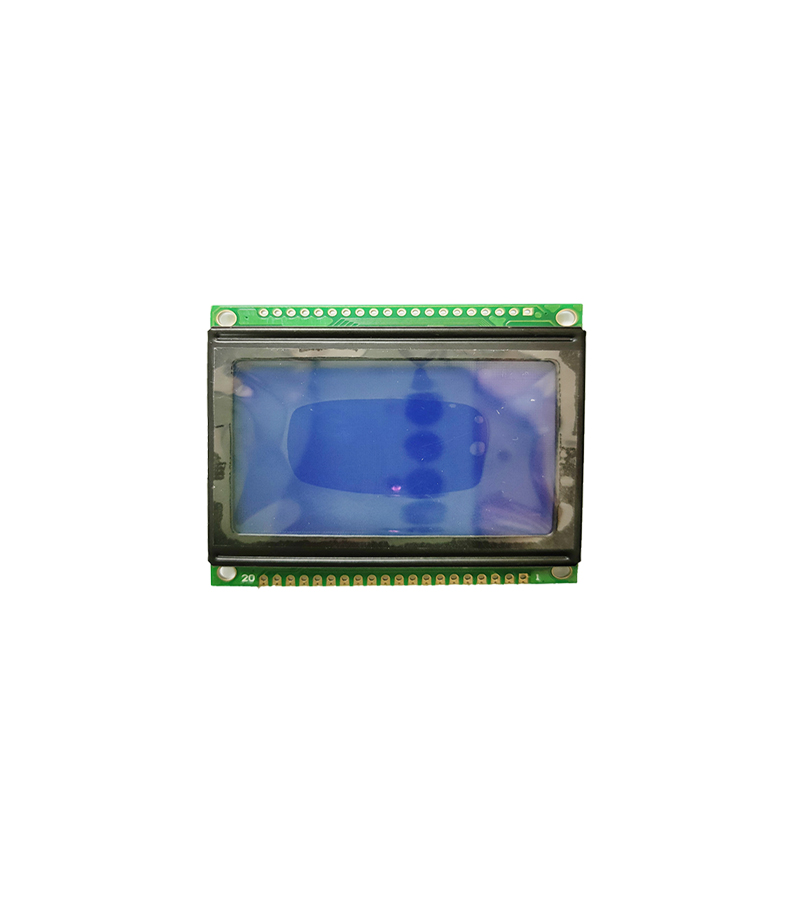

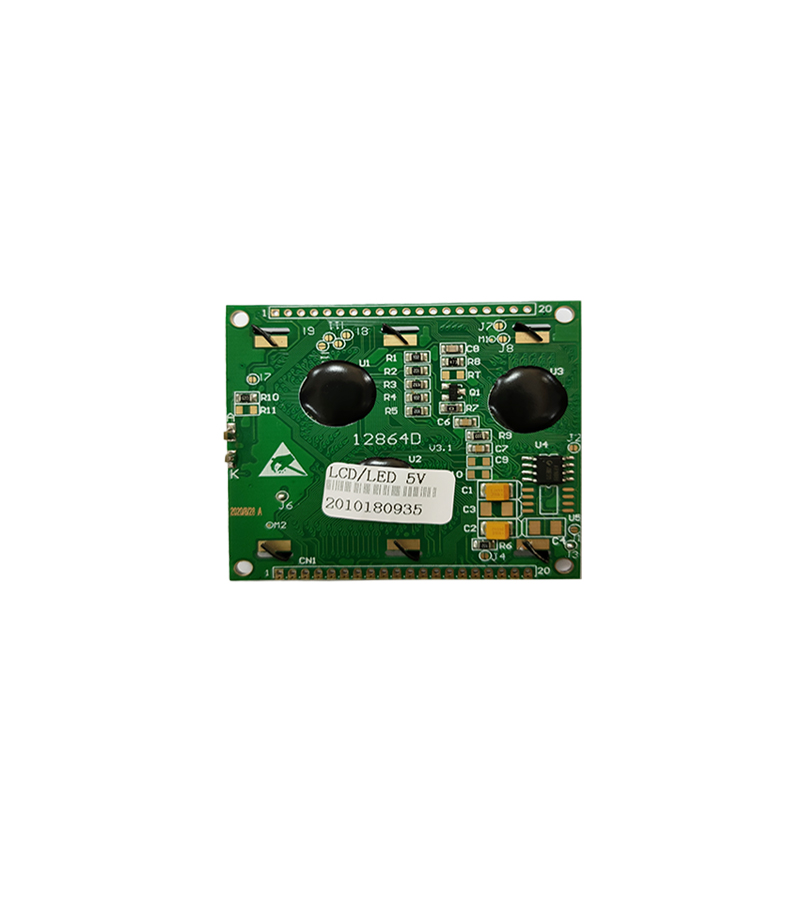

12864D Dots Graphic character lcd display module
Model
GH12864D
Type
COB LCD Display, dots graphic Display
Dot Format
128*64Dots
Display format
128character*64lines
Display mode
STN, Transmissive , Negative
Color
White Display Dot
Blue Background
Backlight
White Backlight
Brightness
500cd/m2

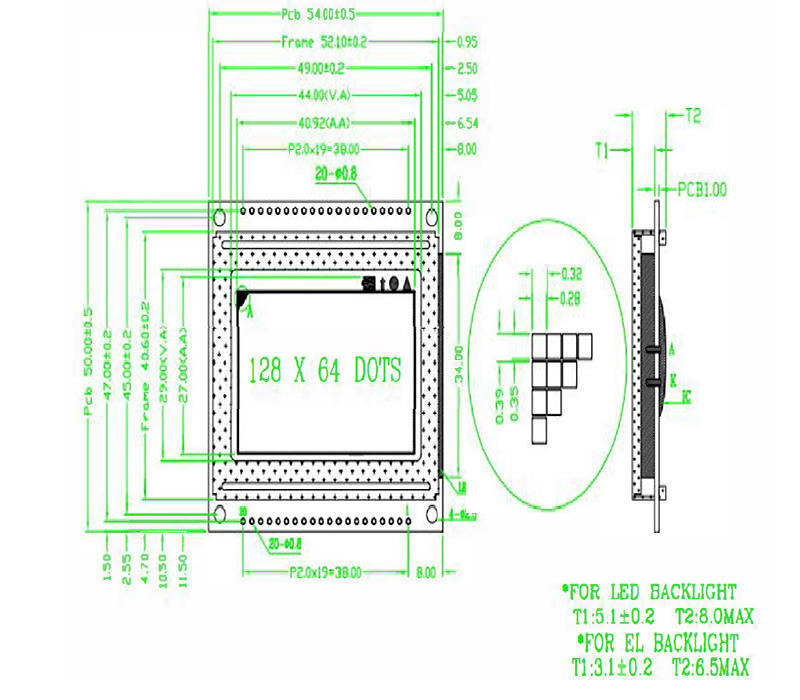

Outline Dimension
54X50X8mm
Viewing Area
44x292mm
Active Area
44x29mm
Dot Size
0.28X0.35mm
Dot Pitch
0.32x0.39mm
Viewing Direction
6 O'Clock
Interface
 8-bit Parcellel, 20 Pins
Driving Method
1/64 Duty, 1/9Bias
Supply Voltage
5.0V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
