16x2 character lcd display | 16x2 character lcd

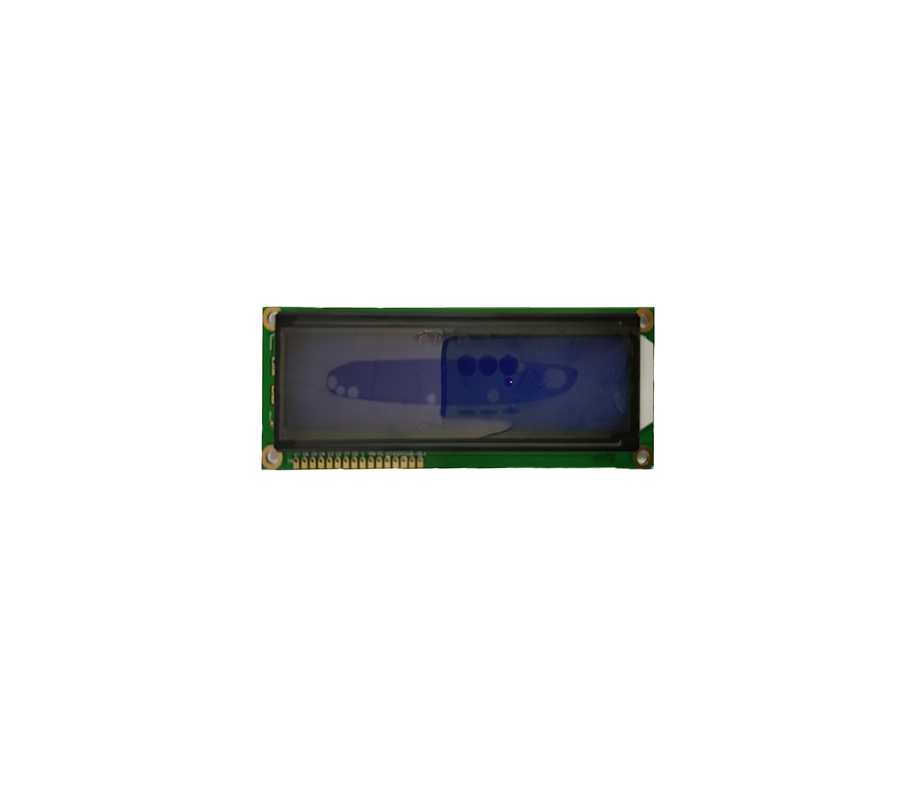

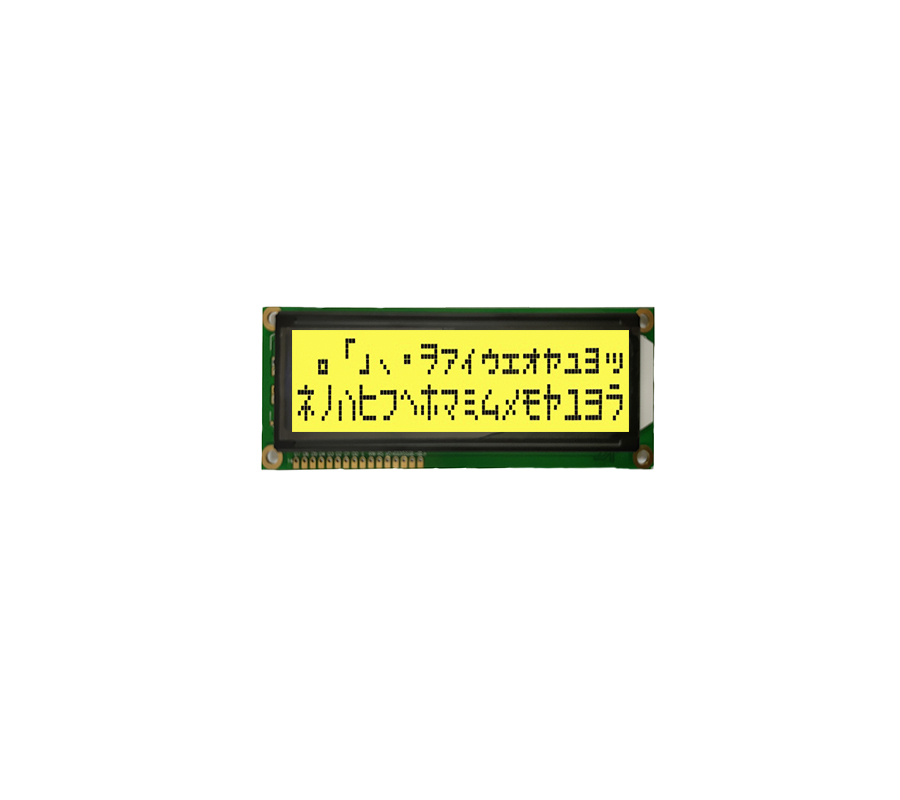

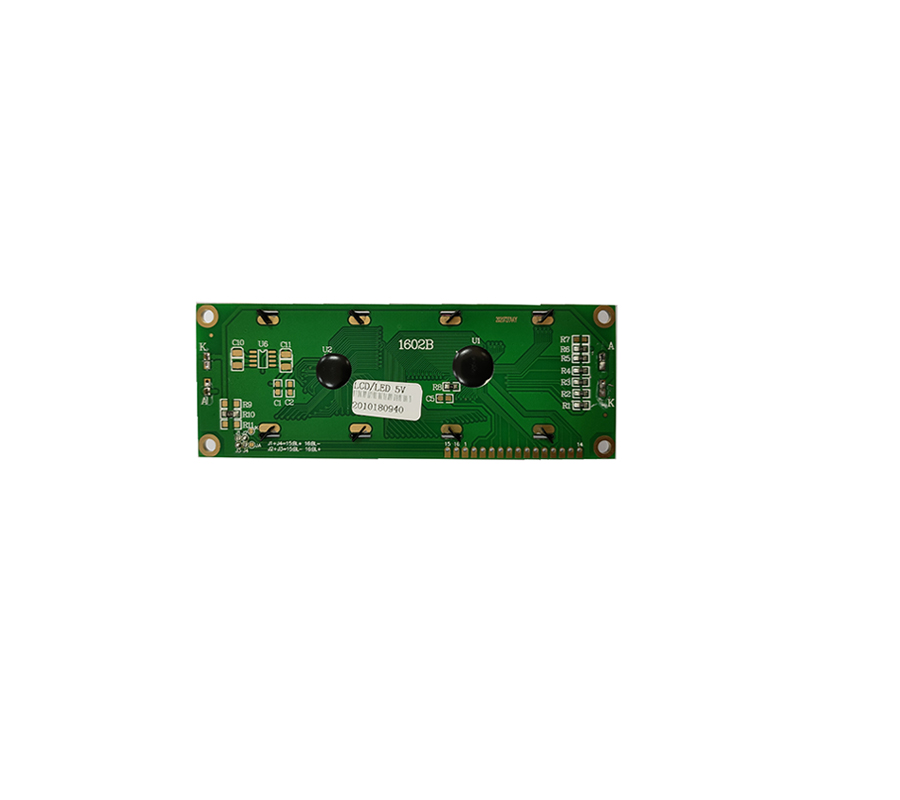

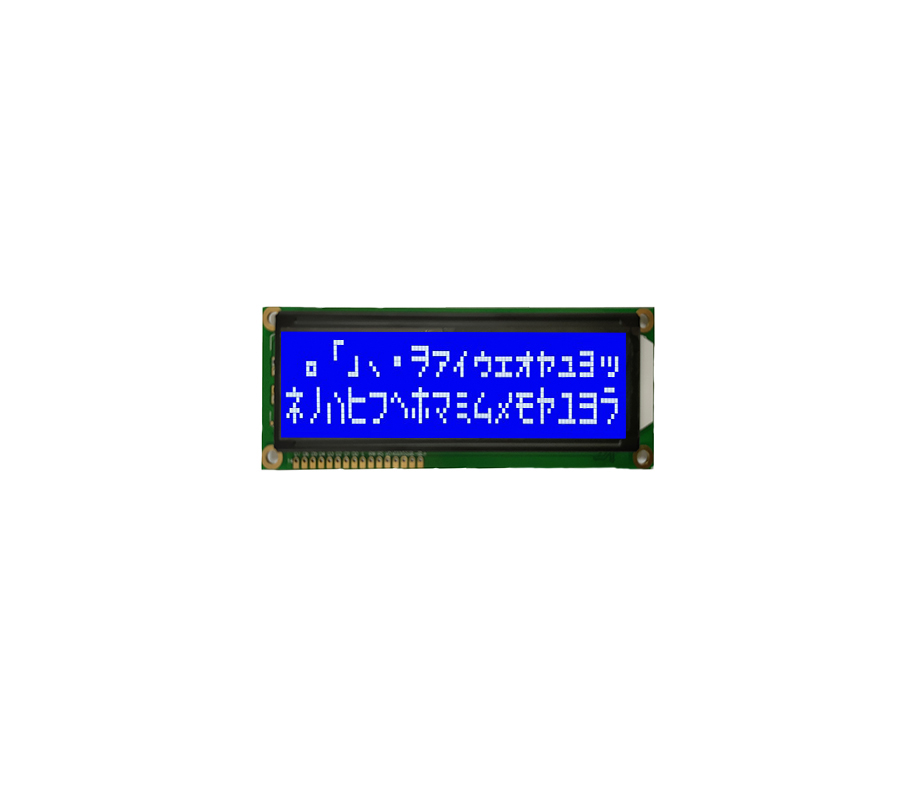

1602 Dot Matrix Character LCD Display Module Panel

Product Description

Product Name	1602B Dots Graphic character lcd display module
Model	GH1602B
Type	COB LCD Display, dots graphic Display
Dot Format	16x2 Dots
Display format	16character*2lines
Display mode	STN, Transmissive , Negative
Color	White Display Dot Blue Background
Backlight	White Backlight
Brightness	500cd/m2

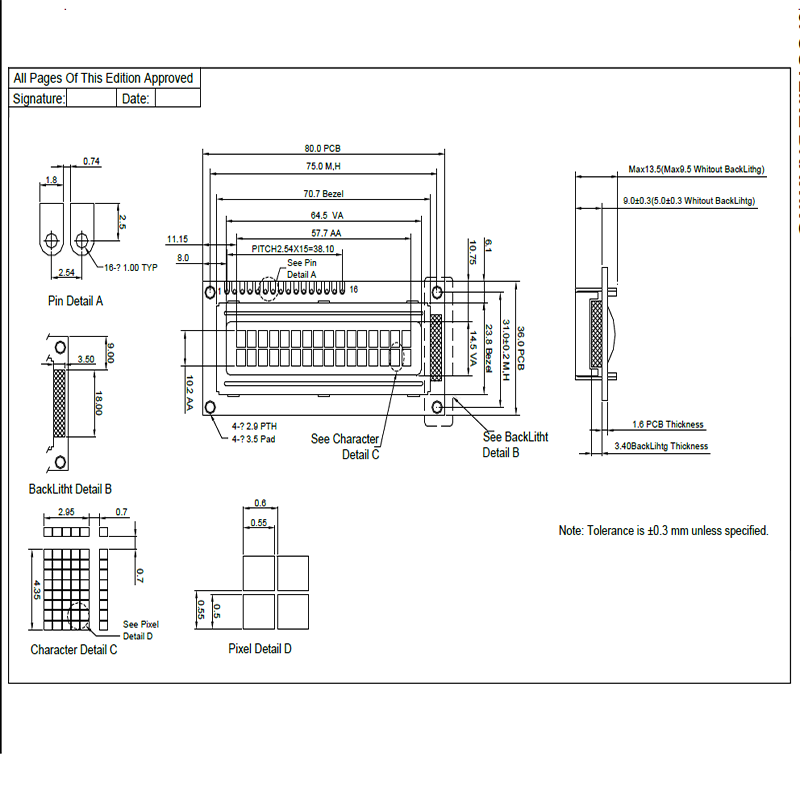

Outline Dimension	80X36X13.5mm
Viewing Area	64.5X14.5mm
Active Area	57.7x9.4mm
Dot Size	0.55X0.5mm
Dot Pitch	0.60x0.55mm
Viewing Direction	6 O'Clock
Interface	6800 4-bit or 6800 8-bit Parallel, 16 Pins
Driving Method	1/16 Duty, 1/5 Bias
Supply Voltage	5.0V
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
