Product Introduction

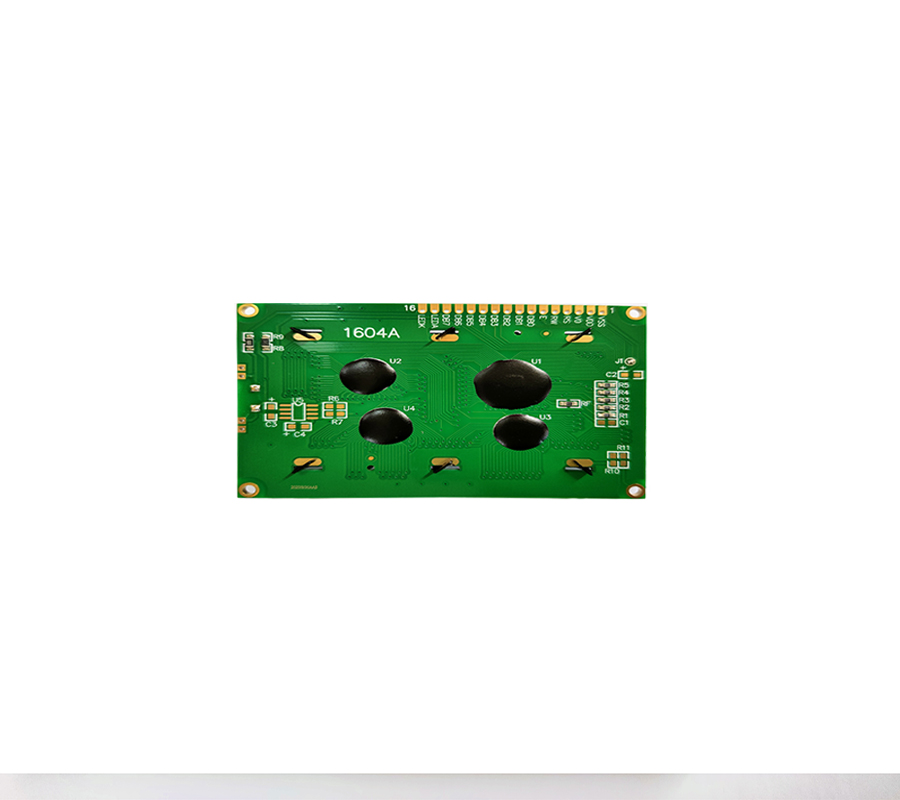

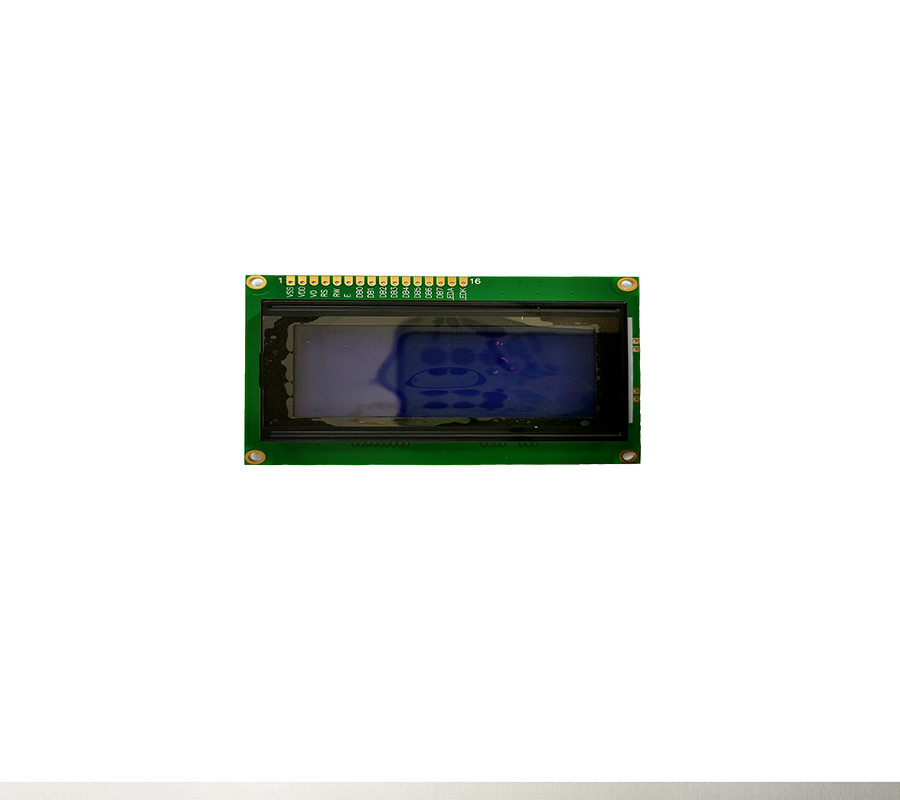

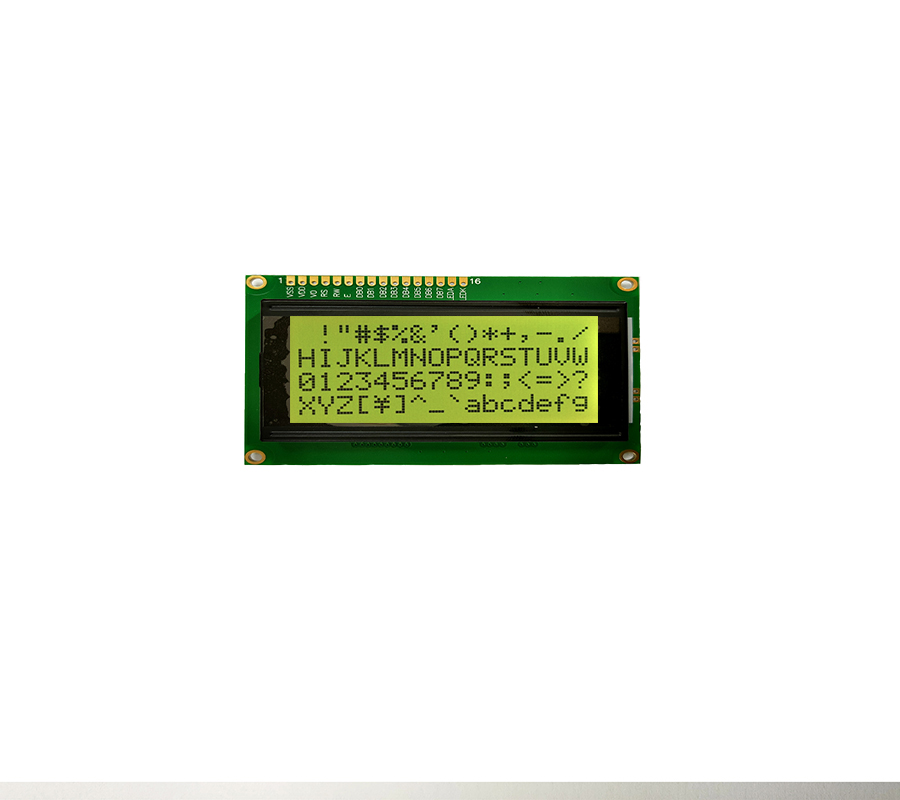

 1604 Dot Matrix  Character LCD Display Module Panel


Product Description

Product Name
1604A Dots Graphic character lcd display module
Model
GH1604A
Type
COB LCD Display, dots graphic Display
Dot Format
16x4 Dots
Display format
16character*4lines
Display mode

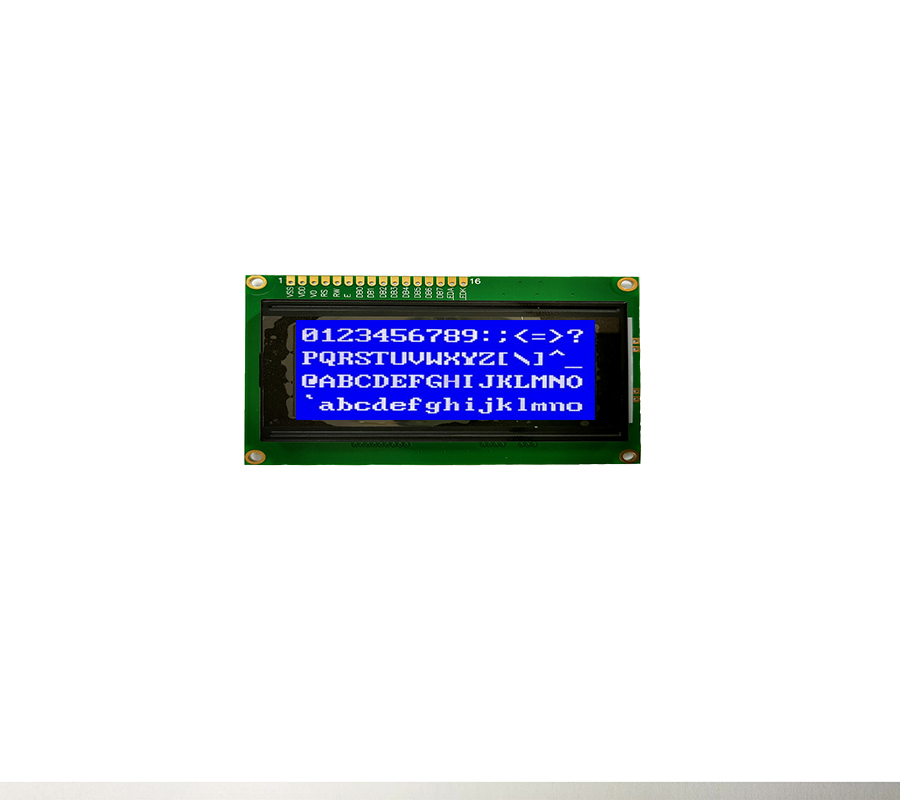

STN, Transmissive , Negative
Color
White Display Dot
Blue Background
Backlight
White Backlight
Brightness
500cd/m2

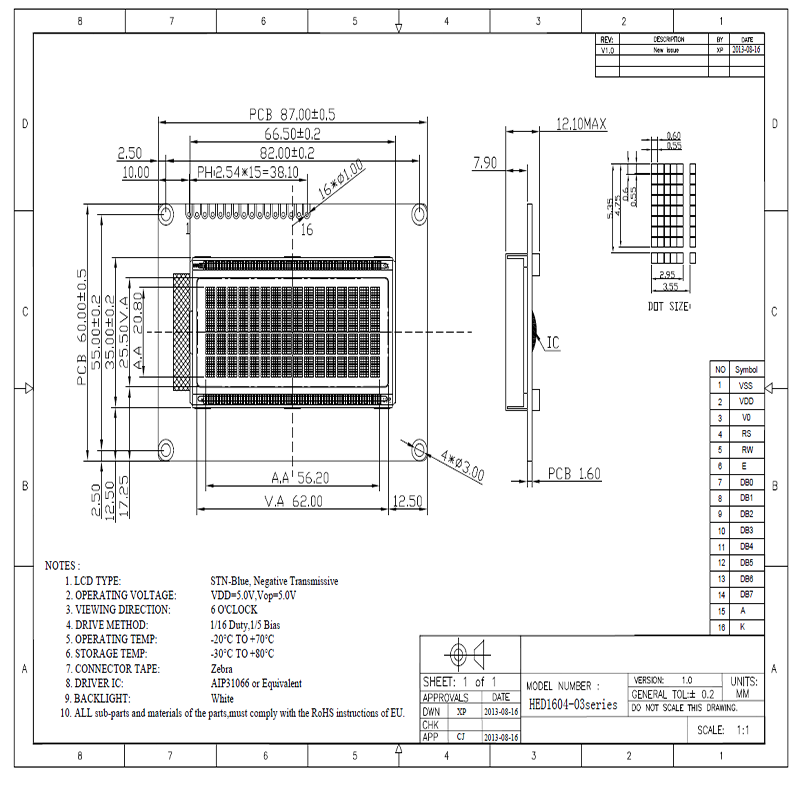

Outline Dimension
87X60X12.5mm
Viewing Area
66.5x25.5mm
Active Area
56.0x20.8mm
Dot Size
0.55X0.5mm
Dot Pitch
0.60x0.55mm
Viewing Direction
6 O'Clock
Interface
6800 4-bit or 6800 8-bit Parallel, 16 Pins
Driving Method
1/16 Duty, 1/5 Bias
Supply Voltage
5.0V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
