20x2 lcd module | 20x2 lcd | 20x2 lcd display

2002 Graphic Character LCD Display Module 20x2 lcd Display

Product Description

Product Name	2002A Dots Graphic character lcd display module
Model	GH2002A
Type	COB LCD Display, dots graphic Display
Dot Format	20x2 Dots
Display format	20character*2lines
Display mode	STN, Transmissive , Negative
Color	White Display Dot Blue Background
Backlight	White Backlight
Brightness	500cd/m2

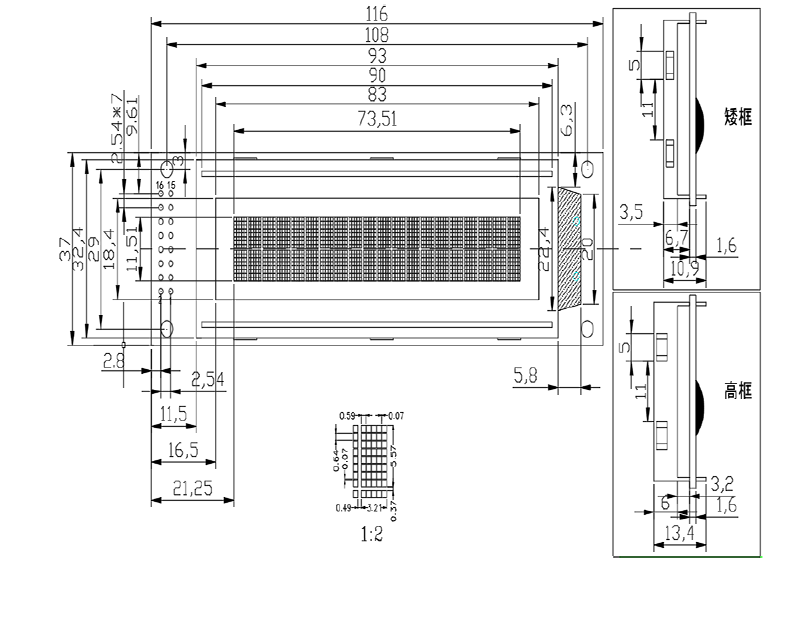

Outline Dimension	116X37X13.4mm
Viewing Area	93X32.4mm
Active Area	83x18.4mm
Dot Size	0.59X0.64mm
Dot Pitch	0.60x0.55mm
Viewing Direction	6 O'Clock
Interface	4-bit or 8-bit MCU, 16 Pins
Driving Method	1/16 Duty, 1/5 Bias
Supply Voltage	5.0V
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
