2004 Dot Matrix Character LCD Display Module Panel

Product Description

Product Name	2004A Dots Graphic character lcd display module
Model	GH2004A
Type	COB LCD Display, dots graphic Display
Dot Format	20x4 Dots
Display format	20character*4lines
Display mode	STN, Transmissive , Negative

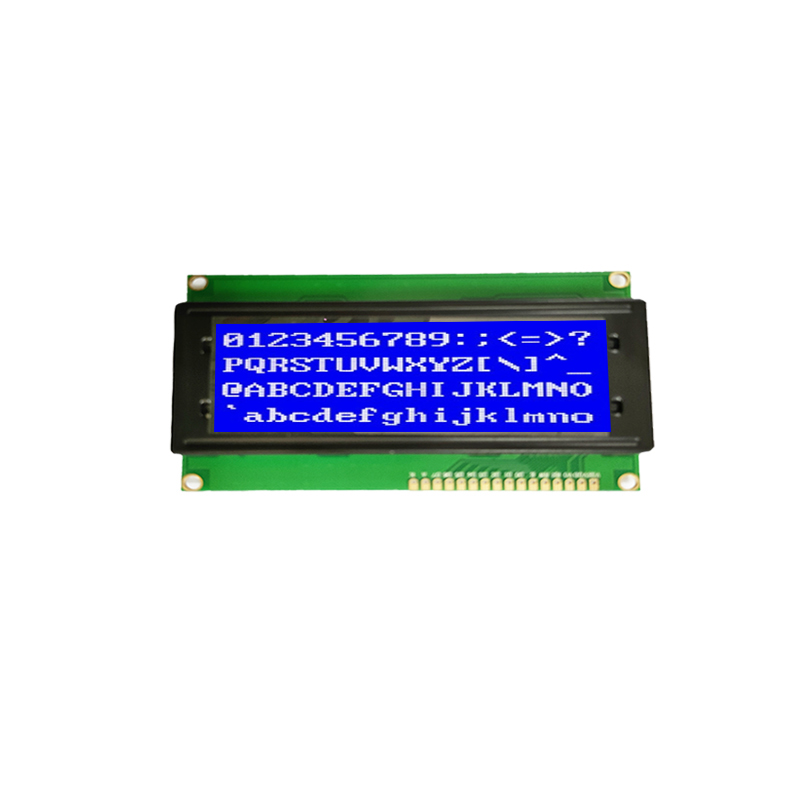

Color	White Display Dot Blue Background
Backlight	White Backlight
Brightness	500cd/m2

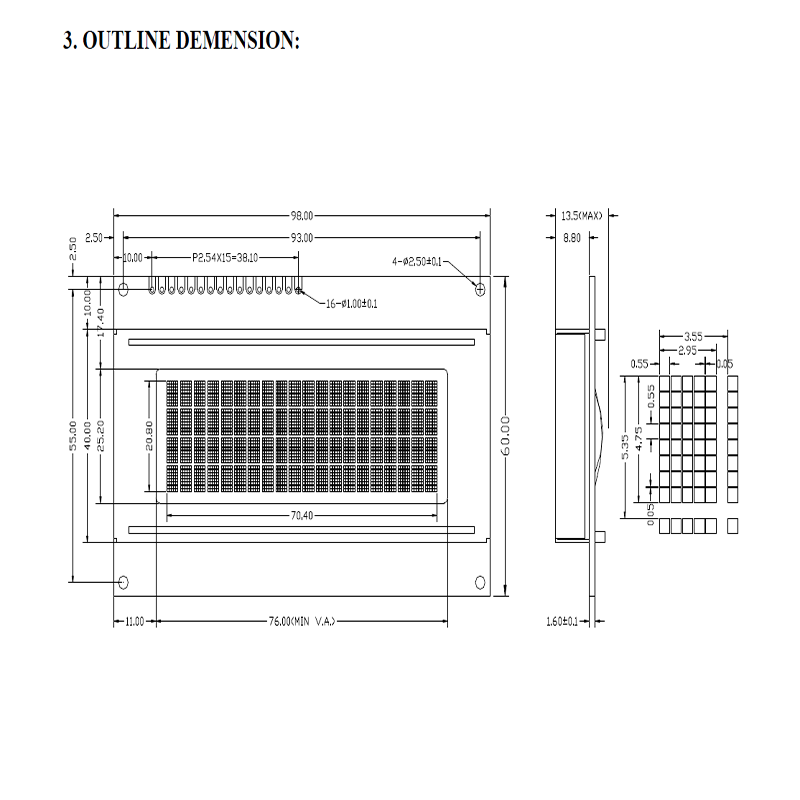

Outline Dimension	98X60X13.5mm
Viewing Area	76x25.2mm
Active Area	70.4x20.8mm
Dot Size	0.55X0.55mm
Dot Pitch	3.55x5.35mm
Viewing Direction	6 O'Clock
Interface	4-bit or 8-bit MPU, 16 Pins
Driving Method	1/16 Duty, 1/5 Bias
Supply Voltage	5.0V
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
