Product Introduction

DESCRIPTION

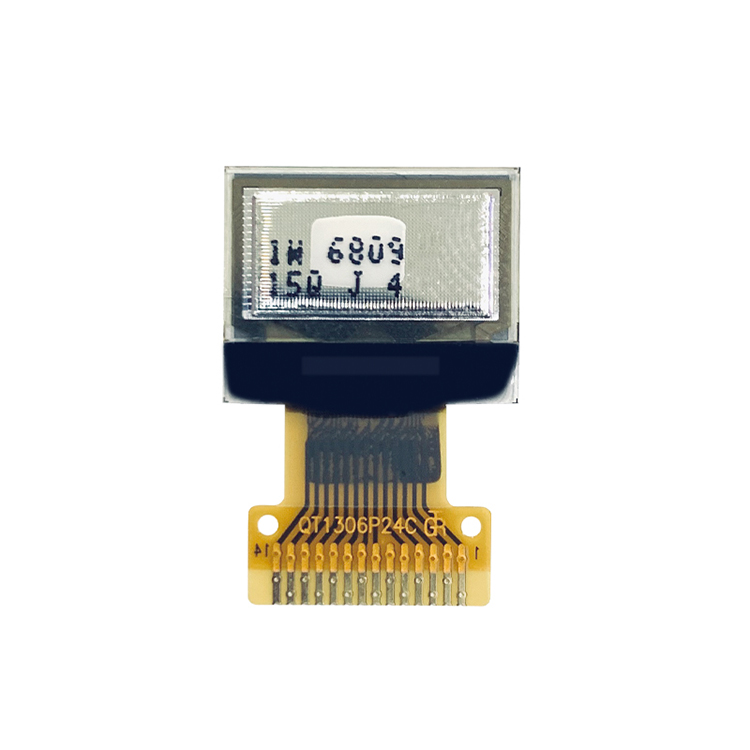

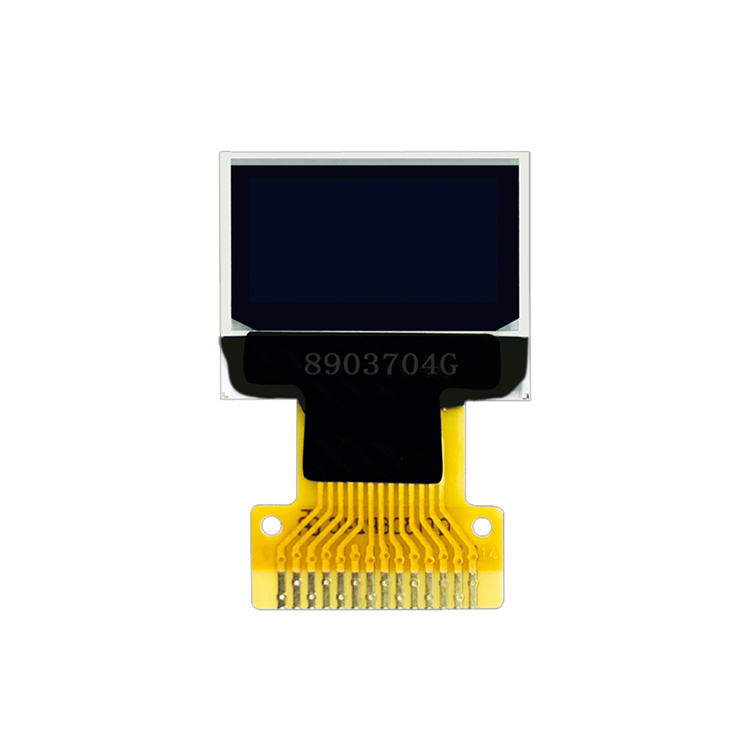

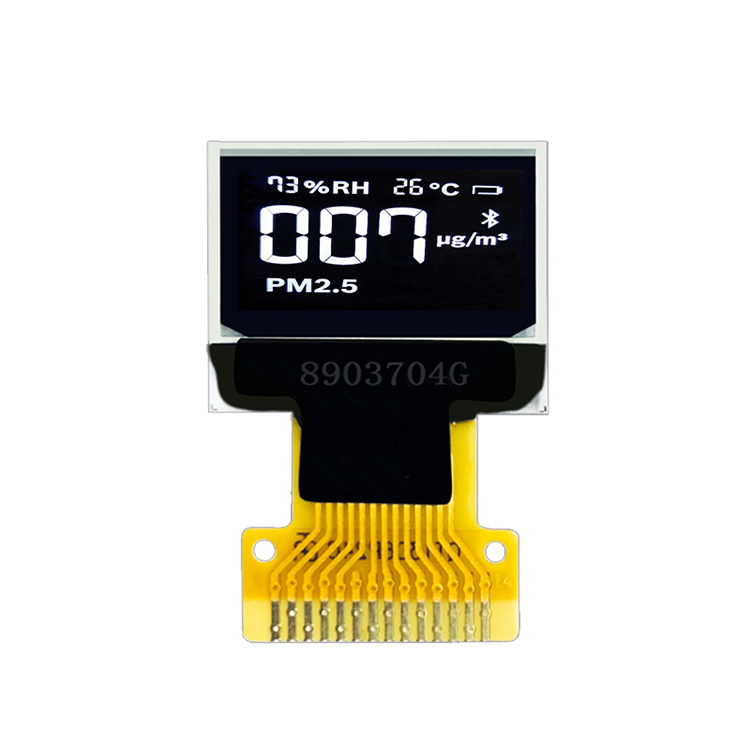

HICENDA OLED 0.49 is a  passive matrix micro OLED display module which is made of 64x32 dots. It has the module dimension of 14.5x11.3x1.2 mm and Active Area size 11.18 × 5.58 mm. This OLED micro display is built in with SSD1306 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.49 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

GENERAL SPECIFICATION

DRAWING

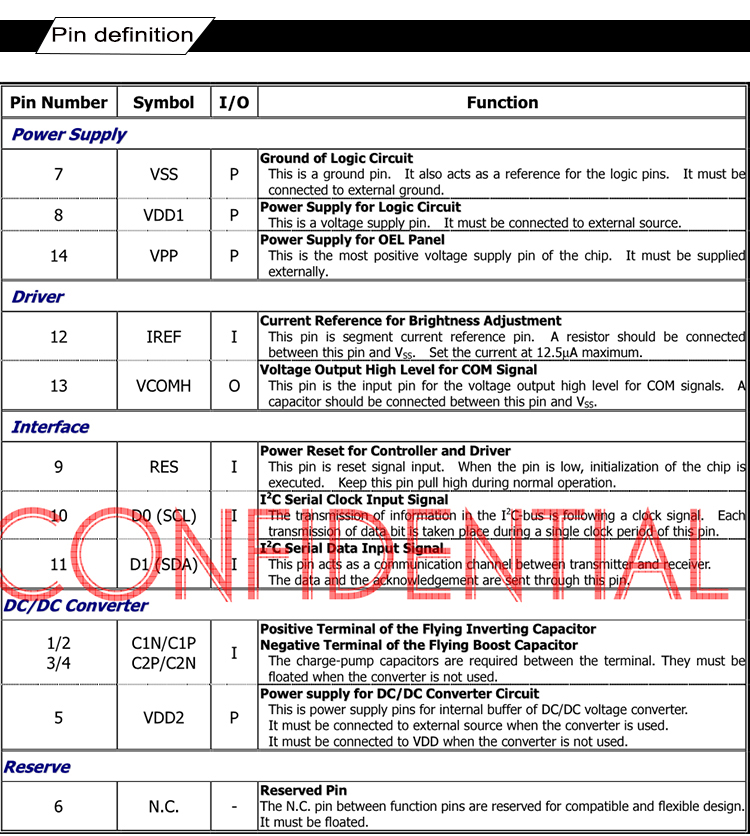

INTERFACE PIN FUNCTION
