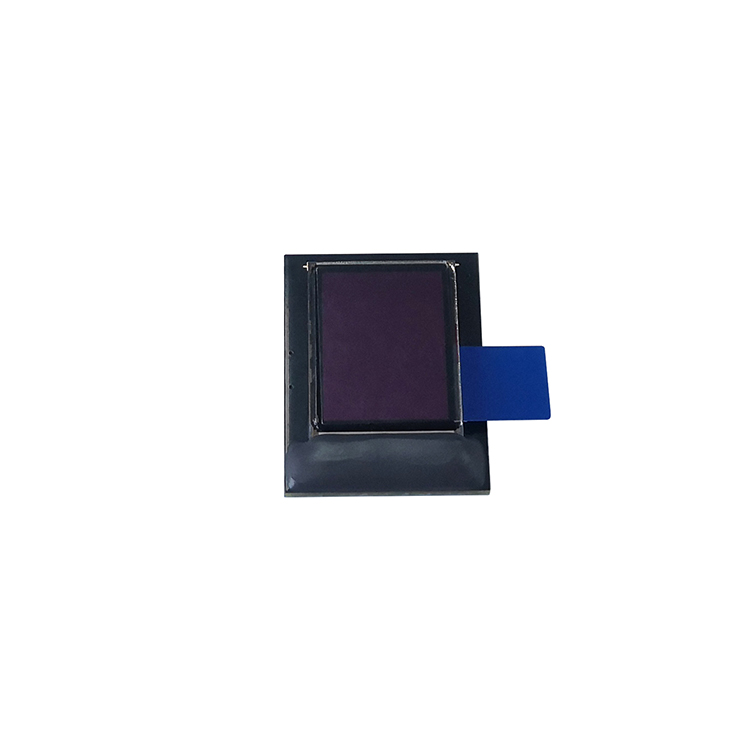

Microdisplay 0.6 inch OLED Display 800x600 1500nits

Product Introduction

Microdisplay 0.6 inch OLED Display 800x600 1500nits

Product Description

HSM060SVGA series microdisplay’s silicon substrate is fabricated by 0.18μm CMOS technology,

integrated full digital video signal processing, 804×604×3 active driving units, digital logic control,

scan distribution, D/A converting, temperature sensor, gamma correction, DC-DC for cathode’s

negative voltage, two-wire serial communication interface and so on. The input video signal is

compatible with ITU-R BT. 656 and support 8/16/24 bit digital video. The function of microdisplay

such as display mode, scanning direction, display position, brightness, contrast and gamma correction can be programmed through the two-wire serial communication interface. The digital interface voltage level is compatible with 1.8V CMOS standard. The microdisplay can be applied in various near-to-eye display systems that demand compact size, high resolution, low power consumption and wide working temperature range.

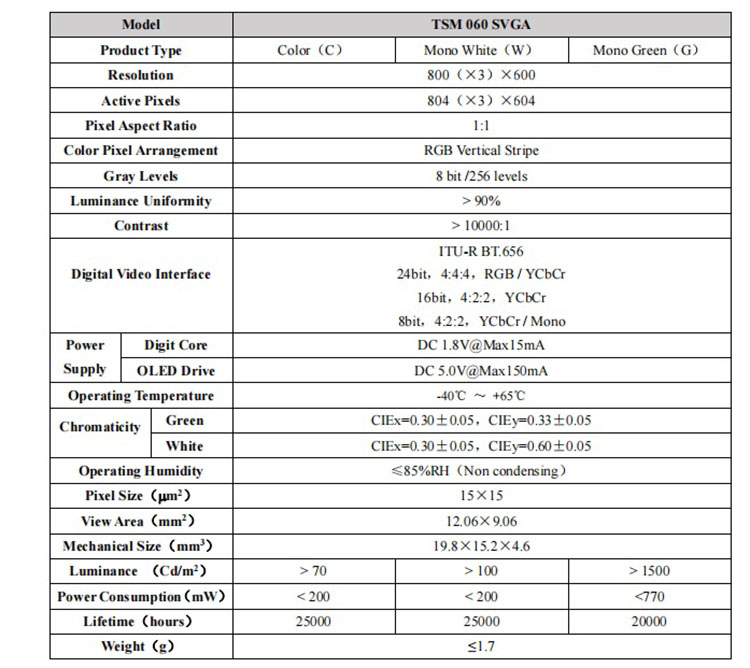

General Specification

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HSM060SVGA
Diagonal Screen size:	0.6 inch
Interface:	RGB Vertical Stripe
Number of Pixels:	800（×3）×600

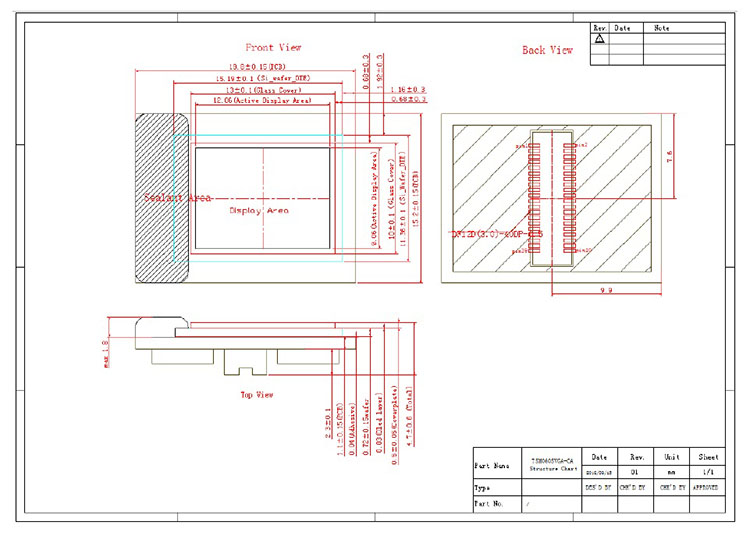

Panel Size:	19.8×15.2×4.6(mm3)
Active Area:	12.06×9.06(mm2)
Weight:	TBD
Operating Temperature:	-10~70°
