DESCRIPTION

HICENDA The SPI AMOLED 2.4-inch display module integrates a 450(RGB) × 600 resolution panel, delivering up to 800 cd/m² brightness and driven by the RM690B0 IC. Supporting SPI, MCU, and MIPI interfaces, and equipped with a touch panel, this module combines full-color rendering, wide viewing angles, and high contrast performance within a compact mechanical structure, making it suitable for a wide range of embedded and intelligent display applications.

GENERAL SPECIFICATION

Overview of Display Architecture

The module adopts a rigid AMOLED structure, which ensures mechanical robustness while maintaining the intrinsic advantages of organic light-emitting technology. Each pixel is self-emissive, eliminating the need for a backlight and enabling precise luminance control.

With a pixel arrangement of 450(RGB) × 600 and a pixel pitch of 81.6 μm, the display achieves a density of 311 PPI. This specification supports fine image rendering and smooth graphical transitions, particularly beneficial in compact human-machine interfaces.

Key Structural Characteristics

· Self-emissive AMOLED technology for high efficiency

· Full-color depth with 16.7 million colors (24-bit)

· Symmetrical viewing characteristics with unrestricted viewing direction

· Integrated capacitive touch panel for interactive functionality



Electrical and Optical Performance

The RM690B0 driver IC provides a stable and flexible control platform, supporting multiple interface protocols including SPI, MCU, and MIPI. This versatility simplifies system integration across different hardware architectures.

The display achieves a luminance level of 800 cd/m², ensuring readability under various ambient lighting conditions. Combined with an ultra-high contrast ratio of 100,000:1, the module delivers deep blacks and vivid color reproduction.

Performance Highlights

· Frame rate up to 60 Hz for smooth visual output

· High contrast ratio for enhanced image depth

· Wide operating temperature range from -20°C to +80°C

· Reliable storage tolerance down to -40°C



Mechanical Design and Integration

The compact outline dimension of 38.72 × 51.56 mm allows for efficient utilization of space in portable and embedded systems. The active viewing area of 36.72 × 48.96 mm is optimized for balanced display proportions under a 3:4 pixel aspect ratio.

A 45-pin interface ensures stable electrical connectivity while maintaining a manageable footprint for PCB design.

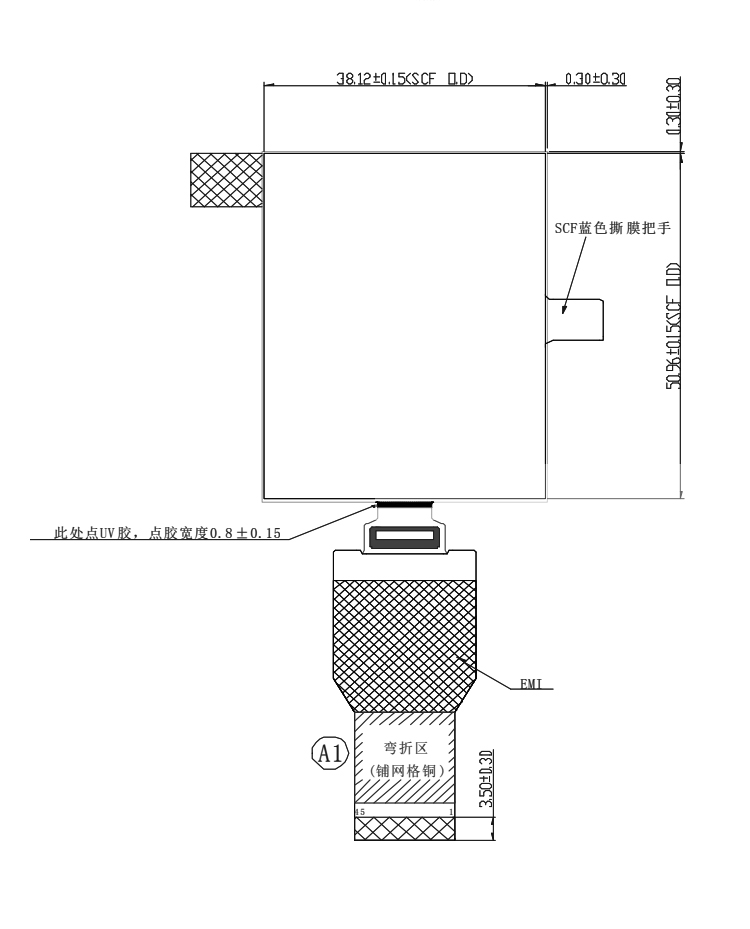

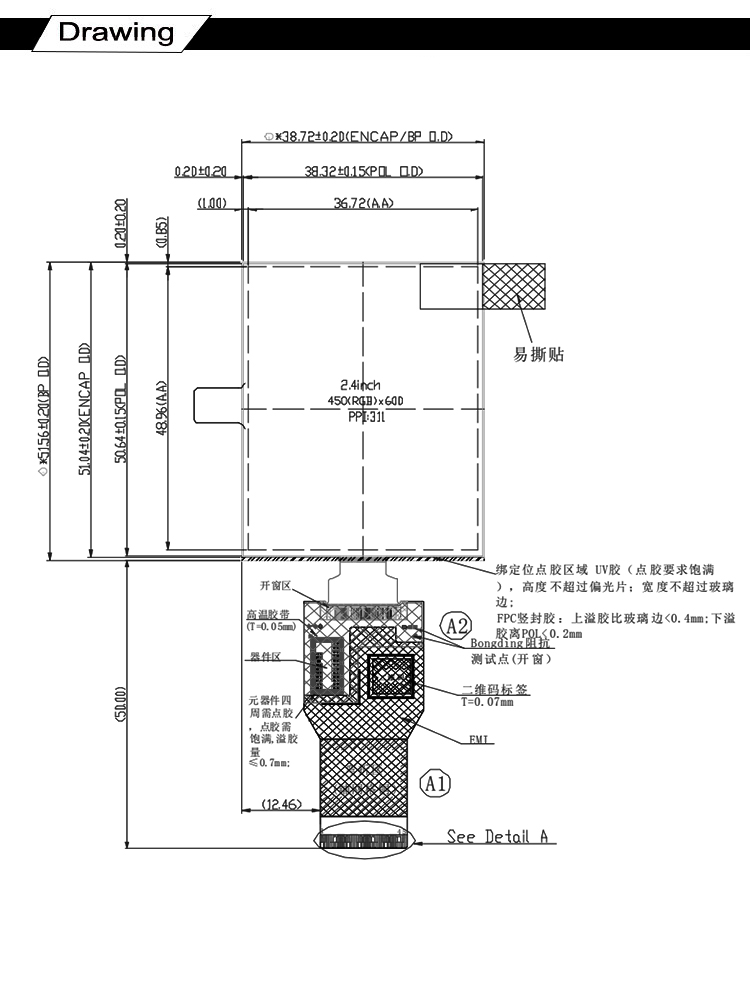

DRAWING

INTERFACE PIN FUNCTION

Application Scenarios

Smart Wearable Devices

The high pixel density and low power consumption characteristics of AMOLED technology make this module suitable for advanced wearable systems requiring clear and vibrant displays.

Industrial Control Interfaces

Its wide temperature tolerance and stable performance enable deployment in industrial environments where reliability is critical.

Portable Medical Equipment

The accurate color rendering and high contrast ratio support clear visualization of diagnostic data in compact medical devices.

Conclusion

This 2.4-inch AMOLED display module, driven by the RM690B0 IC, demonstrates a balanced integration of optical performance, electrical flexibility, and mechanical compactness. Its support for multiple interfaces and touch functionality enhances adaptability across diverse application domains. With stable operation over a wide temperature range and high-quality visual output, it represents a reliable solution for next-generation embedded display systems.
