Product Introduction
DESCRIPTION

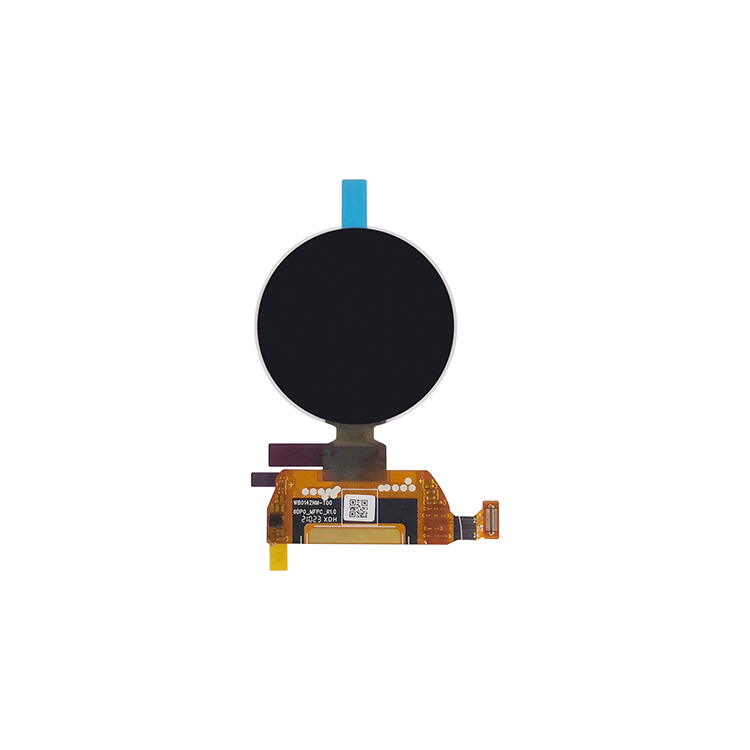

HICENDA OLED 1.39 is is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s (Thin Film Transistors) as active switching devices. This module has a 1.39inch diagonally measured active area with 454x454 resolutions (454horizontal by 454 vertical pixel arrays). Each pixel is divided into RED,GREEN, BLUE dots and this module can display 16.7M colors.
GENERAL SPECIFICATION
| Display Type: | amoled display |
| Display Mode: | COLOR AMOLED |
| Model Number: |
HG--QT014ZN |
| Diagonal Screen size: | 1.39 inch |
| Interface: |
MIPI/SPI |
| Drive Duty: |
1/64 Duty |
| Number of Pixels: |
454x454 |
| Panel Size |
38.6(H)+38.6(V) (mm)
|
| Driver IC: |
RM69330 |
| Active Area: |
￠35.4
|
| Pixel Pitch: |
78(mm)
|

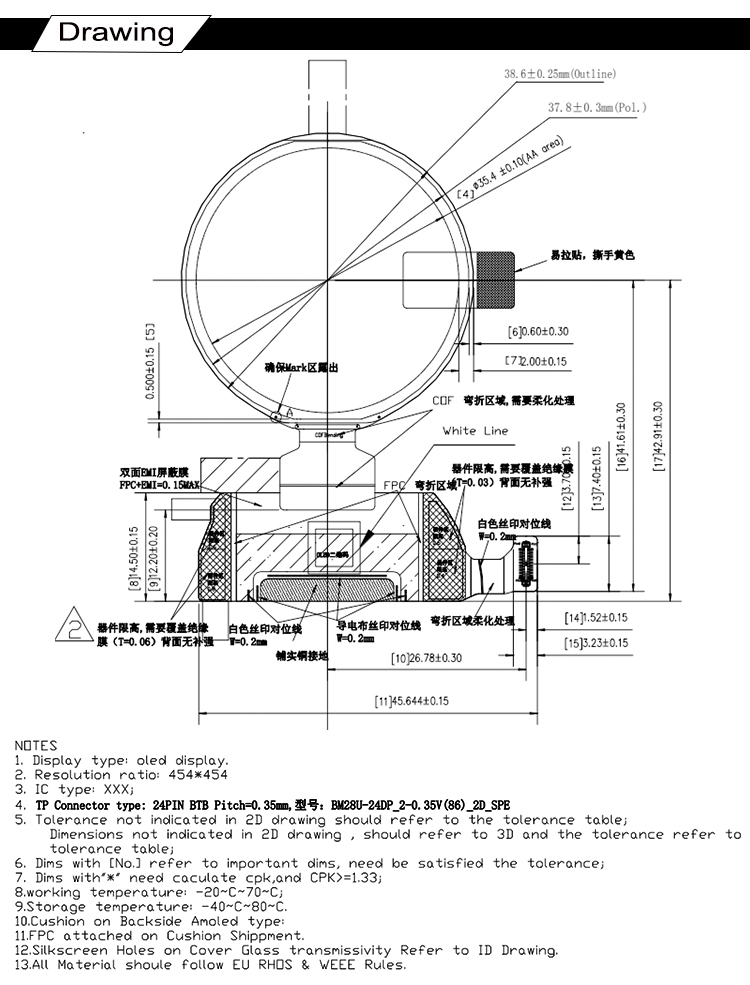

DRAWING

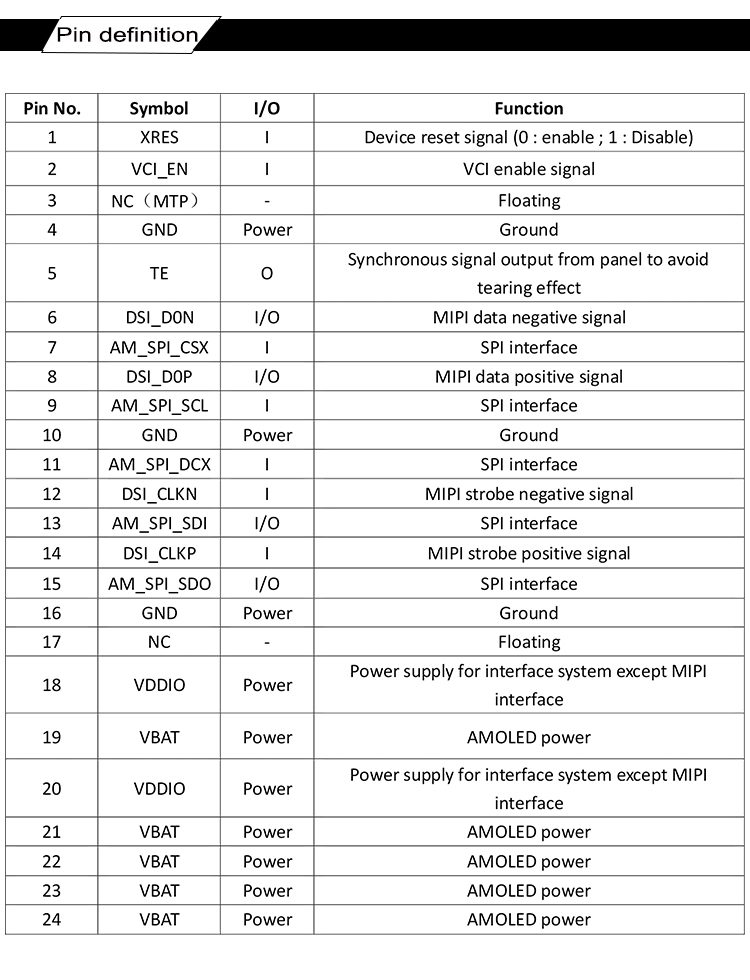

INTERFACE PIN FUNCTION
