Product Introduction
DESCRIPTION
HICENDA OLED 1.41 is is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s 0141MAMBCA0 is AMOLED (Active Matrix/Organic Light Emitting Diode)
module. This module is composed of 1.41 inch LCD, driver circuits, FPC unit.
GENERAL SPECIFICATION
| Display Type: | amoled display |
| Display Mode: | COLOR AMOLED |
| Model Number: |
HG--0141MAMBCA0 |
| Diagonal Screen size: | 1.41 inch |
| Interface: |
MIPI |
| Drive Duty: |
1/64 Duty |
| Number of Pixels: | 320x360 |
| Panel Size |
25.74(H)*29.87(V)*0.877(t) (mm)
|
| Driver IC: |
FT2388
|
| Active Area: |
23.84(H)*26.82(V)
|
| Pixel Pitch: |
78(mm)
|
| Pixel Size: |
78*78 (mm)
|
|
Weight: |
1.54 (g) |
|
Operating Temperature: |
-40~85° |
DRAWING

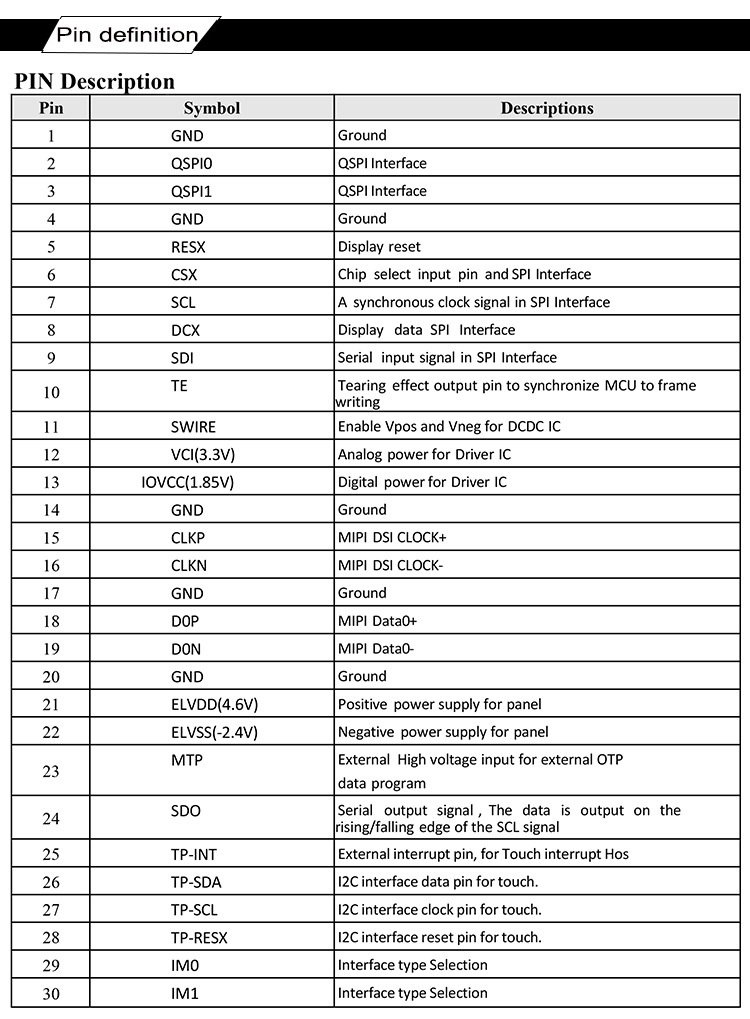

INTERFACE PIN FUNCTION
