Product Introduction

Product Description:

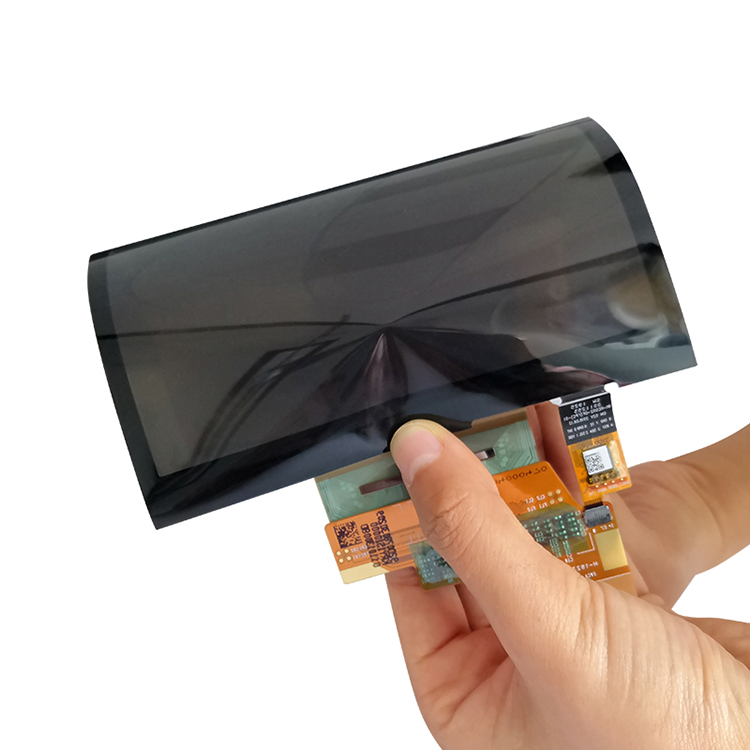

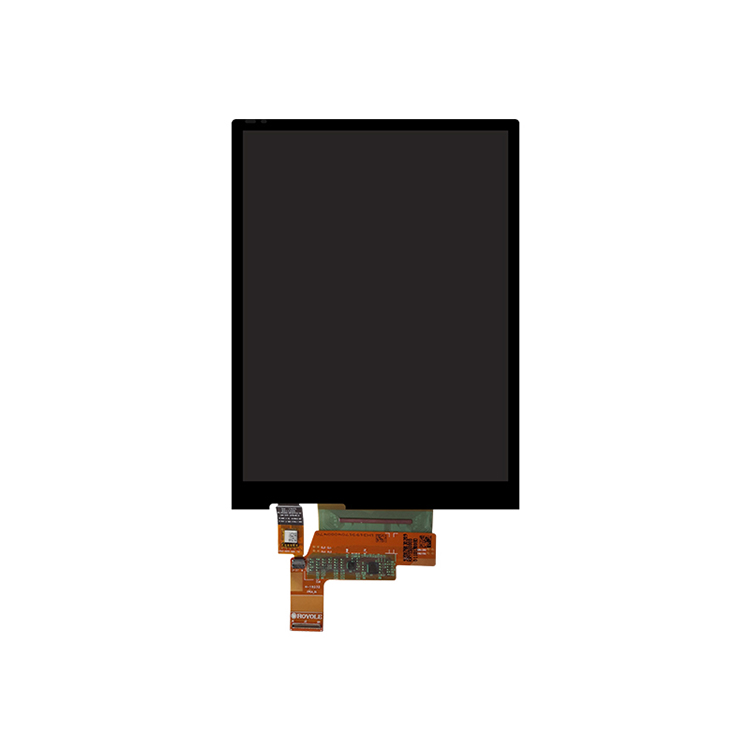

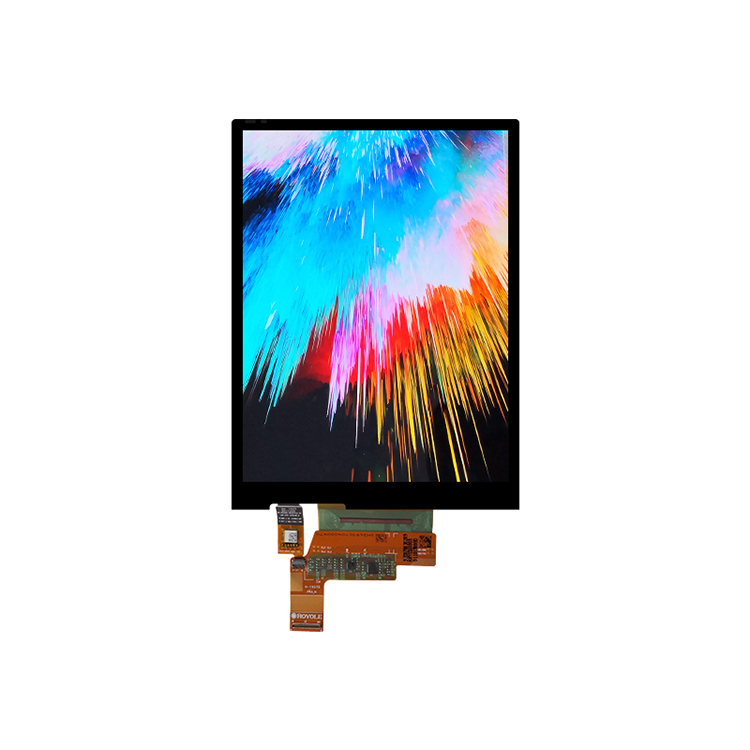

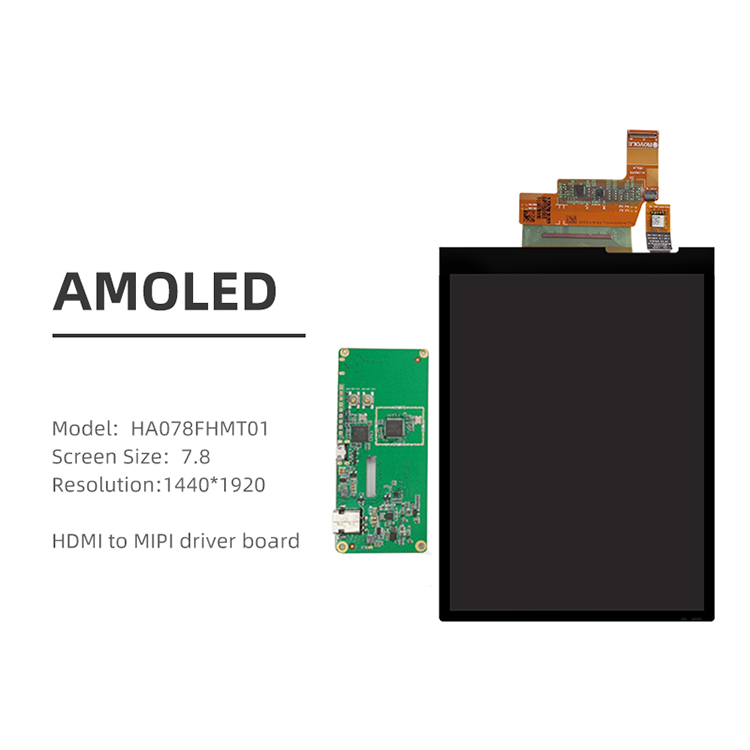

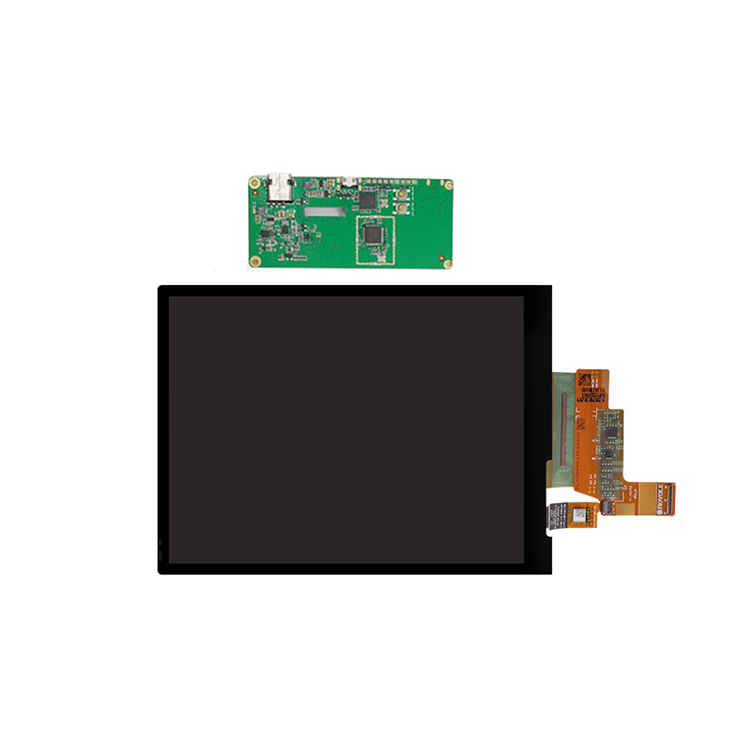

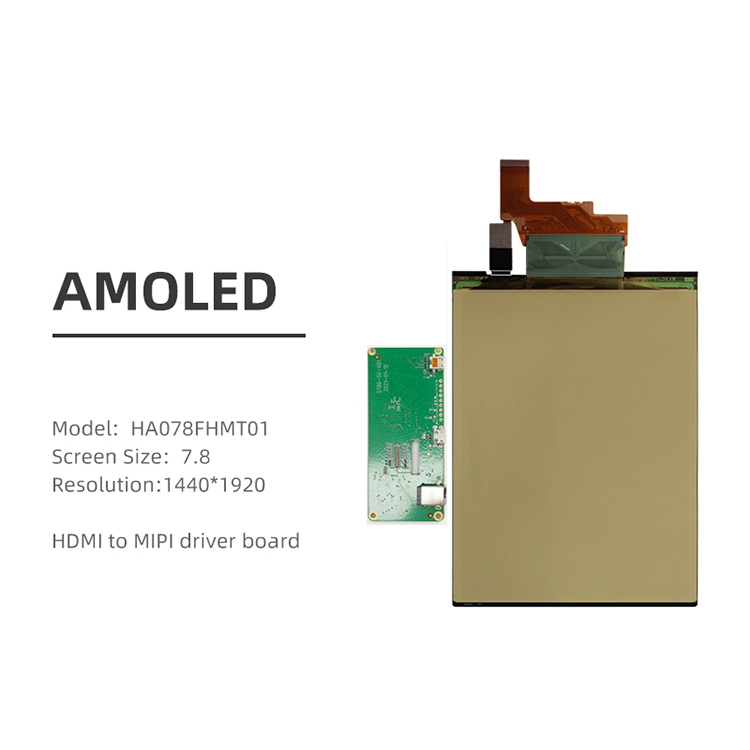

This is a Bendable OLED Screen 7.8 inch Flexible AMOLED Display 1440*1920 MIPI IPS FHD Curved LCD Module with CTP Capacitive Touch Panel. It has advantages of high contrast, wide color gamut, and wide viewing angle, which make it able to bring vivid and delicate visual experience. All these 7.8 inch flexible AMOLED displays are original new with Grade A+ condition.

This full set support touch function. So you can enjoy vivid visual experience and touch function as the same time!

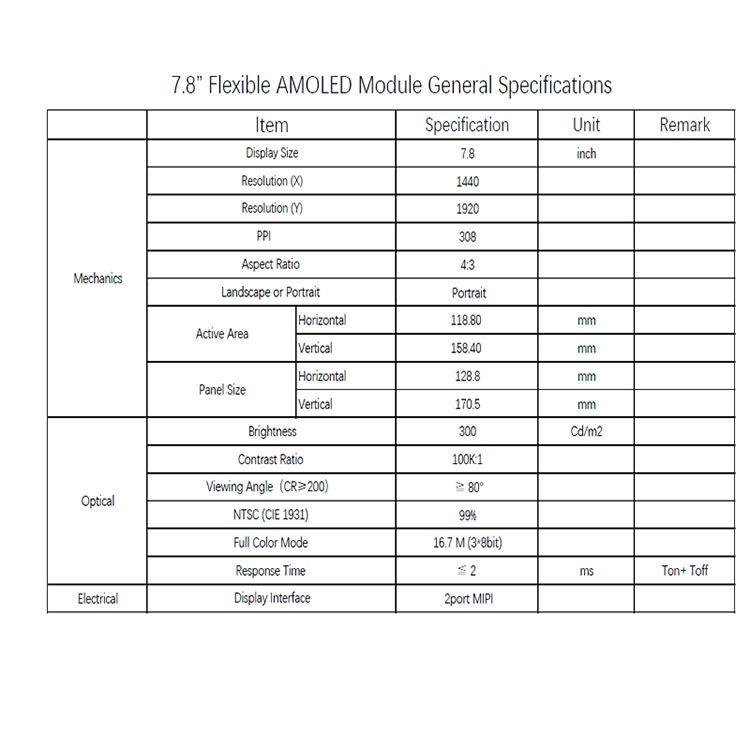

• Size:7.8"
• Active Area:118.8(W) x 158.4(H)MM
• Resolution:1920*1400
• PPI:308ppi
• Viewing Angle:IPS Full Viewing Angle
• Interface:2 port MIPI
• LCM Dimension:198mm142mm9mm
• Color Depth:16.7M (3*8bit)
• Touch:with/without
• Frame Frequency:Diver IC : 60Hz
• Aspect Ratio:4:3
• Power consumption:2.7W @ 300 nits Full White

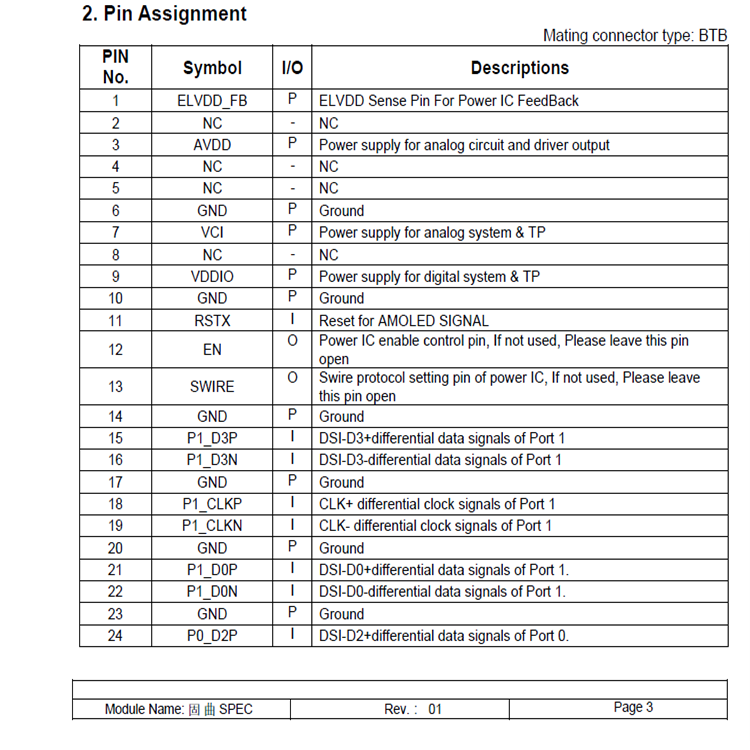

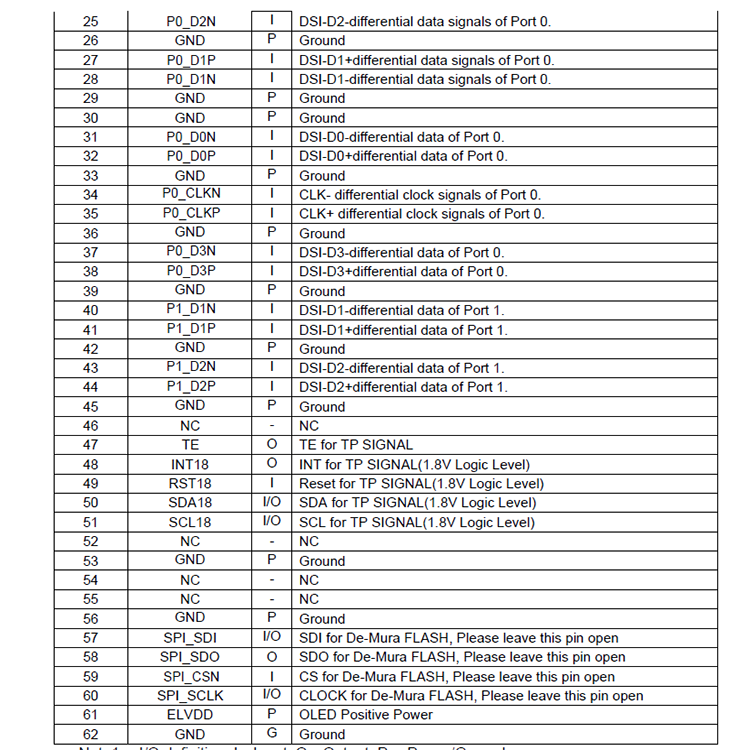

INTERFACE PIN FUNCTION
