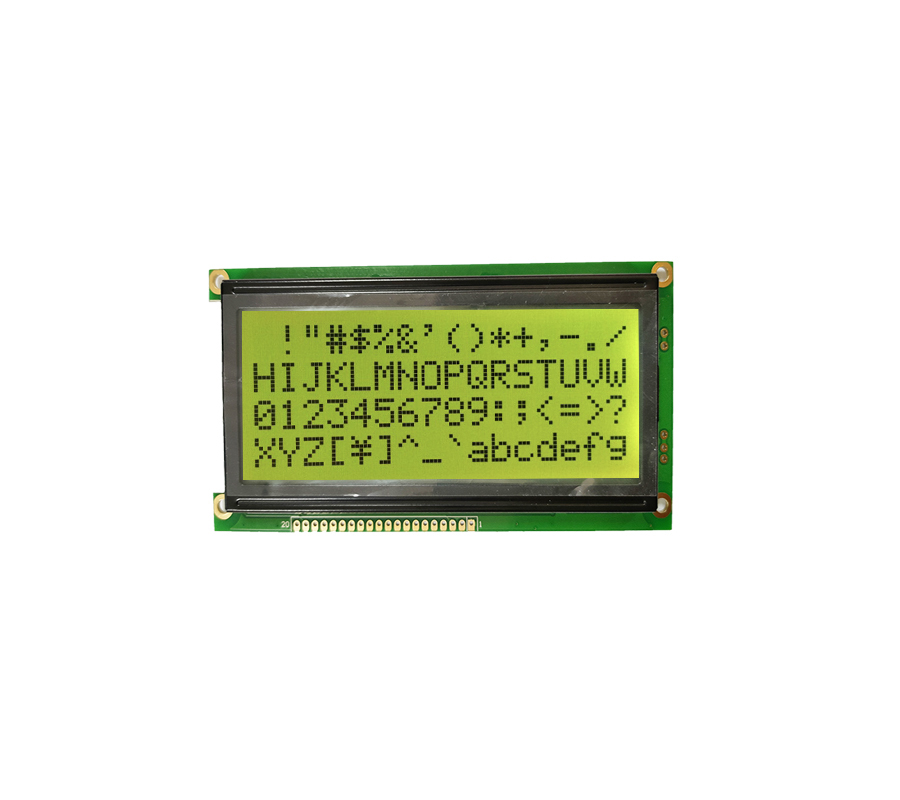

Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264

  • You are here:
  • Home
  • Products
  • LCD Display
  • 192*64
  • Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264
  • Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264
  • Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264
  • Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264
  • Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264
  • Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264
Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264 Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264 Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264 Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264 Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264

Product Name

Large Screen 4 inch 192X64 Dots STN Yellow Green LCD Display 20 Pin 8 bit Parallel LCD Display Module 19264

Product Properties

Outline dimension: 130X65X12.5 Resolution:192x64 Display mode: STN/FSTN Pins No: 20 pins
Email Us To Inquiry
FacebookTwitterLinkedInAddThis

Product Introduction

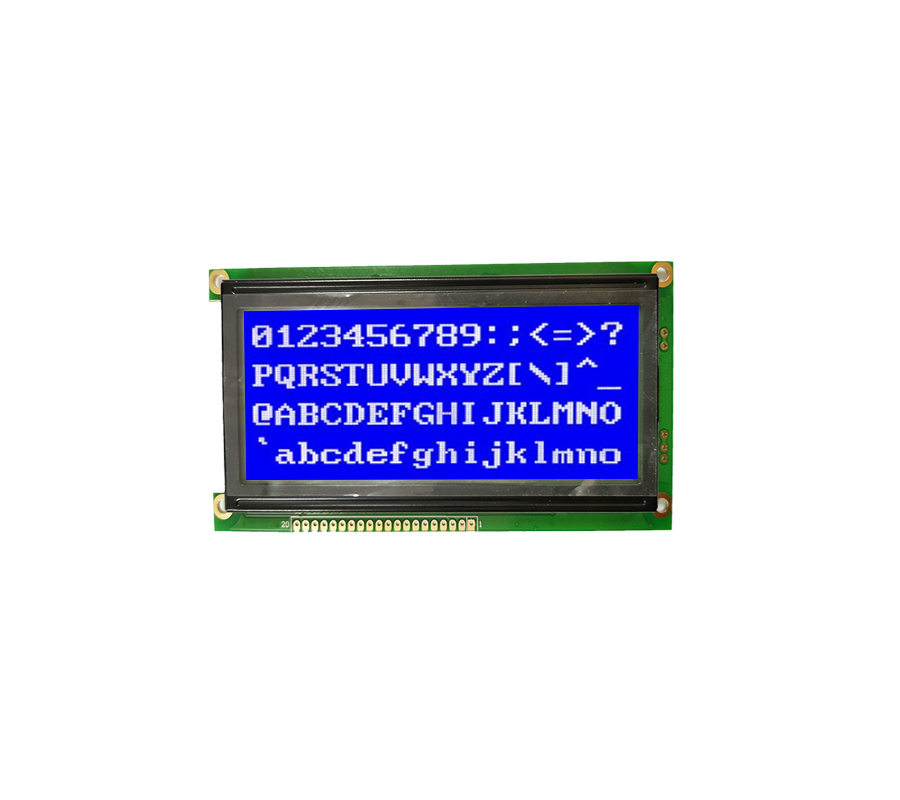

20 pin 192x64(BV10) blue lcd screen display 5v graphic 19264 dot matrix module

Product Description

Product Name
19264A Dots Graphic character lcd display module
Model
GH19264A
Type
COB LCD Display, dots graphic Display
Dot Format
192*64Dots
Display format
192character*64lines
Display mode
STN, Transmissive , Negative
Color
White Display Dot
Blue Background
Backlight
White Backlight
Brightness
500cd/m2

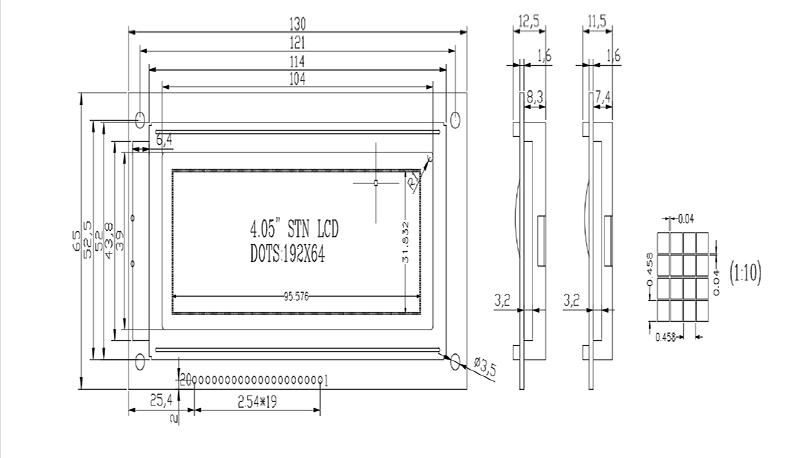

Outline Dimension
130X65X12.5mm
Viewing Area
104x39mm
Active Area
95.5x39mm
Dot Size
0.458X0.458mm
Dot Pitch
0.498x0.498mm
Viewing Direction
6 O'Clock
Interface
 8-bit Parcellel, 20 Pins
Driving Method
1/64 Duty, 1/9Bias
Supply Voltage
5.0V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
