Product Name

10.13 inch Flexible display FHD AMOLED 1440x1920 BENDABLE DISPLAY

Product Properties

Size: 10.13 Resolution:1242(RGB)x2208 Interface:2 port MIPI Driver Board: HDMI Board
Email Us To Inquiry
FacebookTwitterLinkedInAddThis

Product Introduction

Product Description:

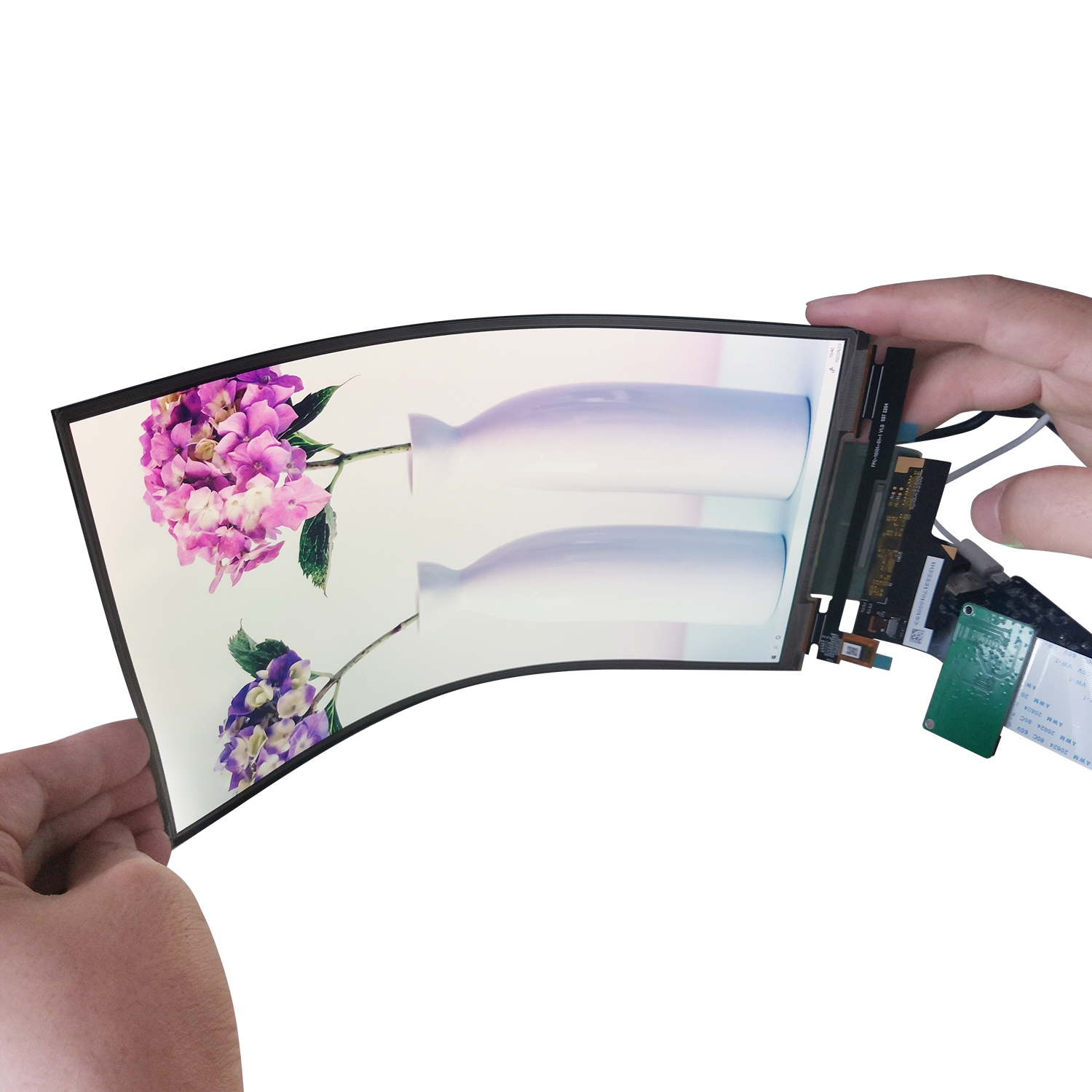

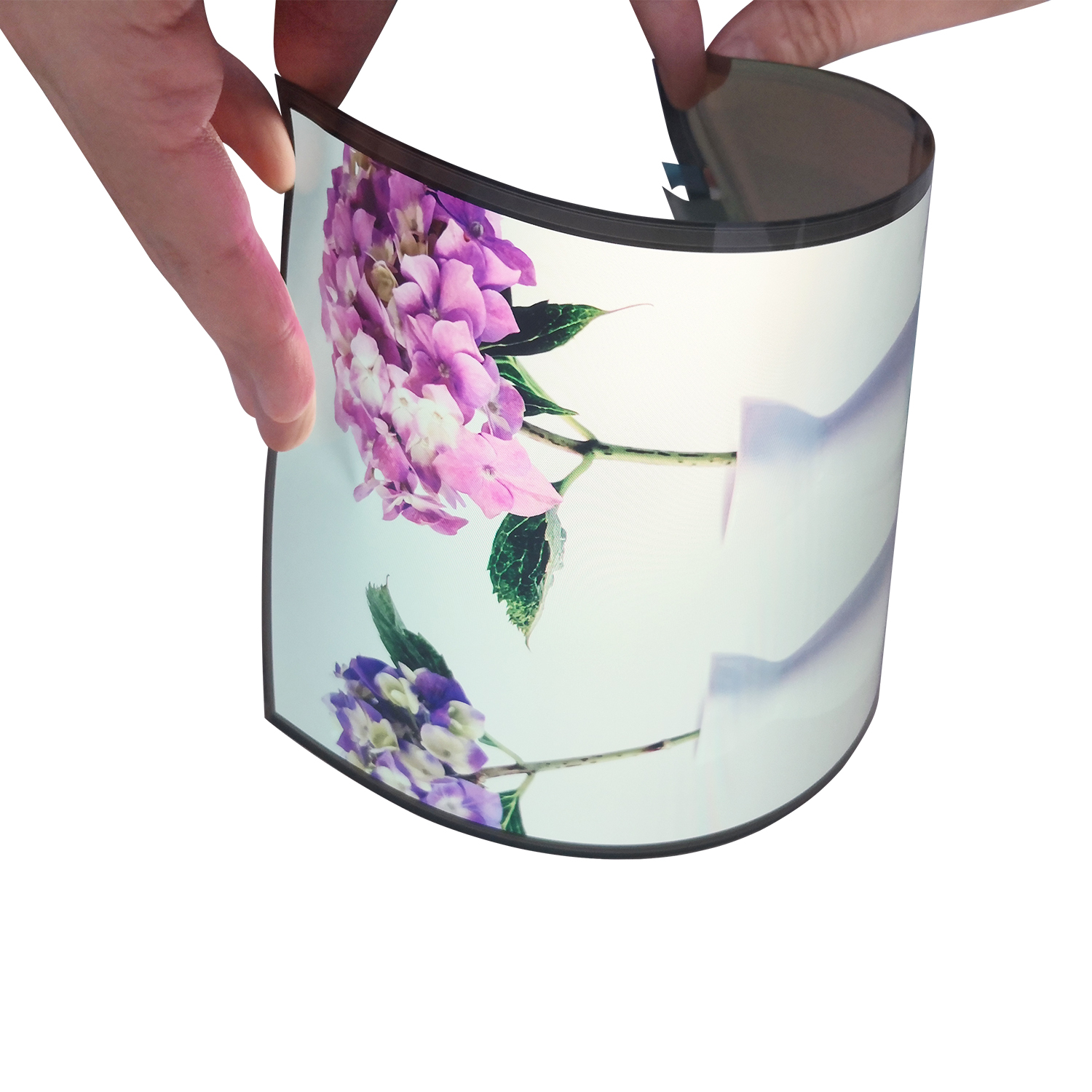

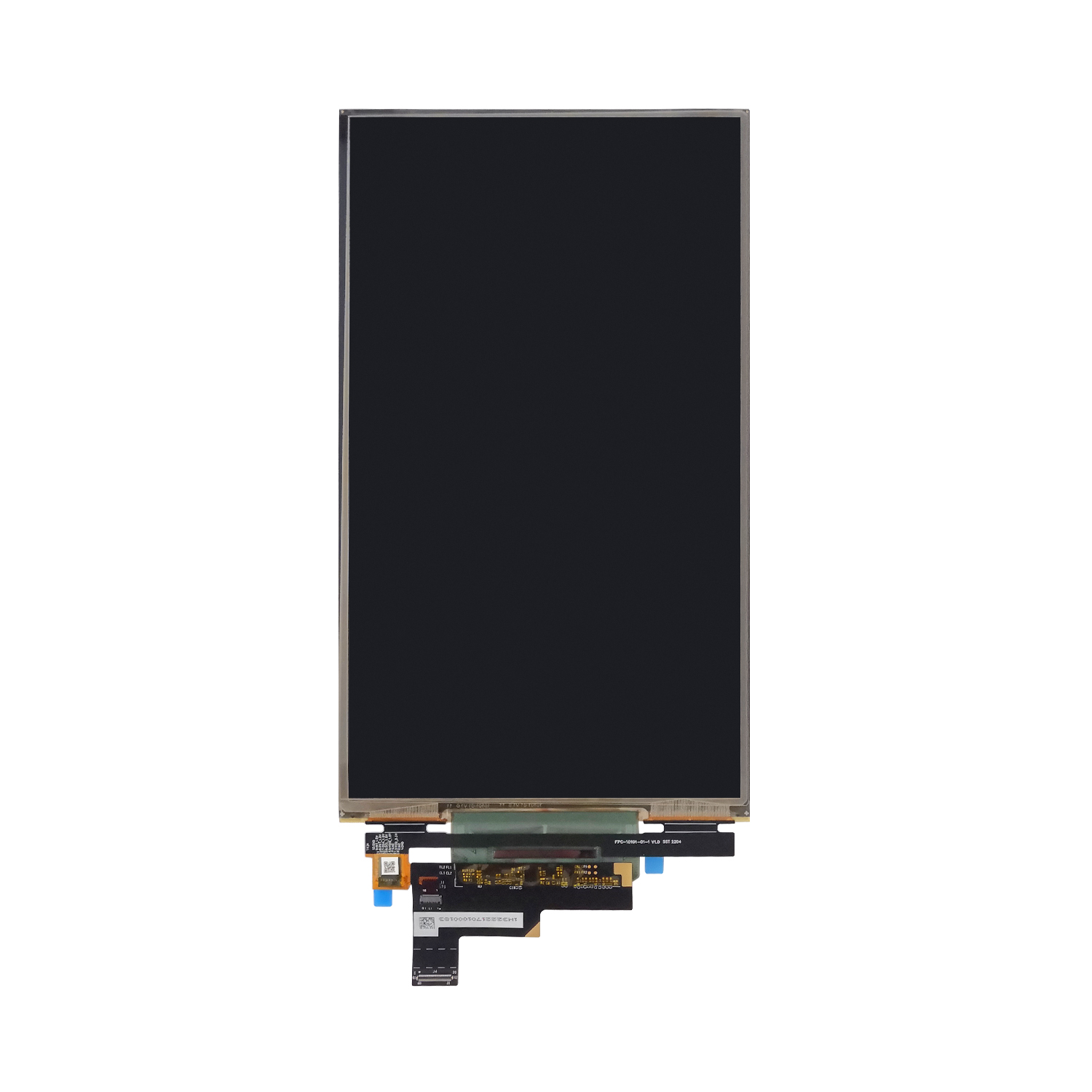

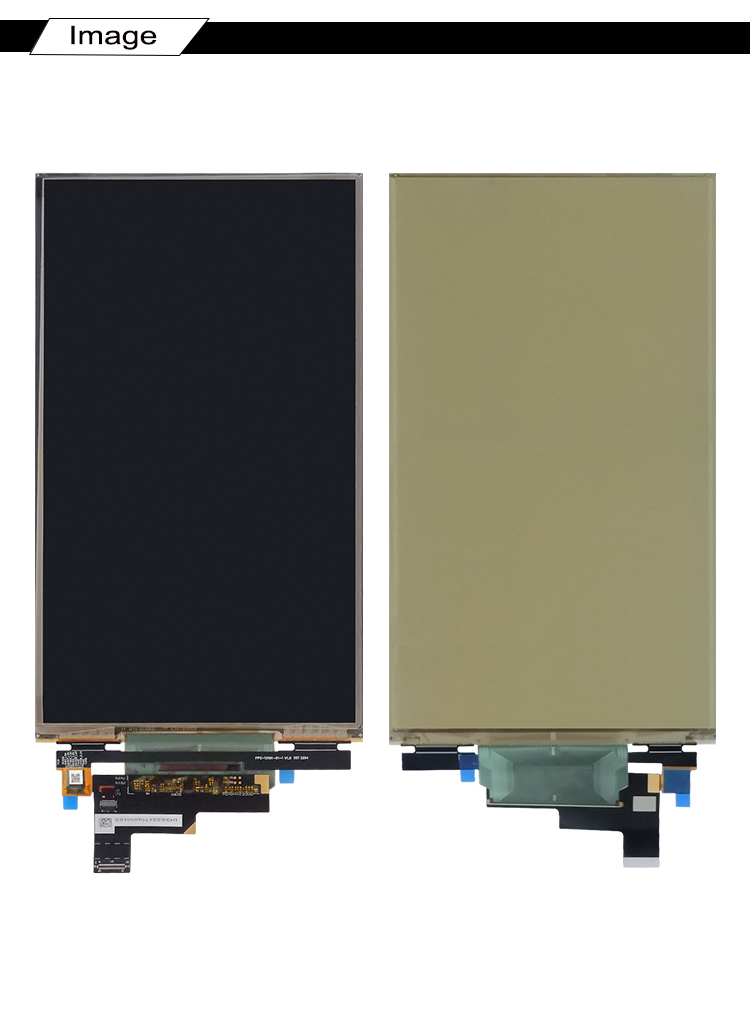

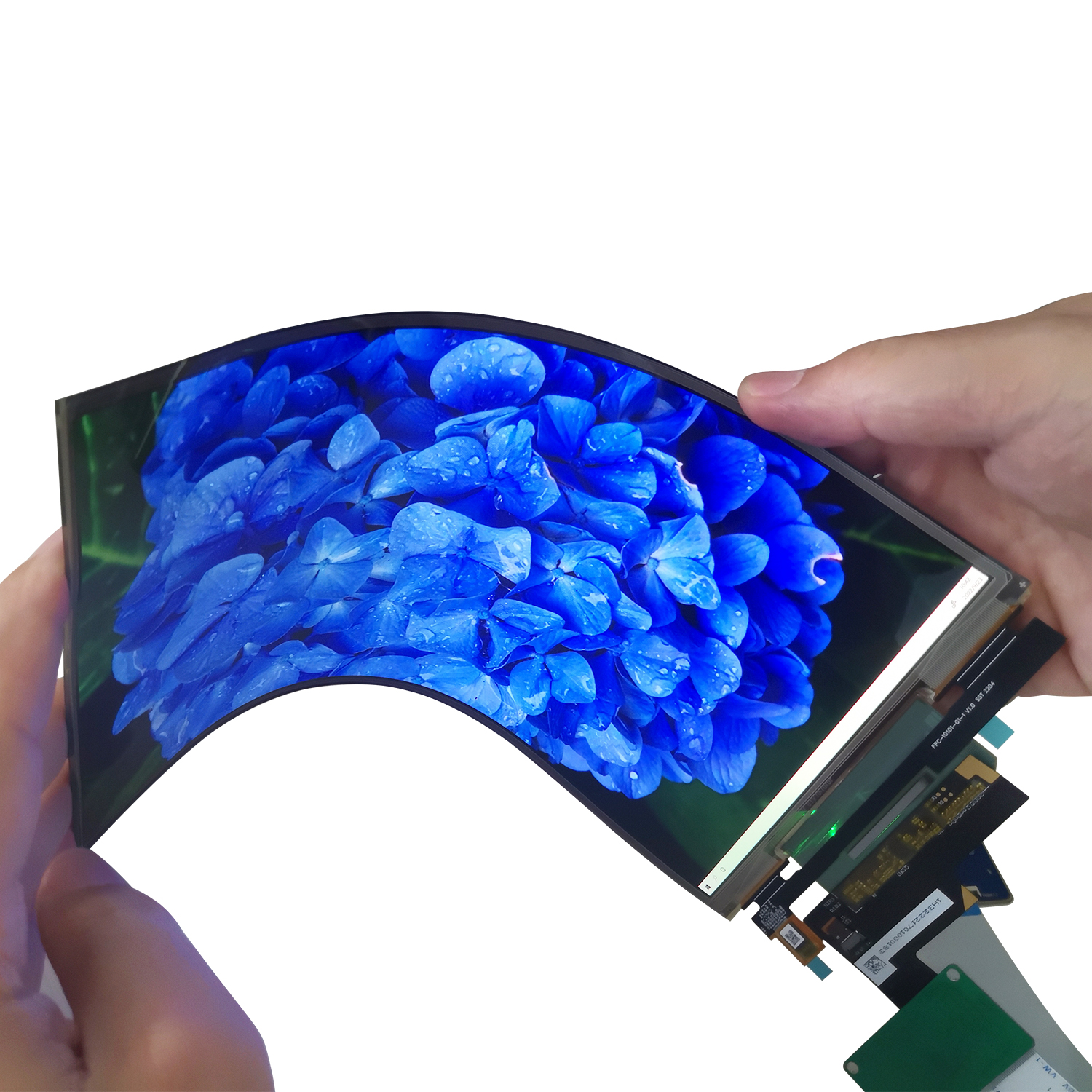

This is a Bendable OLED Screen 10.13 inch Flexible AMOLED Display 11242(RGB)x2208 IPS FHD Curved LCD Module with CTP Capacitive Touch Panel. It has advantages of high contrast, wide color gamut, and wide viewing angle, which make it able to bring vivid and delicate visual experience. All these 7.8 inch flexible AMOLED displays are original new with Grade A+ condition.

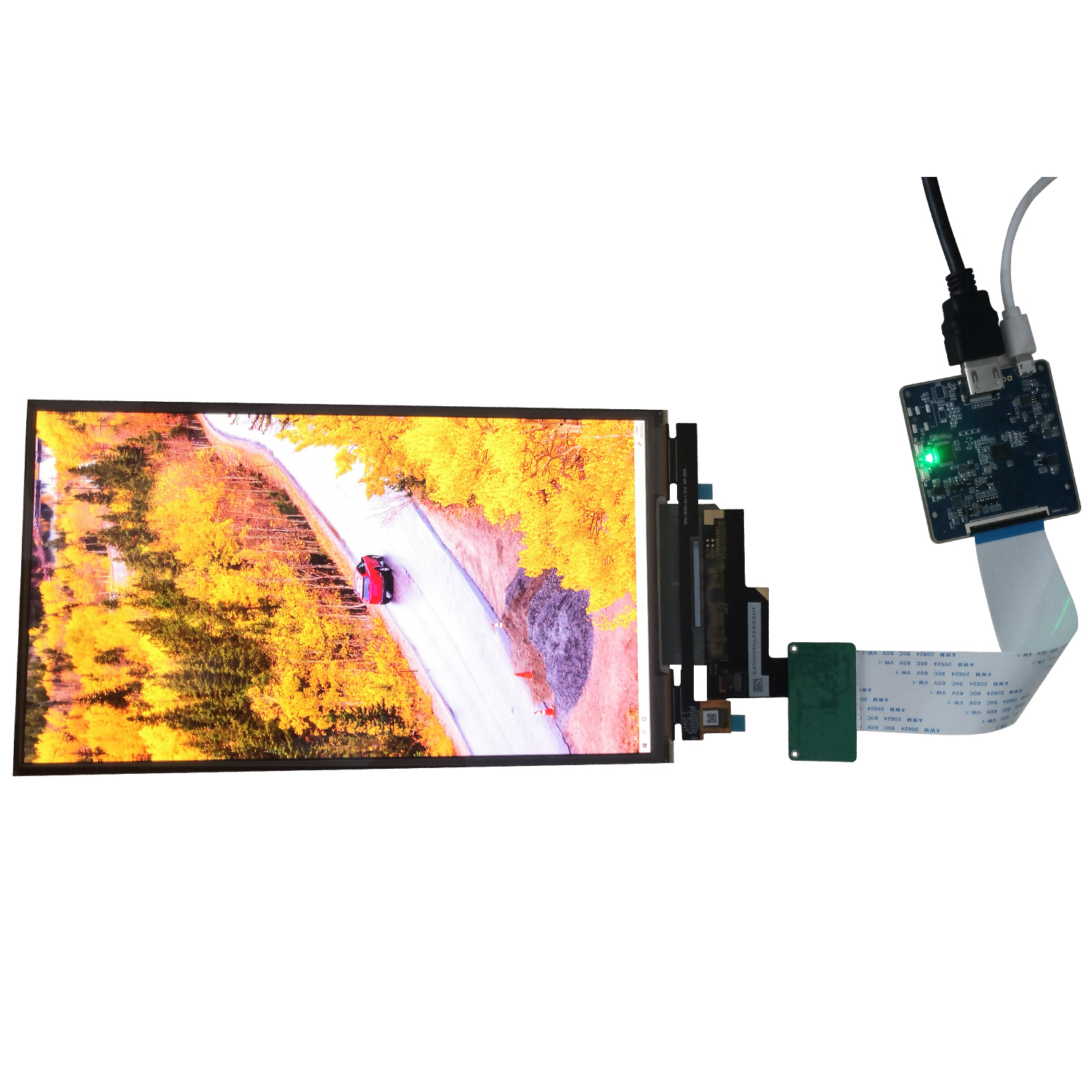

This full set support touch function. So you can enjoy vivid visual experience and touch function as the same time!




GENERAL SPECIFICATION

Model No.
HGFLEXO1013
Size
10.13 inch
Resolution
2208*1242
Outline Dimension
135.19*235.43*0.592mm
Active Area
126.19*224.33mm
Viewing Angle
IPS Full Viewing Angle
Interface
MIPI
Luminance
300cd/m2
Contrast Ratio
100,000
Color Depth
16.7M
PPI
250
Bending
R50mm (typical), depend on application
Life Time
LT80 30000 hours
FPC Connecting Mode
62 Pin Board to Board Connector
Touch Panel
With Oncell Touch Panel

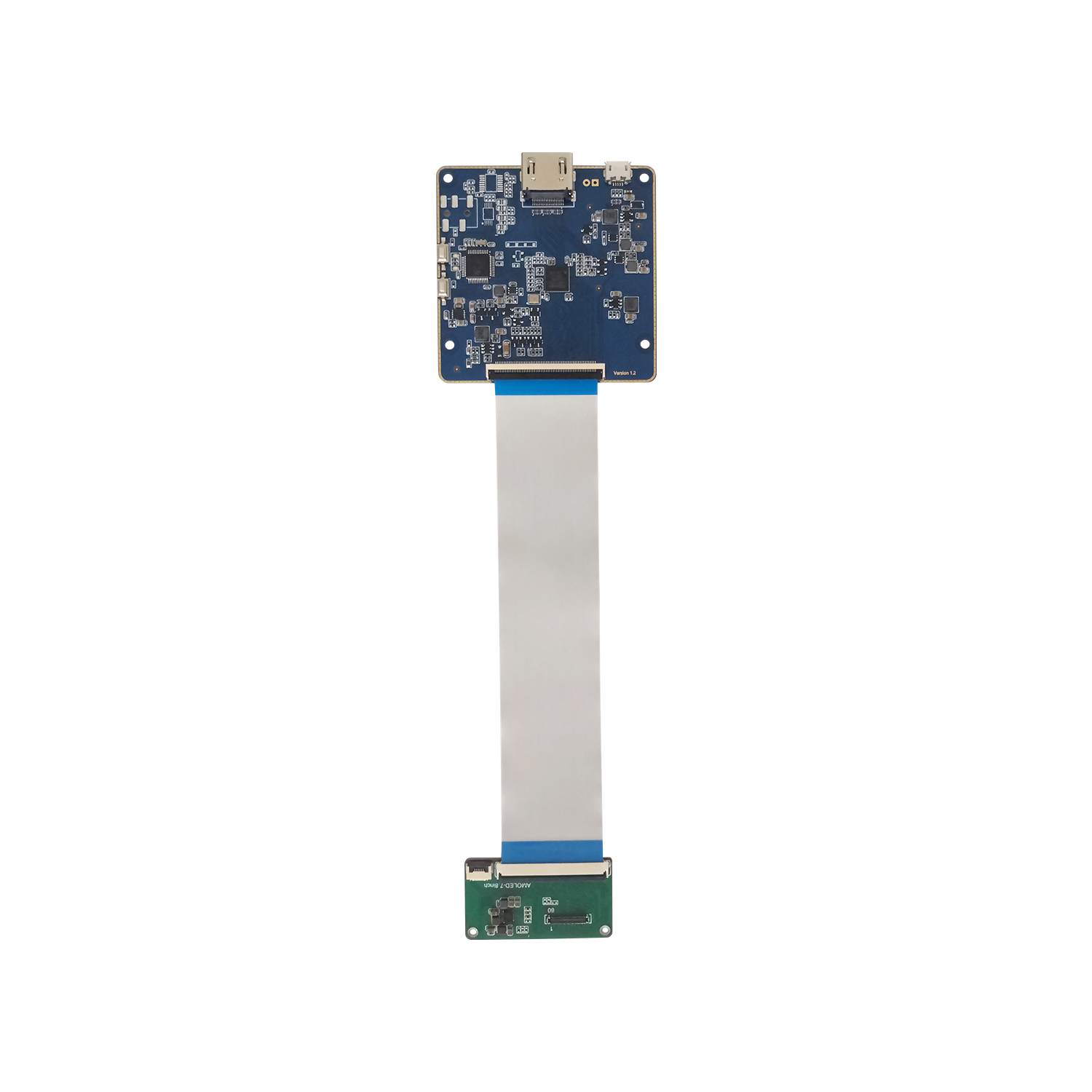

Driver Board
With HD-MI Board

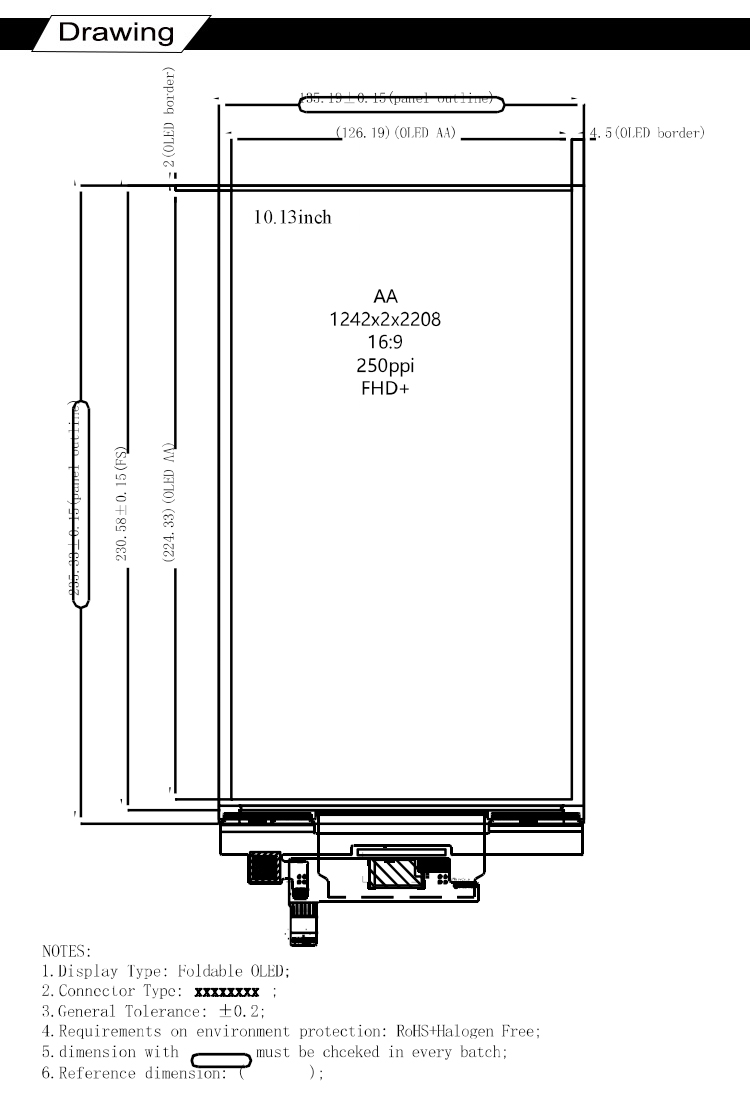

DRAWING

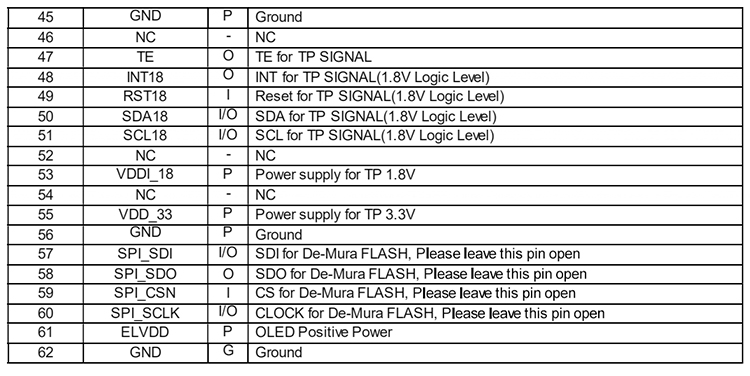

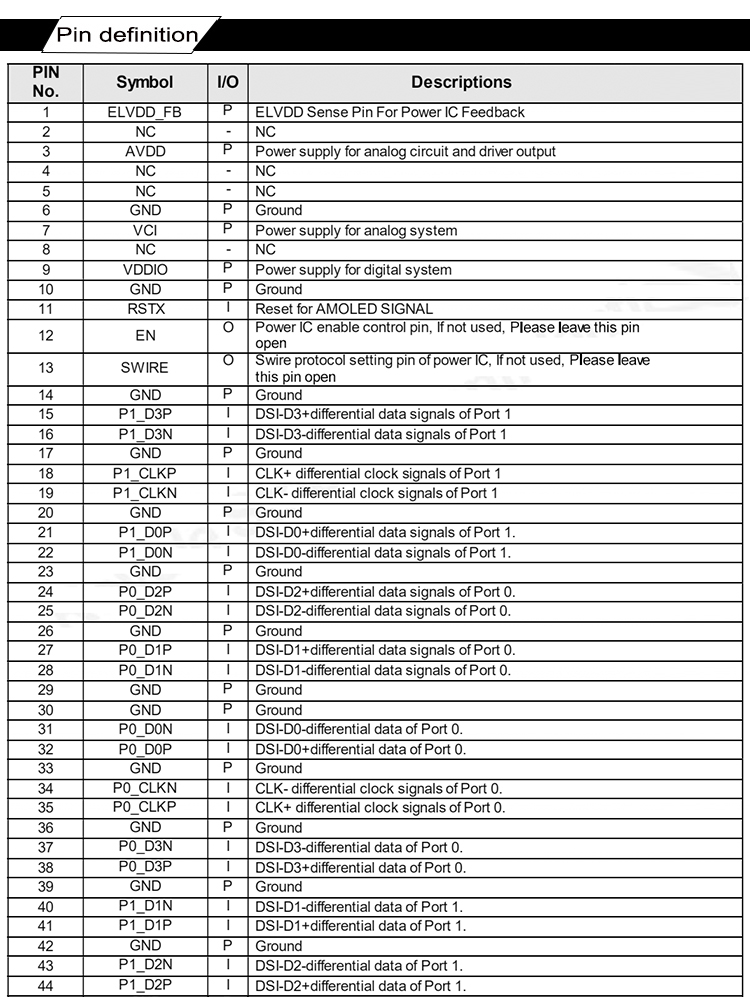

INTERFACE PIN FUNCTION
