Product Introduction

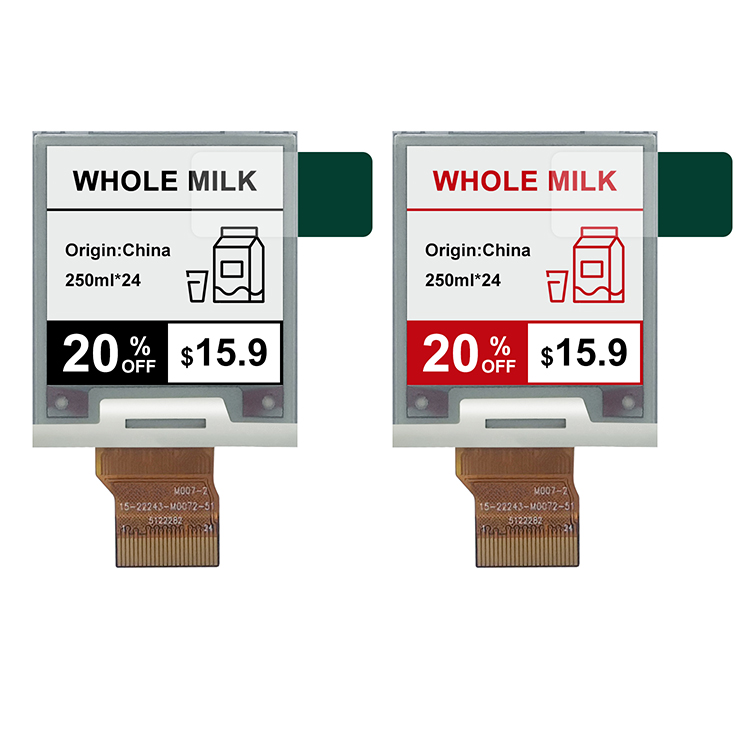

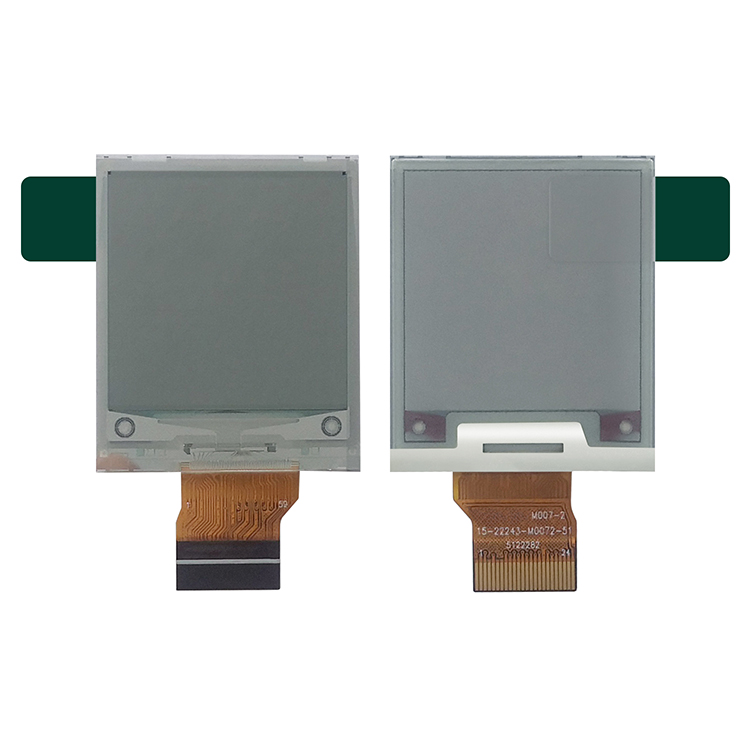

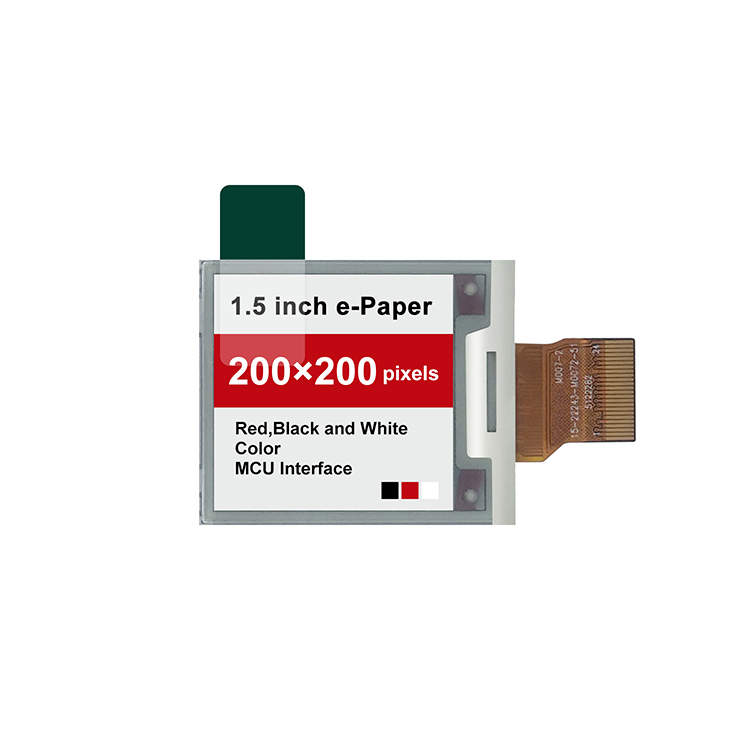

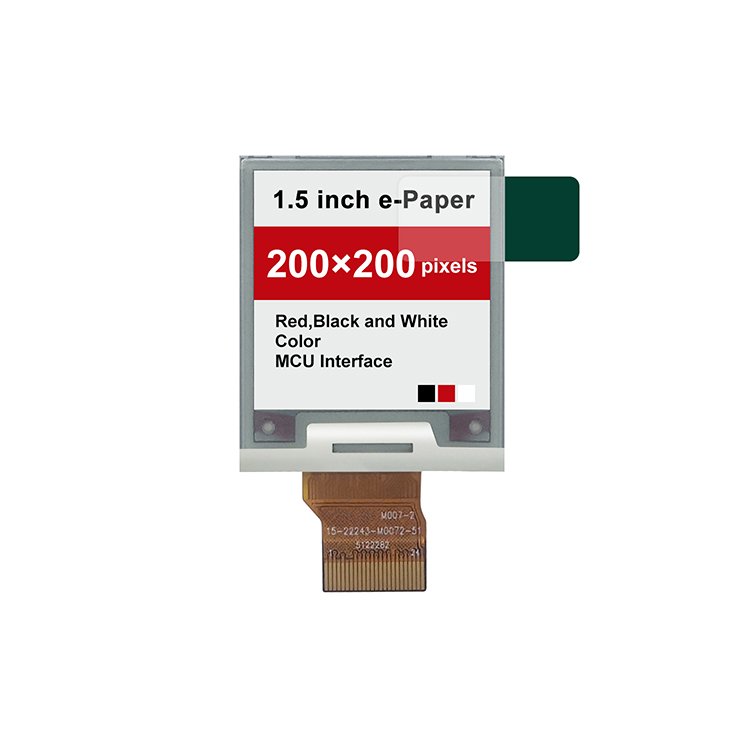

1.5 inch square eink display 200x200 epd display
DESCRIPTION
HICENDA 007F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The1.5”active area contains 200×200pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gatebuffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
General Specification
| Display Type: | Eink display |
| Display Mode: |
Active Matrix Electrophoretic Display
|
| Model Number: | HE007F |
| Diagonal Screen size: | 1.5 inch |
| Interface: | wire SPI i |
| Number of Pixels: |
200(H)×200(V)
|
| Panel Size: |
31.80(H)×37.32(V) ×0.92(D)(mm)
|
| Driver IC: |
SSD1681 |
| Active Area: |
27.00(H)×27.00(V)(mm)
|
| : |
EINK
|
| : |
0.135×0.135(mm)
|
|
Weight: |
2.17±0.5(g)
|
|
Color:
|
Eink
|

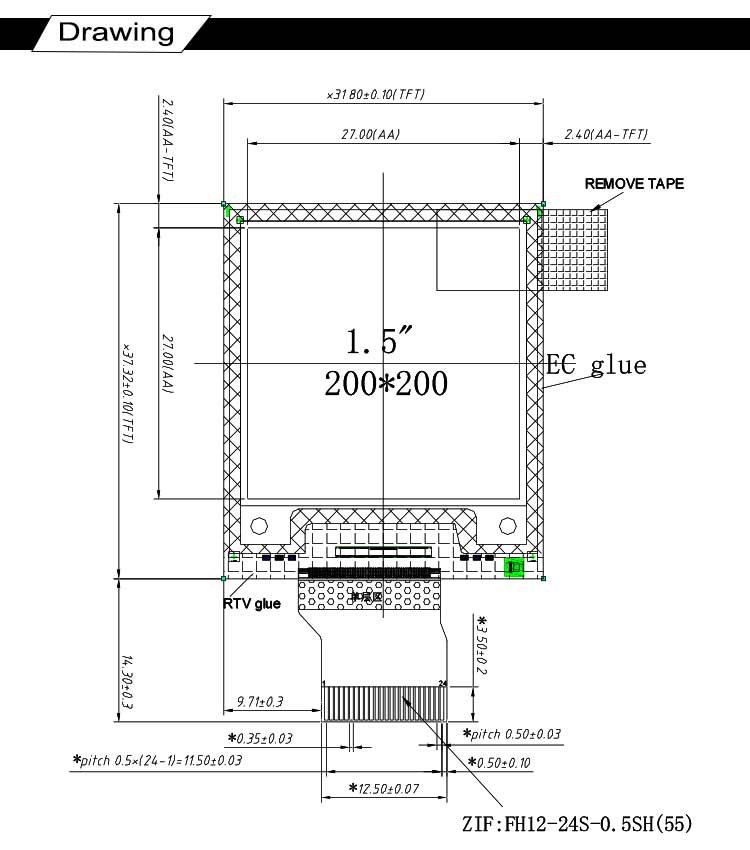

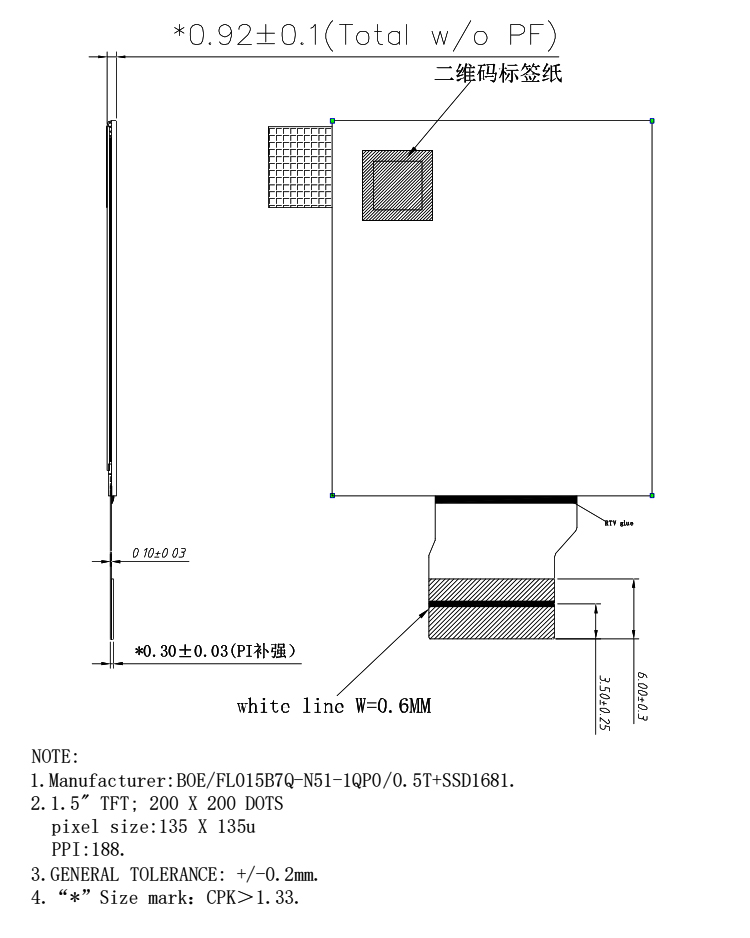

DRAWING

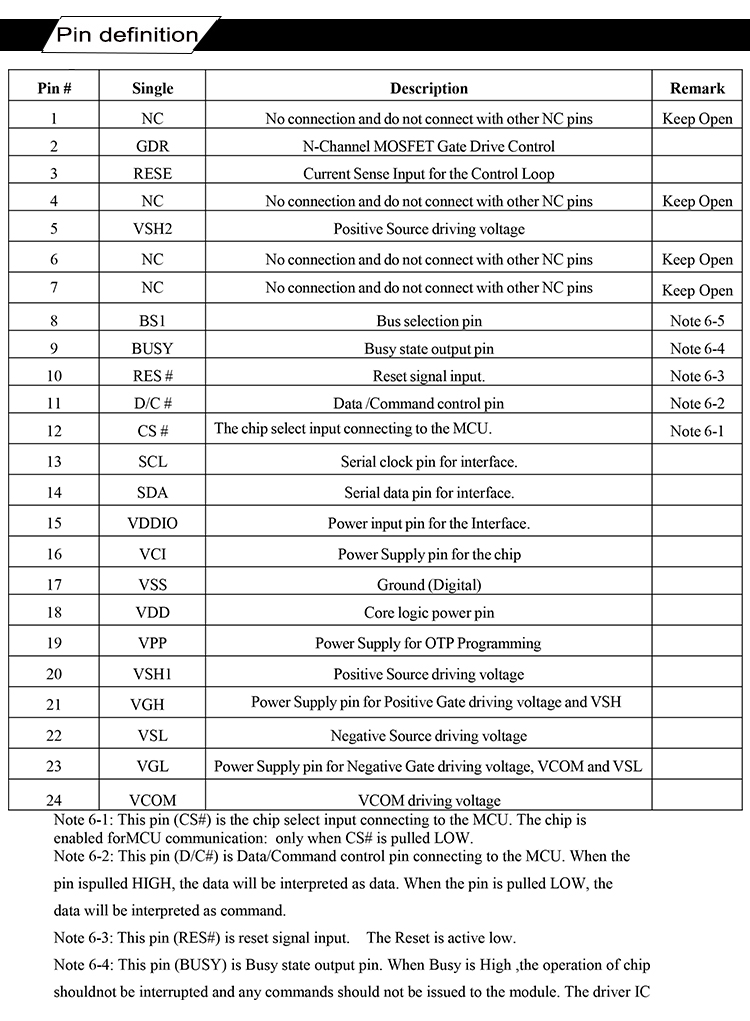

INTERFACE PIN FUNCTION
