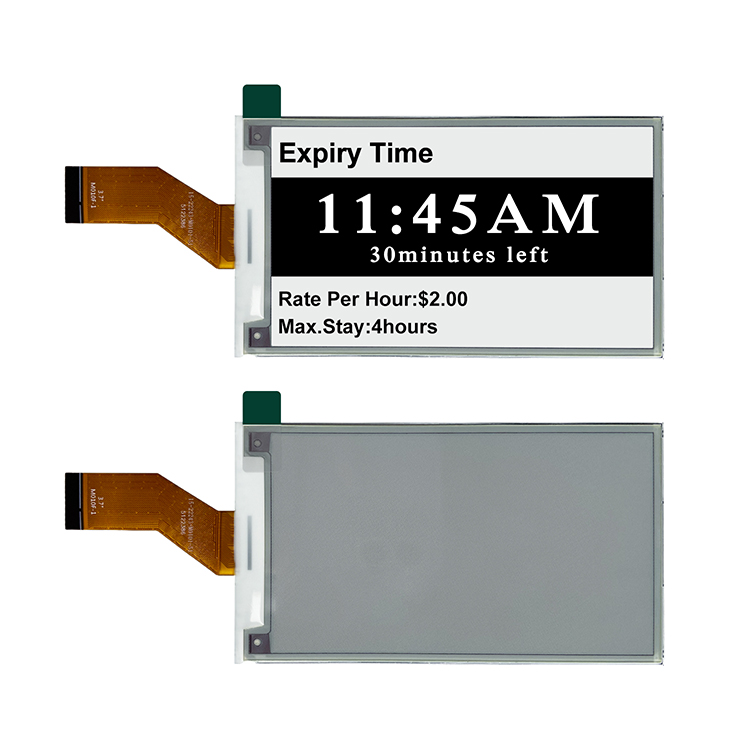

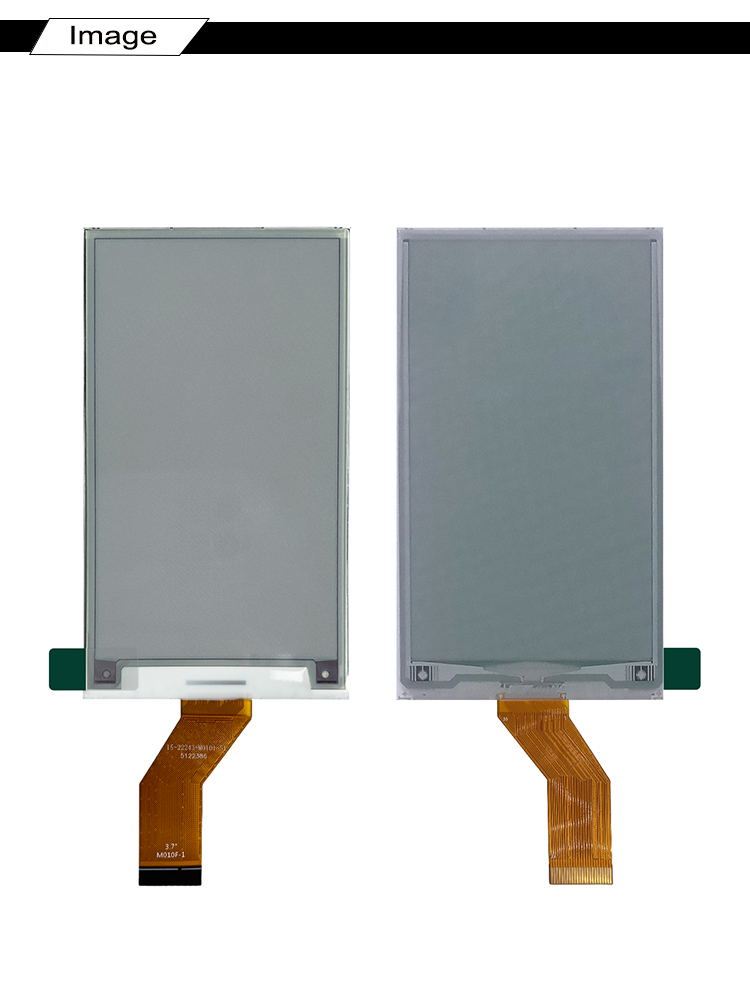

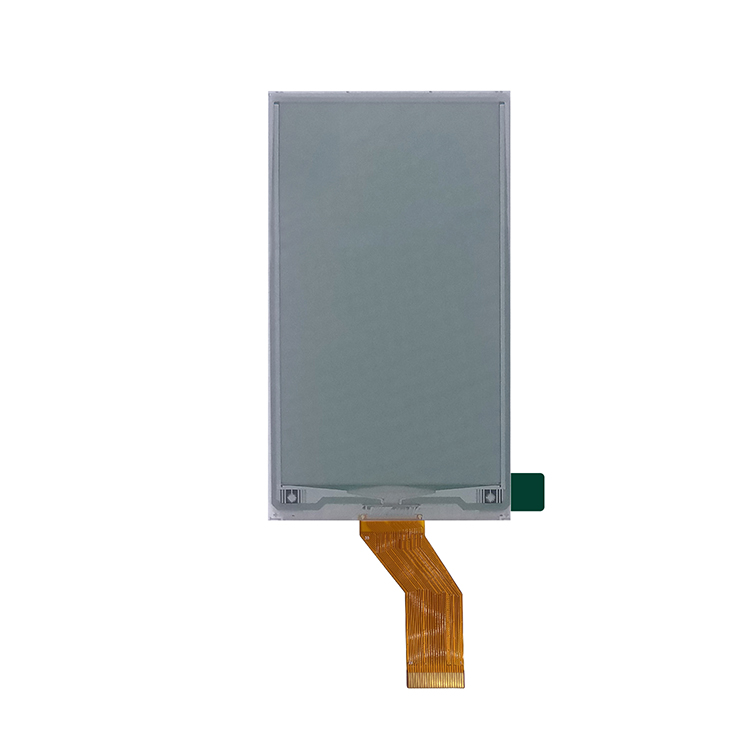

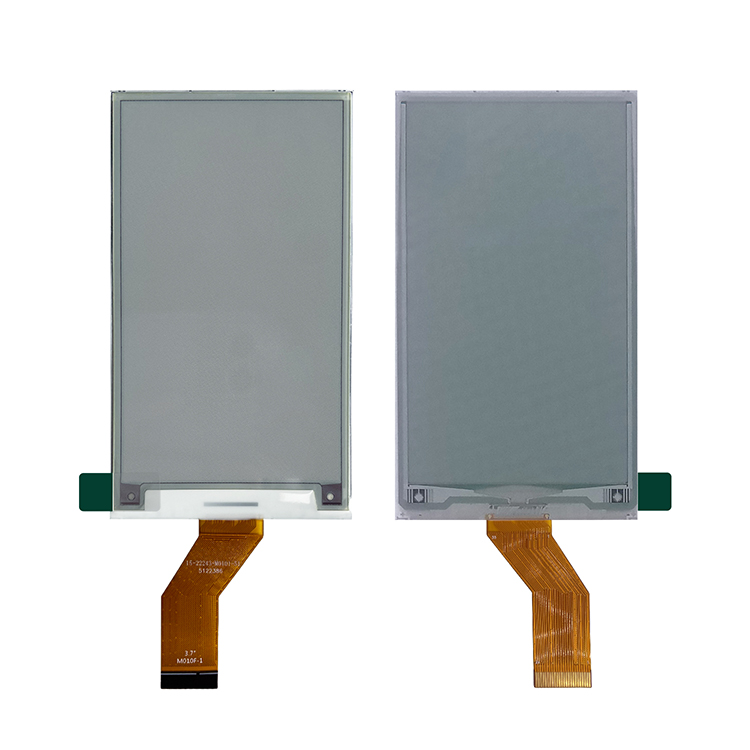

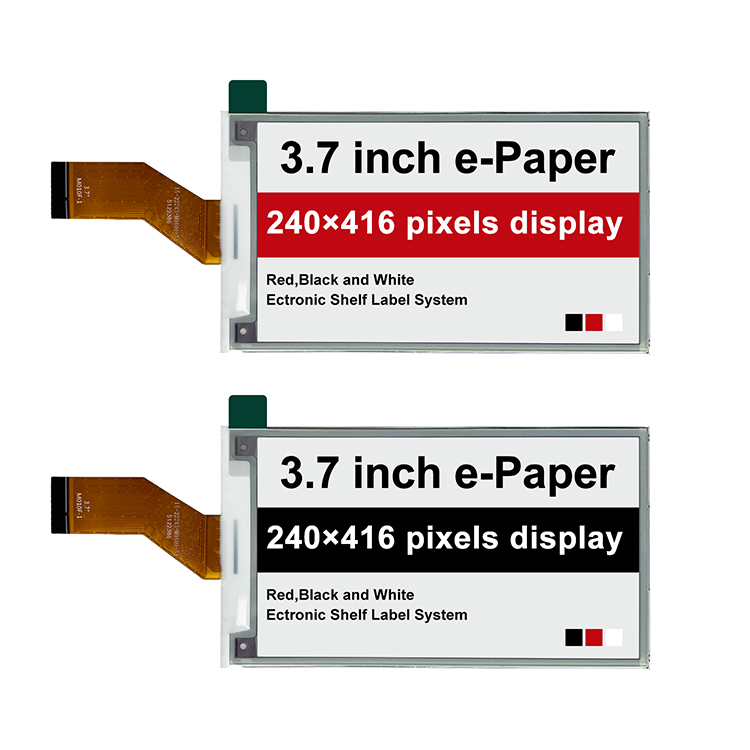

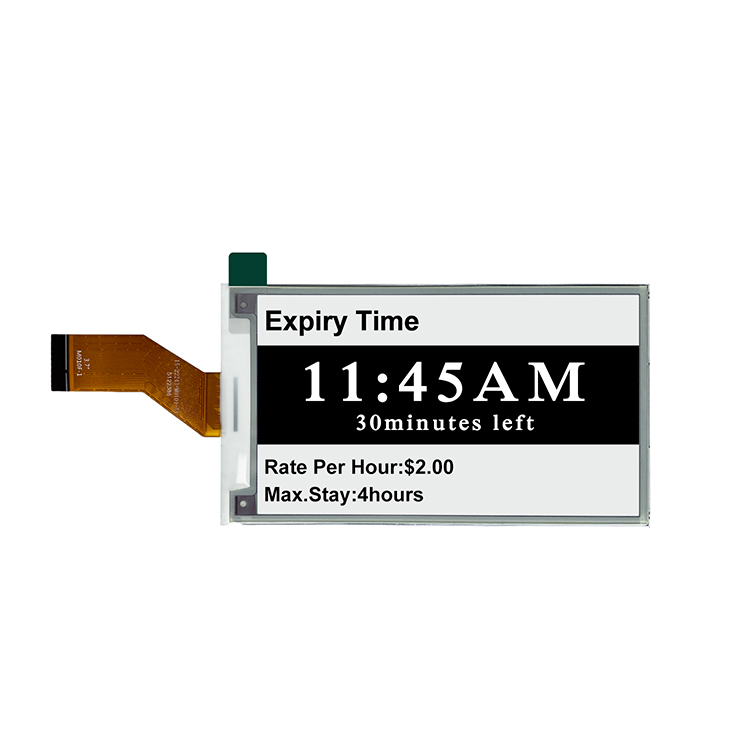

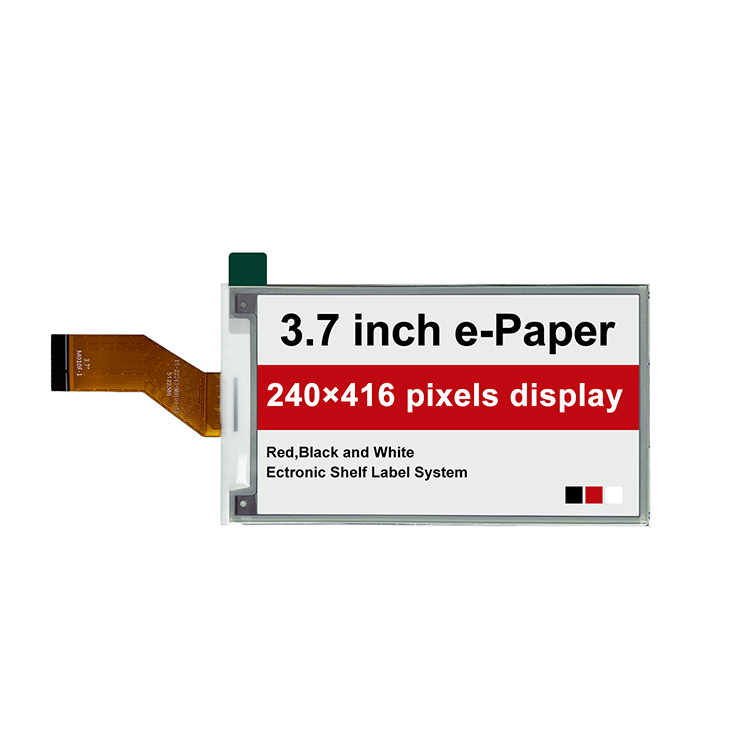

eink screen module 3.7 inch 240×416 ePaper Display
DESCRIPTION
HICENDA HE010F is an Active Matrix Electrophoretic Display (AMEPD),with interface and a reference system design.The 3.7”active area contains 240×416pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
General Specification
| Display Type: | Eink display |
| Display Mode: |
Active Matrix Electrophoretic Display
|
| Model Number: | HE010F |
| Diagonal Screen size: | 3.7 inch |
| Interface: | wire SPI i |
| Number of Pixels: |
240(H)×416(V)
|
| Panel Size: |
53(H)×92.99 (V) ×0.92(D)(mm)
|
| Driver IC: |
UC8253C |
| Active Area: |
47.04(H)×81.54(V)(mm)
|
| : |
EINK
|
| Pixel Pitch: |
0.202×0.203(mm)
|
|
Weight: |
8.5±0.5(g)
|
|
Color:
|
Eink
|

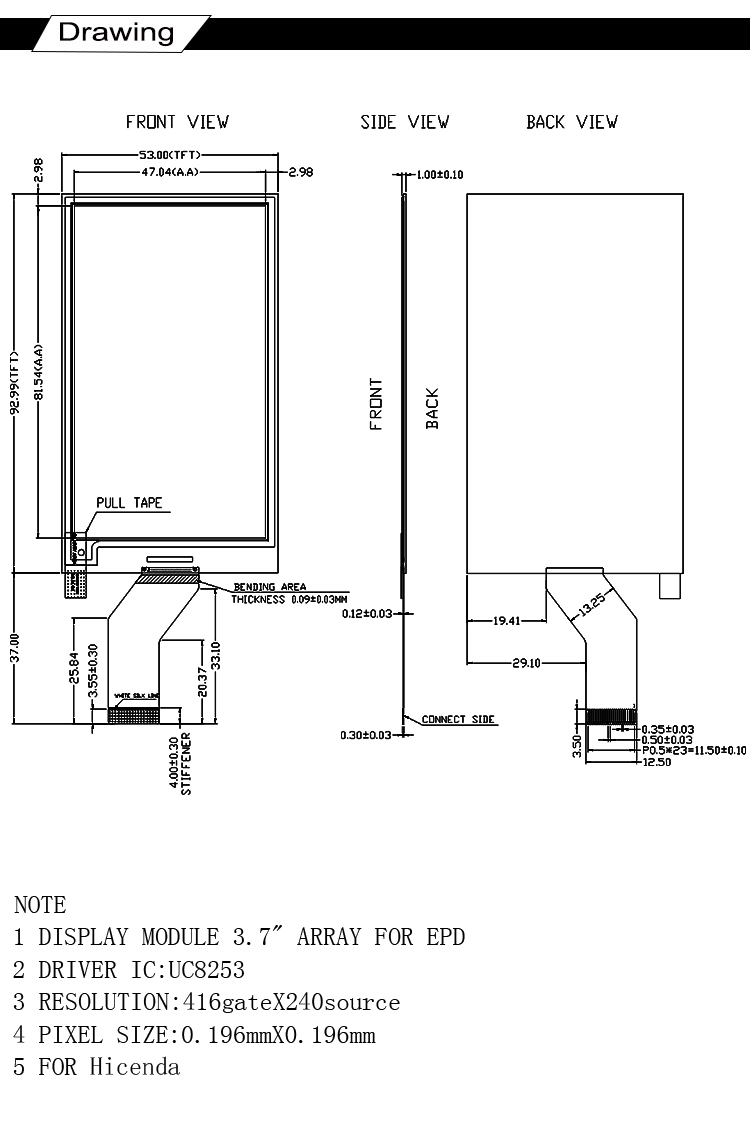

DRAWING

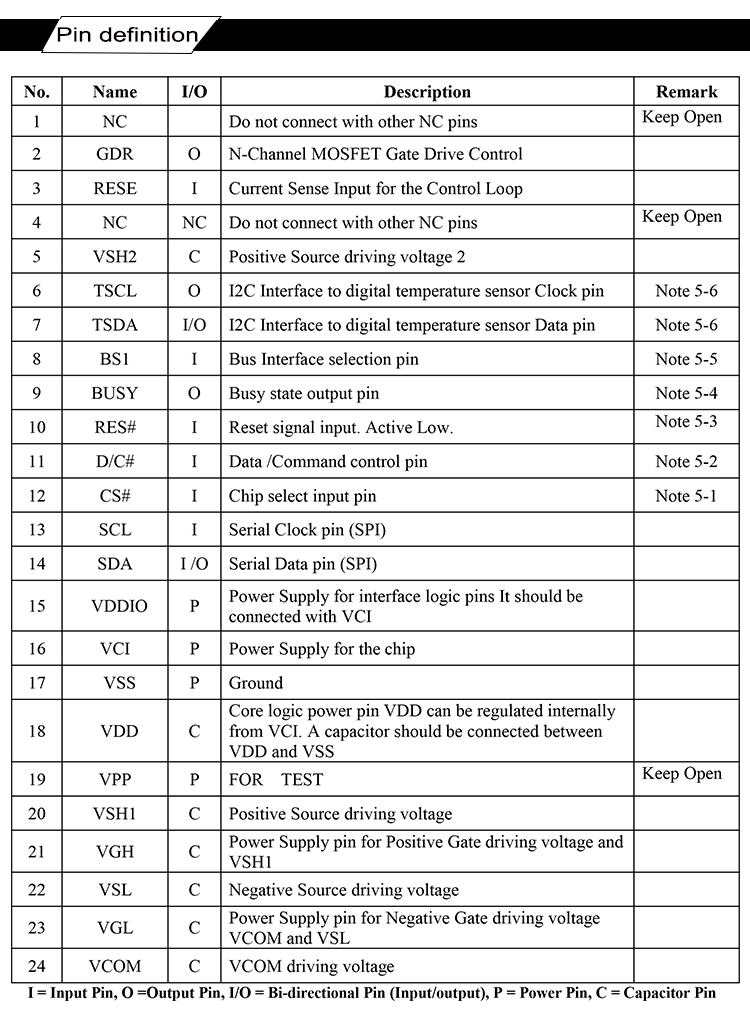

INTERFACE PIN FUNCTION
