Product Introduction

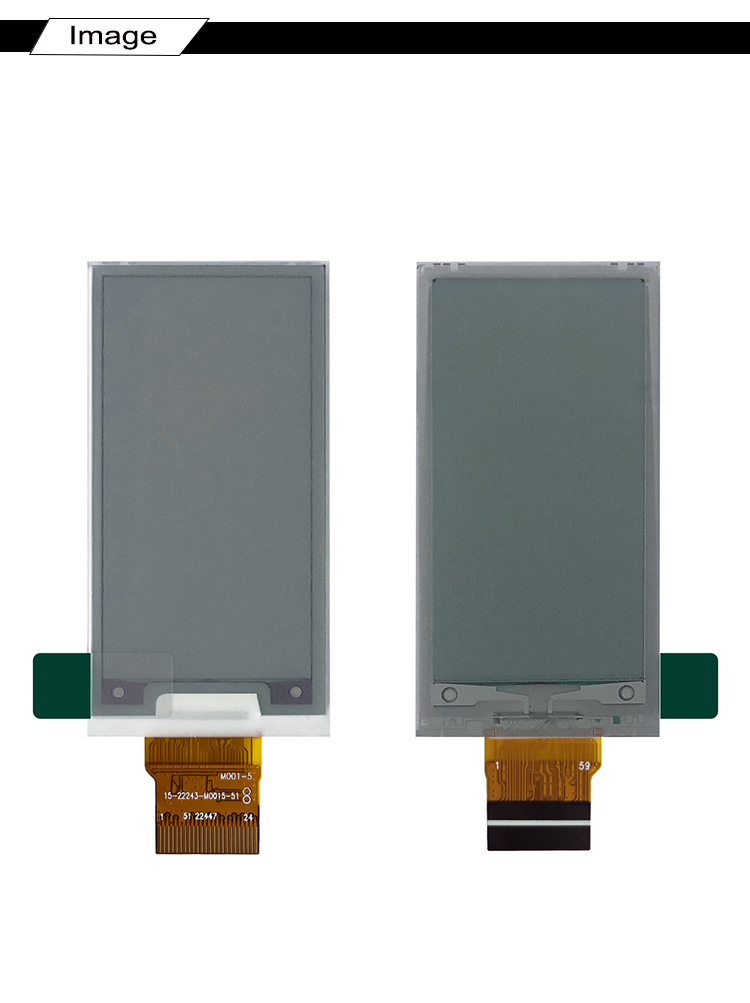

2.13 inch epaper display 122x250 eink screen panel

HICENDA HEDP0213BNS800F41 is an Active Matrix Electrophoretic Display (AM EPD), with

interface and a reference system design. The display is capable to display images at 1-bit white andblack full display capabilities.The 2.13 inch active area contains 122×250 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

General Specification

Display Type:	Eink display
Display Mode:	Active Matrix Electrophoretic Display
Model Number:	HEDP0213BNS800F41
Diagonal Screen size:	2.13 inch
Interface:	wire SPI i
Number of Pixels:	122(H)×250(V)

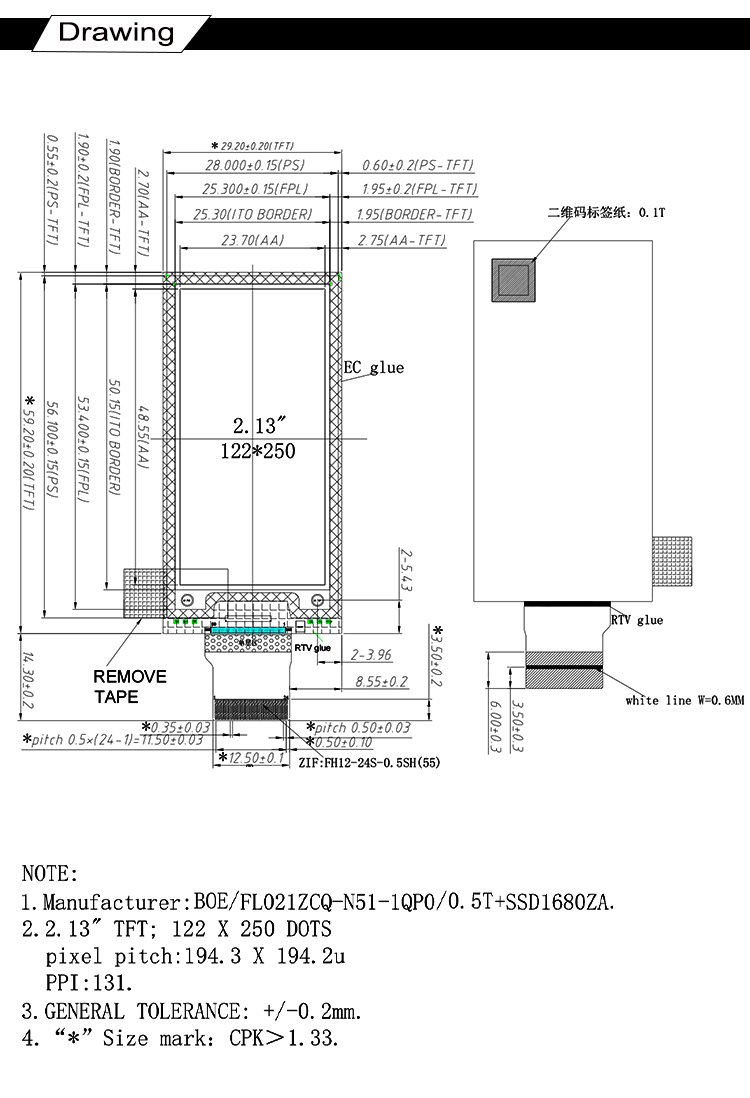

Panel Size:	29.2(H)×59.2 (V) ×1.0(D)(mm)
Driver IC:	SSD1680Z8
Active Area:	23.705×48.55 (mm)
:	EINK
Pixel Size:	0.1942×0.1942(mm)
Weight:	3.2±0.5(g)
Color:	Eink
