Product Introduction

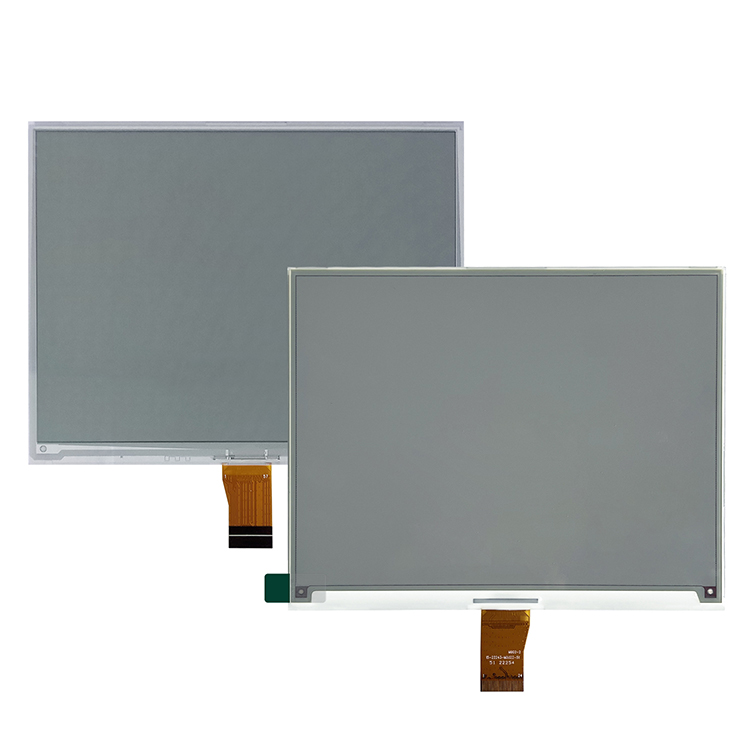

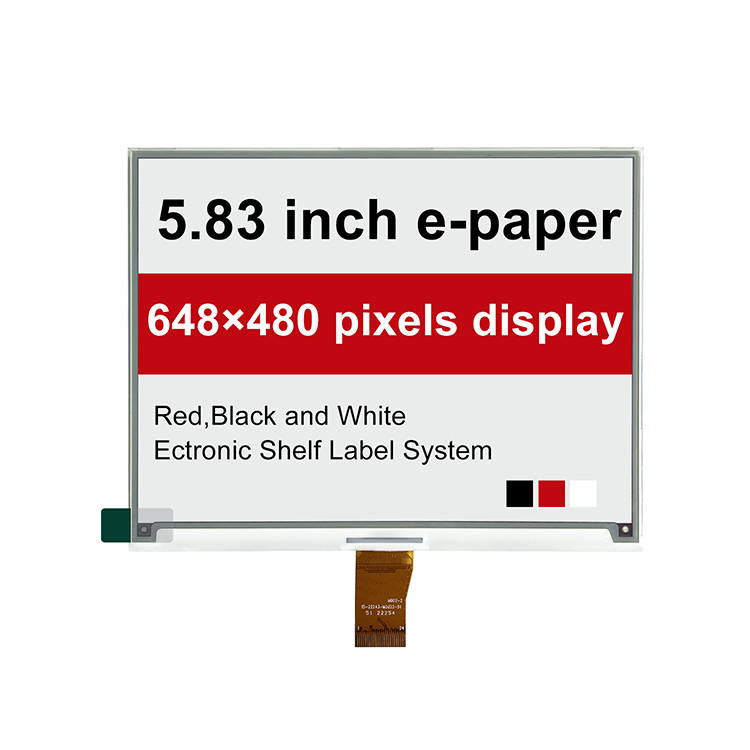

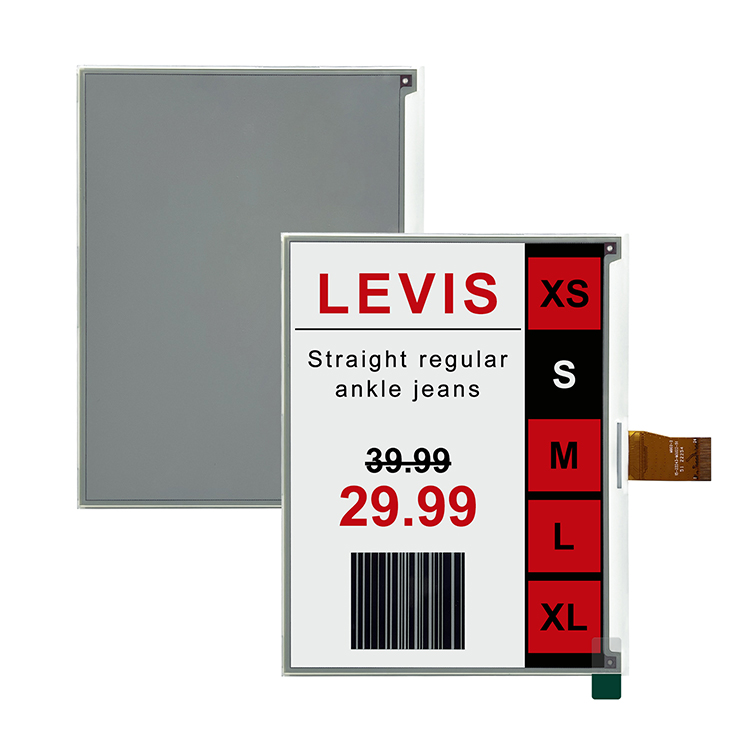

ePaper Display module 5.83 inch 648(H)×480(V) eink screen
DESCRIPTION
HICENDA HE002F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The 5.83”active area contains 648×480pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
General Specification
| Display Type: | Eink display |
| Display Mode: |
Active Matrix Electrophoretic Display
|
| Model Number: | HE002F |
| Diagonal Screen size: | 5.83 inch |
| Interface: | wire SPI i |
| Number of Pixels: |
648(H)×480(V)
|
| Panel Size: |
125.40(H)×99.50 (V) ×1.12(D) (mm)
|
| Driver IC: |
SSD1683A |
| Active Area: |
118.78(H)×88.22(V)(mm)
|
| : |
EINK
|
| : |
0.183×0.183(mm)
|
|
Weight: |
15.5±0.5(g)
|
|
Color:
|
Eink
|

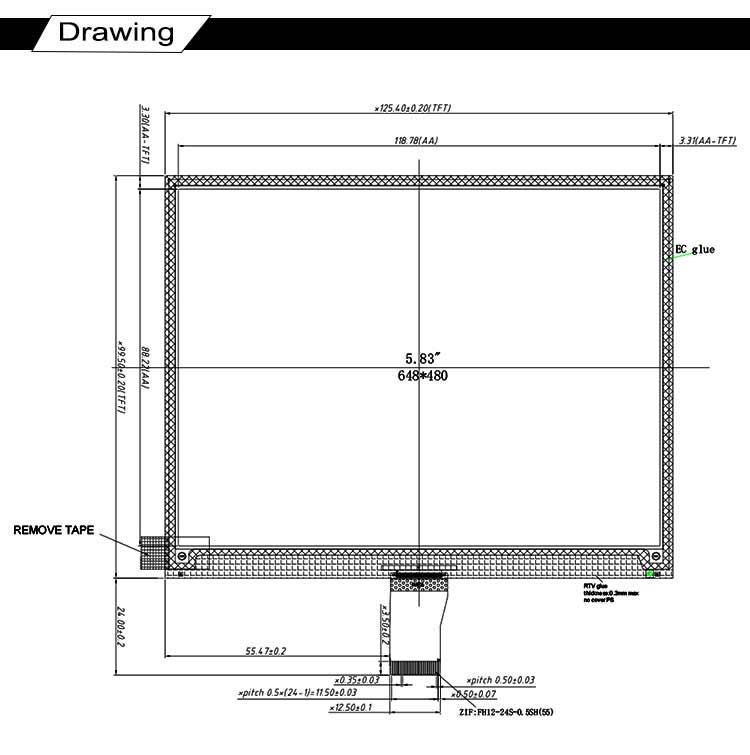

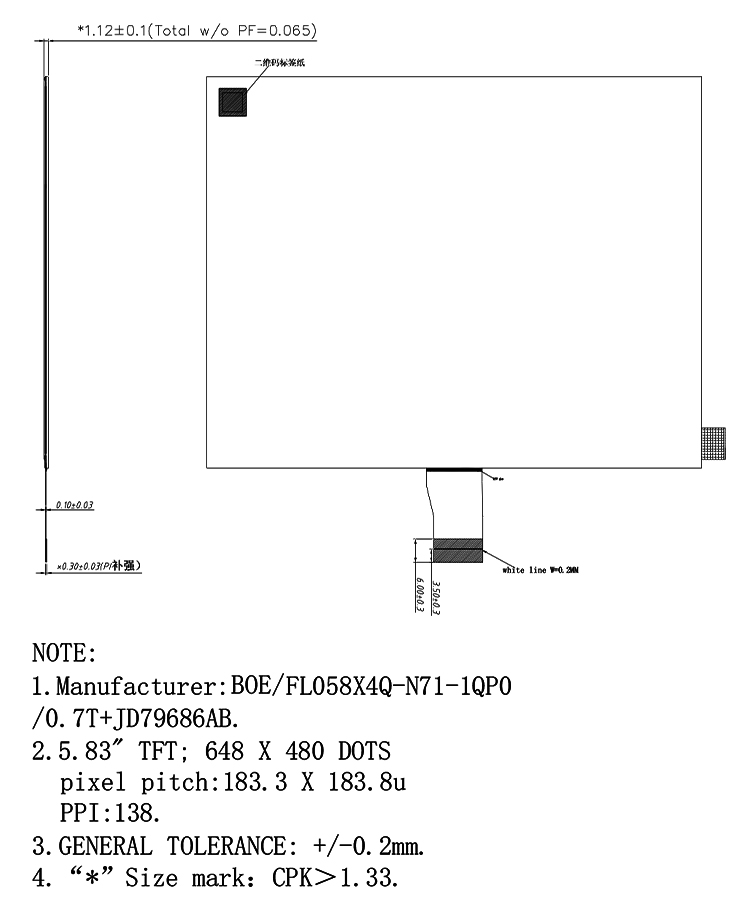

DRAWING

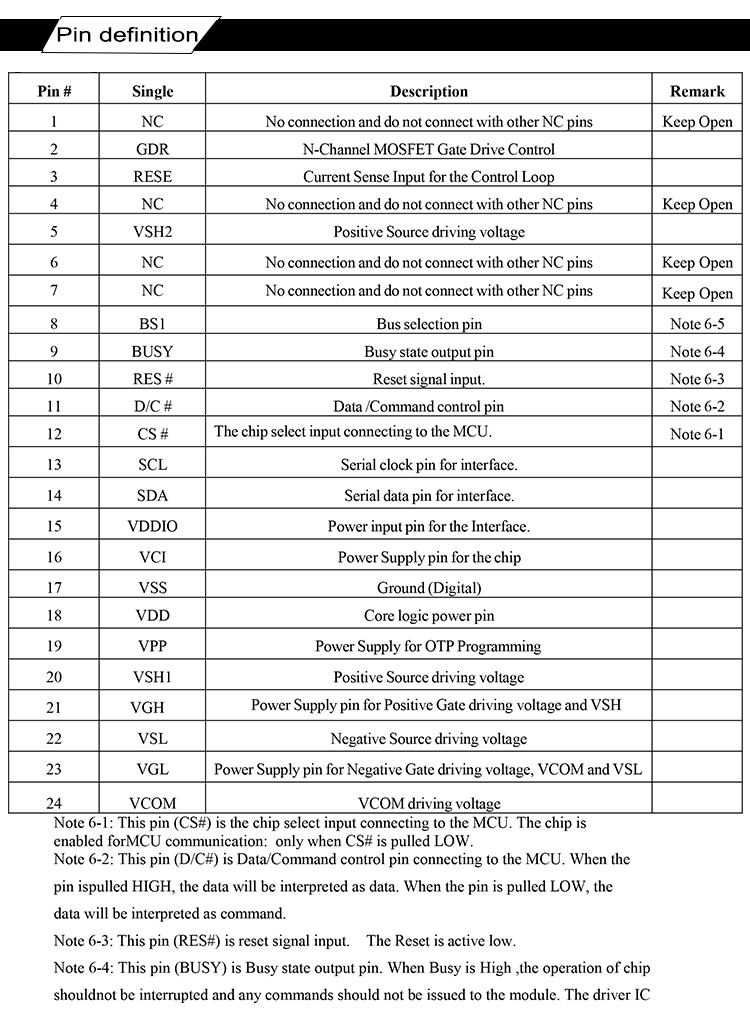

INTERFACE PIN FUNCTION
