Product Introduction

Product Description:

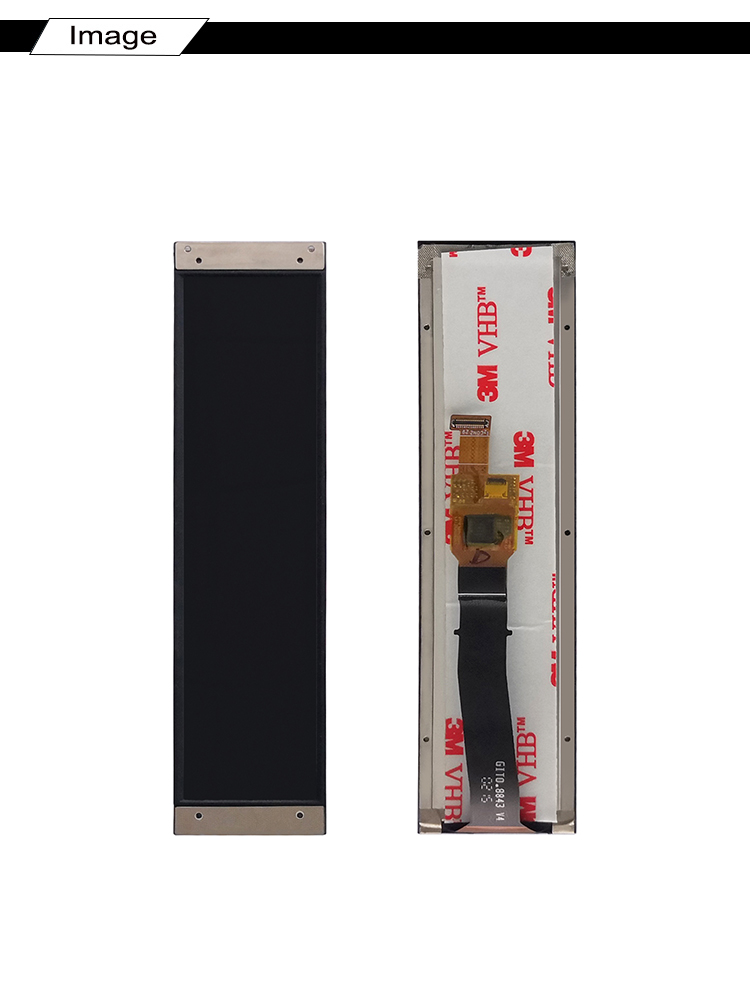

The H1323TC101FF-002 is a Color Active Matrix Organic Light Emitting Diode Display (OLED). The matrix employsLow Temperature Poly Si Transistor as the active element. It is a top emission display type. It has a 4.01 inch diagonally measured active display area with 192(W) x 960(H) resolution (192 horizontal by 960 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-pixels.. Gray scale or the brightness of the sub- pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors. The H1323TC101FF-002 has been designed to apply the interface method that enables high speed,low EMI, eDP interface with PSR. The H1323TC101FF-002 is intended to support applications where thin thickness,high contrast ratio, high color gamut. The H1323TC101FF-002 characteristics provide an excellent foldable display forPortable or Monitor mode such as tablet or notebook PC.

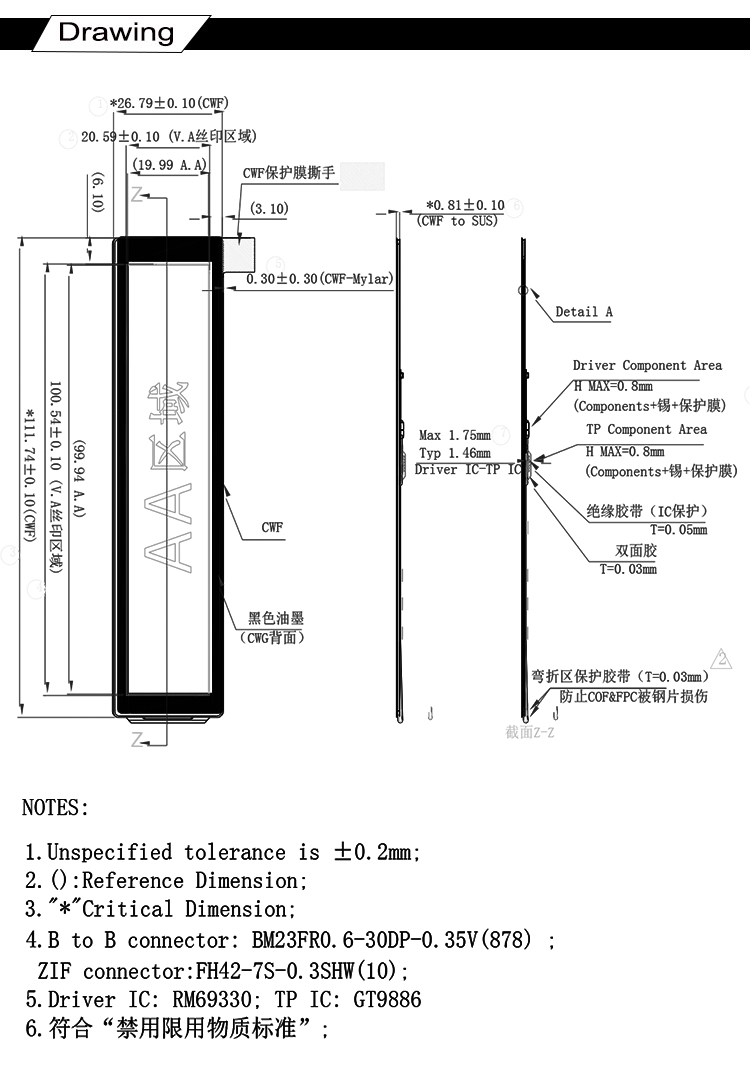

GENERAL SPECIFICATION

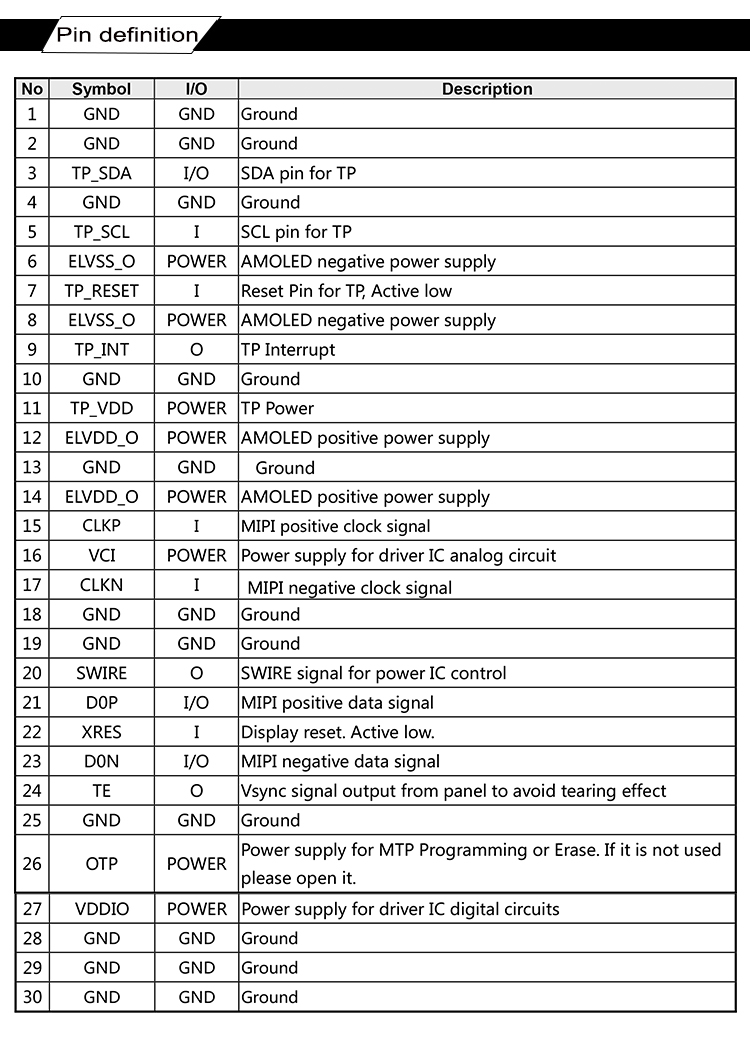

INTERFACE PIN FUNCTION
