Product Introduction

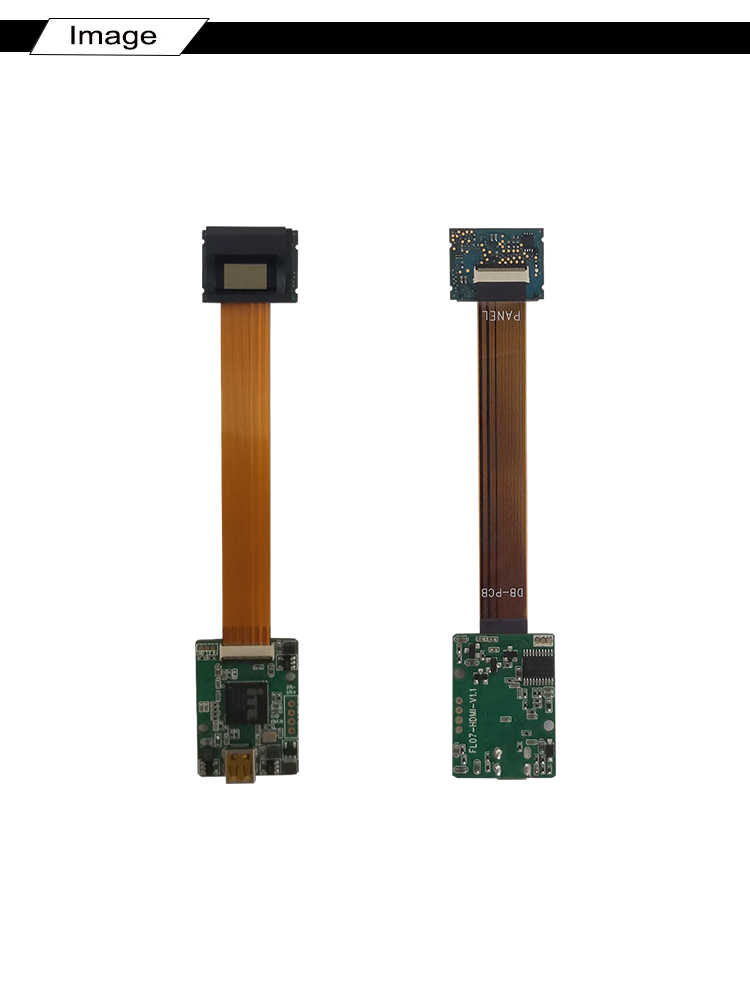

Micro 0.39 inch OLED Display 1024X768 for AR
Product Description
HICENDA 1280(RGB)X720 FLCOS micro display is a high-resolution, High light-emitting OLED micro display based on a CMOS backplane that also has a standard video interface.The display integrates a panel drive unit and a logic drive unit, while using low power consumption and RGB interface.
This product has high contrast, high consistency and highlight performance.
(Applications: View finders, head mounted displays, very small monitors, etc.)
General Specification
| Display Type: | flcos display |
| Display Mode: |
Field sequential color
|
| Model Number: |
flcos038 |
| Diagonal Screen size: | 0.38 Inch |
| Interface: |
YCbCr(4:2:2)-parallel (16 data, Hd, Vd,Clock)
|
| Number of Pixels: |
1280(RGB)X720 |
| Panel Size: |
9.693mm (0.38'')(mm)
|
| Active Area: |
8.448 x 4.752mm (mm)
|
|
Weight: |
TBD |
|
Operating Temperature: |
-10~70° |

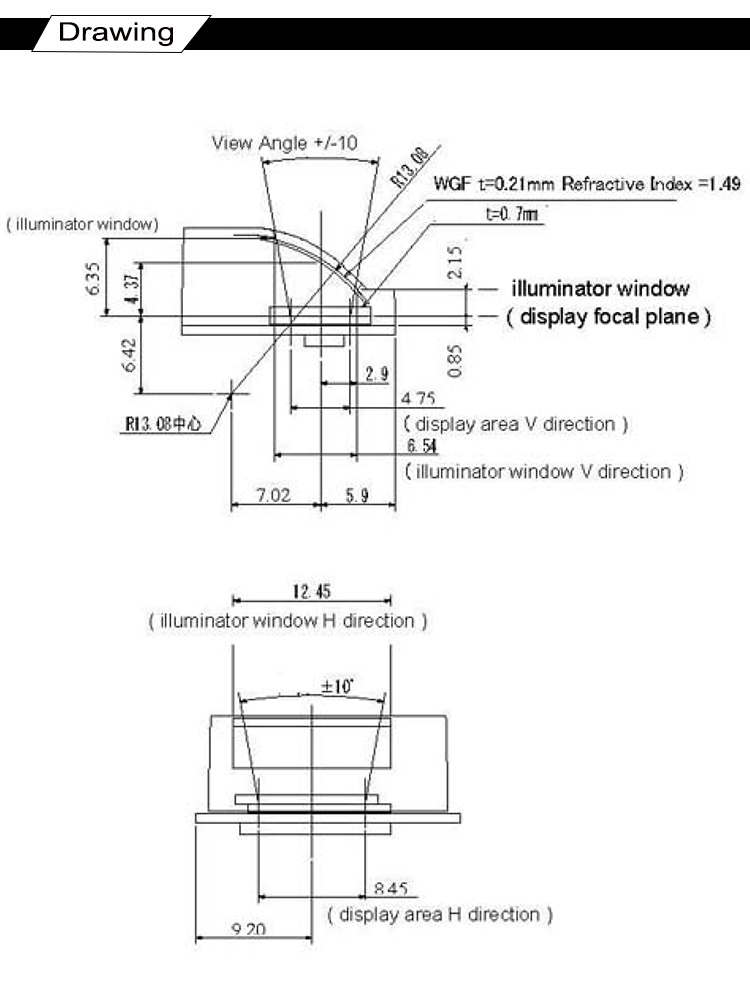

DRAWING

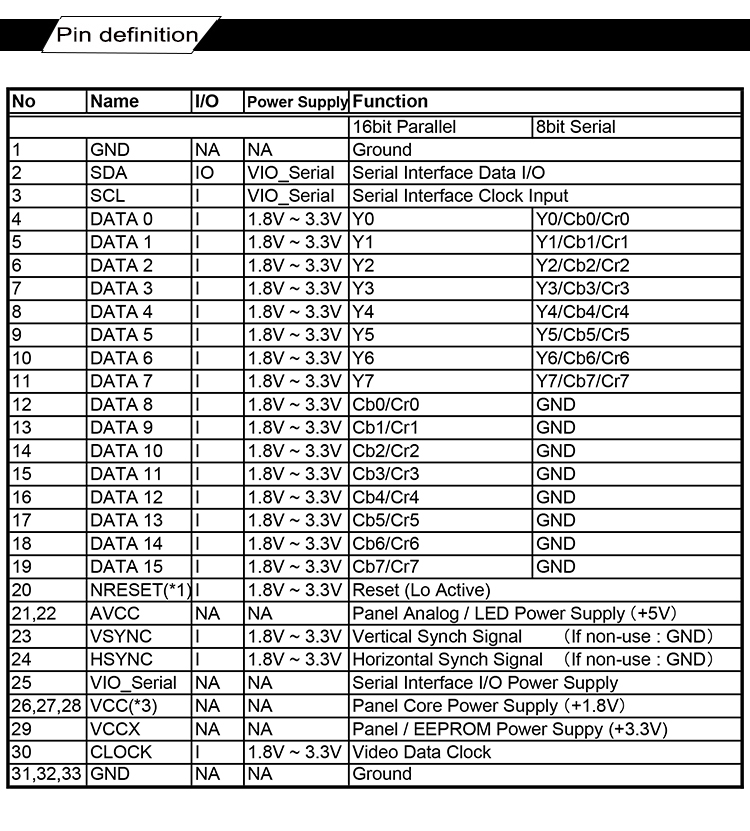

INTERFACE PIN FUNCTION
