Product Introduction

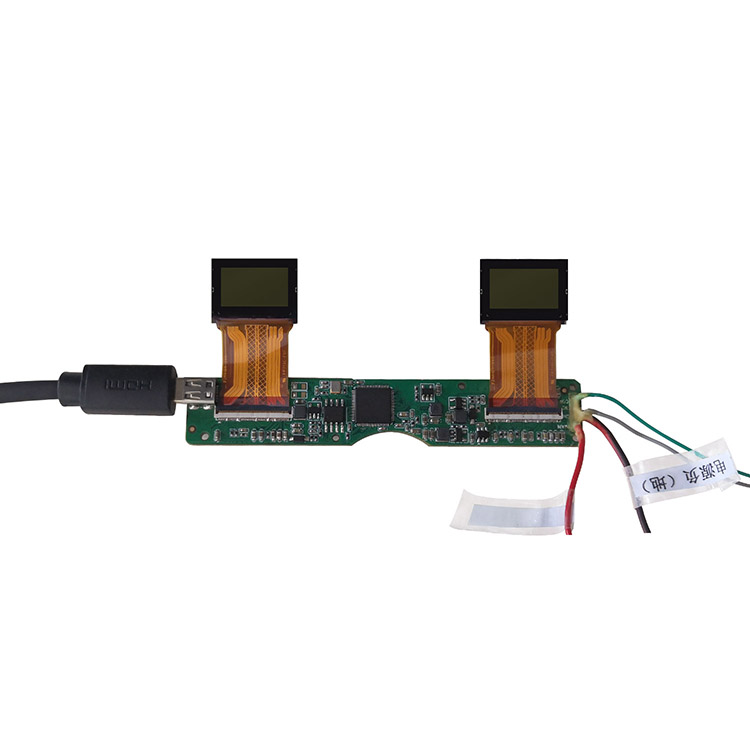

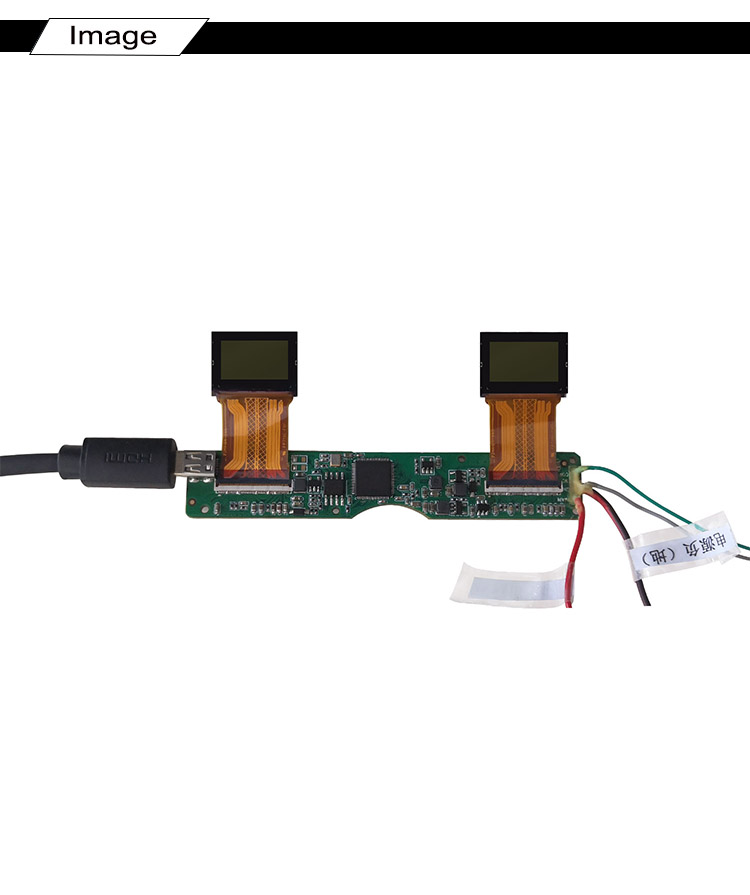

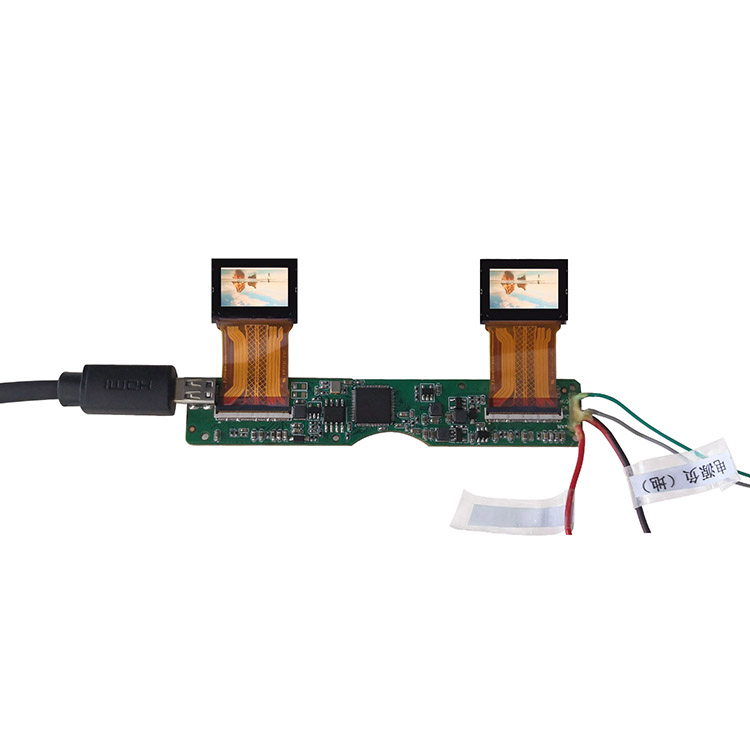

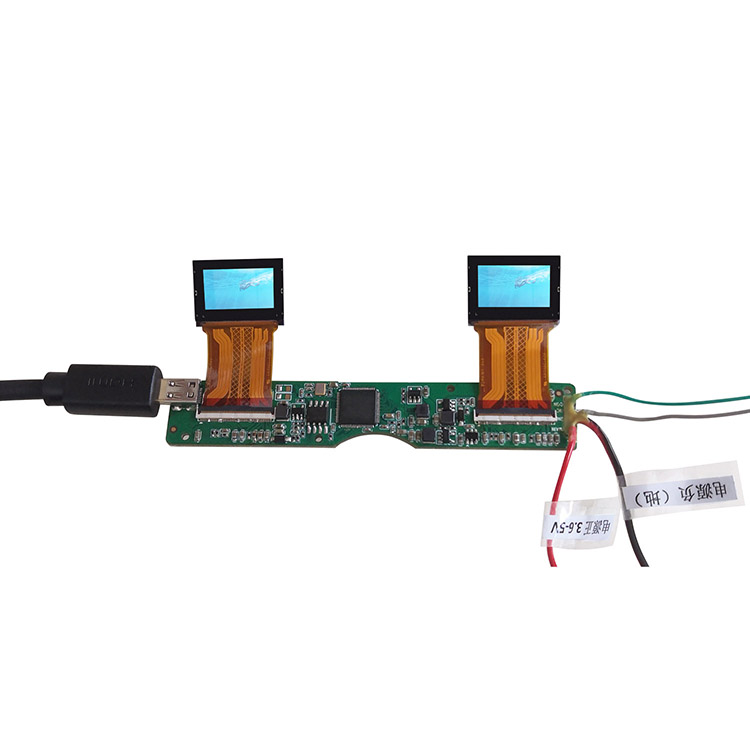

Micro display 0.71 inch OLED Display 1920 (RGB)×1080 with dual displays


Product Description

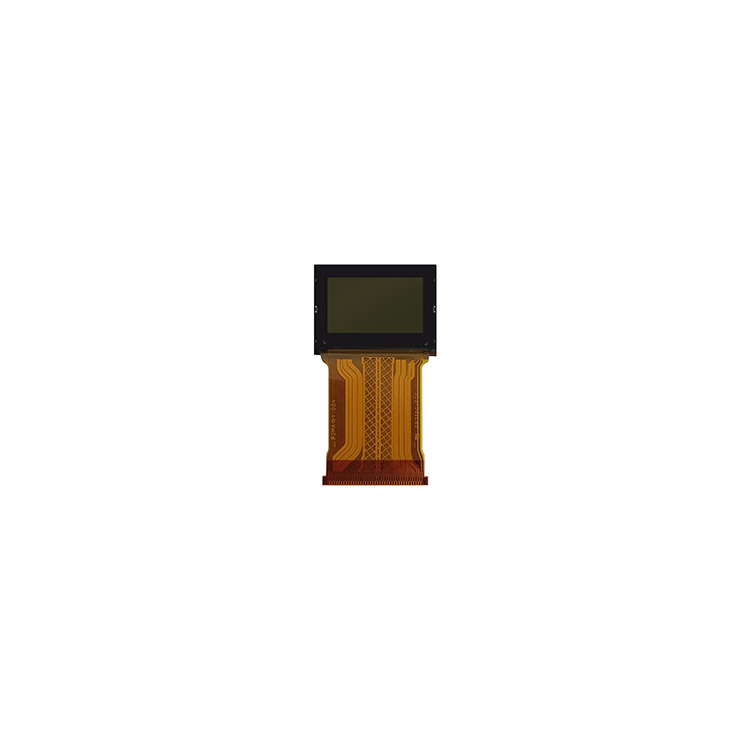

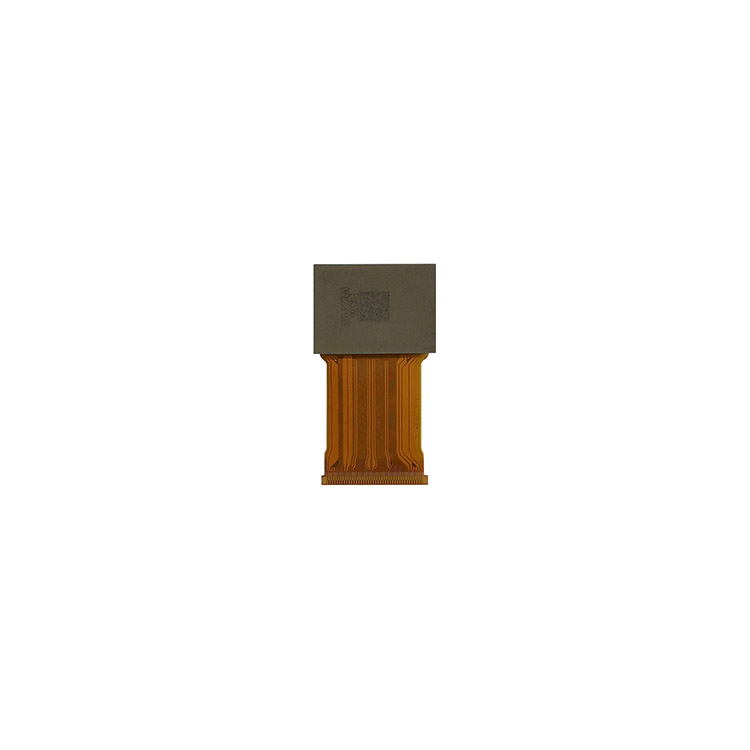

HGECX335SN is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting
Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and
achieves smaller size, light in weight and high resolution. .
(Potential applications: Head mounted displays, View finders, Small monitors etc.)




General Specification


                           Resolution
               1920x1080dots
Display type
AMOLED
Active area
0.71 inch
PPI
3155
Interface type
LVDS
Connector
81pin
Operating temperature
0~70C
Storage temperature
-20~80C

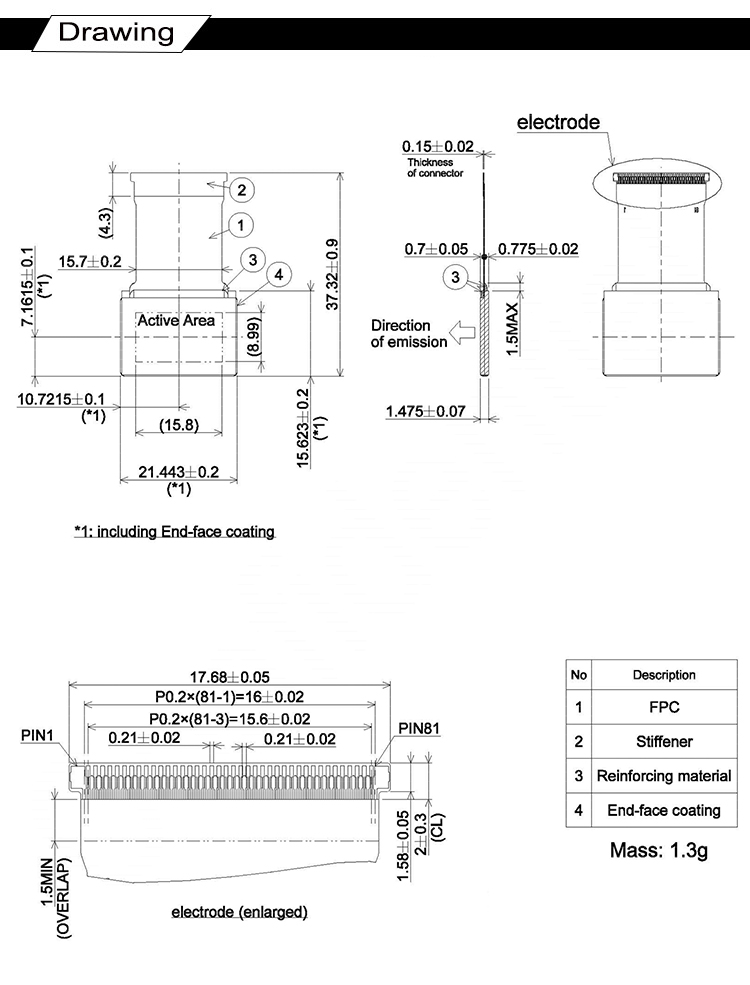

DRAWING

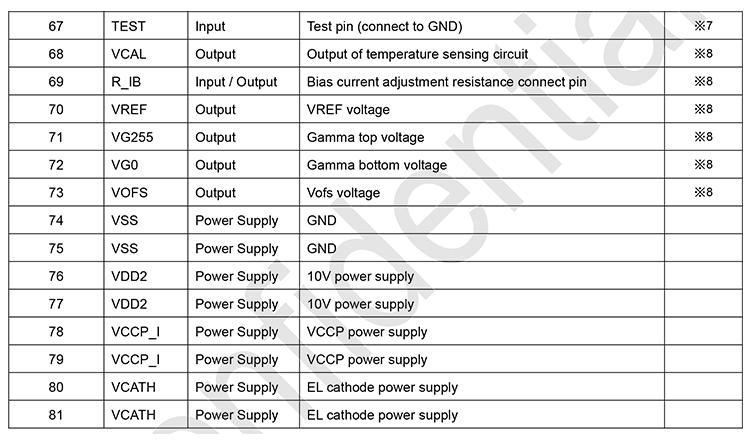

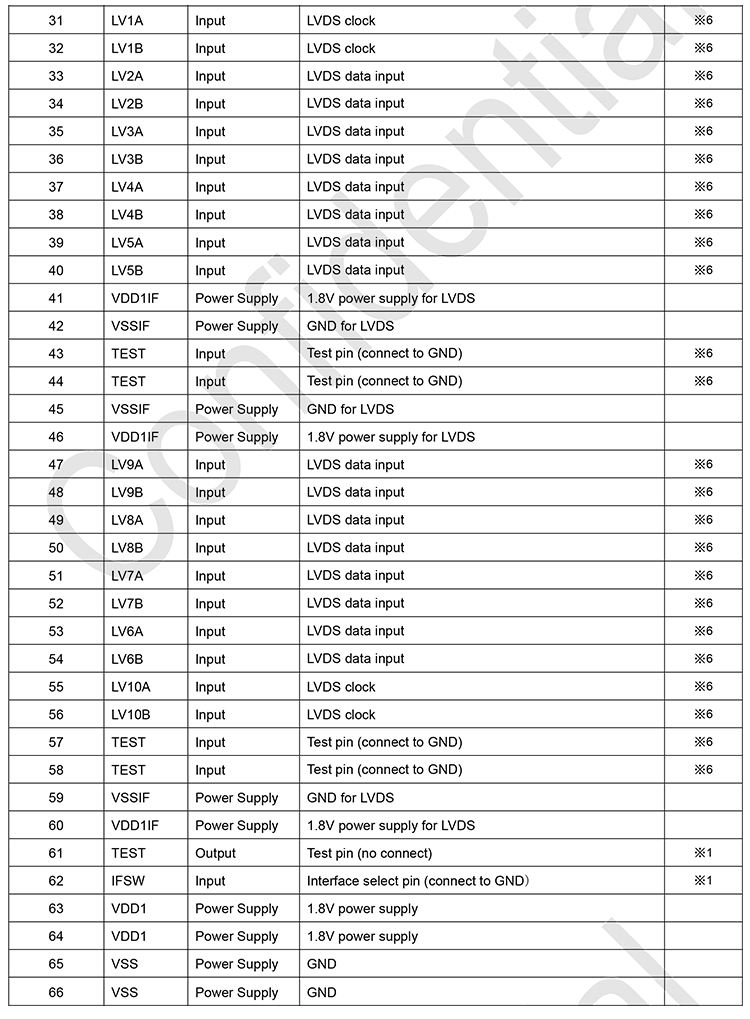

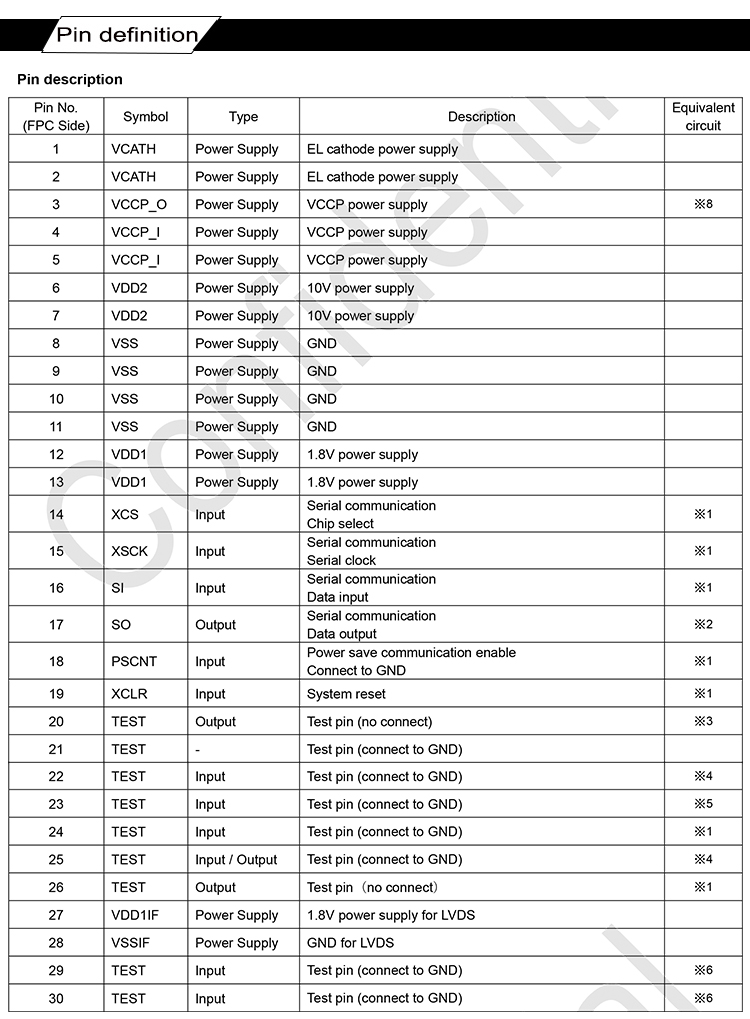

INTERFACE PIN FUNCTION
