micro display 0.39 inch OLED Microdisplay Integrated kit 640x400 resolution 1000cd/m2 for Electronic viewfinders

Product Description

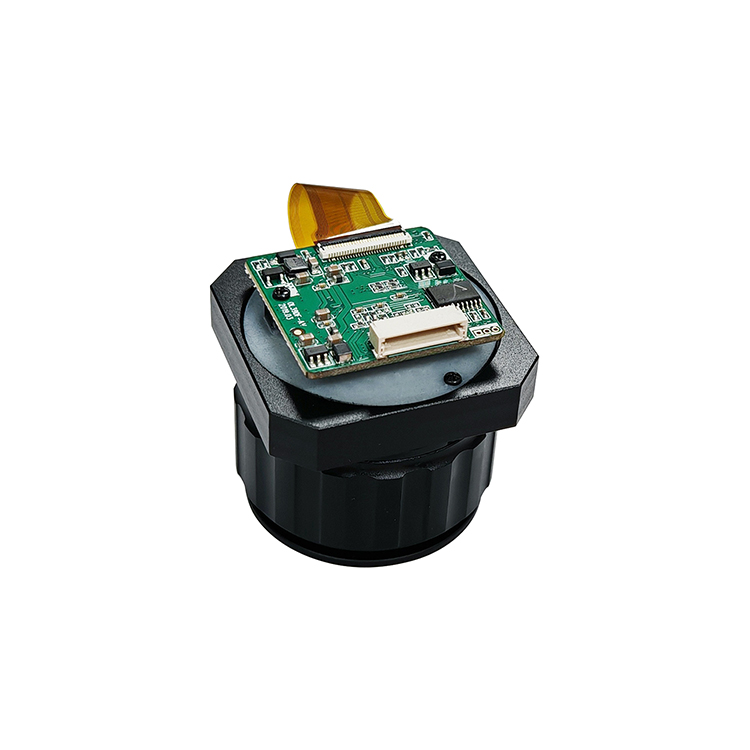

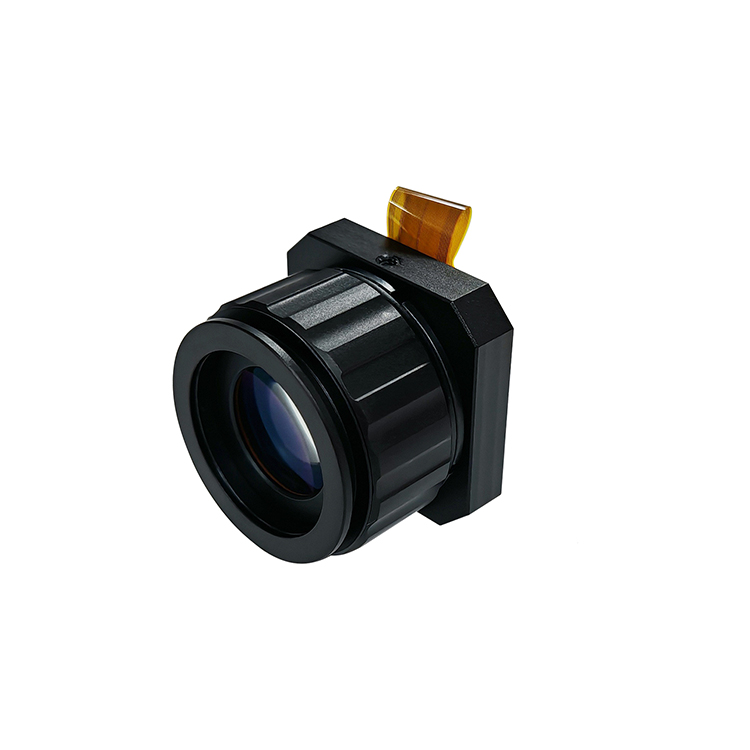

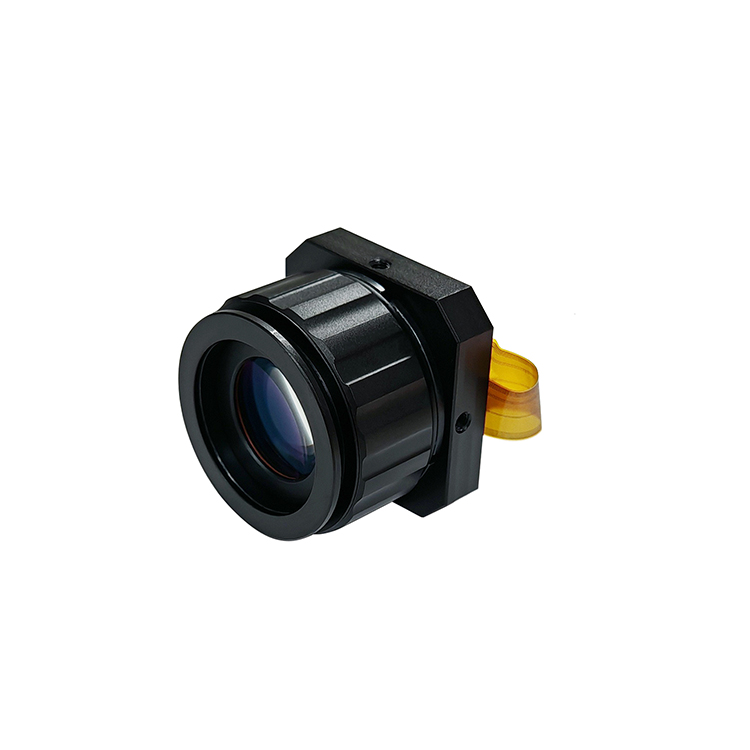

The Sony 0.39-inch OLED microdisplay integrated kit is a compact, high-performance visualization module designed primarily for electronic viewfinders (EVF). It combines a high-density 1024×768 micro-OLED panel with an HDMI-compatible driver board and 15x magnifying prism assembled, delivering a practical system output of 640×400 resolution while maintaining peak luminance up to 1000 cd/m². The solution emphasizes clarity, contrast, and integration simplicity, making it well suited for precision imaging applications where stability and image fidelity are essential.

General Specification

System Architecture

Micro-OLED Display Core

The display adopts Sony’s silicon-based OLED technology, integrating an RGB vertical stripe pixel arrangement within a 0.39-inch diagonal format. With over 2.38 million subpixels packed into a sub-centimeter active area, the panel achieves an ultra-high pixel density of approximately 3255 PPI. This density is particularly advantageous in EVF systems, where fine detail reproduction and minimal pixelation are required for accurate framing and focus evaluation.

The emissive OLED structure eliminates the need for a backlight, enabling deep blacks and a contrast ratio exceeding 10,000:1. As a result, image depth and tonal gradation remain consistent even under challenging lighting conditions.

HDMI Integration and Signal Adaptation

The integrated HDMI driver board simplifies system connectivity, allowing direct interfacing with standard video sources. Internally, the system supports 24-bit RGB and 16-bit YCbCr inputs, with timing control and scaling functions that adapt the native 1024×768 resolution to a system-level output of 640×400. This approach balances image clarity with reduced bandwidth and power consumption, which is particularly beneficial in portable or battery-operated devices.

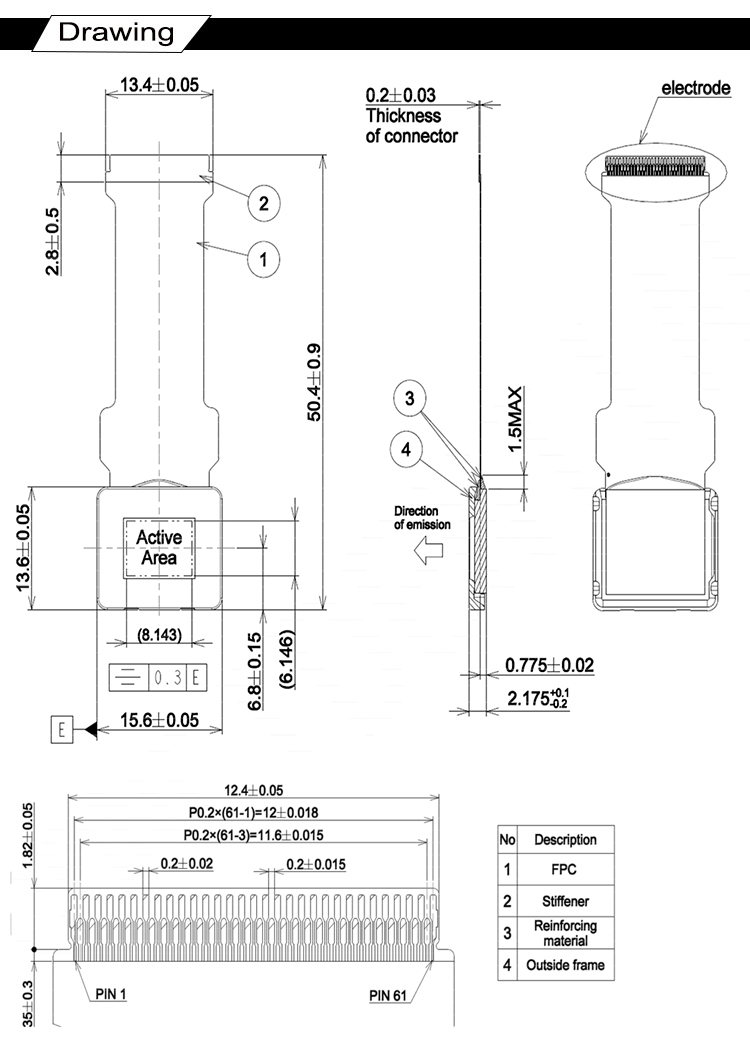

DRAWING

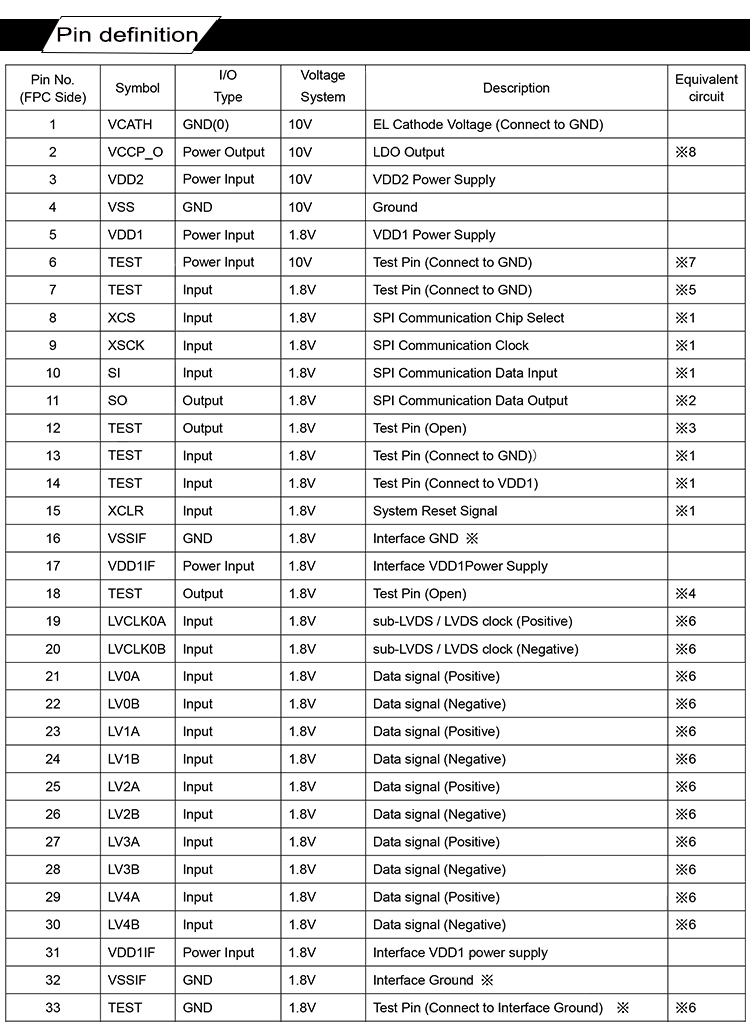

INTERFACE PIN FUNCTION

Technical Specifications

Optical Performance Characteristics

High Contrast Imaging

The inherent advantages of OLED technology provide exceptional contrast performance. In EVF applications, this translates into improved visibility of shadow details and highlights, supporting precise exposure judgment and scene composition.

Color Reproduction and Uniformity

The display supports a wide color gamut with consistent luminance uniformity exceeding 90%. This ensures accurate color rendering across the entire viewing area, a key requirement for professional imaging workflows.

Response Speed and Stability

Fast response characteristics reduce motion blur, enabling smooth image transitions during camera panning or subject tracking. The 60 Hz refresh rate offers a stable and flicker-free viewing experience suitable for prolonged use.

Application in Electronic Viewfinders

In EVF systems, the Sony 0.39-inch OLED microdisplay demonstrates clear advantages in resolution density, contrast fidelity, and response speed. The 640×400 output mode, when combined with optical magnification, delivers a clean and stable image suitable for real-time composition and focusing. Its compact form factor and HDMI integration further streamline development, enabling efficient system deployment.

Conclusion

The Sony 0.39-inch OLED microdisplay integrated kit represents a well-balanced solution for electronic viewfinder applications. By combining high-resolution imaging, robust optical performance, and practical interface integration, it meets the demands of modern imaging systems while maintaining efficiency and design flexibility.
