Product Introduction

Micro 0.39 inch OLED Display 800x600 Night Vision Device


Product Description

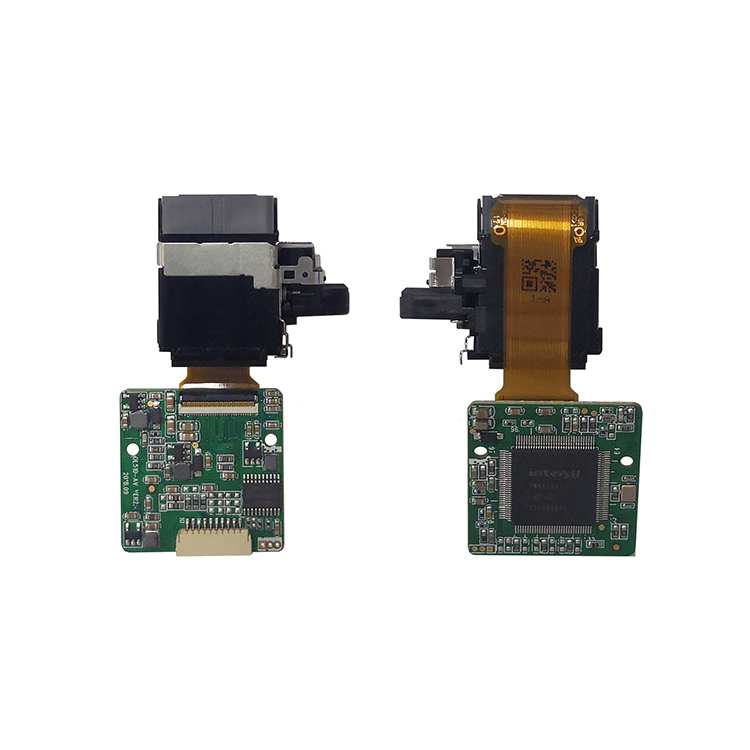

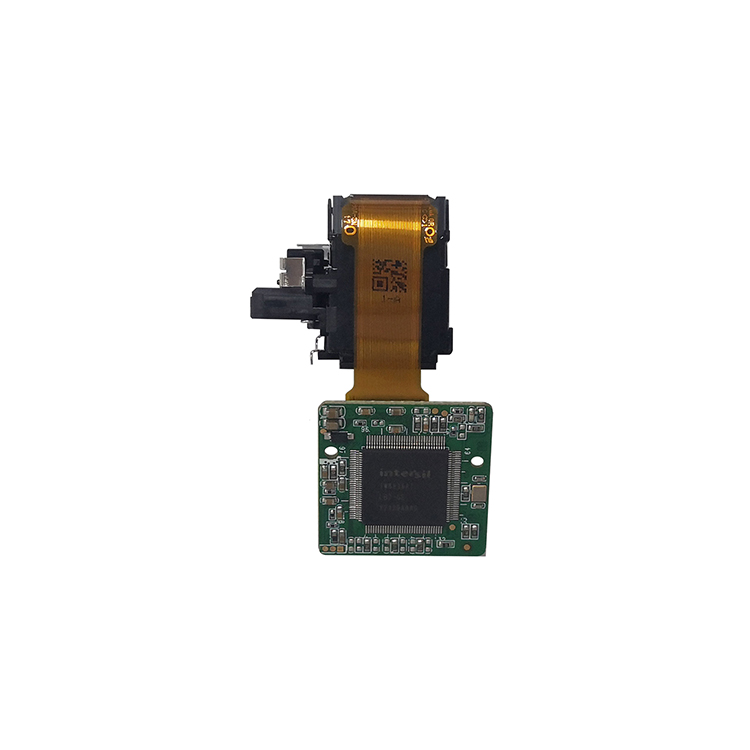

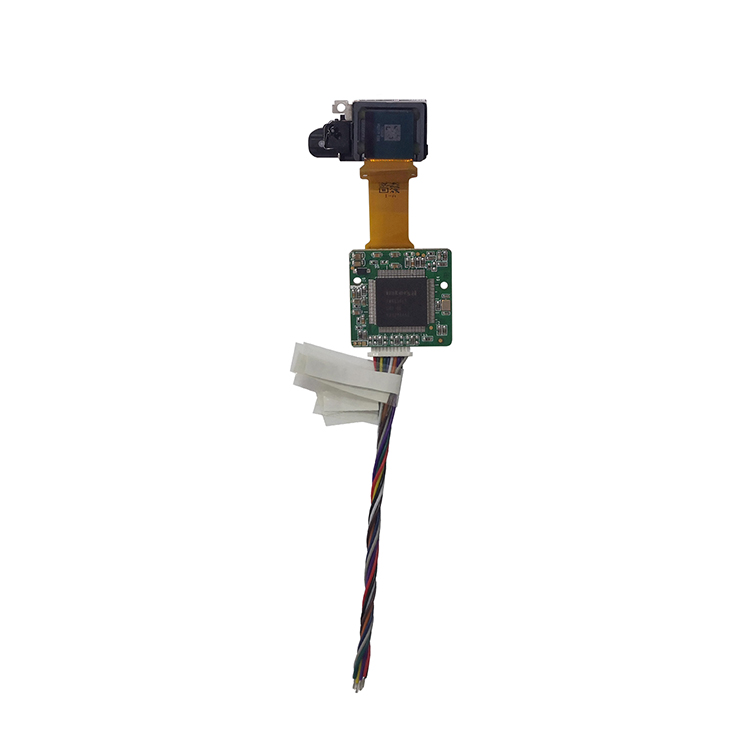

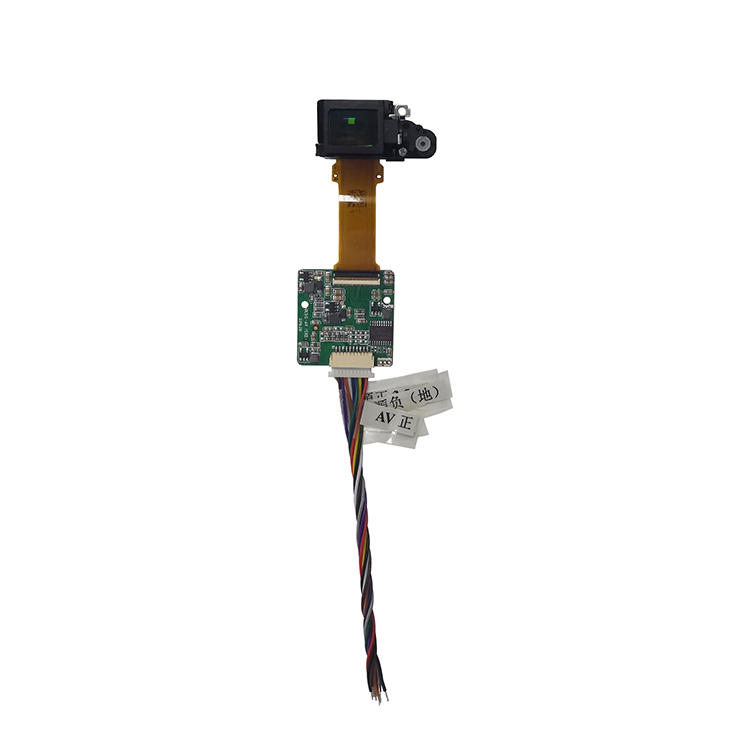

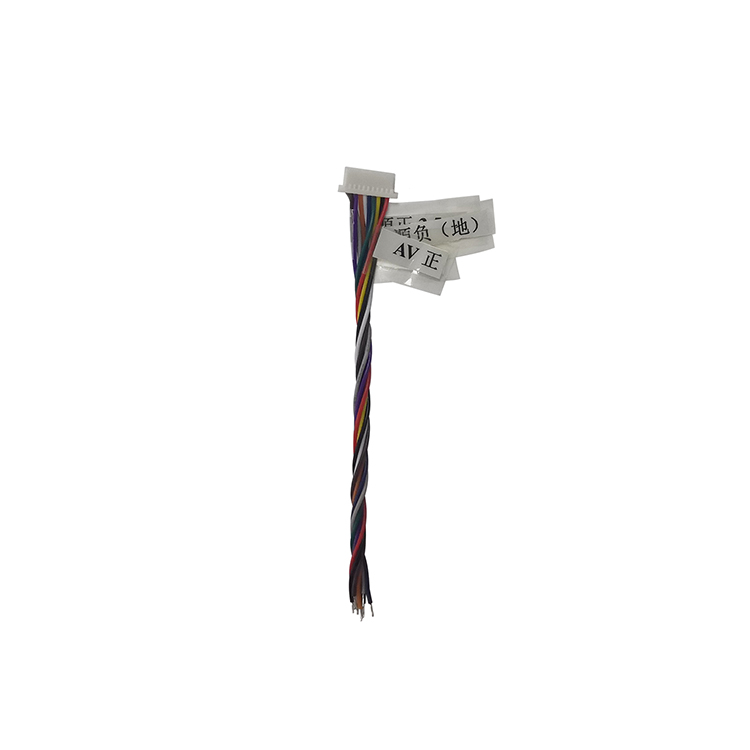

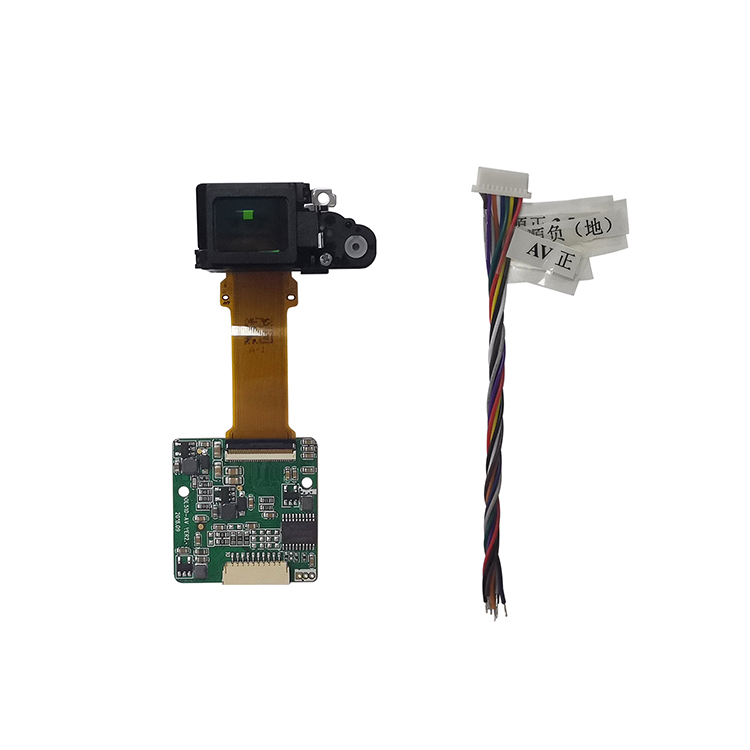

This solution is with 0.39 inch high resolution 800X600 OLED micro-display, the 0.39” display is with low power consumption, small size, wide operating temperature range, bright and true colors, and high contrast.It is very ideal for the application of portable products, such as Electron microscope, telescope, portable digital night vision device, thermal imager, video glasses (head-mounted display), helmet display, etc. The kit includes 0.39” OLED microdisplay,resin optics (for image magnification), CVBS signal driver circuit board, CVBS connection cable,, which has a very nice cost performance.





General Specification

Display Type:                                                    oled display
Display Mode: Passive Matrix
Model Number:

OL51D

Diagonal Screen size: 0.39 Inch

Max Luminance:

500 cd/m2

Number of Pixels:

800x600

Power consumption (Drive board+display):

13.8 x 48.086 x 2.15 (mm)

Contrast ratio:

  100000:1

Weight:

TBD

Operating Temperature:

-10~70°

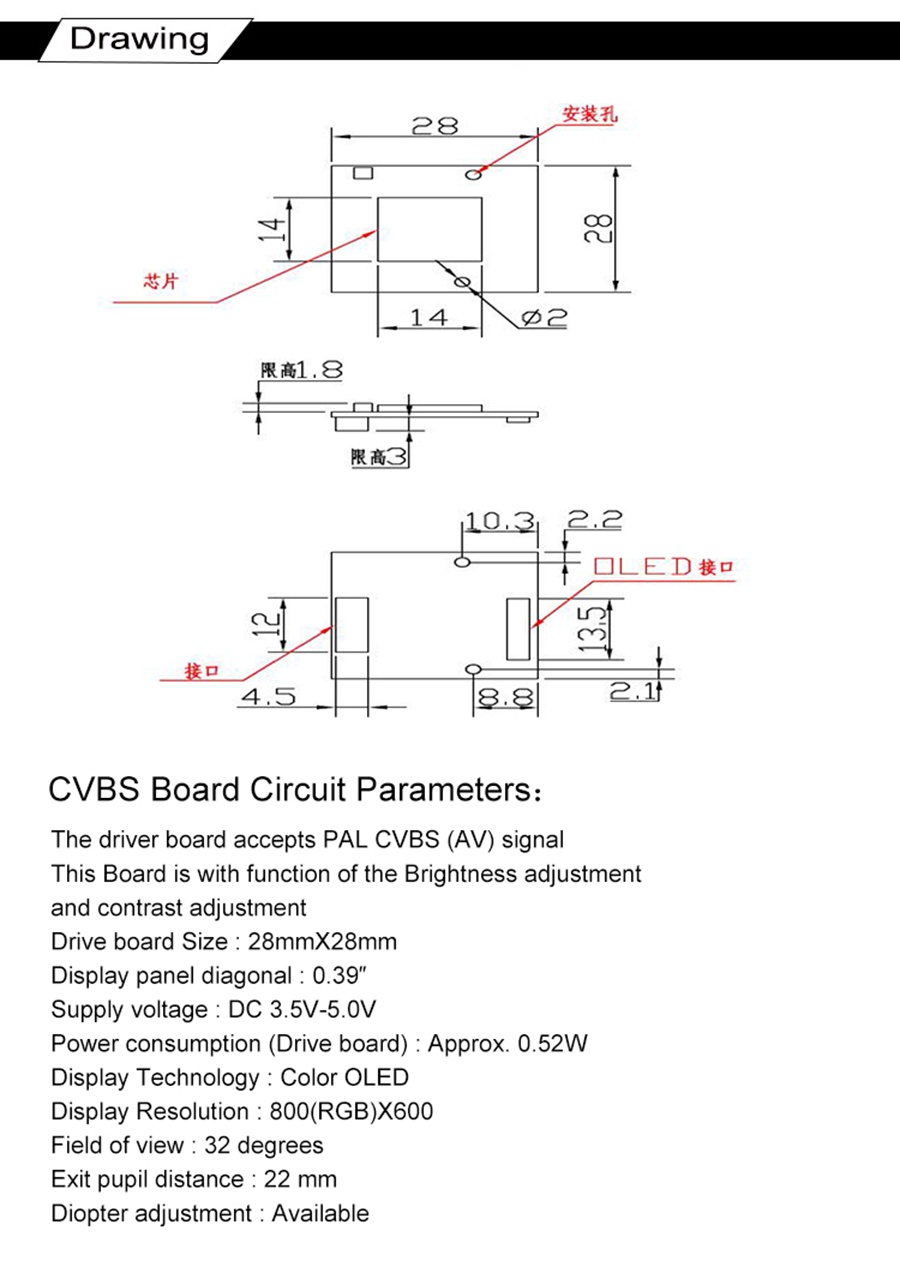

DRAWING
