Product Introduction

DESCRIPTION

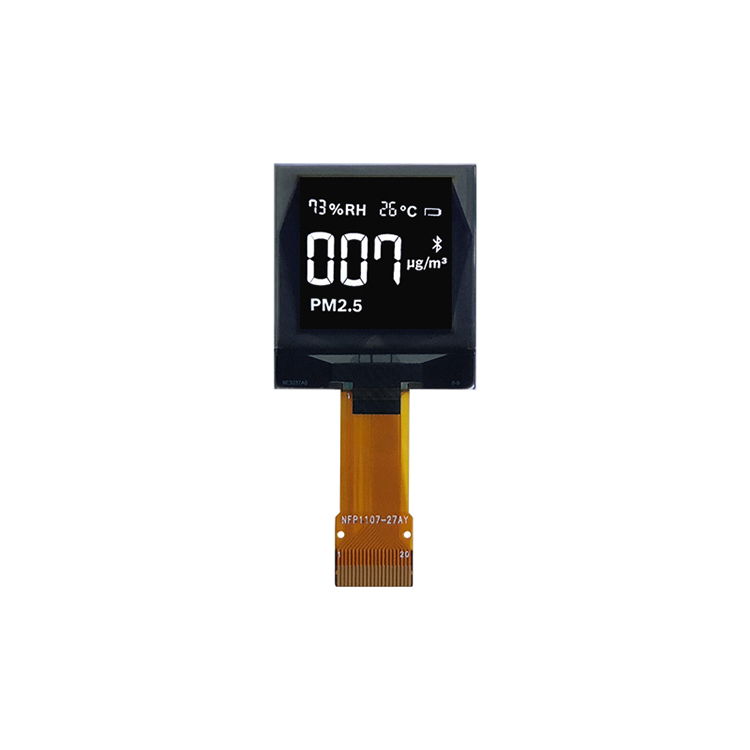

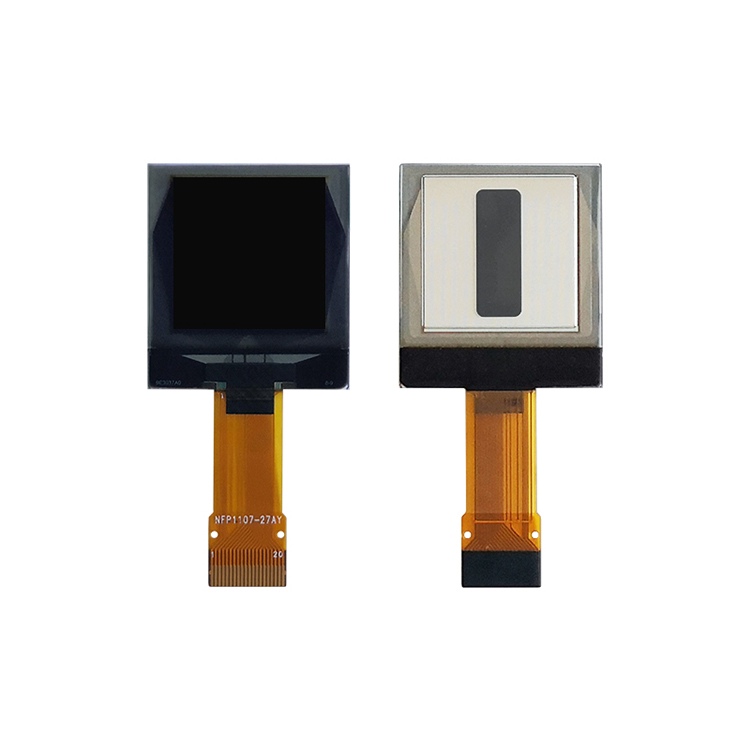

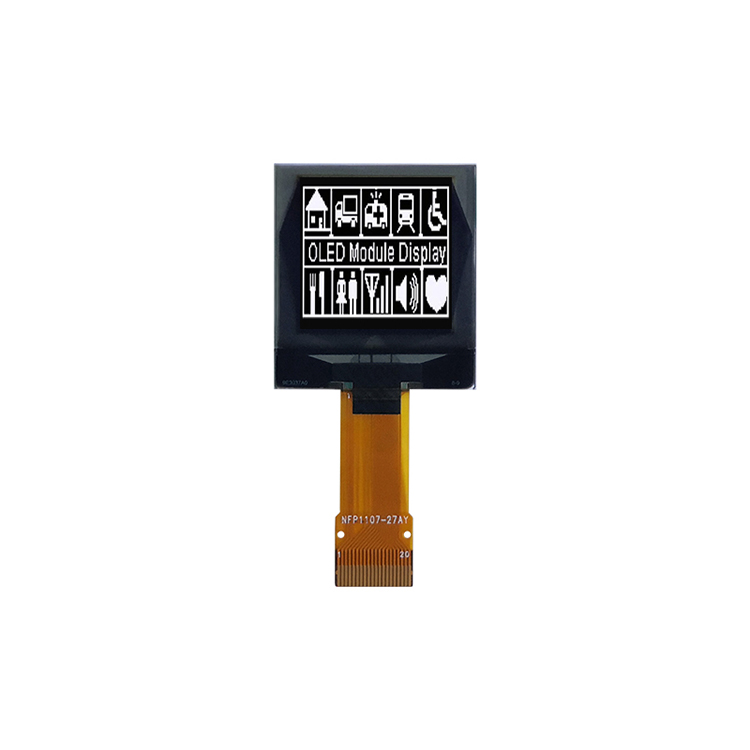

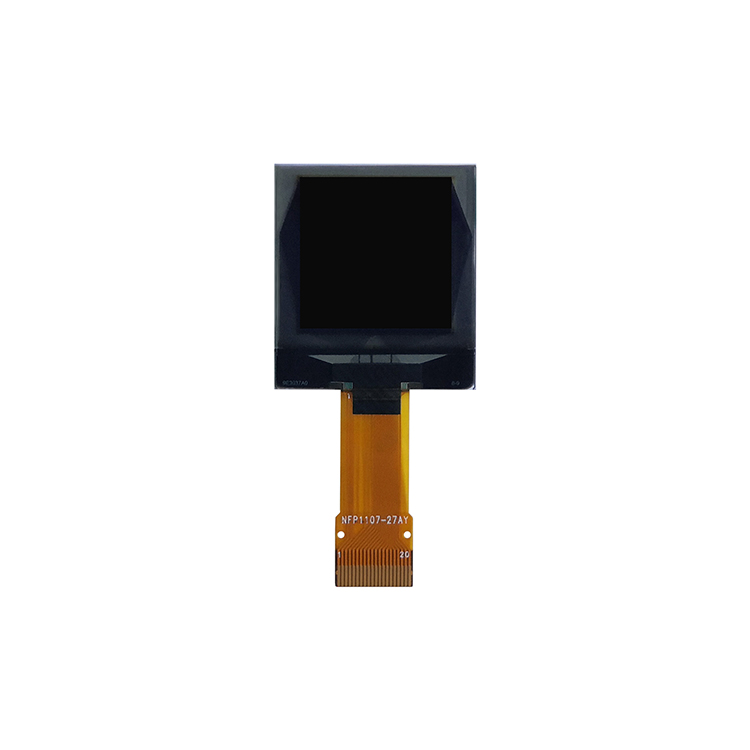

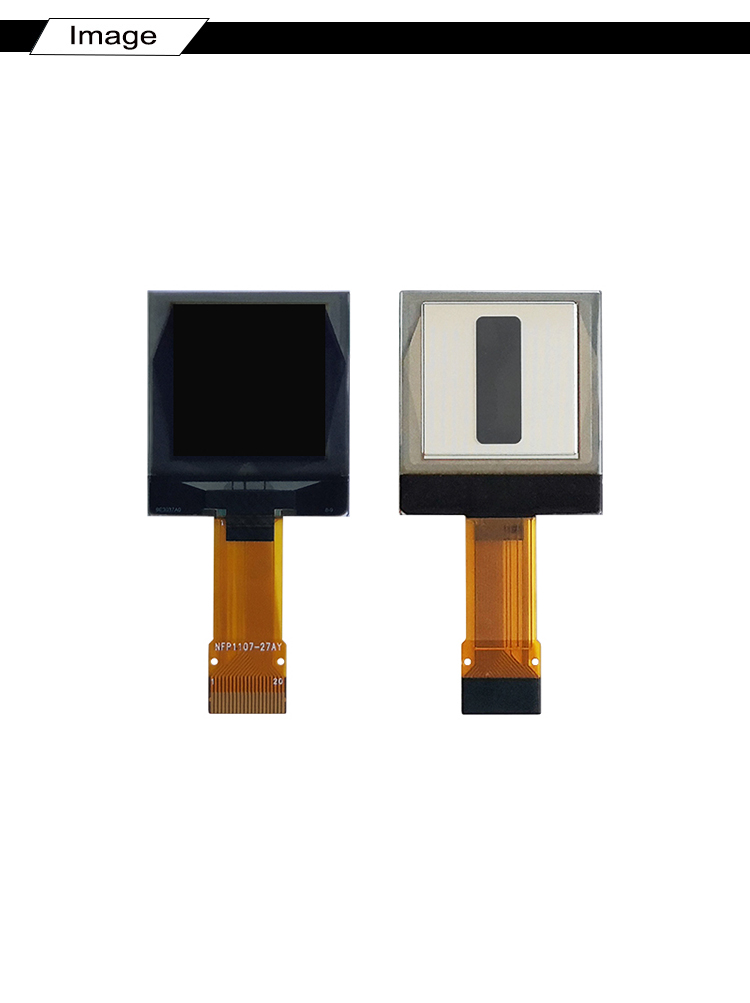

HICENDA OLED 1.12 is a  passive matrix micro OLED display module which is made of 128x128 dots. It has the module dimension of 25.90 x 56.60 x 1.25 mm and Active Area size 20.076 x 20.076 mm. This OLED micro display is built in with SH1107 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.12 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

GENERAL SPECIFICATION

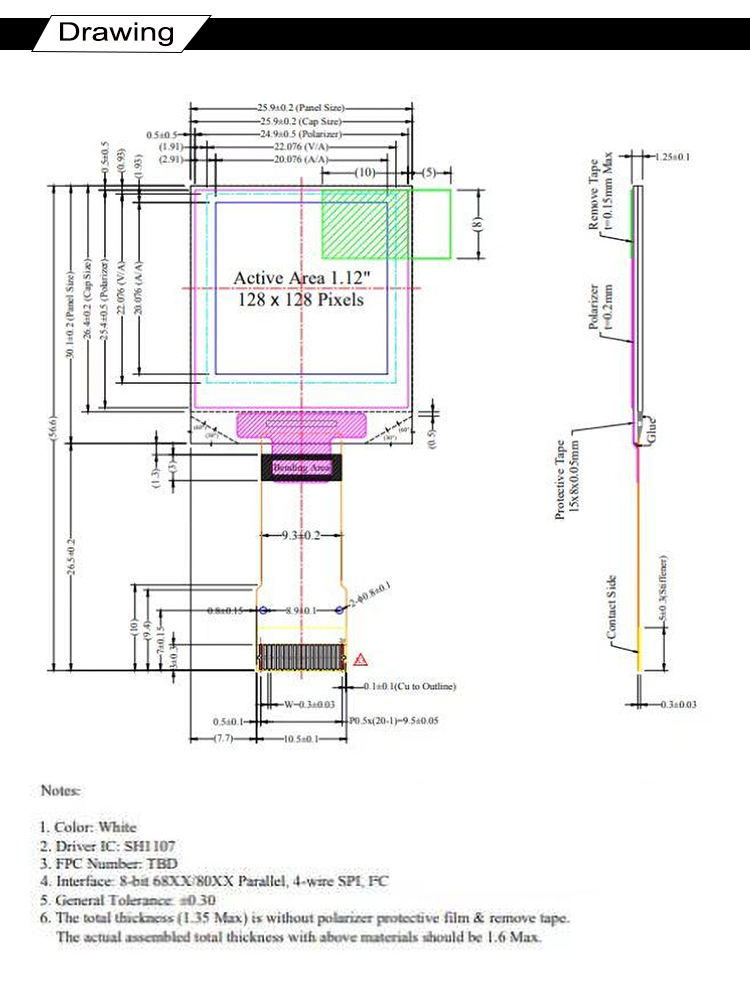

DRAWING

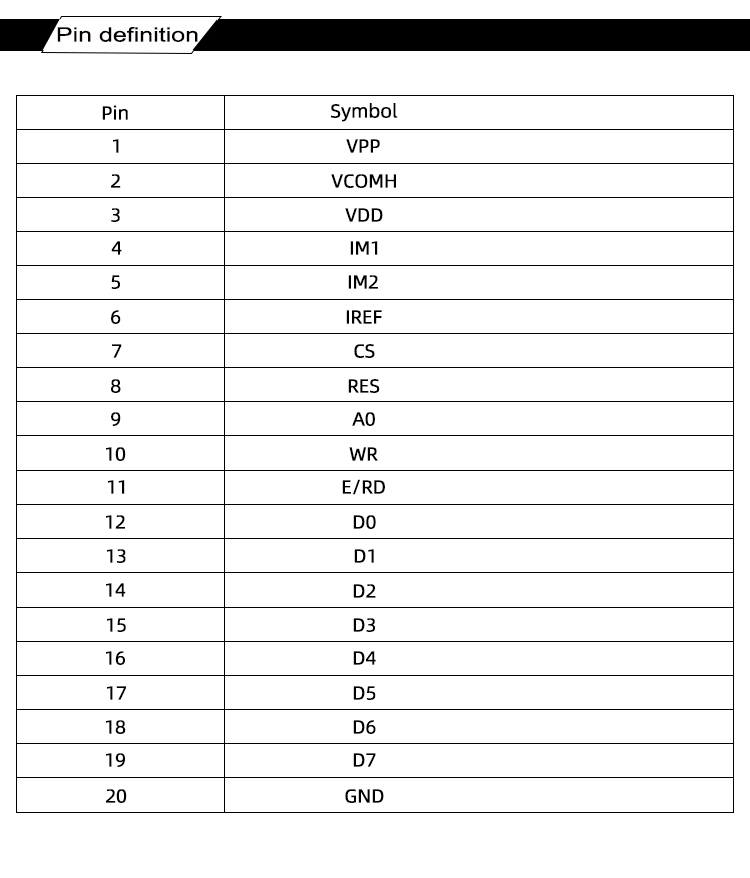

INTERFACE PIN FUNCTION
