Product Introduction

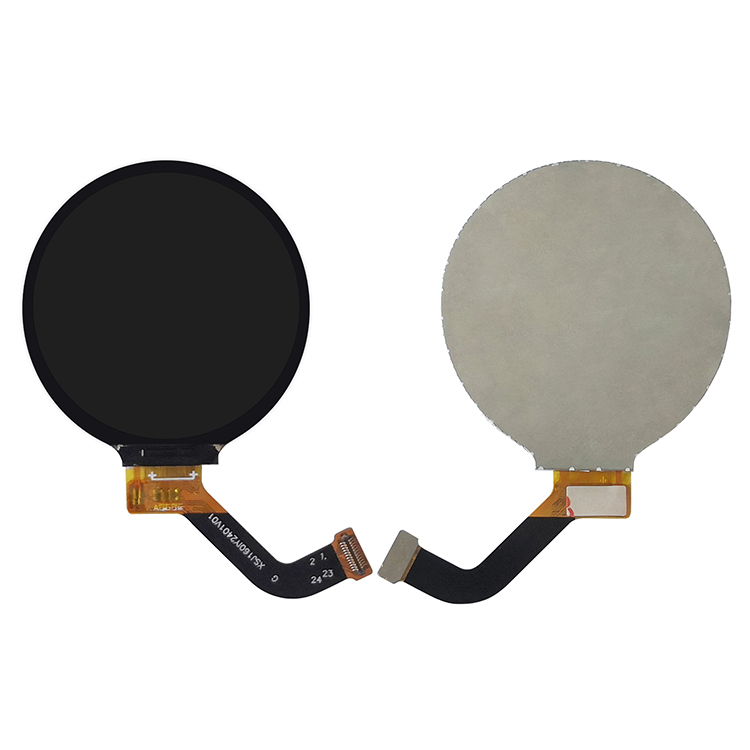

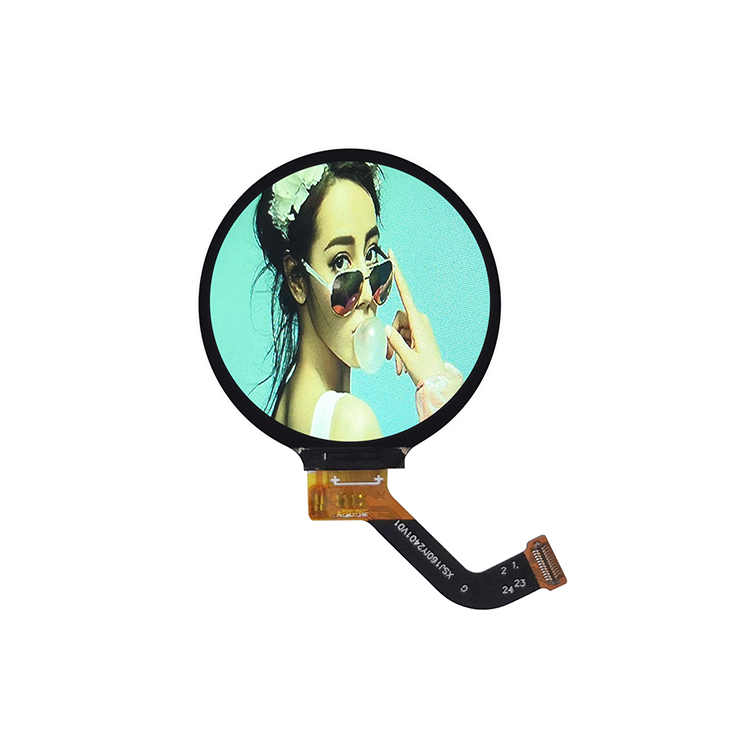

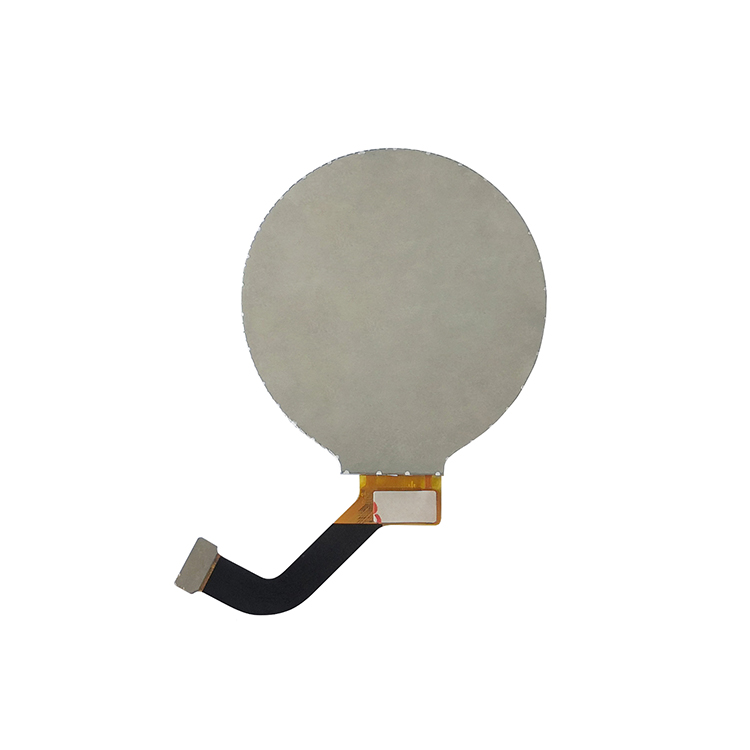

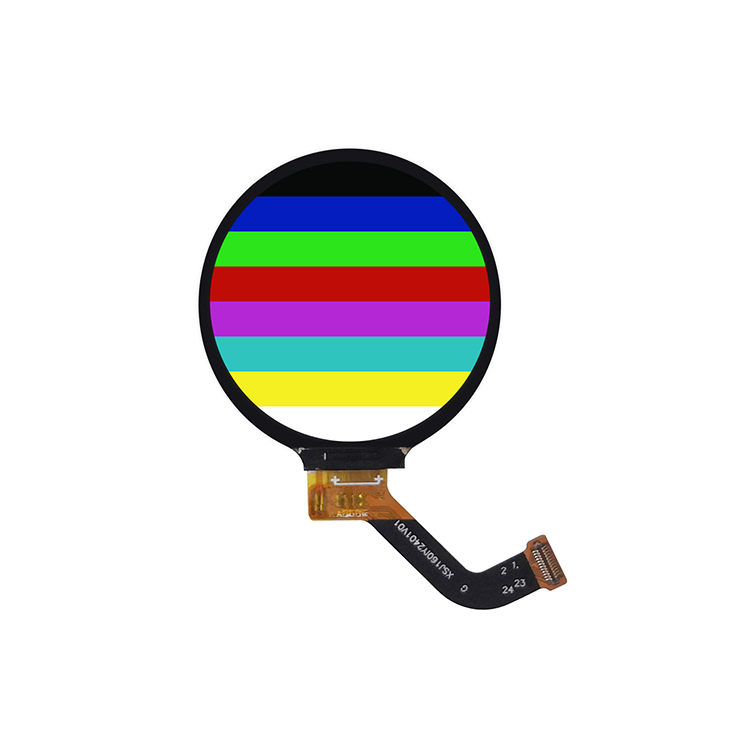

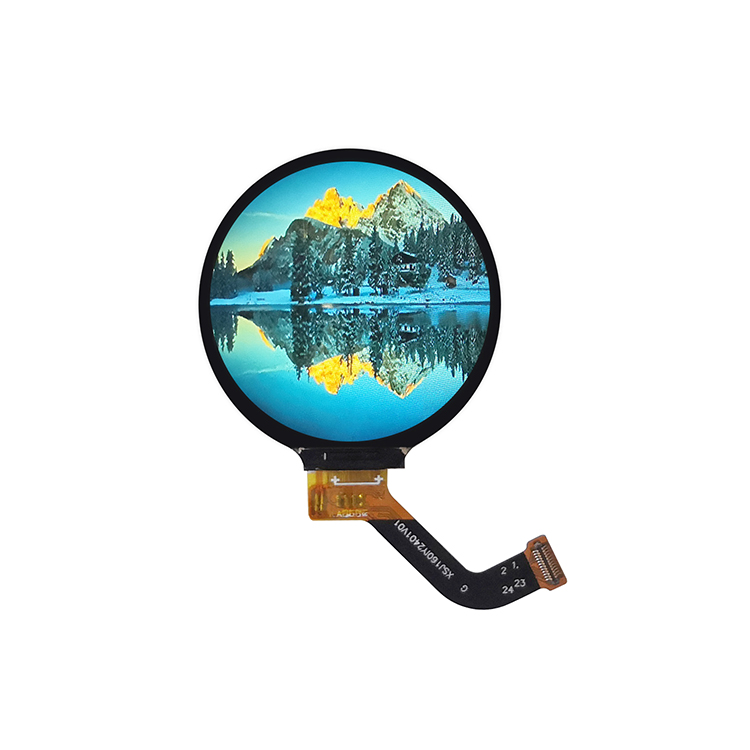

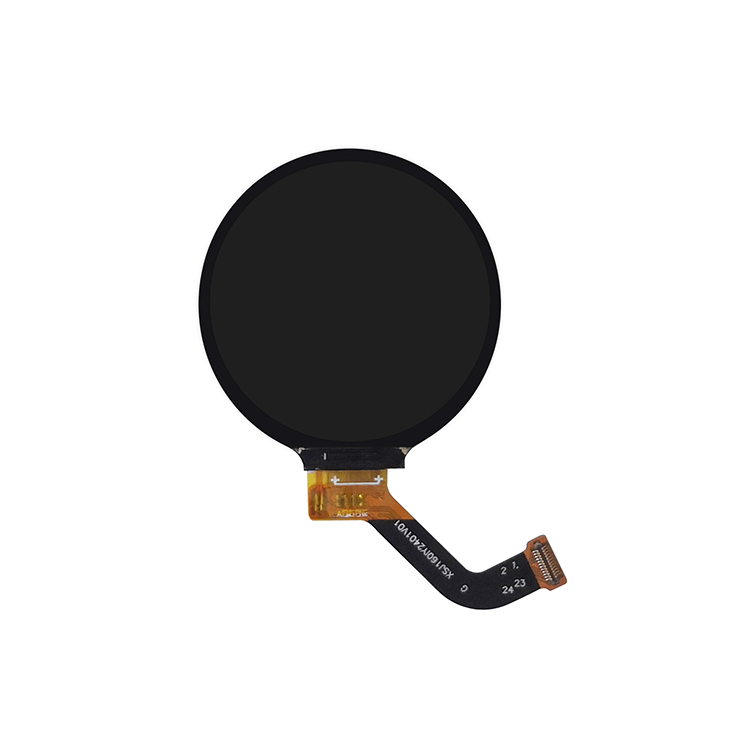

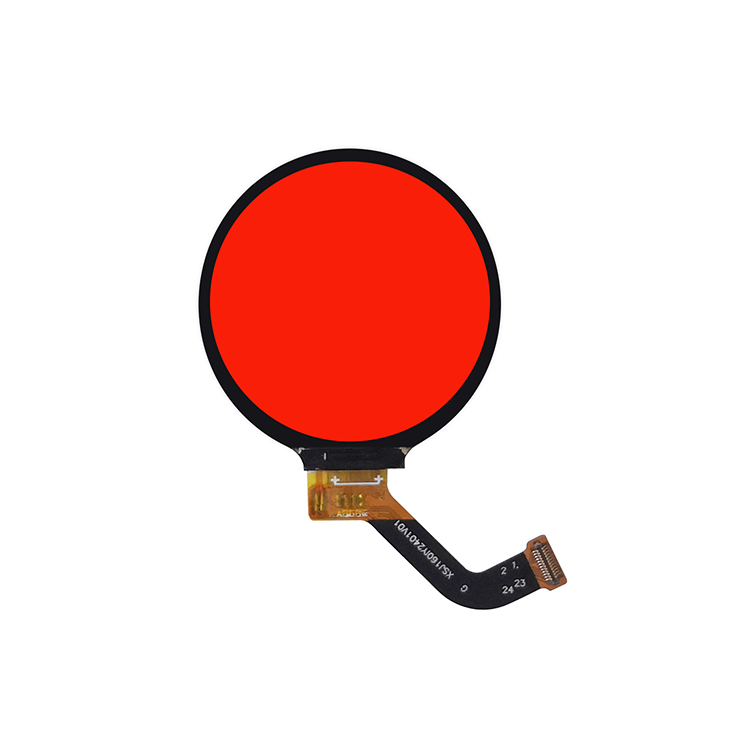

Circular TFT 1.6 inch round LCD Screen module 400x400


Product Description

HICENDA HT1.6IPSTFT-24p is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 400X400 pixels and can display up to 262K colors. This product accords with RoHS environmentalcriterion.



General Specification


Display Type: Transmissive LCD
Display Mode: COLOR TFT
Model Number:

HT1.6IPSTFT
Diagonal Screen size: 1.6 inch
Interface:

MIPI interface
Drive Duty:

1/64 Duty

Number of Pixels:

400(RGB) x400
Panel Size

42.94 x45.89x1.65(mm)
Driver IC:

ST7797
Active Area:

39.84 x39.84(mm)
:

IPS(Full View)
:

262K

Backlight Type:

3 LED Parrallel

Input voltage:
2.8~3.2V

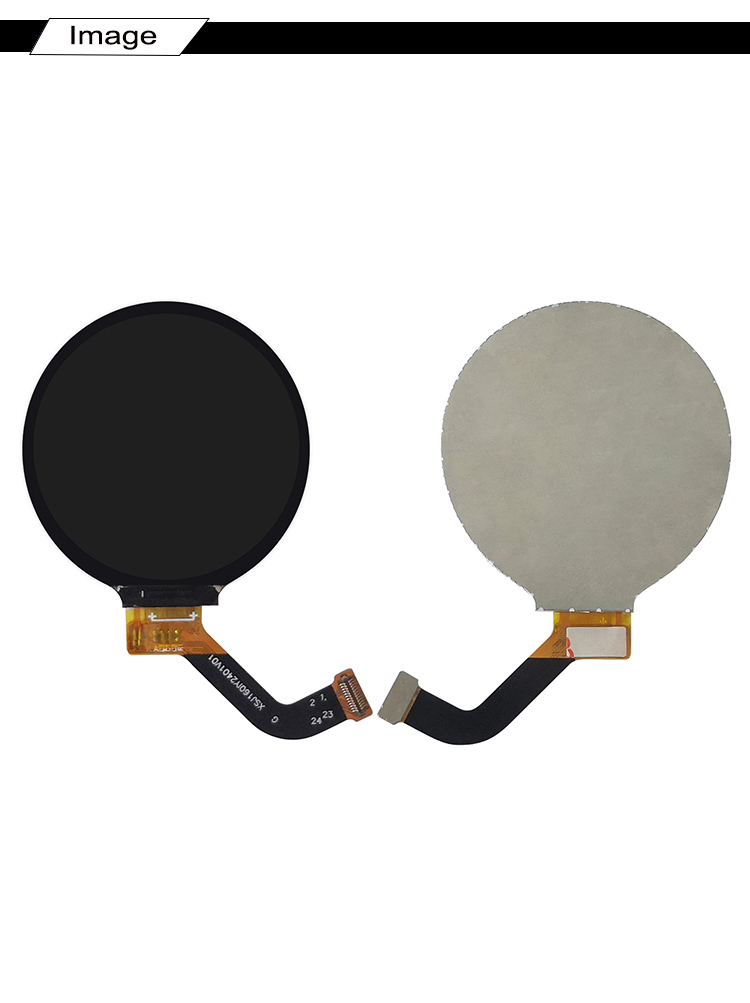

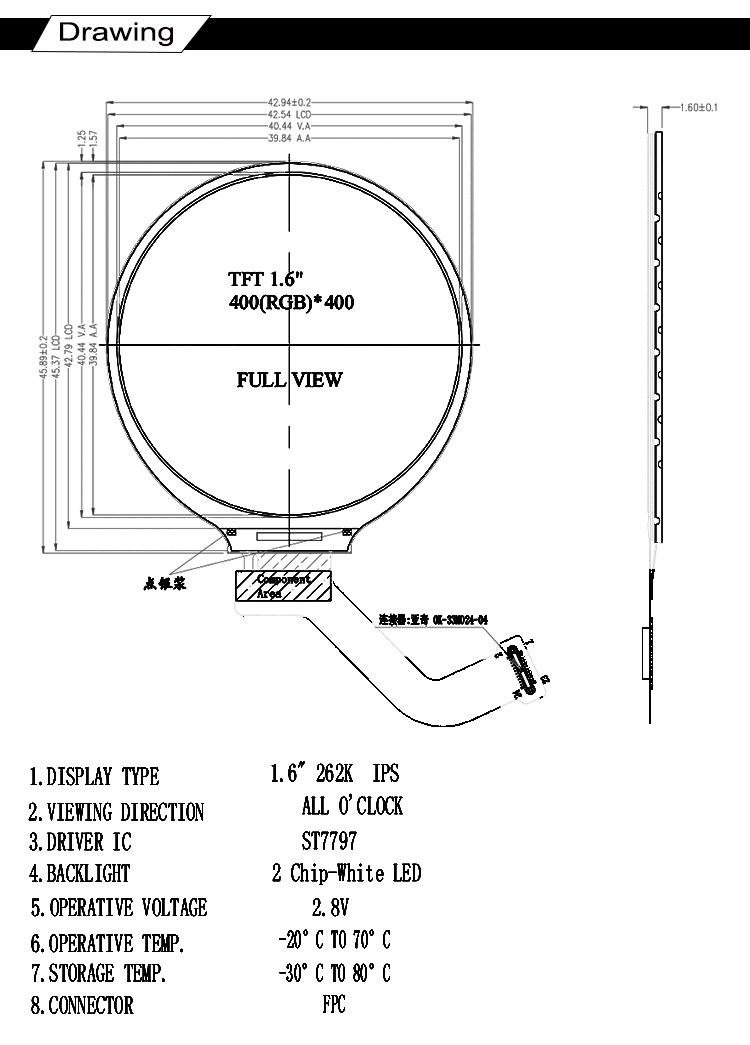

DRAWING

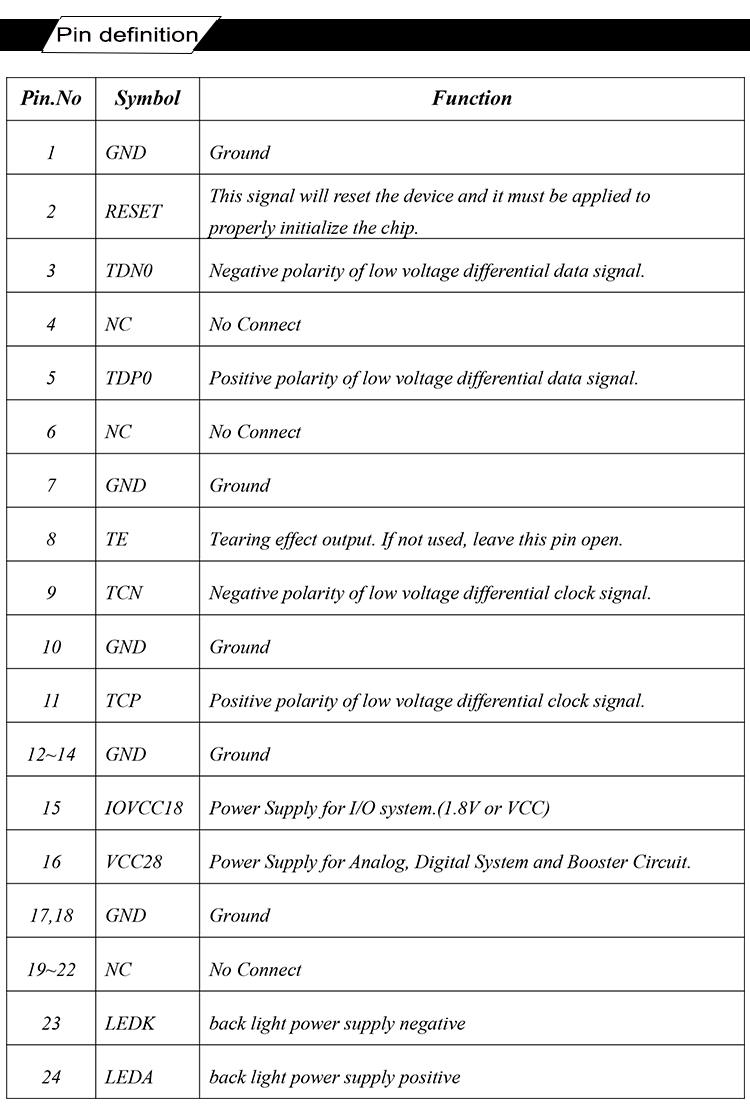

INTERFACE PIN FUNCTION
