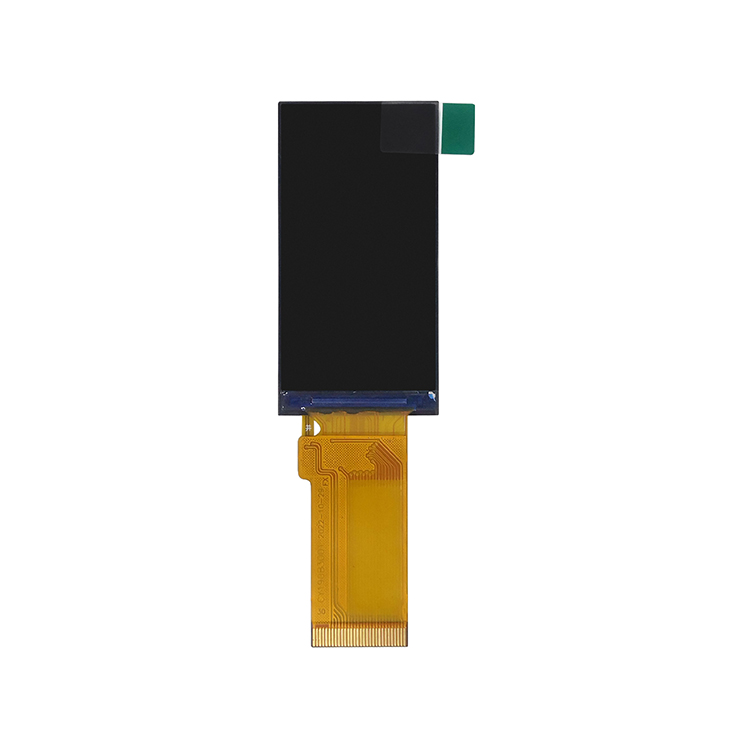

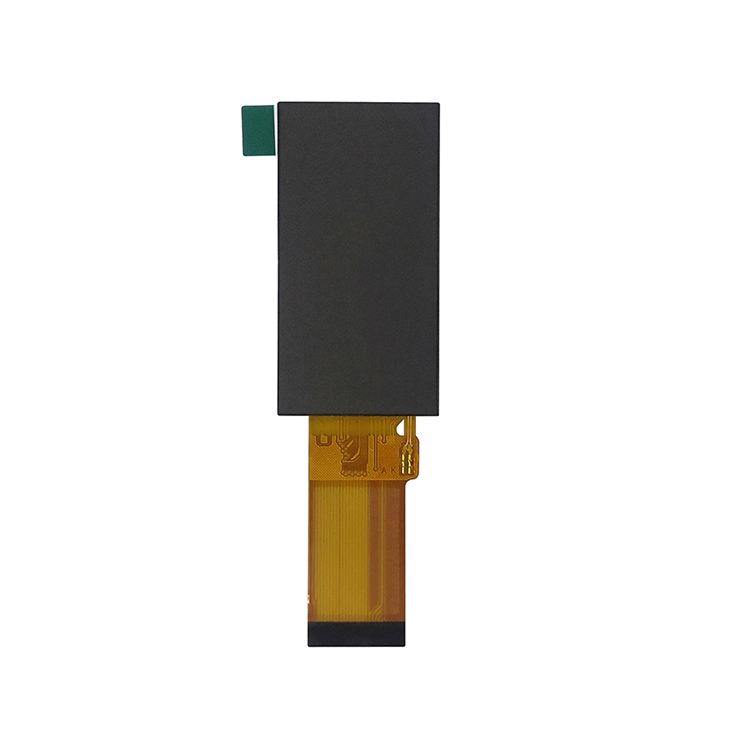

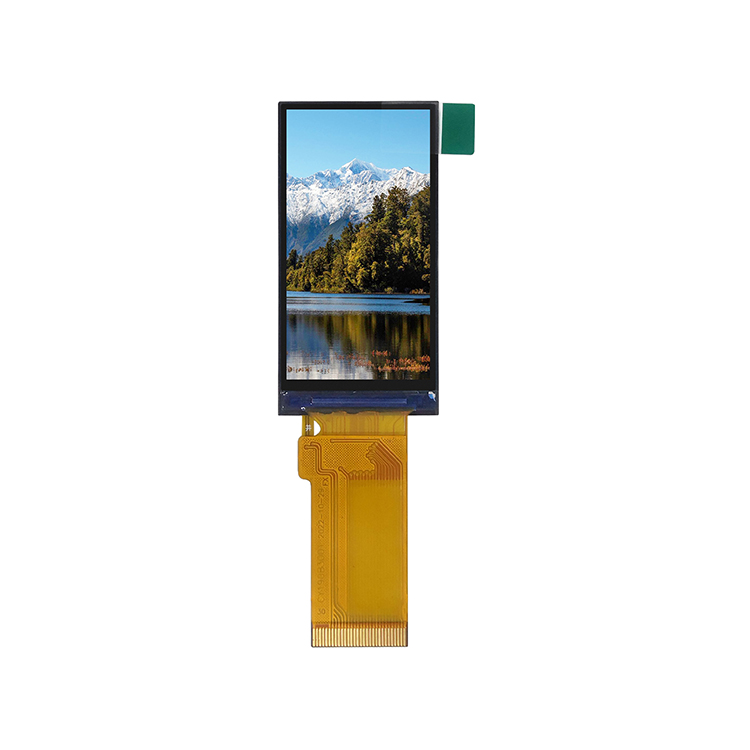

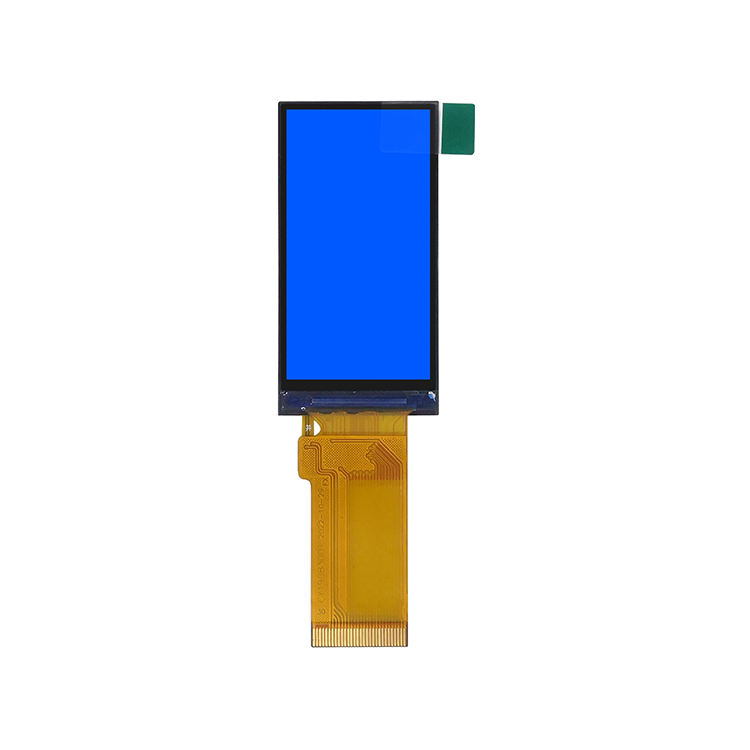

tft lcd Display | tft lcd Module

DESCRIPTION

HICENDA TFT display module is a transmissive type color active matrix TFT(Thin Film Transistor)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is

composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.9”

contains 170(RGB)X320 dots and can display up to 262k colors

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT1906C30
Diagonal Screen size:	1.9 inch
Interface:	4-SPI/8bit 8080
Backlight:	LED
Number of Pixels:	170(RGB)×320
Panel Size:	25.8(H) ×49.72(V)×1.43(T)(mm)
Driver IC:	ST7789V2
Active Area:	22.7 (H)×42.72(V)(mm)
Display Mode:	Normally white/Transmissive
Driver IC:	ST7789V2
Weight:	TBD
Operating Temperature:	-20～70ºC

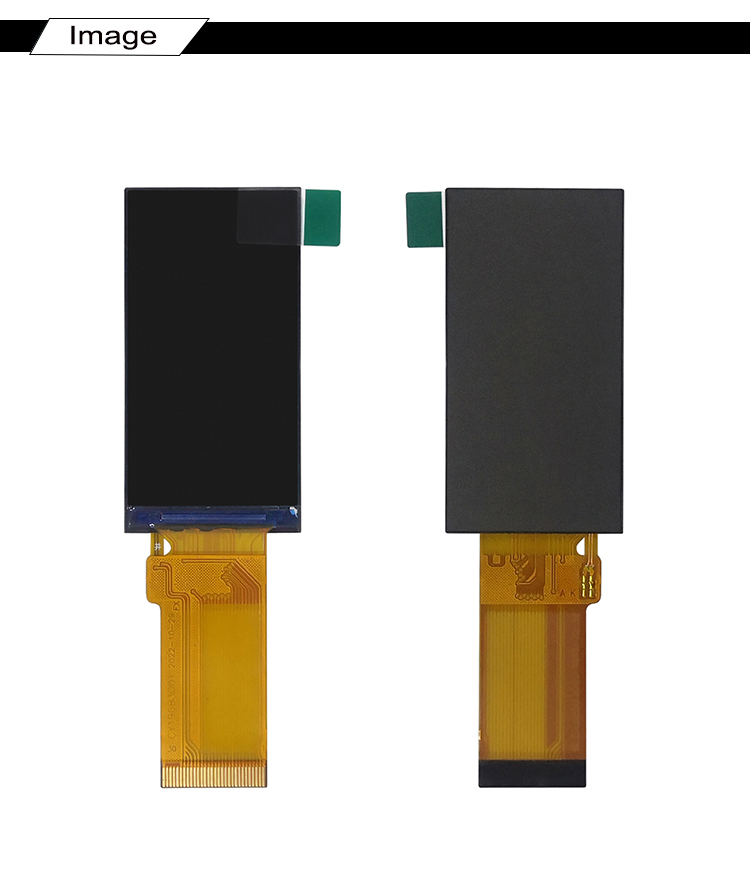

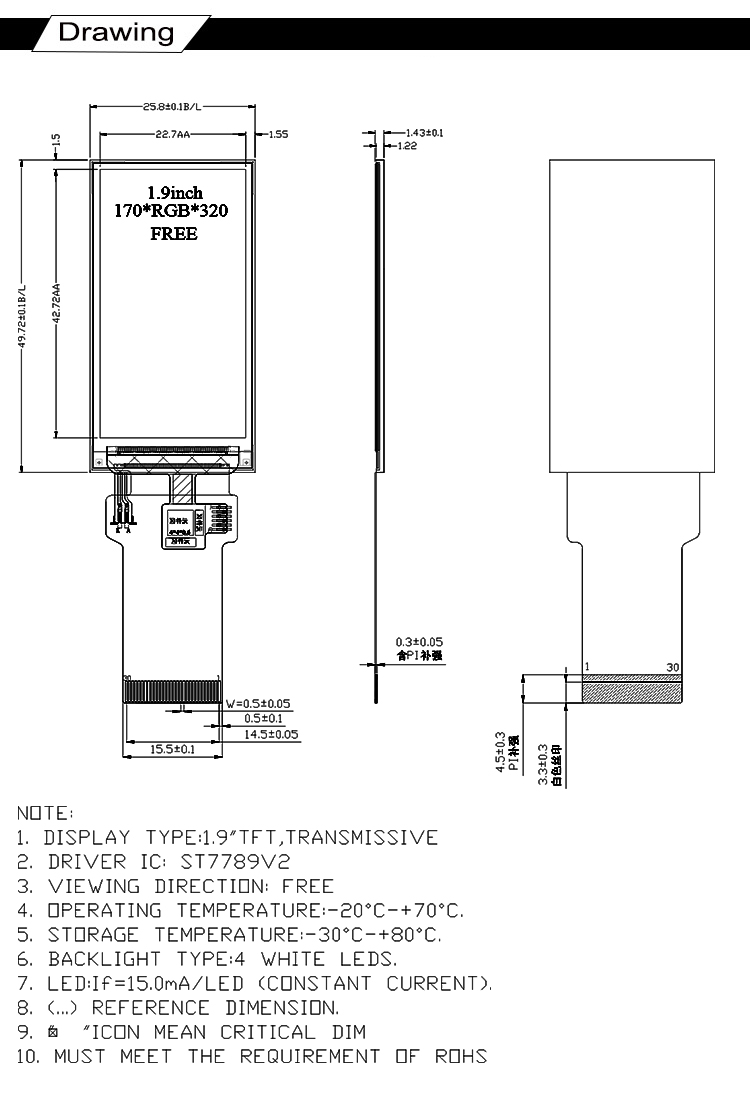

DRAWING

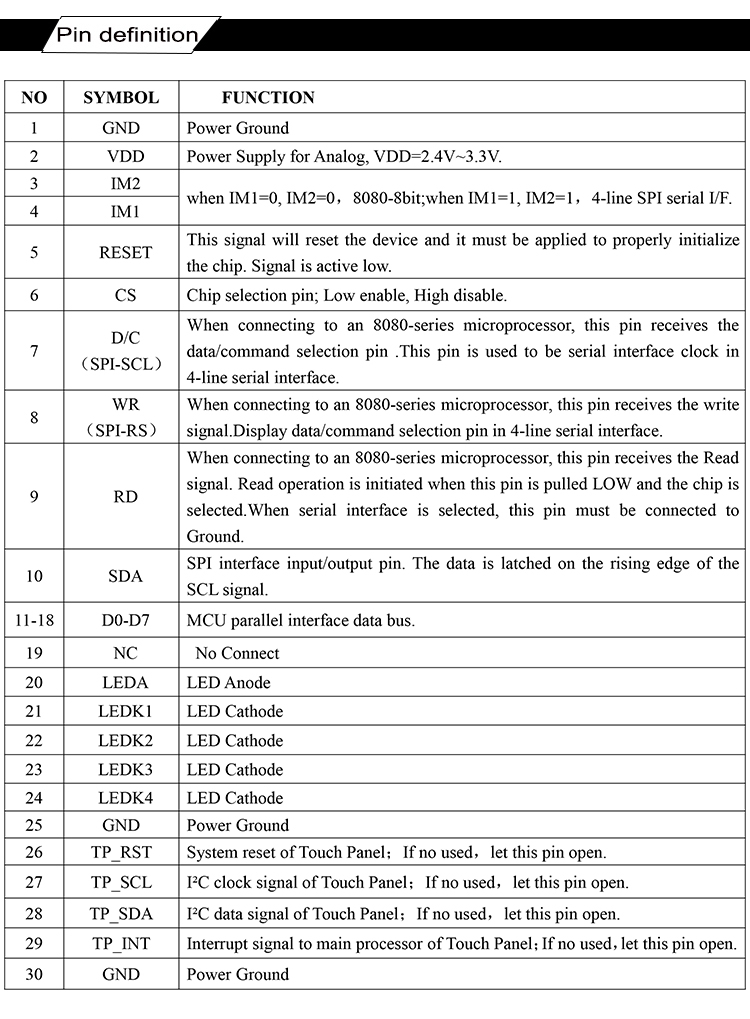

INTERFACE PIN FUNCTION
