SONY Microdisplay 0.71 inch OLED Display 1920 (RGB)×1080

Product Introduction

SONY Microdisplay 0.71 inch OLED Display 1920 (RGB)×1080

Product Description

The HAECX335AF is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

(Applications: View finders, head mounted displays, very small monitors etc.)

General Specification

Resolution	1920x1080dots
Display type	AMOLED
Active area	0.71 inch
PPI	3155
Interface type	LVDS

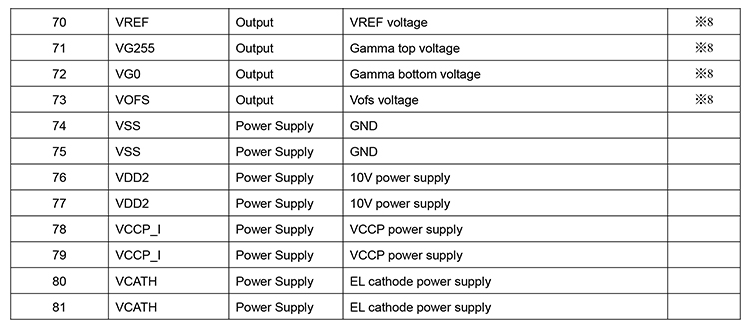

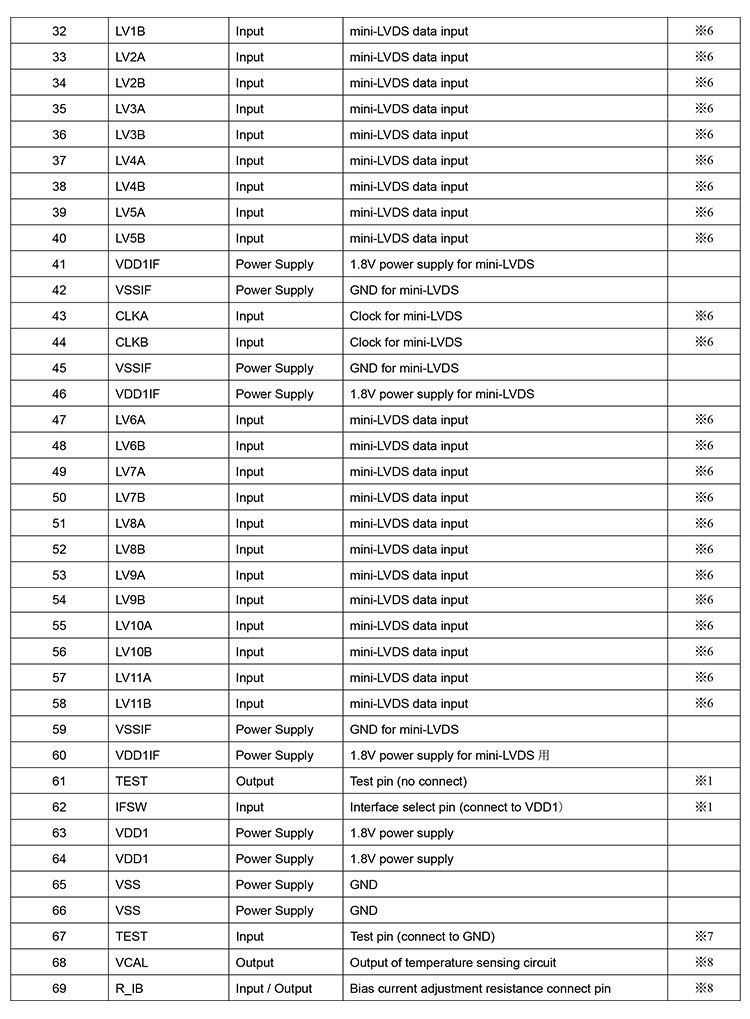

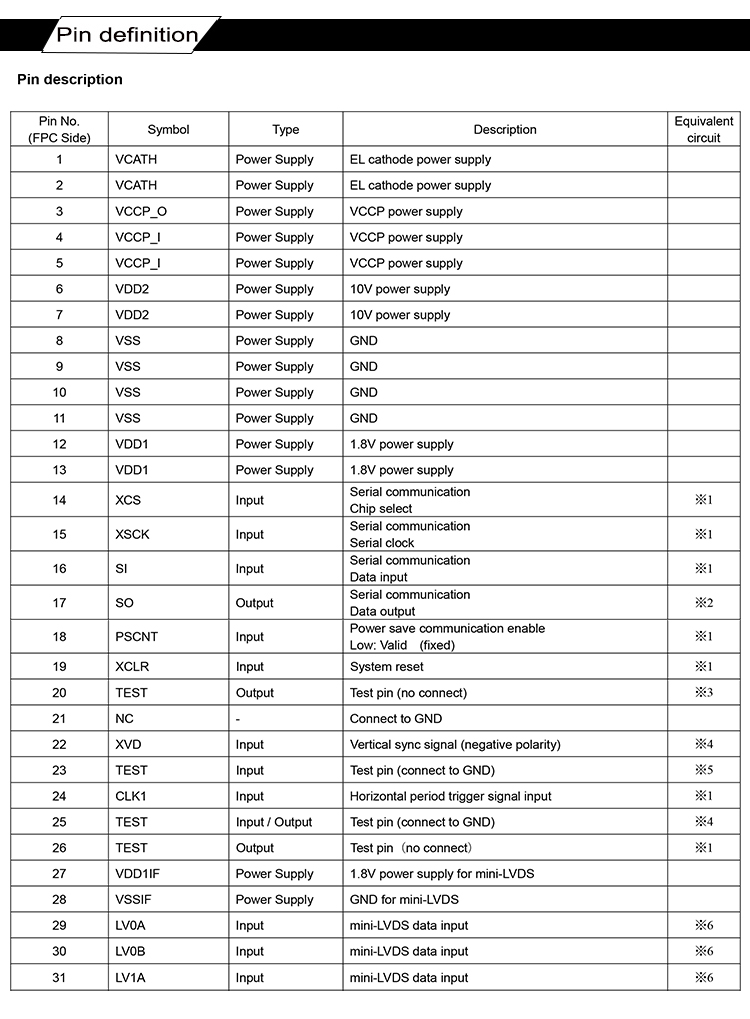

Connector	81pin
Operating temperature	0~70C
Storage temperature	-20~80C
