0.4 Inch 1280x960 FLCOS Micro Display Kit with HDMI Board & Optical Prism

Product Introduction

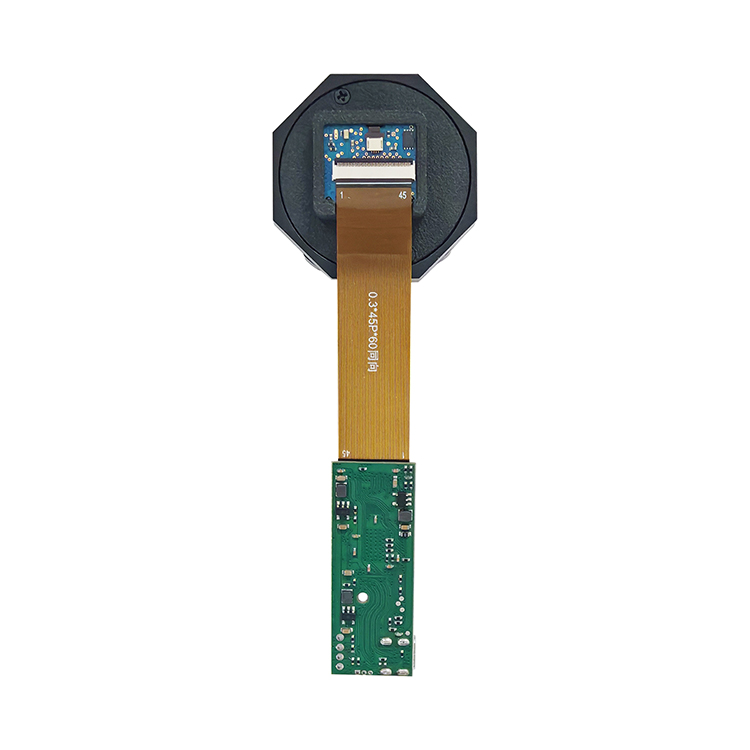

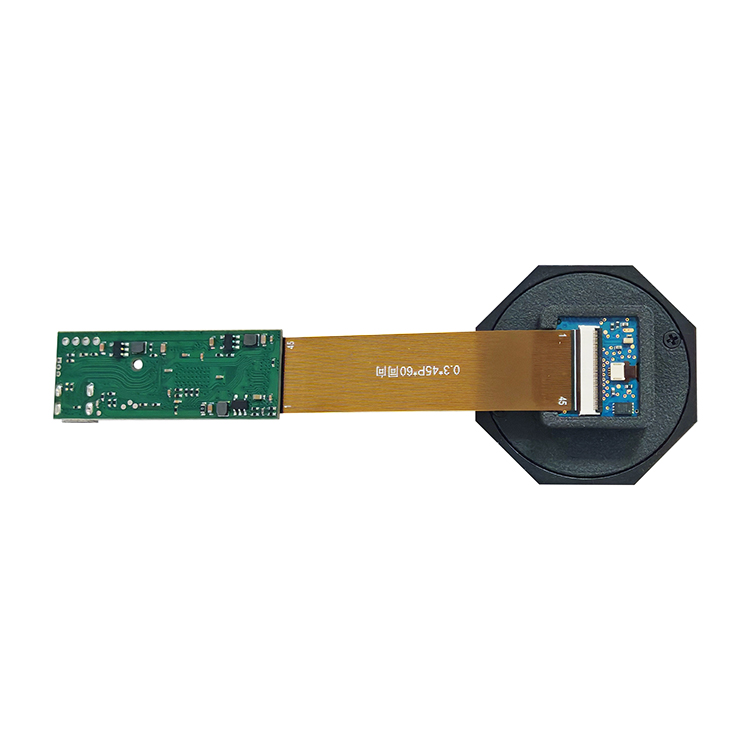

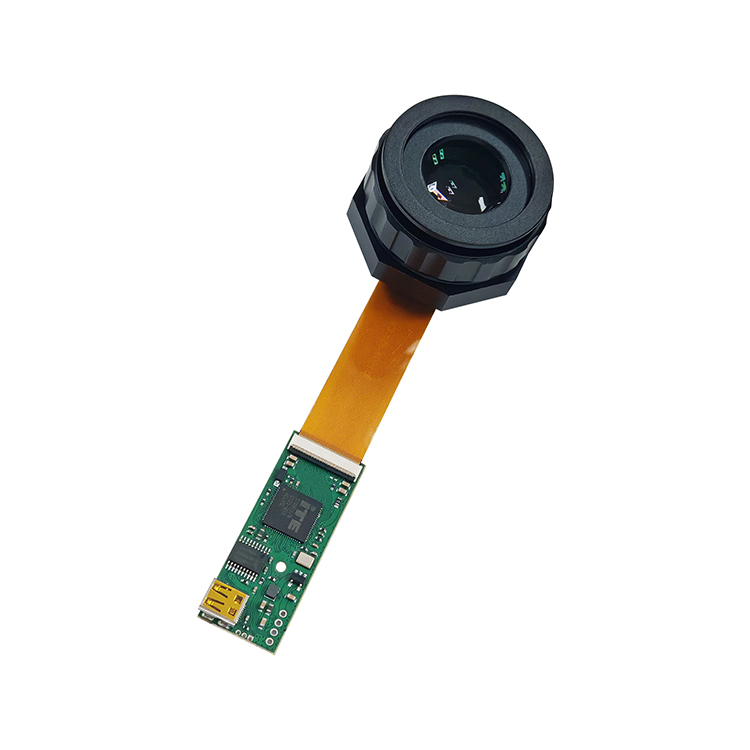

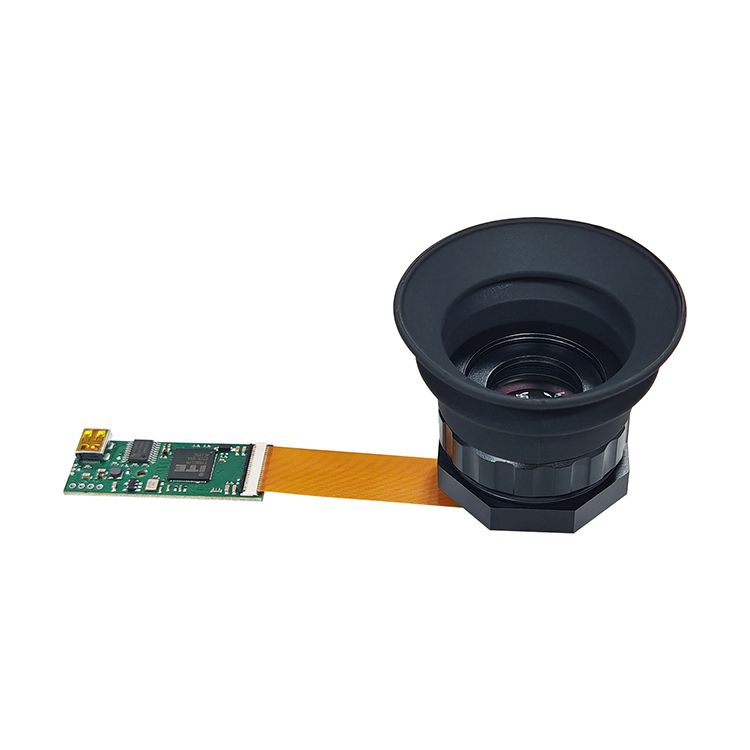

0.4 Inch 1280x960 FLCOS Micro Display Integrated Kit (FL09S)

Product Description

The 0.4 inch FLCOS Micro Display Kit is a high-performance, plug-and-play micro optical engine designed for next-generation smart glasses, thermal imaging scopes, night vision devices, and augmented reality (AR) systems. This integrated kit combines the FL09S 0.4" FLCOS panel, a precision-engineered 12.5X optical magnifying prism lens, and a compact HDMI driver board, delivering a complete visual solution straight out of the box.

Powered by advanced Ferroelectric Liquid Crystal on Silicon (FLCOS) reflective display technology, this module offers a sharp 1280 (RGB) × 960 resolution with a dense pixel pitch of 6.35 μm. The reflective display delivers high-contrast visuals, rich 24-bit color depth (16.78M colors), and extraordinarily fast response rates (up to 540Hz), making it ideal for high-speed motion viewing without frame distortion or blur.

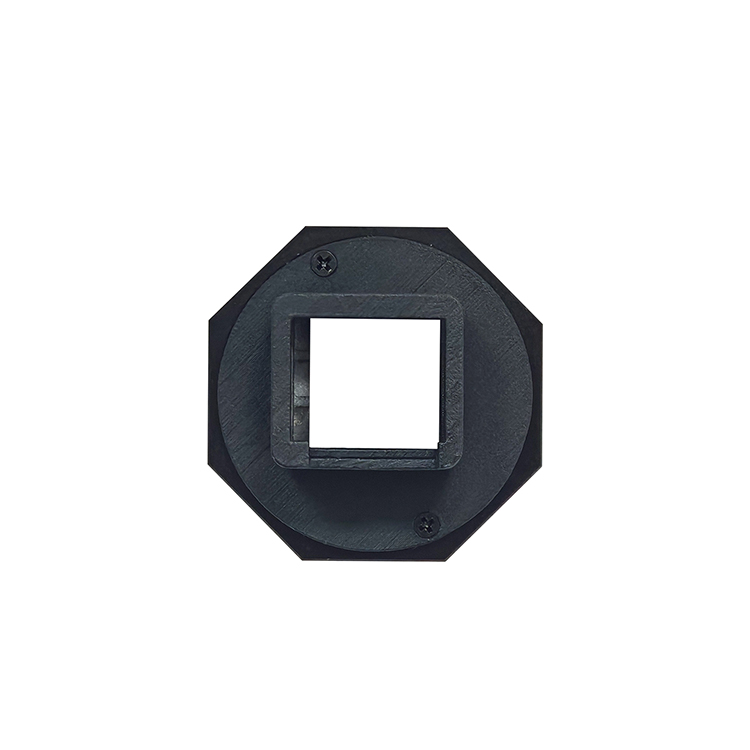

The custom-matched optical prism (Model: OP-FL12.5) is built with durable metal and optical glass, boasting an impressive <1% optical distortion and wide diopter adjustability (-500 to +400). Coupled with a user-friendly HDMI driver interface (supporting RGB888/YCbCr formats), engineers and product developers can dramatically shorten R&D cycles and accelerate time-to-market.

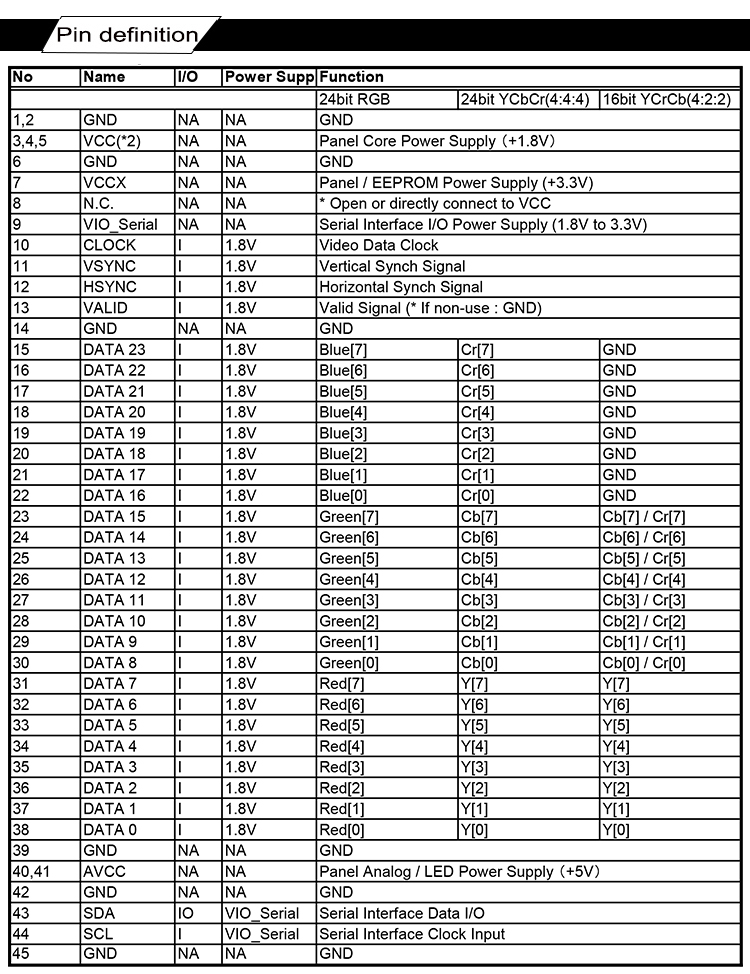

General Specification

Category	Parameter	Specification
Display Panel	Model No.	FL09S
	Display Technology	FLCOS (Ferroelectric LC on CMOS, Reflective)
	Display Size	0.4 inches (10.16 mm Diagonal)

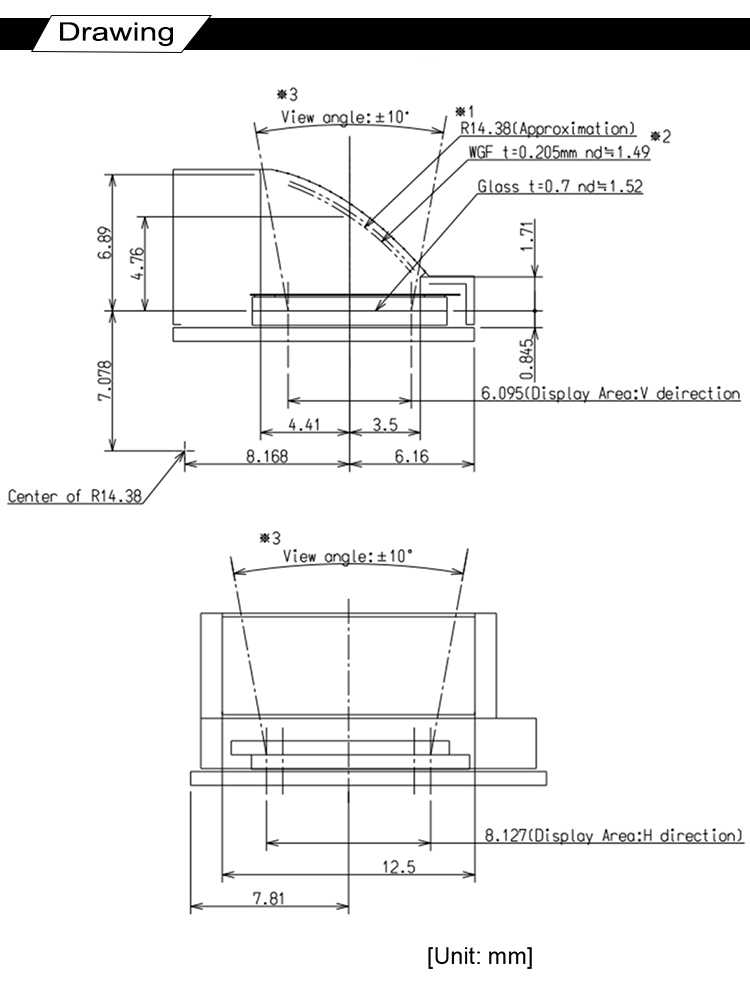

	Active Area	8.127 × 6.095 mm
	Resolution	1280 (RGB) × 960
	Luminance	220 cd/m² (Typical, Color)
	Contrast Ratio	150:1 (Typical)
	Pixel Pitch	6.35 μm
	Color Depth	16.78 Million Colors (8-bit)
	Refresh Rate	60Hz / 540Hz (NTSC), 50Hz / 450Hz (PAL)

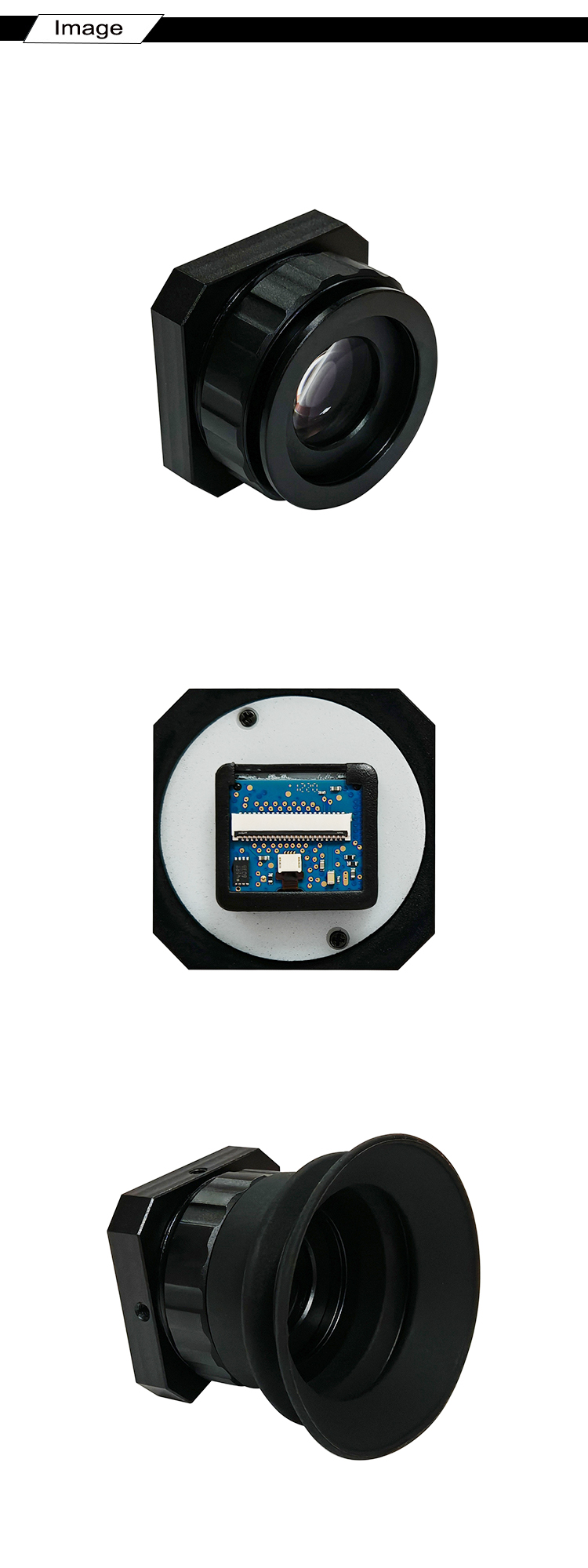

Optical Lens	Lens Model	OP-FL12.5
	Magnification	12.5X
	Focal Length	20 mm
	Entrance Pupil Diameter	6 mm
	Exit Pupil Distance	26 mm
	Optical Distortion	< 1%
	Diopter Adjustment	-500 to +400 (Diopter)
	Lens Construction	Metallic + Glass
	Mount	M29 * 0.75
	Focus / Iris Operation	Manual Focus / Fixed Iris
	Lens Weight	55 g
	Lens Outer Dimension	Φ 38.5 × 41 mm
System & Driver	Interface Board	HDMI Board (Plug-and-Play)
	Input Format	RGB888 / YCbCr (4:4:4)
	Display Operating Temp.	-10°C to 70°C
	Lens Operating Temp.	-20°C to 80°C

Key Features

Turnkey Integrated Solution: Complete optical system pre-assembled with a 0.4" 1280x960 FLCOS display, custom HDMI driver board, and 12.5X magnifying optical prism lens.
High-Resolution Crisp Imaging: Features SVGA+ (1280x960) resolution with a fine 6.35 μm pixel pitch and 16.78M true colors for ultra-clear optical output.
Ultra-Fast FLCOS Technology: Utilizes Ferroelectric Liquid Crystal on Silicon technology offering sub-millisecond response times and ultra-high refresh rate support (up to 540Hz).
Plug-and-Play HDMI Interface: Driver board accepts standard RGB888 / YCbCr video signals via HDMI, streamlining prototyping and mass-production integration.
Industrial-Grade Optical System: Premium metallic + glass lens design featuring high 12.5X magnification, ultra-low optical distortion (<1%), and wide diopter adjustment (-500 to +400).
