Product Introduction

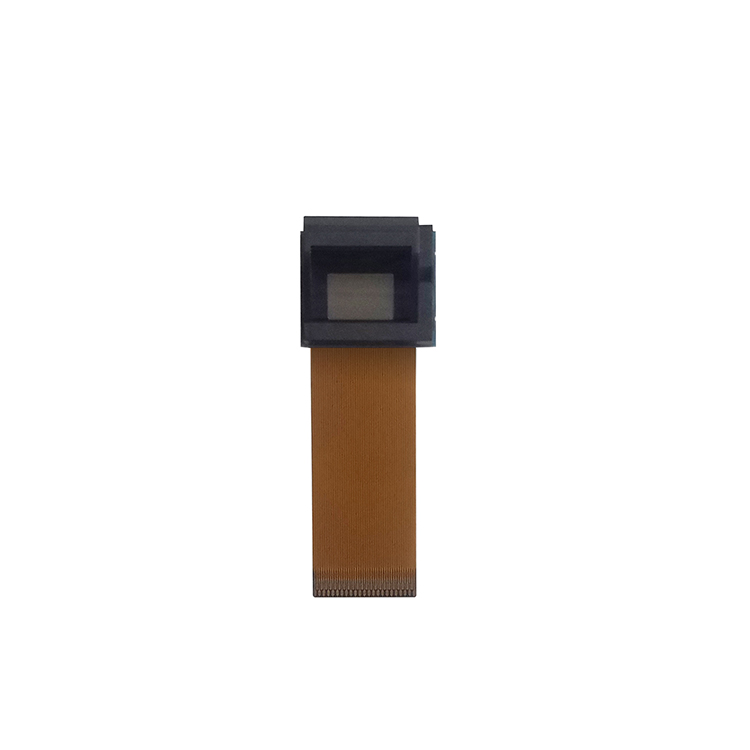

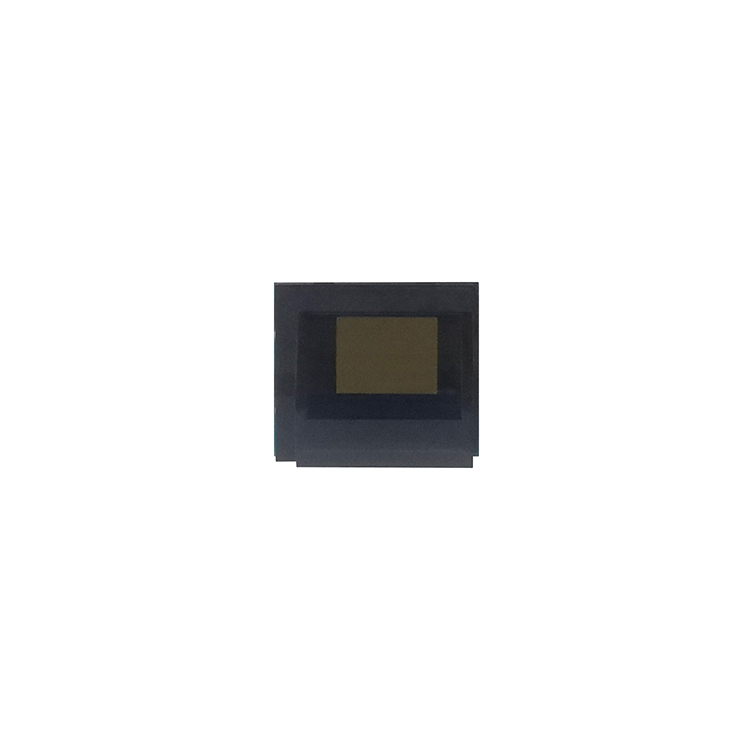

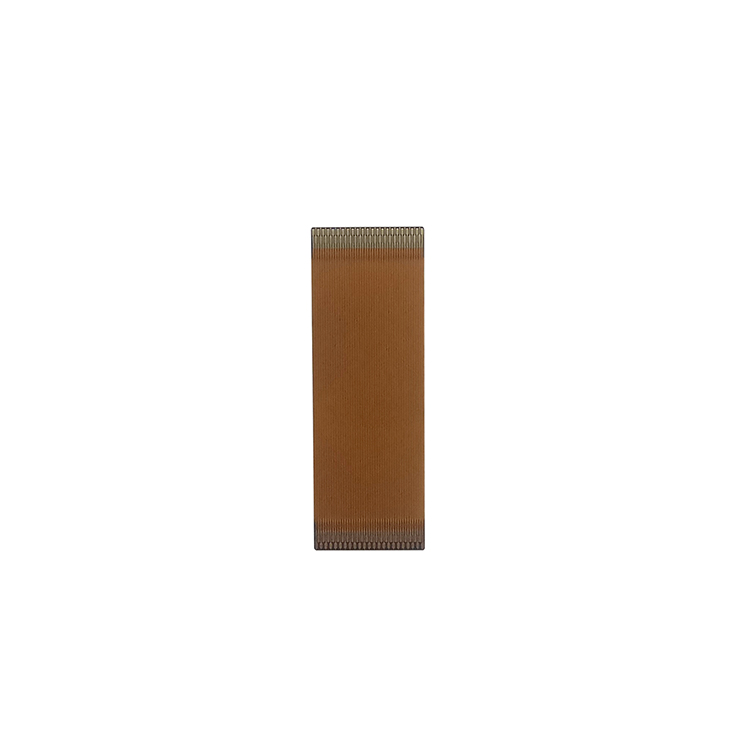

Micro LCOS display 0.4 inch 1280(RGB)x960 for AR VR
Product Description
HICENDA 1280(RGB)X960 FLCOS micro display is a high-resolution, High light-emitting OLED micro display based on a CMOS backplane that also has a standard video interface.The display integrates a panel drive unit and a logic drive unit, while using low power consumption and RGB interface.
This product has high contrast, high consistency and highlight performance.
(Applications: View finders, head mounted displays, very small monitors, etc.)
General Specification
| Display Type: | flcos display |
| Display Mode: | Field sequential color |
| Model Number: |
flcos040 |
| Diagonal Screen size: | 0.40 Inch |
| Interface: |
RGB888/RGB666/RGB565/YCbCr(4:4:4)/YCbCr(4:2:2)
|
| Number of Pixels: |
1280(RGB)X960 |
| Panel Size: |
10.16mm (0.40'')
|
| Active Area: |
8.127 x 6.095mm
|
|
Weight: |
TBD |
|
Operating Temperature: |
-10C to 70C (Panel temperature)
|

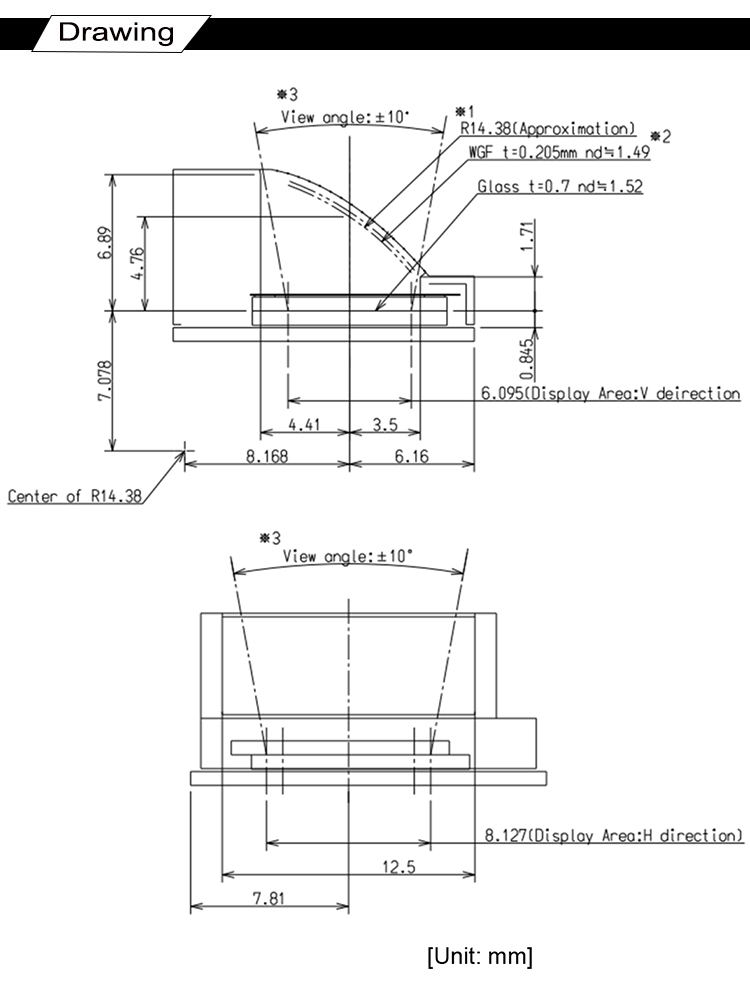

DRAWING

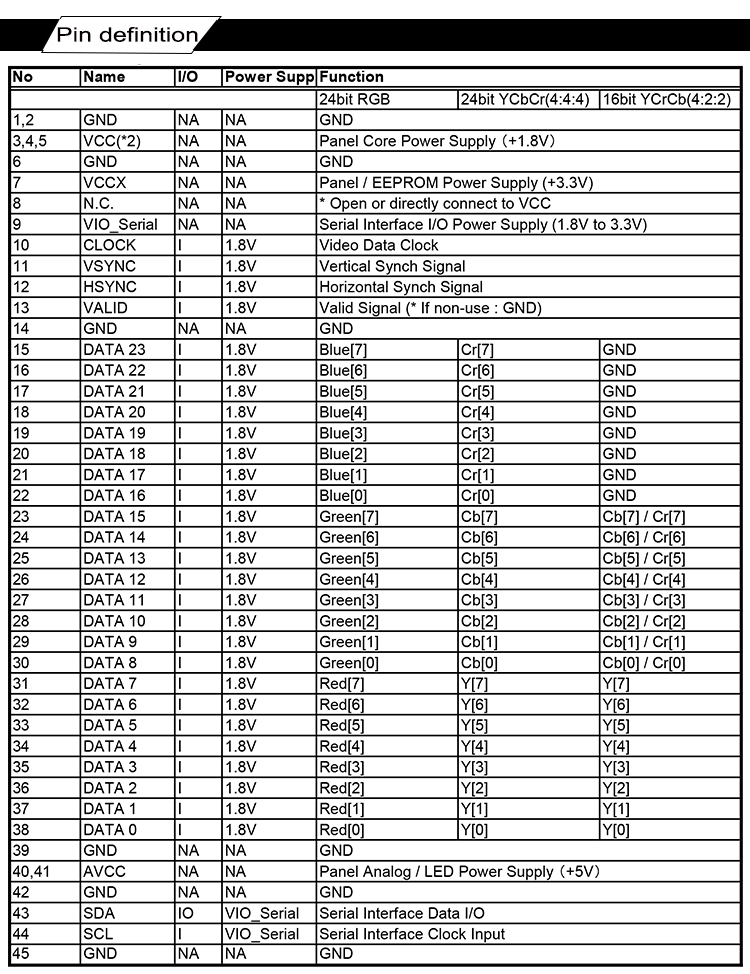

INTERFACE PIN FUNCTION
