Product Introduction

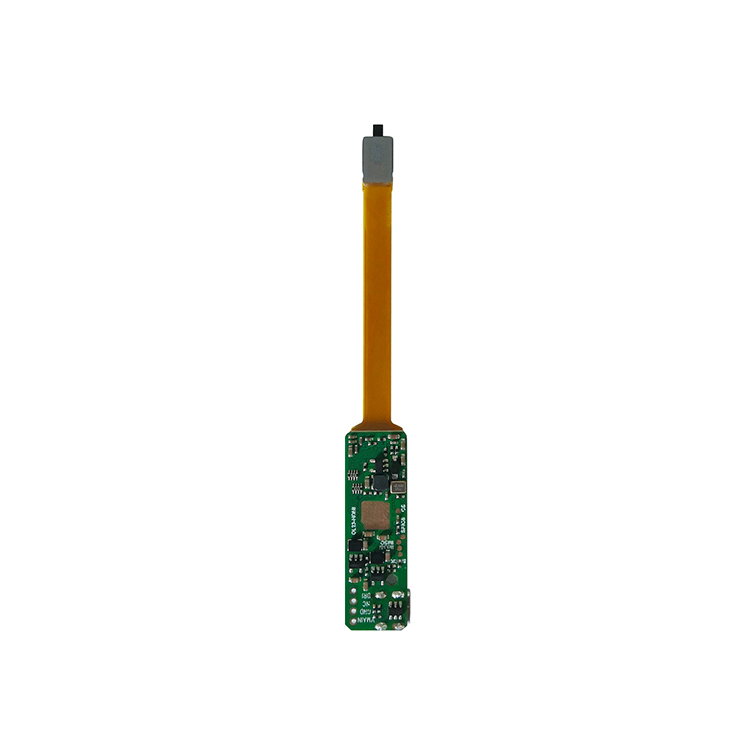

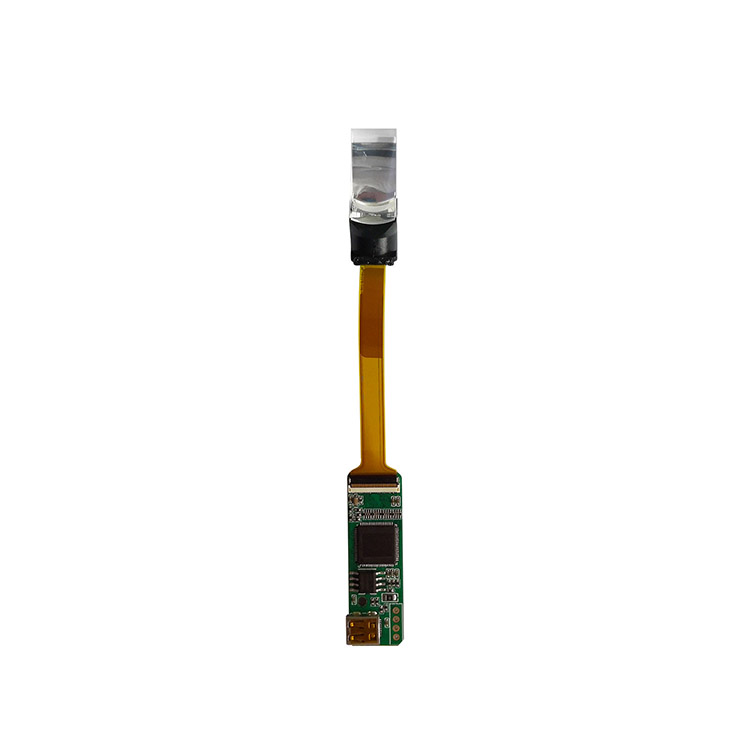

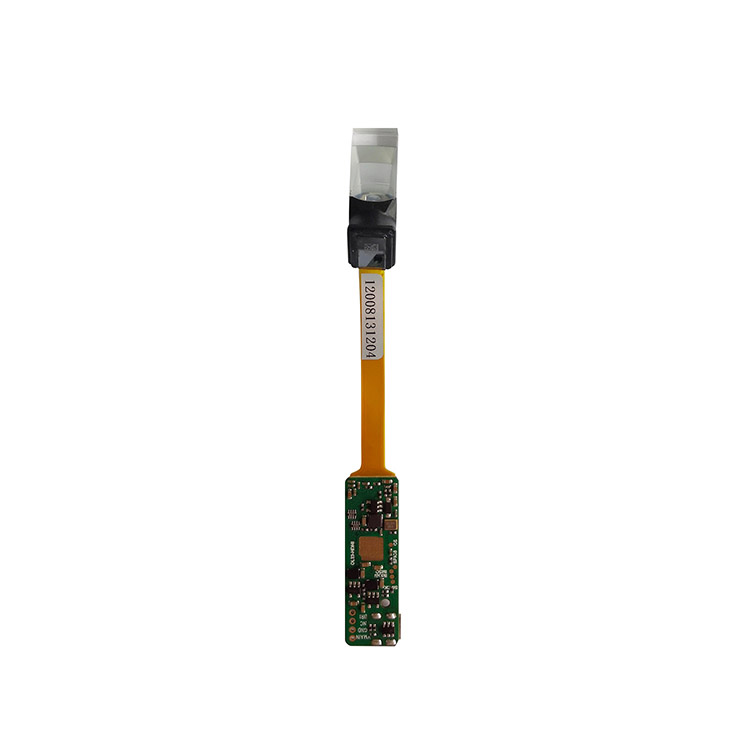

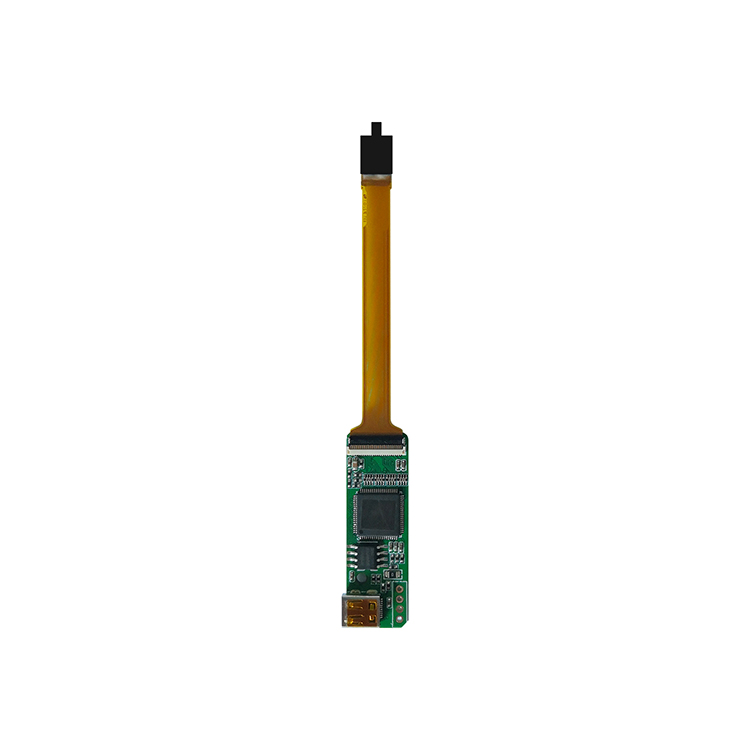

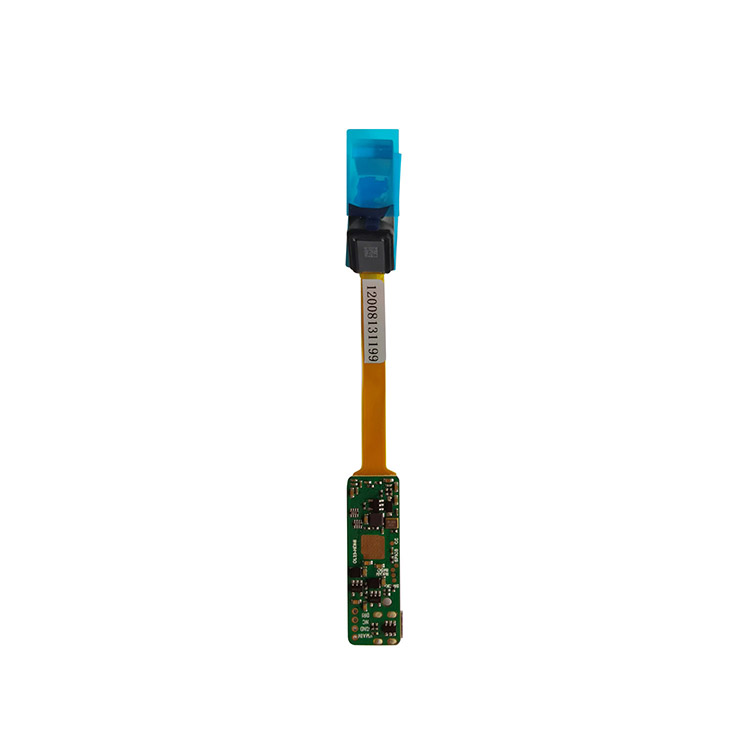

0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet


Product Description

The ECX336AF is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.
(Applications: View finders, head mounted displays, very small monitors, etc.)



General Specification


Display Type:                                                       oled display
Display Mode:  Passive Matrix
Model Number:

OL23BF

Diagonal Screen size: 0.23 inch
Interface:

parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

Number of Pixels:

640 (RGB) × 400

Panel Size:

15.6 x 13.6 x 0.2 (mm)

Active Area:

8.143x 6.146 (mm)

Weight:

TBD

Operating Temperature:

-10~70°


DRAWING



INTERFACE PIN FUNCTION
