Product Introduction

0.5 inch micro OLED display FHD 1280x960 dots AMOLED module MIPI I2C interface selectable 61 pins FPC with Eyepiece for AR/VR


Product Description

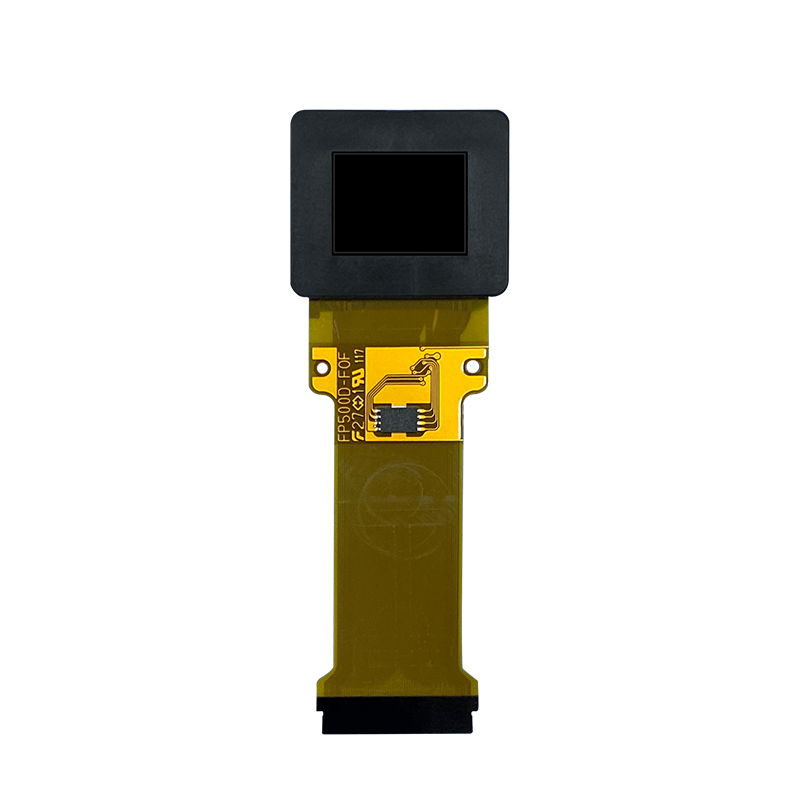

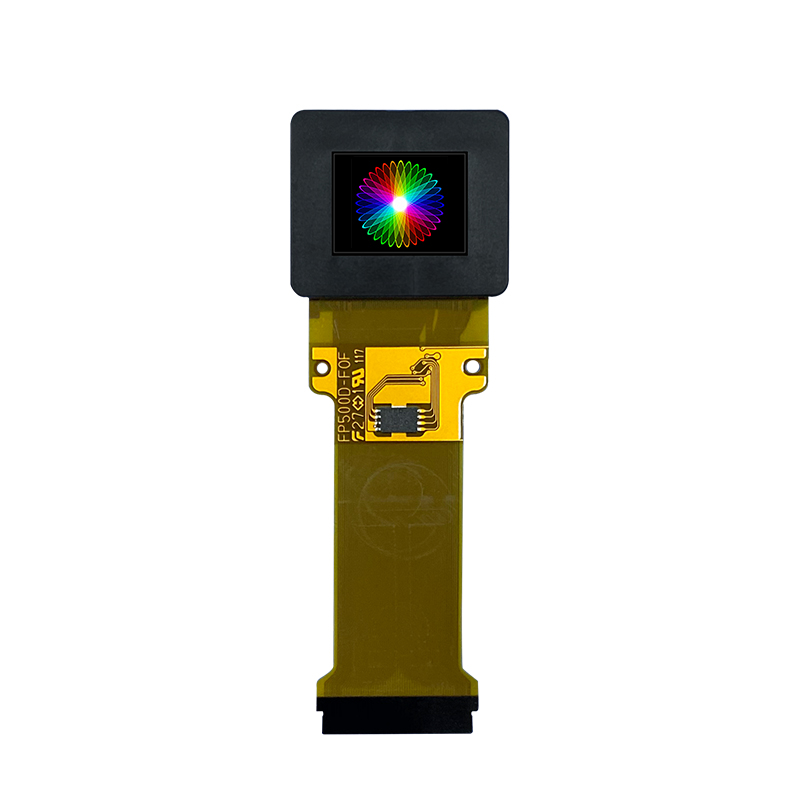

It is a 0.5 inch(1.3 cm) diagonal, FHD resolution(1280 x960), active matrix color OLED(Organic Light Emitting Display)panel module based on single crystal silicon transistors . The module integrates panel driver and logic driver,and achieves smaller size,light in weight and high resolution.

(Protential Application:Head mounted displays,View finders,Small monitors,Etc..)

Display Type:  oled display
Display Mode:  Passive Matrix
Model Number:

HG-ECX337RF

Diagonal Screen size: 0.5 inch
Interface:

 RGB

Number of Pixels:

1280 (RGB) × 960

Panel Size:

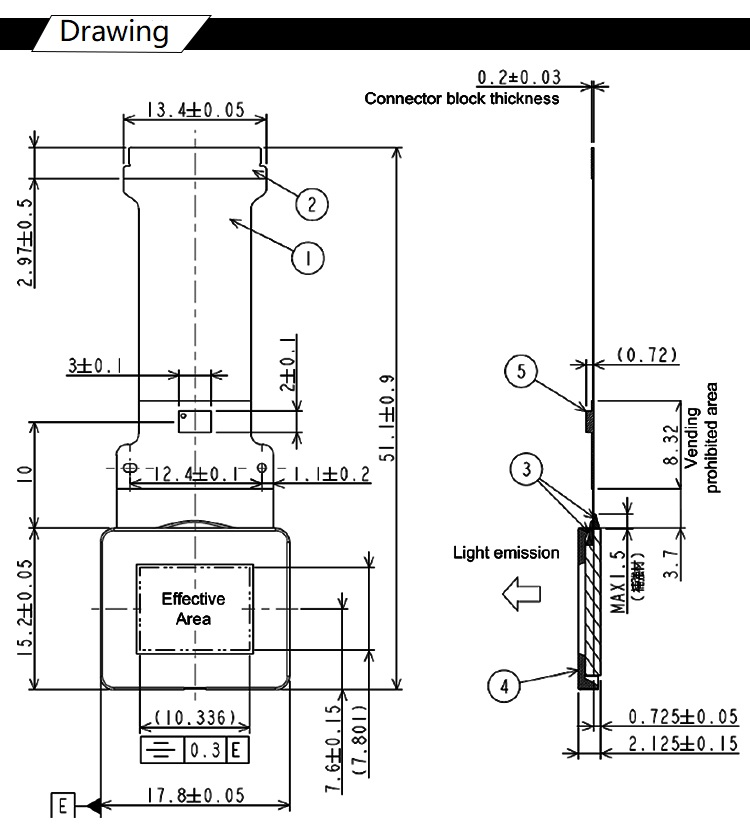

10.14(H) × 7.644(V)(mm)

Active Area:

17.8(H) × 15.2(V) (mm)

Weight:

TBD

Operating Temperature:

-10~70°
