Product Introduction

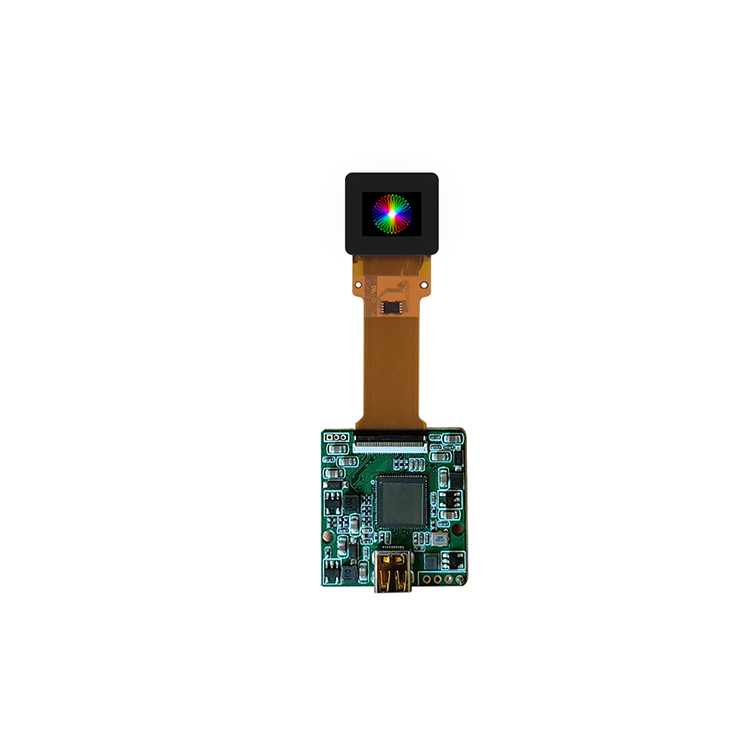

Microdisplay 0.39 inch OLED Display 1024X768 for AR


Product Description

HGECX331DB-6 is a 1.3 cm (0.5 inch) diagonal, 1024(RGB)X768 dots active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .
(Potential applications: Head mounted displays, View finders, Small monitors etc.)






General Specification


roduct model:  HGECX331DB-6
Size:   0.5 inches
Dimensions:  10.14(H) × 7.644(V)
 Appearance size (mm) 17.8(H) × 15.2(V)
Resolution:  1024*600
Brightness:  1000 CD /m (Max.)
Working temperature:  -10 ~ 70 ° C
Storage temperature:  -30 ~ 80 ° C

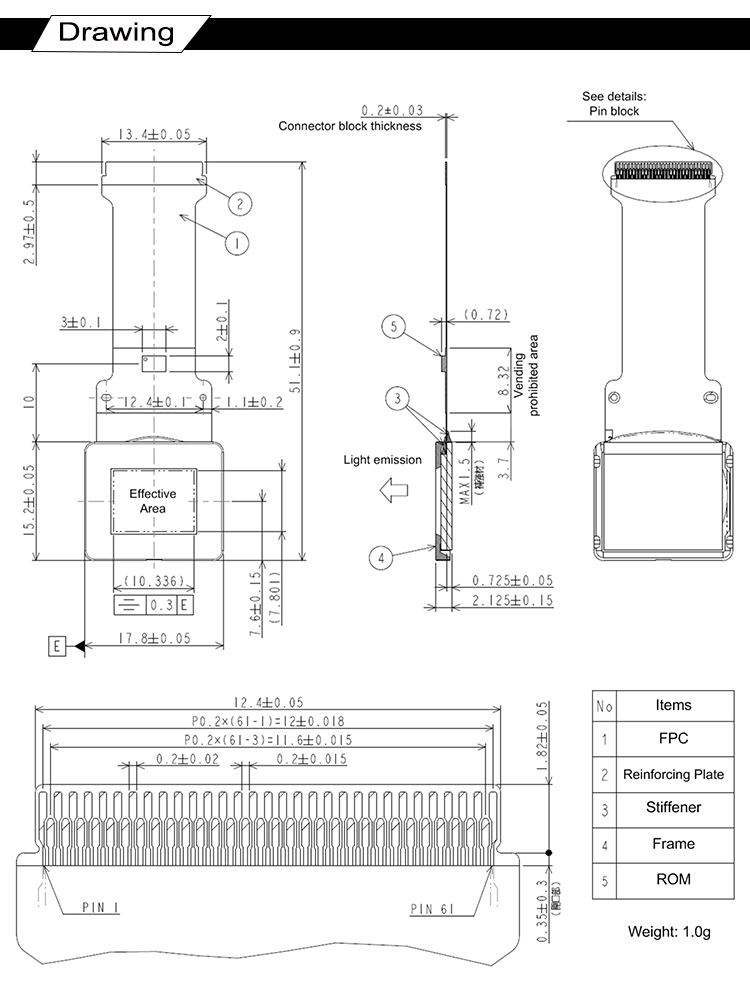

DRAWING

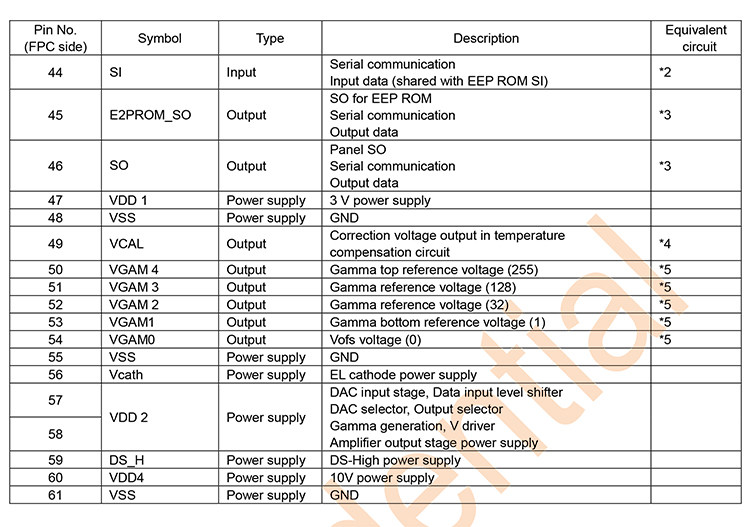

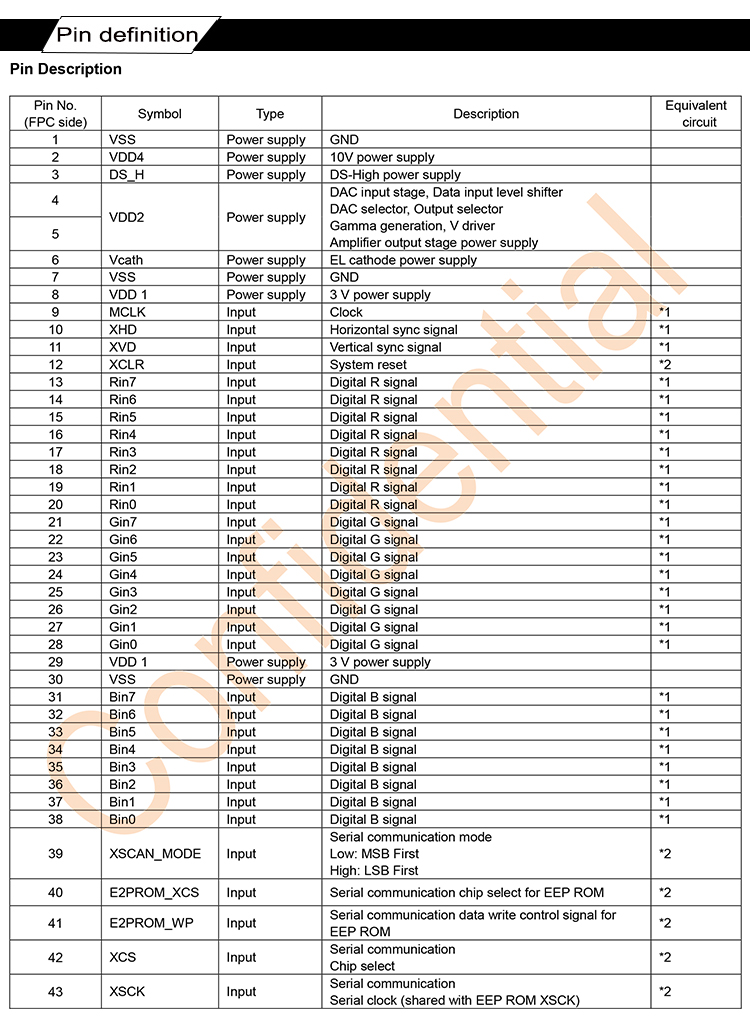

INTERFACE PIN FUNCTION
