Microdisplay 0.5 inch OLED Display 1280x960 for AR

Product Introduction

Microdisplay 0.39 inch OLED Display 1024X768 for AR

Product Description

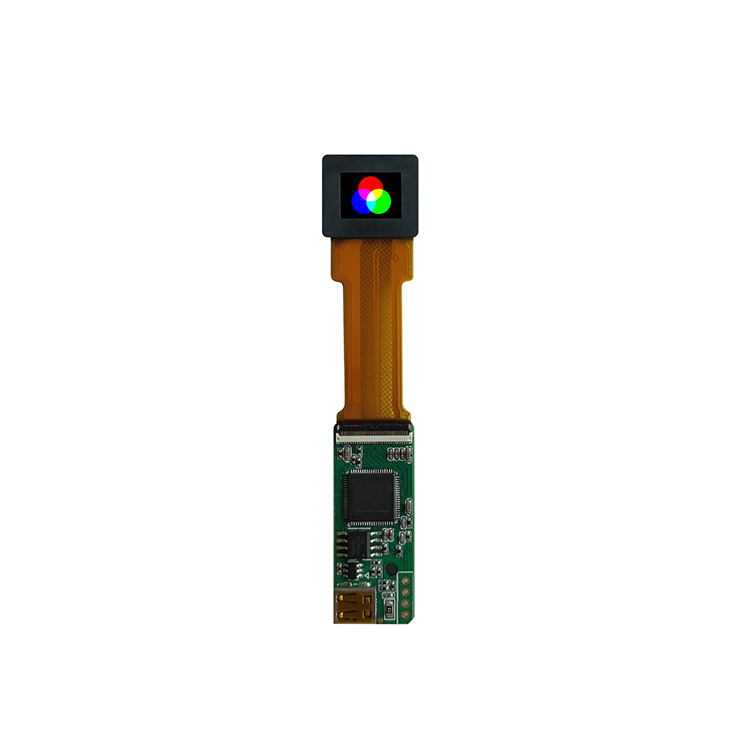

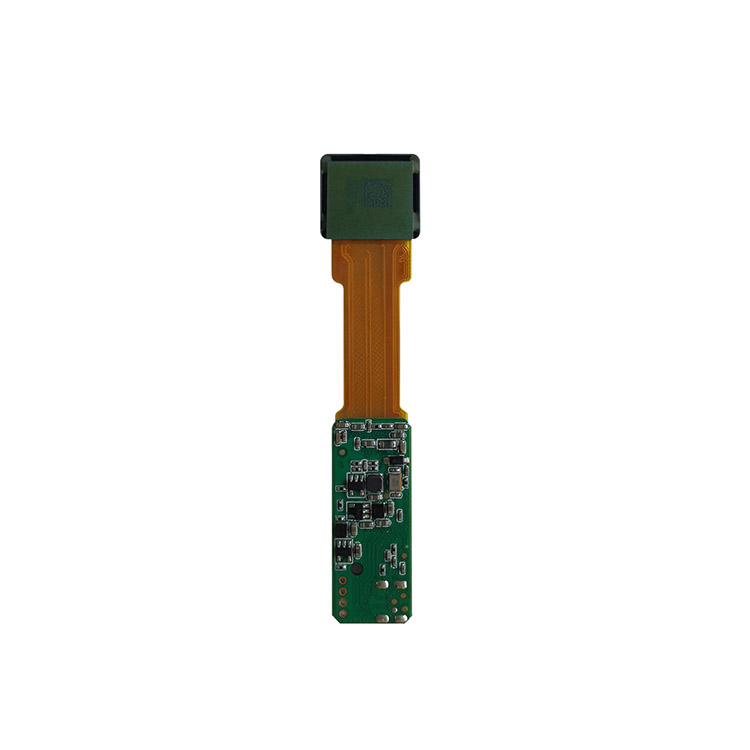

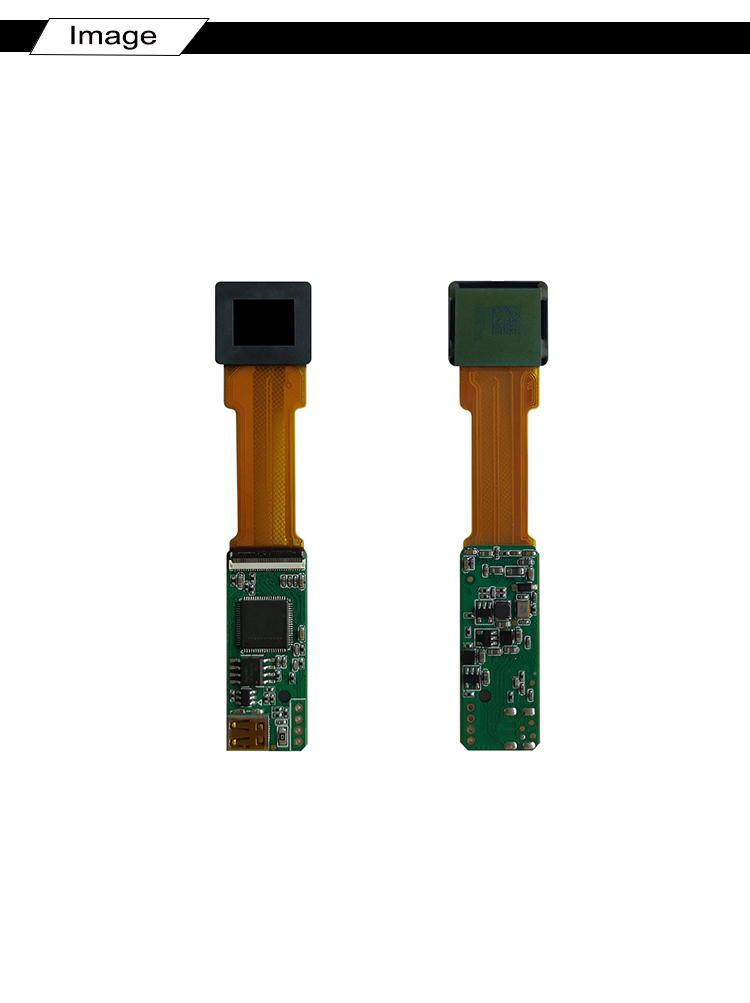

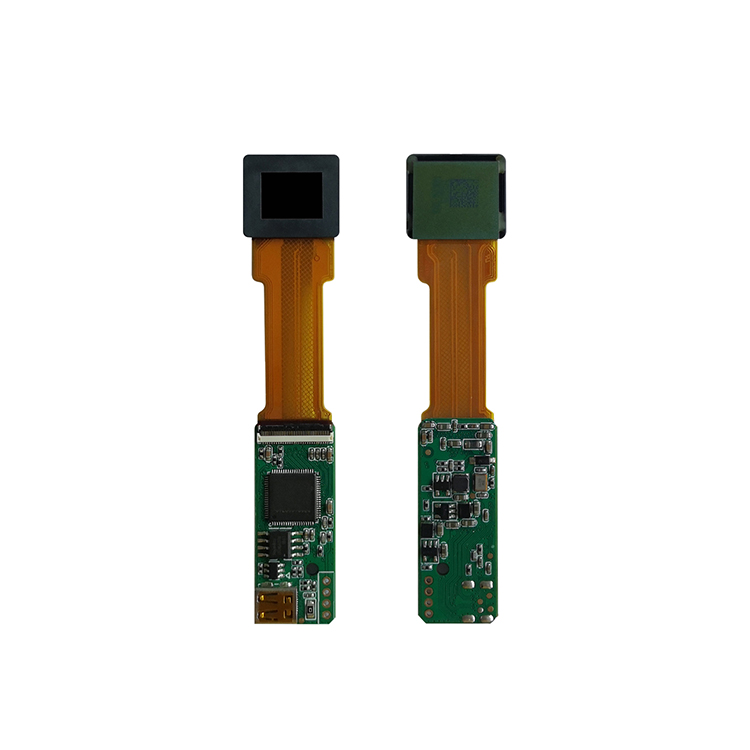

ECX337RF is a 1.3 cm (0.5inch) diagonal, 1280(RGB) × 960 dots active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .

(Potential applications: Head mounted displays, View finders, Small monitors etc.)

General Specification

Product model:	HGECX337RF
Size:	0.5 inches

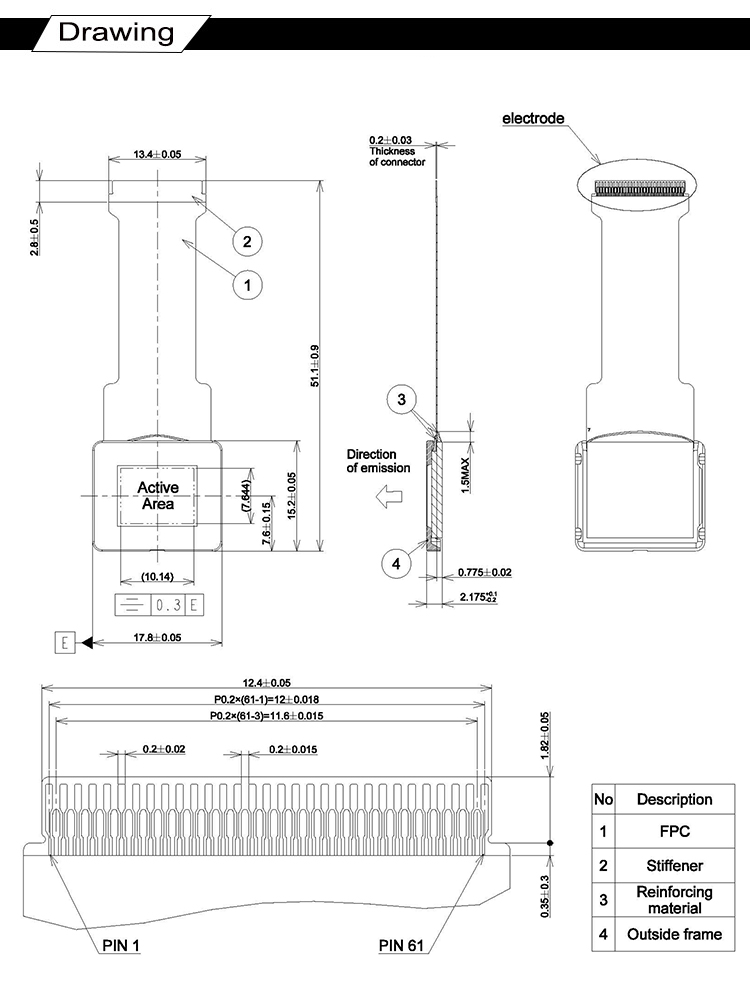

Dimensions:	10.14(H) × 7.644(V)
Appearance size (mm)	17.8(H) × 15.2(V)
Resolution:	1280 * 960
Brightness:	1000 CD /m (Max.)
Working temperature:	-10 ~ 70 ° C
Storage temperature:	-30 ~ 80 ° C
